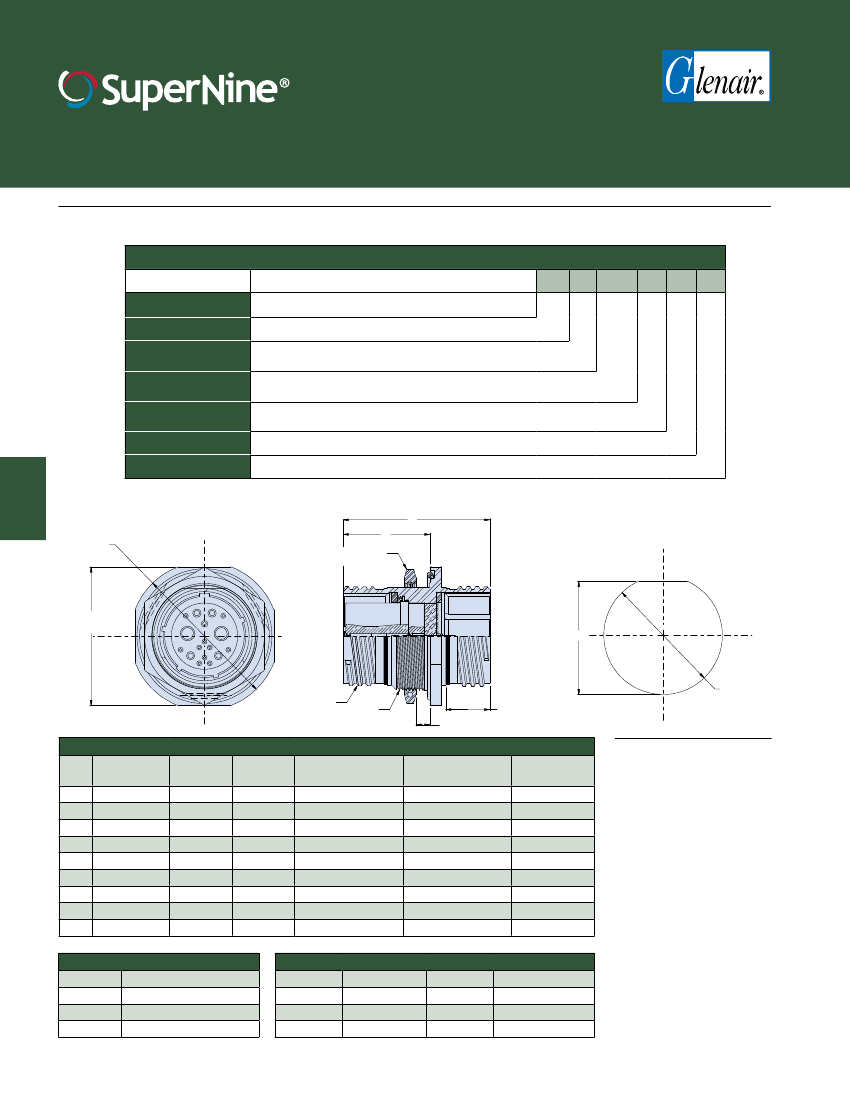

SERIES 23
MIL-DTL-38999 Series III type
Hermetic Connectors
233-103-H7 Jam nut mount bulkhead feedthru
H7 - JAM NUT HERMETIC FOR PANELS FROM .125" TO .500"
How To Order: 233-103
Sample Part Number
Series / Basic Part No.
Connector Style
Finish*
Shell Size-Insert
Arrangement*
Contact Type
Alternate Key Position*
Panel Thickness
233-103
Series 23 SuperNine® Hermetic Bulkhead Feedthru
H7
= Jam Nut Mount Receptacle
Z1
= CRES, Passivated
ZL
= CRES, Nickel Finish
See materials and finish summary page for this section
Per
MIL-STD-1560
-H7
Z1
19-35
S
N
-01
P
= Pin on jam nut side
PP
= Pin-Pin (See note 1)
A, B, C, D, E, N
= Normal
-01
= 125/.062
S
= Socket on jam nut side
SS
= Socket-Socket (See note 1)
-02
= .250/.062
-03
= .500/.062; See Panel Thickness Table
D
ØB
*Refer to Section A for complete details
Modification codes may be added directly to the end of any valid part number
G
H
Jam-Nut Per
D38999/28
Recommended
Panel Cut-out
C
A/F
B
A
N
T
P
M
L
K
S
H
J
C
D
E
F
E
N17SN-02
R
G
A Thd
2 Pl
F
Thd
.510/.495
Full-mate
Indicator
Typ 2 Pl
J
ØD
Dimensions
Shell
A Thread
Size 0.1 P-0.3L-TS-2
9
.6250
11
13
15
17
19
21
23
25
.7500
.8750
1.0000
1.1875
1.2500
1.3750
1.5000
1.6250
B Dia
1.189 (30.2)
1.375 (34.9)
1.500 (38.1)
1.626 (41.3)
1.752 (44.5)
1.937 (49.2)
2.063 (52.4)
2.189 (55.6)
2.311 (58.7)
C
1.063 (27.0)
1.252 (31.8)
1.374 (34.9)
1.500 (38.1)
1.626 (41.3)
1.811 (46.0)
1.937 (49.2)
2.063 (52.4)
2.189 (55.6)
D Dia
.703/.693 (17.9/16.6)
.835/.825 (21.2/21.0)
1.020/1.010 (25.9/25.7)
1.145/1.135 (29.1/28.8)
1.270/1.260 (32.3/32.0)
1.395/1.385 (35.4/35.2)
1.520/1.510 (38.6/38.4)
1.645/1.635 (41.8/41.5)
1.770/1.760 (45.0/44.7)
E Dim
.661/.653 (16.8/16.6)
.771/.761 (19.6/19.3)
.955/.945 (24.3/24.0)
1.085/1.075 (27.6/27.3)
1.210/1.200 (30.7/30.5)
1.335/1.325 (33.9/33.7)
1.460/1.450 (37.1/36.8)
1.585/1.575 (40.3/40.0)
1.710/1.700 (43.4/43.2)
F Thread Metric
X 1.0–6g
M17
M20
M25
M28
M32
M35
M38
M41
M44
NOTES
1. For PP or SS style, only
symmetrical layouts
may be selected. Power
to a given contact on
one end will result in
power to contact directly
opposite, regardless of
identification letter.
2. Hermeticity = less than
1 x 10
-7
cc/sec at one
atmosphere. Not for use
in liquid atmosphere.
3. Dimensions in Inches
(millimeters) are subject
to change without notice.
4. Consult factory for
additional information.
Hermetic Leak Rate Mod Codes
Mod Code
Required Leak Rate
-585A
1 x 10
-10
cc Helium per second
-585B
1 x 10
-9
cc Helium per second
-585C
1 x 10
-8
cc Helium per second
D-22
Dash No.
-01
-02
-03
Panel Thickness
G Dim, OAL
1.650 (41.9) max.
1.780 (45.2) max.
2.030 (51.6) max.
H Dim, Max
.889 (22.6)
1.090 (27.7)
1.340 (34.0)
J Dim, Panel
.125/.062 (3.2/1.6)
.250/.062 (6.4/1.6)
.500/.062 (12.7/1.6)
© 2014 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324 • Series 23 SuperNine® Catalog
