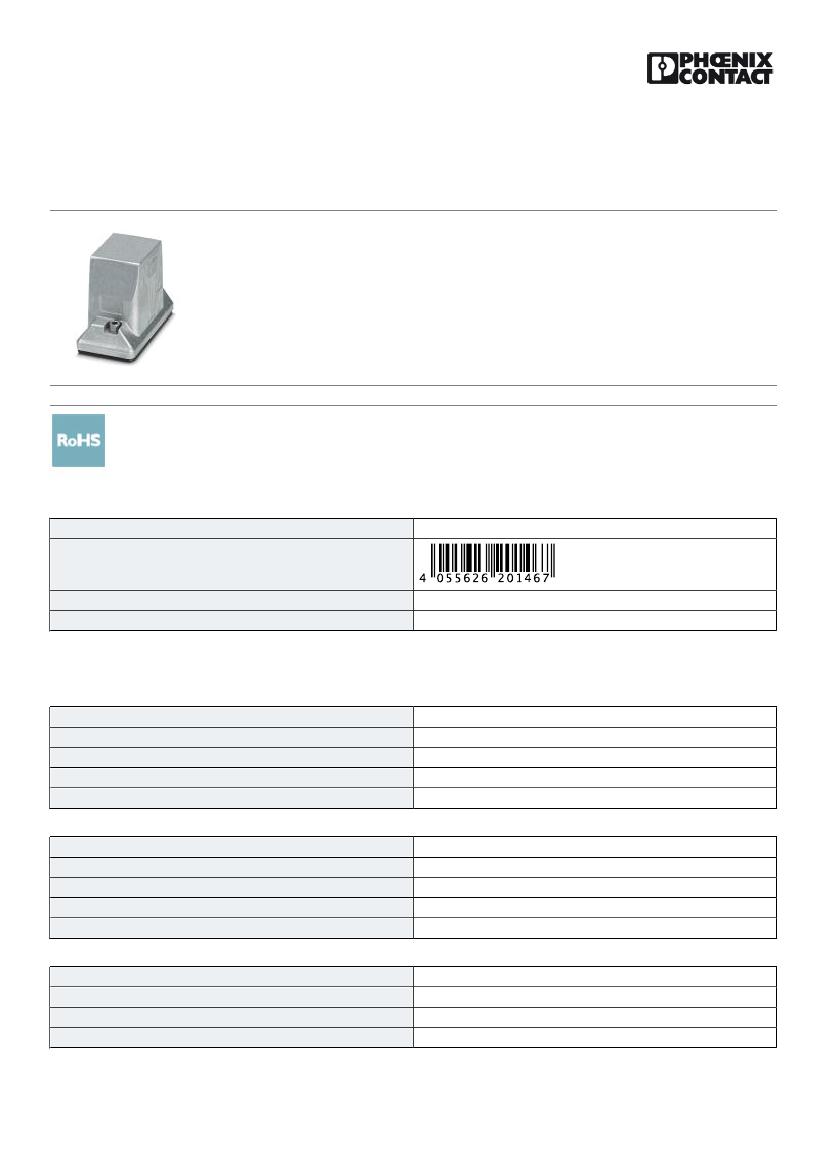

Housing - HC-ADV-B10-HLWH-BLANK-ELC-AL - 1420051
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Sleeve housing B10, Screw locking, Material: Die-cast aluminum, salt water resistant, Height: 74 mm, Cable
gland: none, Gland: no, Offshore/EMC, conductive seal (EMC properties), Without thread opening for screw
connection
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4055626201467
85389099
1 STK
Technical data
Dimensions
Height
Width
Length
Length of the assembly cutout
Width of the assembly cutout
74 mm
57 mm
105 mm
65 mm
35 mm
Ambient conditions
Degree of protection of housing (IP)
IP66
IP68 (0.2 bar/24 h)
IP69K (ISO 20653:2013-02)
Degree of protection of housing (NEMA)
Ambient temperature (operation)
4X (UL 50)
-40 °C ... 125 °C
General
Note
Size
Housing type
Color
For contact inserts HC-B10, BB18, DD42, M, K8/24
B10
Sleeve housing
aluminium
11/13/2016 Page 1 / 3
https://www.phoenixcontact.com/hq/products/1420051
Housing - HC-ADV-B10-HLWH-BLANK-ELC-AL - 1420051
Technical data
General
Locking type
Fixing screws
Screw connection
Housing material
Housing surface material
Seal material
Material lock
Assembly instructions
Screw locking
M6 (screw head: 5 mm Allen screw)
none
Die-cast aluminum, salt water resistant
Uncoated
NBR, conductive
Stainless steel
In order to guarantee that the ground conductor contact functions even
when plugged in at an angle, the two panel mounting flanges must have
sufficient electrical contact with the metal mounting panel.
To ensure optimum shielding, any insulating power coating must be
removed from the profile gasket area on the control cabinet panel.
Tightening torque of locking screw: 3 Nm.
Connection
Drawings
Dimensional drawing
83
65
Dimensional drawing
32
35
Ø4,5
1)
Ø3,6
2)
74
105
57
Dimensional drawing
Mounting cutout
1)
when M4 screws are used
2)
when self-tapping Torx® screws are used (Torx® 20, M4)
Diagram
Shield attenuation [dB]
80
70
60
50
40
30
20
10
0
30M 40M 50M 70M 100M
200M 300M 400M
Frequency [Hz]
600M
1G
Shield attenuation
11/13/2016 Page 2 / 3
https://www.phoenixcontact.com/hq/products/1420051
Housing - HC-ADV-B10-HLWH-BLANK-ELC-AL - 1420051
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC 7500651.22.01.00246
