NJW1130A
PPRELIMINARY
SOUND PROCESSOR with SOUND ENHANCEMENT
s
GENERAL DESCRIPTION
The
NJW1130A
is a sound processor with sound
enhancement (BBE). It includes all of functions processing
audio signal for TV, such as tone control, balance, volume,
mute, and AGC functions.
Also the
NJW1130A
performs surround and sound
enhancement. The sound enhancement regenerates high
definitive and nearly real sound.
2
All of internal status and variables are controlled by I C
BUS interface.
s
PACKAGE OUTLINE
NJW1130G
s
FEATURES
q
Operating Voltage
(8 to 13V)
2
q
I C BUS Interface
q
BBE Sound Enhancement
(Low Boost and High Boost: 15dB max.)
q
Internal 6 Input Audio Selectors and Monitor Output
q
The AGC circuit reduces volume difference among input sources.
q
Matrix Surround
q
Bi-CMOS Technology
q
Package Outline
SOP40
s

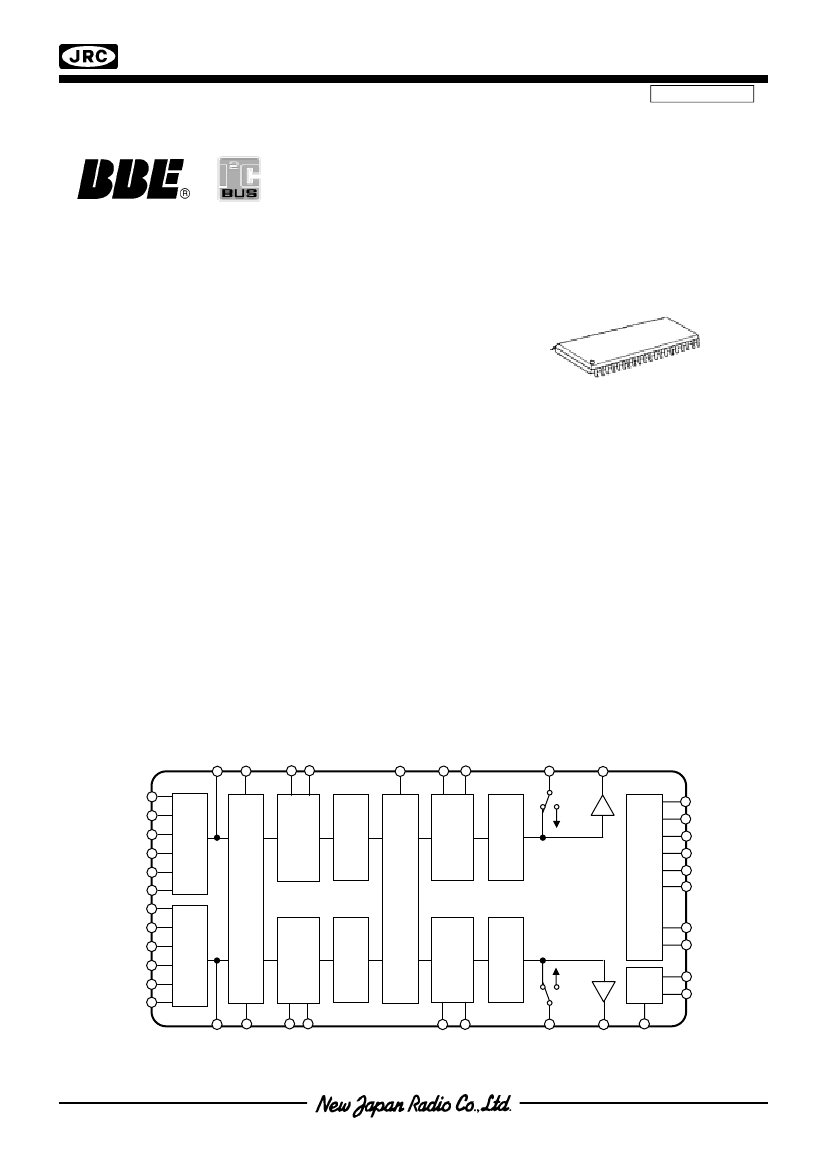

BLOCK DIAGRAM
BBE BBE
2a
MON a AGC1 1a
PS
TONE TONE
Ha
La
OUTa
LINEa
IN1a
IN2a
IN3a
IN4a
IN5a
IN6a
IN1b
IN2b
IN3b
IN4b
IN5b
IN6b
MON b
AGC2 BBE BBE
2b
1b
TONE TONE
Lb
Hb
OUTb
Input
Selector
Input
Selector
4.5dB
CVA
CVB
BBE
Volume
Tone
Volume
CTH
CTL
Control
Logic
AGC
Surround
AUX0
AUX1
SDA
SCL
BBE
Volume
Tone
Volume
GND
Bias
4.5dB
VCC
LINEb
Vref
Ver.2.0
-1-
NJW1130A
s
PIN FUNCTION
Ach Input Selector1
Ach Input Selector2
Ach Input Selector3
Ach Input Selector4
Ach Input Selector5
Ach Input Selector6
Ach BBE Filter1
Ach BBE Filter2
Ach High Frequency
Ach Low Frequency
Ach Monitor Output
Ach Line Output (4.5dB)
Ach Output (0dB)
AGC1
AGC2
DAC Output
for Bch Volume & Balance
DAC Output
for Ach Volume & Balance
I C BUS SDA
I C BUS SCL
GND
2
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
IN1a
IN2a
IN3a
IN4a
IN5a
IN6a
BBE1a
BBE2a
TONE-Ha
TONE-La
MONa
LINEa
OUTa
AGC1
AGC2
CVB
CVA
SDA
SCL
GND
IN1b
IN2b
IN3b
IN4b
IN5b
IN6b
BBE1b
BBE2b
TONE-Hb
TONE-Lb
MONb
LINEb
OUTb
PS
VREF
CTH
CTL
AUX0
AUX1
Vcc
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
Bch Input Selector1
Bch Input Selector2
Bch Input Selector3
Bch Input Selector4
Bch Input Selector5
Bch Input Selector6
Bch BBE Filter1
Bch BBE Filter2
Bch High Frequency
Bch Low Frequency
Bch Monitor Output
Bch Line Output(4.5dB)
Bch Output(0dB)
Phase Shift
Reference Voltage
DAC Output
for Tone High Frequency
DAC Output
for Tone Low Frequency
AUX Output0
AUX Output1
Power Supply
Ver.2.0
-2-
NJW1130A
s
ABSOLUTE MAXIMUM RATING (Ta=25°C)
°
PARAMETER
SYMBOL
Supply Voltage
Power Dissipation
Operating Temperature Range
Storage Temperature Range
V
+
RATING
14
700
-20 to +75
-40 to +125
UNIT
V
mW
°C
°C
P
D
Topr
Tstg
s
ELECTRICAL CHARACTERISTICS
( Ta=25°C V =9V, Rg=600Ω, R
L
=47kΩ, Vin=100mVrms/1kHz)
PARAMETER
Operating Voltage
Supply Current
Reference Voltage
Maximum Input Voltage
Maximum Output Voltage1
Maximum Output Voltage2
MON OUT Gain
LINEOUT Gain
Maximum Gain
Minimum Gain
Channel Balance
Balance Boost A
Balance Cut A
Balance Boost B
Balance Cut B
Total Harmonic Distortion
Cross Talk1
Cross Talk 2
Cross Talk 3
Cross Talk 4
Cross Talk 5
Cross Talk 6
Channel Separation
SYMBOL
V
+
+
TEST CONDITION
MIN.
8.0
TYP.
9.0
30
4.5
2.8
2.5
2.5
-2.0
4.5
0.0
-
0.0
0.0
-
0.0
-
-
-
-
-
-
-
-
-
MAX.
13.0
50
5.0
-
-
-
-
6.5
2.0
-70
1.5
2.0
-70
2.0
-70
0.5
-70
-70
-70
-70
-70
-70
-70
UNIT
V
mA
V
Vrms
Vrms
Vrms
dB
dB
dB
dB
dB
dB
dB
dB
dB
%
dB
dB
dB
dB
dB
dB
dB
I
CC
V
REF
V
IM
V
OM1
V
OM2
G
VMON
G
VLINE
G
VMAX
G
VMIN
G
CB
BA
BST
BA
CUT
BB
BST
BB
CUT
THD
CT1
CT2
CT3
CT4
CT5
CT6
CS
No Signal
No Signal
VOL=C3H,THD=1%
OUTPUT
VOL=FFH,THD=1%
LINEOUT
VOL=FFH,THD=1%
MON OUT
LINEOUT,VOL=FFH
VOL=FFH
VOL=00H
VOL=FFH
CHS=”0”,BAL=”11111”
CHS=”1”,BAL=”11111”
CHS=”1”,BAL=”11111”
CHS=”0”,BAL=”11111”
Vo=0.5Vrms
BW=400Hz to 30kHz
SEL=”000” Vin=2Vrms
In2/in3/in4/in5/In6
→
out
SEL=”001” Vin=2Vrms
in1/in3/in4/in5/In6
→
out
SEL=”010” Vin=2Vrms
in1/in2/in4/in5/In6
→
out
SEL=”011” Vin=2Vrms
in1/in2/in3/in5/In6
→
out
SEL=”100” Vin=2Vrms
in1/in2/in3/in4/In6
→
out
SEL=”101” Vin=2Vrms
in1/in2/in3/in4/In5
→
out
Vin=2Vrms
-
4.0
2.6
-
-
-
2.5
-2.0
-
-1.5
-2.0
-
-2.0
-
-
-
-
-
-
-
-
-
Ver.2.0
-3-
NJW1130A
s
ELECTRICAL CHARACTERISTICS
( Ta=25°C, V =9V, Rg=600Ω, R
L
=47kΩ, Vin=100mVrms/1kHz)
PARAMETER
Output Noise 1
Output Noise 2
Output Noise 3
SYMBOL
V
NO1
V
NO2
V
NO3
TEST CONDITION
VOL=FFH
BW=400Hz to 30kHz
VOL=00H
BW=400Hz to 30kHz
LINEOUT
VOL=FFH
BW=400Hz to 30kHz
LINEOUT
VOL=00H
BW=400Hz to 30kHz
MIN.
-
-
-
-
-
-
-
-
TYP.
-
-
-90
(31.6)
-
-
-85
(56.2)
MAX.
-60
(1.0)
-82
(79.4)
-55
(1.8)
-77
(141)
UNIT
dBV
(mVrms)
dBV
(µVrms)
dBV
(mVrms)
dBV
(µVrms)
+
Output Noise 4
q
TONE CONTROL
PARAMETER
High Frequency Boost
High Frequency Flat
High Frequency Cut
Low Frequency Boost
Low Frequency Flat
Low Frequency Cut
High Frequency Cut
DC Offset1
High Frequency Boost
DC Offset2
Low Frequency Cut
DC Offset1
Low Frequency Boost
DC Offset2
q
SUB-TONE CONTROL
PARAMETER
High Frequency Boost
High Frequency Flat
High Frequency Cut
Low Frequency Boost
Low Frequency Flat
Low Frequency Cut
V
NO4
SYMBOL
HF
BST
HF
FLT
HF
CUT
LF
BST
LF
FLT
LF
CUT
HF
DC1
HF
DC2
LF
DC1
LF
DC2
TEST CONDITION
BCT=”1”,TREB=”1111”,
f=10kHz
TRBE=”0000”,f=10kHz
BCT=”0”,TRBE=”1111”,
f=10kHz
BCB=”1”,BASS=”1111”,
f=100Hz
BASS=”0000”,f=100Hz
BCB=”0”,BASS=”1111”,
f=100Hz
BCT=”0”,TREB=”1111”
→”0000”
BCT=”1”,TREB=”1111”
→”0000”
BCB=”0”,BASS=”1111”
→”0000”
BCB=”1”,BASS=”1111”
→”0000”
TEST CONDITION
BCST=”0”,SUB-TREB=”11”
,f=10kHz
SUB-TREB=”00”,f=10kHz
BCST=”0”,SUB-TREB=”11”
,f=10kHz
BCSB=”1”,SUB-BASS=”11”
,f=100Hz
SUB-BASS=”00”,f=100Hz
BCSB=”1”,SUB-BASS=”11”
,f=100Hz
MIN.
12.5
-2.0
-12.5
12.5
-2.0
-12.5
-1.0
-1.0
-1.0
-1.0
TYP.
15.0
0.0
-15.0
15.0
0.0
-15.0
0.0
0.0
0.0
0.0
MAX.
17.5
2.0
-17.5
17.5
2.0
17.5
1.0
1.0
1.0
1.0
UNIT
dB
dB
dB
dB
dB
dB
V
V
V
V
SYMBOL
SHF
BST
SHF
FLT
SHF
CUT
SLF
BST
SLF
FLT
SLF
CUT
MIN.
2.0
-2.0
-4.0
2.0
-2.0
-4.0
TYP.
3.0
0.0
-3.0
3.0
0.0
-3.0
MAX.
4.0
2.0
-2.0
4.0
2.0
-2.0
UNIT
dB
dB
dB
dB
dB
dB
Ver.2.0
-4-
NJW1130A
q
AGC CONTROL: AGC=”1” (AGC-ON)
PARAMETER
AGC BOOST
AGC FLAT
AGC CUT
SYMBOL
AGC
BST
AGC
FLT
AGC
CUT
TEST CONDITION
Vin=50mVrms
Vin=150mVrms
Vin=2Vrms
MIN.
1.5
-2.5
-14
TYP.
3.5
0.0
-10
MAX.
5.5
2.5
-6.0
UNIT
dB
dB
dB
q
SURROUND CONTROL: SUR=”1” (SURROUND-ON)
PARAMETER
SURROUND MIX 1
SURROUND MIX 2
SURROUND DEF
DC Offset
q
BBE (BBE-ON)
PARAMETER
BBE Low Frequency
Boost Range
BBE High Frequency
Boost Range
SYMBOL
BBE
LOW
BBE
HIGH
TEST CONDITION
BBE-Low=”1111”,f=10kHz
BBE-High=”1111”,f=50kHz
MIN.
-
-
TYP.
15.0
15.0
MAX.
-
-
UNIT
dB
dB
SYMBOL
SR
MIX1
SR
MIX2
SR
DEF
SR
DC
TEST CONDITION
Ain
→
Bout
Bin
→
Aout
Ain-Bin(-180deg)
SUR=”0”
→
“1”
MIN.
-2.0
-2.0
8.0
-1.0
TYP.
0.0
0.0
10.0
0.0
MAX.
2.0
2.0
12.0
1.0
UNIT
dB
dB
dB
V
Ver.2.0
-5-
