Power Connectors
HP Series

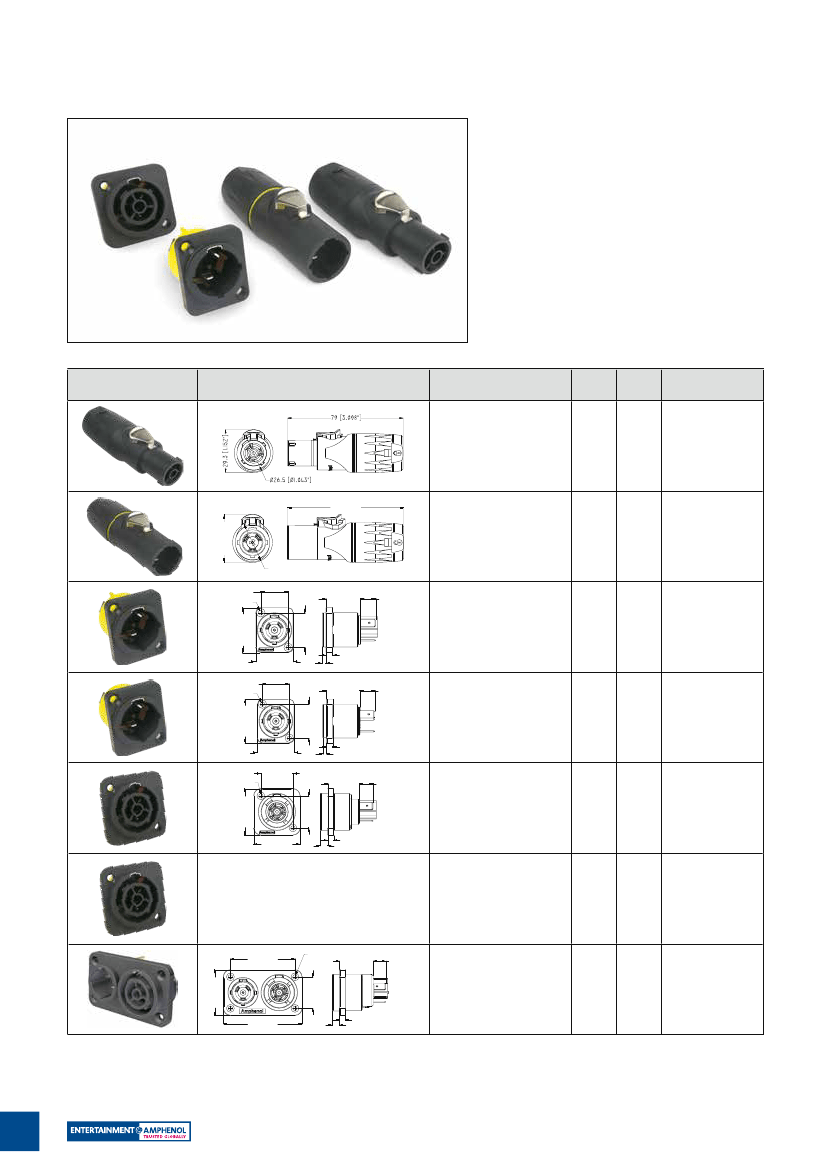

HP Series

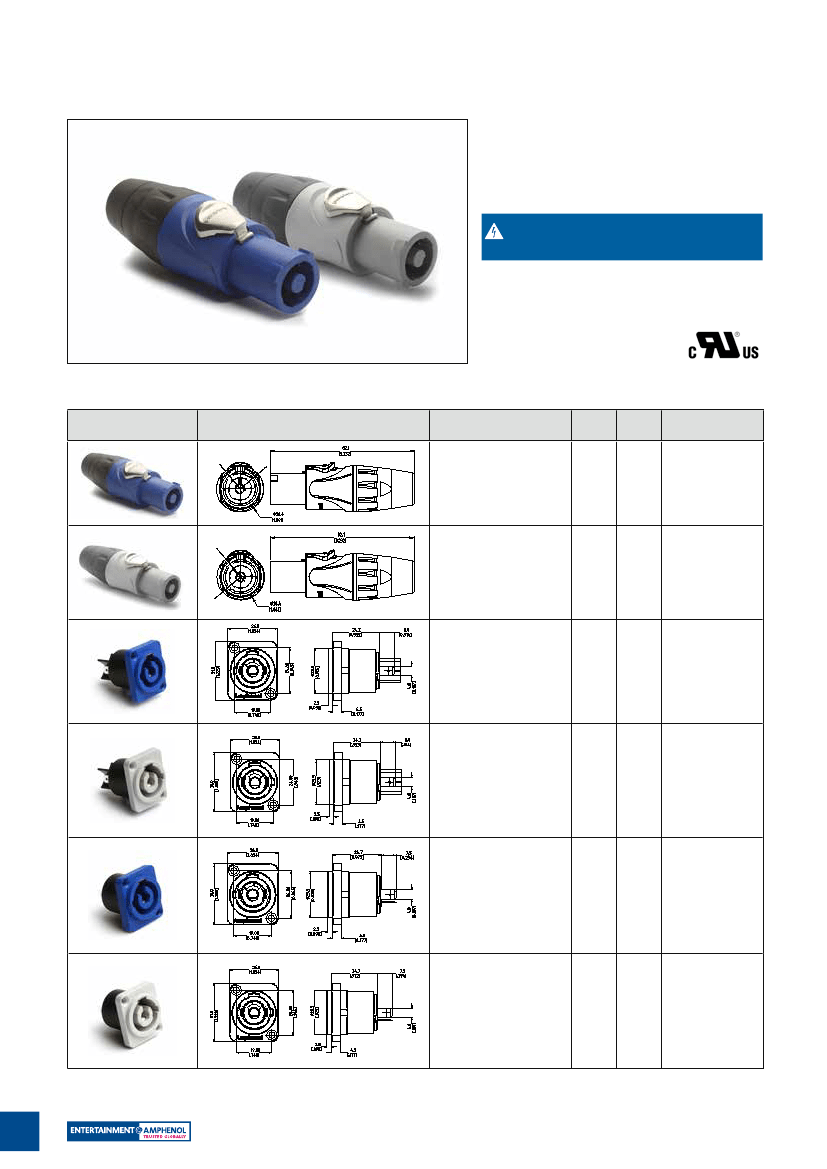

HP Series connectors are suitable for AC power supply where a
latch locking connector is required. They are rated at 25 A / 250
Vac. Connectors are keyed and colour coded for power-in (Blue)
and power-out (Grey).
THE HP SERIES OF CONNECTORS ARE NOT DESIGNED TO BE “HOT
PLUGGED” AND SO ARE WITHOUT “BREAKING CAPACITY”. IN
OTHER WORDS, THE CONNECTORS SHOULD NOT BE CONNECTED
OR DISCONNECTED LIVE OR WHEN UNDER LOAD
Features:
• Quick release, vibration resistant latch lock
• 3 pole
• Screw Terminals or Solder Tab 3/16”
• Chuck type cable clamp
• 25A Current rating
• Thermoplastic housing
• Industry standard mating
• UL, cUL recognized components (File no. E339831)
PRODUCT - FIGURE
DRAWING
DImensions in mm (inches)
DESCRIPTION
3 pole, Cable connector,
Thermoplastic shell,
Blue sleeve, keyed for
power-in
CONTACT
TYPE
SHELL
COLOUR
PART NUMBER
HP-3-F
Screw
Blue
3 pole, Cable connector,
Thermoplastic shell, Grey
sleeve, keyed for power-out
Screw
Grey
HP-3-FG
3 pole, Chassis connector,
Thermoplastic shell, Blue,
keyed for power-in
Solder
Tab
3/16”
Blue
HP-3-MD
3 pole, Chassis connector,
Thermoplastic shell, Grey,
keyed for power-out
Solder
Tab
3/16”
Grey
HP-3-MDG
3 pole, Chassis connector,
Thermoplastic shell, Blue,
keyed for power-in, without
insulation divider
Solder
Tab
3/16”
Blue
HP-3-MDW
3 pole, Chassis connector,
Thermoplastic shell, Grey,
keyed for power-out, without
insulation divider
Solder
Tab
3/16”
Grey
HP-3-MDGW
66
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
+61 3 8796 8888
www.amphenolaudio.com
Product Safety Information
PRODUCT SAFETY INFORMATION
This should be read in conjunction with
Data Sheet information contained in
individual product brochures. Failure to
observe the advice in this information
sheet and the operating conditions
specified in the Data Sheets could
result in hazardous situations.
Overheating may occur if the ratings in
the Data Sheets are exceeded and can
cause breakdown of insulation and
hence electric shock.
If heating is allowed to continue
it intensifies by further increasing
the local resistance through loss of
temper or spring contact, formation
of oxide film on contacts and wires,
and leakage currents through
carbonisation of insulation and
tracking points. Fire can then result in
the presence of combustible materials
and this may release noxious fumes.
Overheating may not be visually
apparent. Burns may result from
touching overheated components.
V.D.C. are potentially hazardous and
care should be taken to ensure that
such voltages cannot be transmitted
in any way to exposed metal parts of
the connector body. The connector
and wiring should be checked, before
making live, to have no damage to
metal parts or insulators, no solder
blobs, loose strands, conducting
lubricants, swarf, or any other
undesired conducting particles.
Circuit resistance and continuity check
should be made to make certain that
there are no low resistance joints or
spurious conducting paths. Always
use the correct application tools as
specified in the Data Sheets. Do not
permit untrained personnel to wire,
assemble or tamper with connectors.
For operation voltage please see
appropriate national regulations.
1. Material Content and
Physical Form
Electrical connectors do not usually
contain hazardous materials.
They contain conducting and
non-conducting materials. Shells are
manufactured in metal and plastic.
Insulators can be formed in either
natural rubber, synthetic rubber,
plastic or glass insulating materials.
Contact materials vary with the type
of connector and its application. They
are usually manufactured from either
copper alloys, nickel, alumel, chromel
or steel. In special applications, other
alloys may be specified.
3. Handling
Care must be taken to avoid damage
to any component parts of electrical
connectors during installation and
use. Although there are normally no
sharp edges, care must be taken
when handling certain components
to avoid injury to fingers. Electrical
connectors may be damaged in
transit to customers, and damage may
result in creation of hazards. Products
should therefore be examined prior to
installation/use and rejected if found to
be damaged.
Important General Information
A) Air and creepage paths /
Operating voltage.
The admissible operating voltages
depend on the individual applications
and the valid national and other
applicable safety regulations. For this
reason the air and creepage path data
are only reference values. Observe
reduction of air and creepage paths
due to PC board and/or harnessing.
2. Fire Characteristics and Electric
Shock Hazard
There is no fire hazard when the
connector is correctly wired and
used within the specified parameters.
Incorrect wiring or assembly of the
connector or careless use of metal
tools or conductive fluids, or transit
damage to any of the component parts
may cause electric shock or burns.
Live circuits must not be broken by
separating mated connectors as this
may cause arcing, ionisation and
burning. Heat dissipation is greater at
maximum resistance in a circuit. Hot
spots may occur when resistance is
raised locally by damage, e.g. cracked
or deformed contacts, or broken
strands of wire. Local overheating
may also result from the use of the
incorrect application tools or from
poor quality soldering.
4. Disposal
Incineration of certain materials may
release noxious or even toxic fumes.
B) Other important information
Amphenol Australia Pty Ltd
continuously endeavours to improve
its products. Therefore, products
may deviate from the description,
technical data and shape as shown
in product brochures.
5. Application
Connectors with exposed contacts
should not be selected for use on the
current supply side of an electrical
circuit, because an electric shock
could result from touching exposed
contacts of an unmated connector.
Voltages in excess of 30 V.A.C. or 42.5
C) Assembly instructions
If applicable, special assembly
instructions have been included
in or on the connector packaging.
See also separate instructions in
product brochures.
www.amphenolaudio.com
ENTERTAINMENT INTERCONNECT CATALOGUE
- Amphenol Australia Pty Ltd
+61 3 8796 8888
141
