Part Number

Search

74099-0021

Description
Headers u0026 Wire Housings SL SMT VT SHRD HDR TIN 21P
CategoryThe connector    The connector
File Size233KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

74099-0021 Online Shopping

Suppliers Part Number Price MOQ In stock
74099-0021 - - View Buy Now

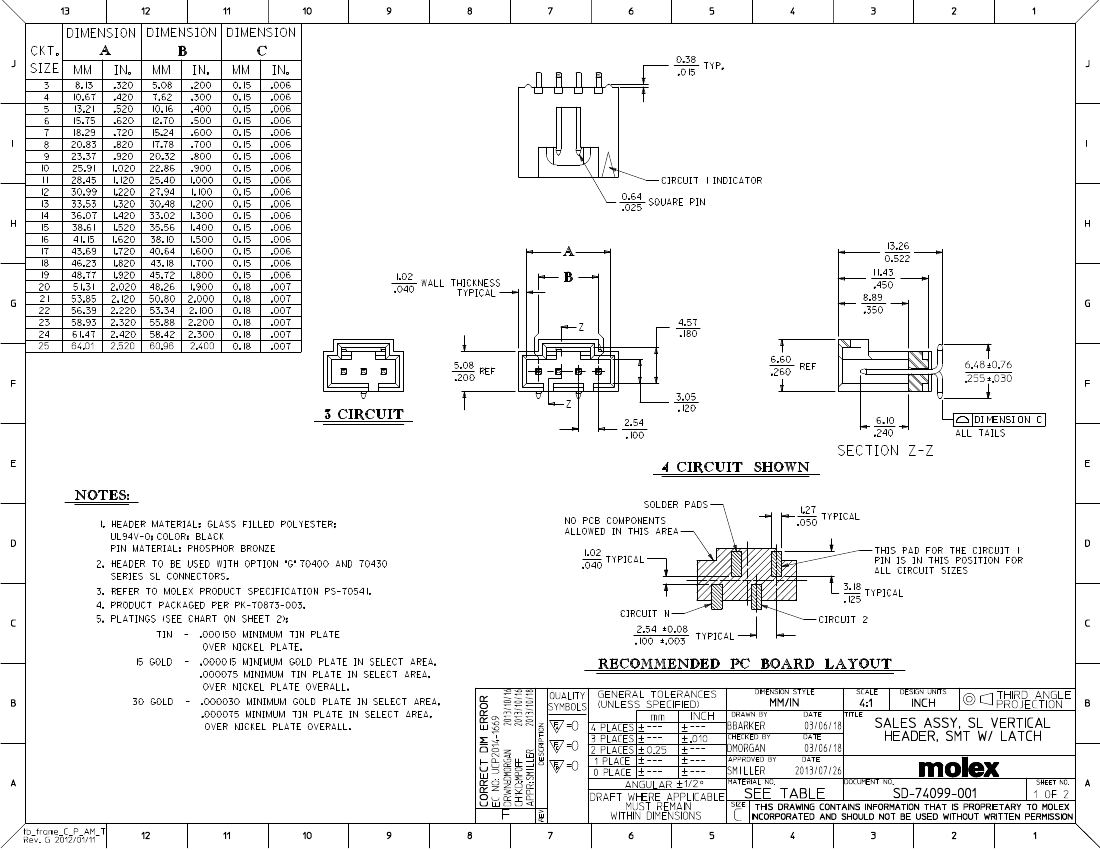

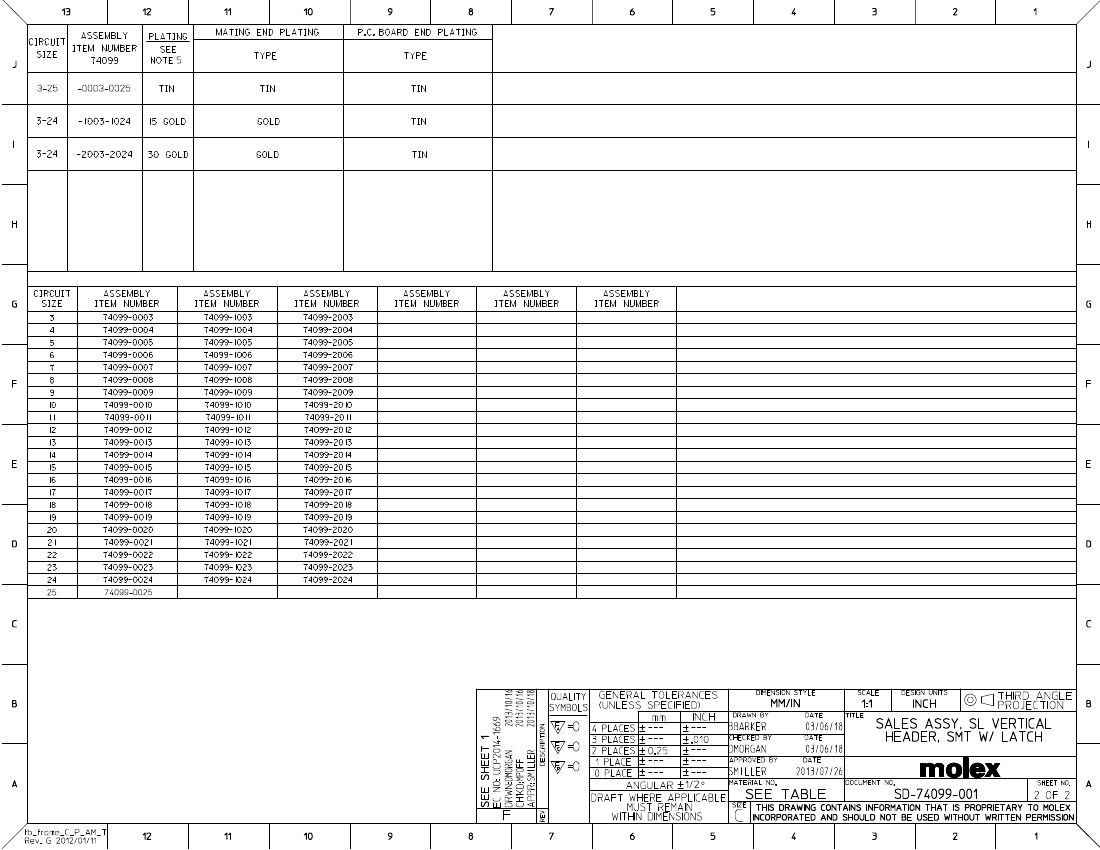

74099-0021 Overview

Headers u0026 Wire Housings SL SMT VT SHRD HDR TIN 21P

74099-0021 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Other featuresWITH TUBE PACKAGING
Board mount optionsSOLDER HOLDING POSTS
body width0.26 inch
subject depth0.522 inch
body length2.2 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN-PB ON NI
Contact completed and terminatedTIN/LEAD OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage800VAC V
Filter functionNO
IEC complianceNO
Insulation resistance10000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
MIL complianceNO
Manufacturer's serial number74099
Plug contact pitch0.1 inch
Mixed contactsNO
Installation option 1LATCH
Installation option 2LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts21
UL Flammability Code94V-0

74099-0021 Related Products

74099-0021 74099-1023
Description Headers u0026 Wire Housings SL SMT VT SHRD HDR TIN 21P Headers u0026 Wire Housings SL SMT VT SHRD HDR 15 SAU 23P
Is it Rohs certified? conform to conform to
Maker Molex Molex
Reach Compliance Code compliant compliant
ECCN code EAR99 EAR99
Factory Lead Time 8 weeks 8 weeks
Other features WITH TUBE PACKAGING WITH TUBE PACKAGING
Board mount options SOLDER HOLDING POSTS SOLDER HOLDING POSTS
body width 0.26 inch 0.26 inch
subject depth 0.522 inch 0.522 inch
body length 2.2 inch 2.4 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation SN-PB ON NI AU ON NI
Contact completed and terminated TIN/LEAD OVER NICKEL TIN/LEAD OVER NICKEL
Contact point gender MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Dielectric withstand voltage 800VAC V 800VAC V
Filter function NO NO
IEC compliance NO NO
Insulation resistance 10000000000 Ω 10000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED POLYESTER GLASS FILLED POLYESTER
MIL compliance NO NO
Manufacturer's serial number 74099 74099
Plug contact pitch 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation option 1 LATCH LATCH
Installation option 2 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Number of connectors ONE ONE
PCB row number 2 2
Number of rows loaded 1 1
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern STAGGERED STAGGERED
Rated current (signal) 3 A 3 A
Guideline UL UL
reliability COMMERCIAL COMMERCIAL
Terminal pitch 2.54 mm 2.54 mm
Termination type SURFACE MOUNT SURFACE MOUNT
Total number of contacts 21 23
UL Flammability Code 94V-0 94V-0
