Series 15133
Depluggable PCB Mount
Terminal Blocks
SPECIFICATIONS
Rating:
20A, 300V
Center Spacing:
.375” or 3/8” (9.52 mm)
Wire Range:
#12-22 AWG
PC Board:
For soldering to PCB (.00015” tin over
copper flash)
Material:
Black, UL Rated 94V0 Thermoplastic
Screws:
#6-32 Zinc plated steel SEMS
Torque Rating:
12 in-lb
Terminals:
15133-XX-10-X – Tin or gold plated brass
15133-XX-20-X – Nickel or gold plated copper
alloy plug terminal, tin or gold
plated female terminal
Operating Temperature:
221°F (105°C)
Agency Information:
UL/CSA; CE Certified

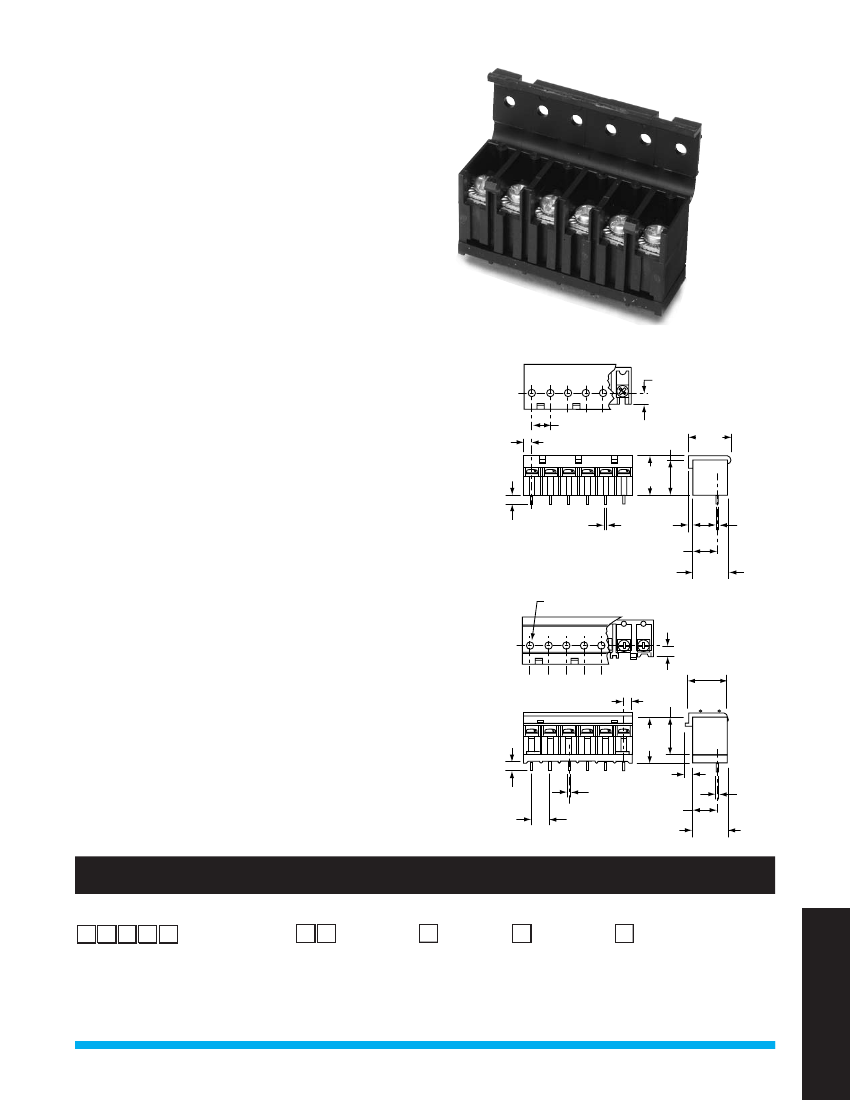

The 15133 is a series of input/output circuit board
connectors. Available in a 1-piece or 2-piece design, they
stack side-by-side with self-aligning housings to prevent
incorrect mating. Both designs feature an integral, living
hinge cover that saves the labor of attaching a separate
cover. The cover provides a dead front for prevention of
electrical accidents, yet it also has test probe holes for easy
circuit testing.
The 1-piece design is for applications not requiring
deplugging the connector. It solders to the printed circuit
board. Molded stand-offs ensure good solderability.
The 2-piece design enables quick connect and disconnect
of several circuits at once. It allows fast board changing in
the field without shutting down the entire system. The
bottom section of the connector solders to the board. Male
contacts are shrouded while the female has stand-offs; both
are molded into the block. The top section of the connector
plugs into the bottom section.
Single & Double Row
Filtered Connectors
15133-06-20-T
15133-XX-10-X
6
.25
(6.3)
Euro-MAG Series
PCB – Spring Clamp
.19
(4.8)
.37
(9.4)
.81
(20.6)
.875
(22.2)
.83
(21.0)
.16
(3.9)
.04
(1.0)
.06
(1.6)
.44
(11.1)
.03
(0.8)
15133-XX-20-X
.12 DIA.
(3.17)
6
6
.70
(17.8)
Base & Rail Mount
Connectors
.25
(6.4)
.19
(4.8)
.81
(20.6)
.828
(21.0)
.97
(24.6)
.062
(1.57)
.52
(13.2)
.70
(17.8)
Power Distribution Blocks
.156
(3.96)
.375
(9.52)
.04
(1.0)
.02
(0.5)
Part Numbering System
Series
Poles
Style
Mounting
Inches (Millimeters)
Terminal Plating
1 5 1 3 3
* Consult Factory
–
02
to
10
–
1
- One piece
2
- Two piece
–
0
- No mtg. holes
T
- Tin
G
- Gold*
WIRE MANAGEMENT PRODUCTS
143
