This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:D
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-153
REVISION
ROCARD
TM
extended PC Card Kit
2 of 12
AUTHORIZED BY
DATE
D
18-Mar-03
Laurent SAILLARD
CLASSIFICATION
OBJECTIVE
This product specification shall be used for qualifying any FCI extended PC Card kit in the case there is no
specific product specification (customer specific needs).
1.0 SCOPE
This product specification covers the requirements of the extended PC Card kit made by Framatome Connectors
International (FCI).
2.0 GENERAL-Extended PC Card kit description
3.1 General
The extended PC
-
-
-
Card kit consists of:
two stainless steel card shields, each containing an integrated frame-bar,
one 68 position SMTIL Receptacle,
one antenna extension.
The extended PC Card kit is available in Type II.
The back-end of the assembled cardshields is fully opened.
This FCI specification meets or exceeds the PC Card Standard.
FCI manufactures the extended PC Card kit without PCB.
For this reason, this FCI specification will only cover the specifications of the extended PC Card kit in the
mechanical point of view, no electrical functionality test are required.
It is, in this area, different from the PC Card Standard.
3.2 Dimensions

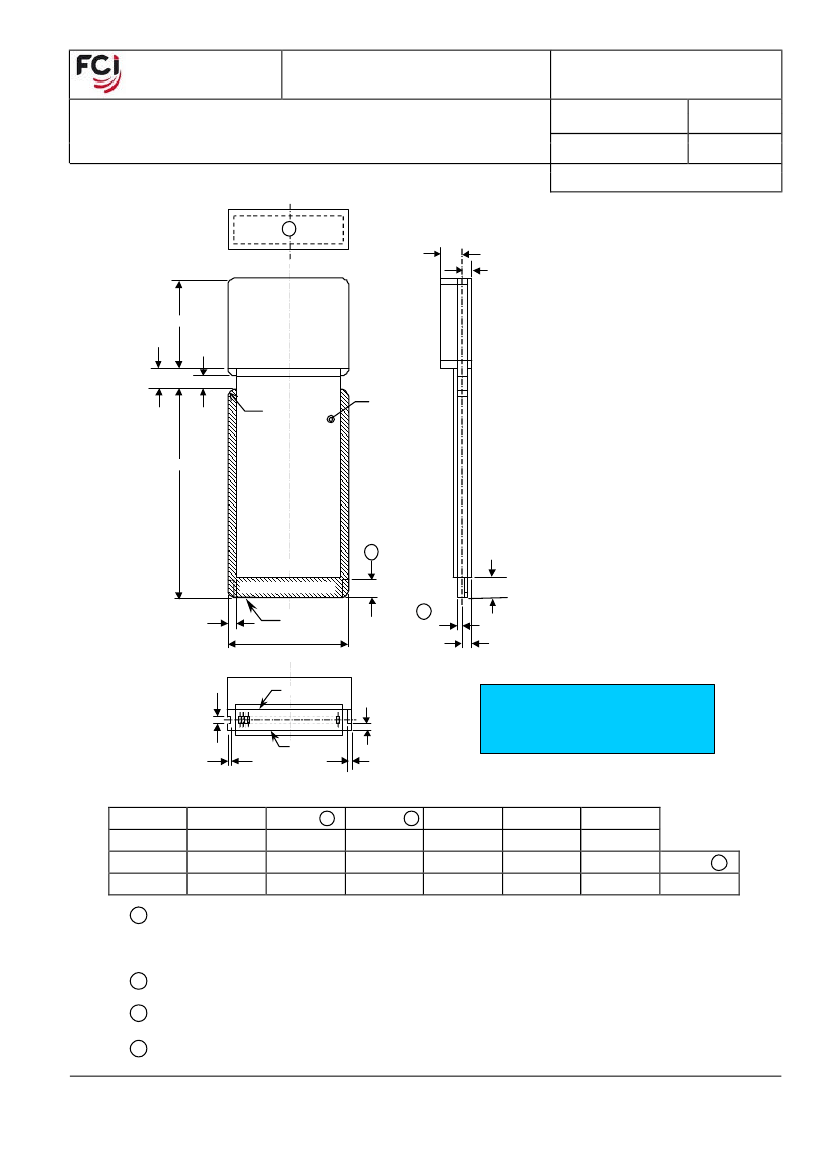

The extended PC Card kit dimensions must meet the requirements from the figure below.
All these dimensions shall be measured according to the internal procedure: PMT-035.
The connector location and pin numbering are also shown in the figure.
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:D
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-153
REVISION
ROCARD
TM
extended PC Card Kit
3 of 12
AUTHORIZED BY
DATE
D
18-Mar-03
Laurent SAILLARD
CLASSIFICATION
1
T3
T2 (REF)
D
E
F
4xR
Surface A
L
3
SUBSTRATE
AREA
SUBSTRATE
INTERCONNECT AREA
P
5
2x T1
C
2x S
CONNECTOR
W
2x T2
Y
#34
Surface A
#1
Z
#68
#35
Type II extended PC
Card dimensions
Surface B
X
X
C MIN
10.0
X±0.05
1.0
L±0.20
83.3
Y±0.05
1.6
P MIN
3
10.0
Z±0.05
1.0 or 2.1
T1±0.05
5
1.65
D MAX
40.0
T2 MAX
2.5
E±0.20
10.0
S±0.10
3.1
F MIN
5.0
W±0.10
54.0
R MAX
3.0
T3
4
8.0
1
.RECOMMENDED I/O CONNECTOR LOCATION.
2
.THE PC CARD SHALL BE OPAQUE (NON SEE THROUGH ).
3
4
5
.POLARIZATION KEY LENGHT.
.MAXI.
.FOR CARDBUS PC, DIMENSION T1 IS INCREASED BY 0.50±0.05 OVER DIMPLES.
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:D
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-153
REVISION
ROCARD
TM
extended PC Card Kit
4 of 12
AUTHORIZED BY
DATE
D
18-Mar-03
Laurent SAILLARD
CLASSIFICATION
(REFER TO CARDBUS PC CARD RECOMMENDED CONNECTOR GROUNDING INTERFACE DIMENSIONS
FIGURE IN THE PC CARD STANDARD PHYSICAL SPECIFICATION)
3.3 Cosmetic requirements
Ø
The card shields must comply to the following cosmetic requirements:
Surface finish:
mat / dull (not brushed)
The outside surfaces of the card shield must be free of scratches, dents, spots, finger prints, cleaning residue or
other irregularities.
This is to be formally checked following GS-19-022.
Ø
If available, the extension parts must comply to the cosmetic requirements mentioned in the related
drawings.
3.4 Materials
The card shields are made of stainless steel. The materials and finishes of the other extended PC Card kit
components are compatible with the stainless steel.
3.0 ABBREVIATIONS
I/O
LAN
PCB
PCMCIA
ROCARD™
SMTIL
Input / Output
Local Area Network
Printed Circuit Board
Personal Computer Memory Card International Association
Rugged Original CARD
Surface Mount (Technology) In Line
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:D
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-153
REVISION
ROCARD
TM
extended PC Card Kit
5 of 12
AUTHORIZED BY
DATE
D
18-Mar-03
Laurent SAILLARD
CLASSIFICATION
4.0 PROCEDURE-Extended PC Card kit performances
5.1 Test sequence
The following table defines the recommended test sequence.
Each test group contains a number of tests to be executed on the test samples, to begin with test n°1.
Each test group consists of 4 extended PC Card kits minimum.
Test
number
§ number
Test item
1
Test groups
2
3
4
5
Test sequence
1
2
3
4
5
6
3.2.1
3.2.2
3.2.3
3.2.4
3.2.5
3.2.6
Vibration
Shock
Bend test
Torque test
Drop test
Finger nail test
À
Á
À
À
À
À
The extended PC Card kit shall meet or exceed all reliability test requirements as described below.
Unless otherwise specified, all tests and measurements shall be made according to the following standard
conditions.
If results need to be reproducible, the parameters shall be closely controlled according to the following specific
conditions:
Conditions
Temperature
Air pressure
Relative humidity
15°C to 35°C
86 to 106 kPa
25% to 85%
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
