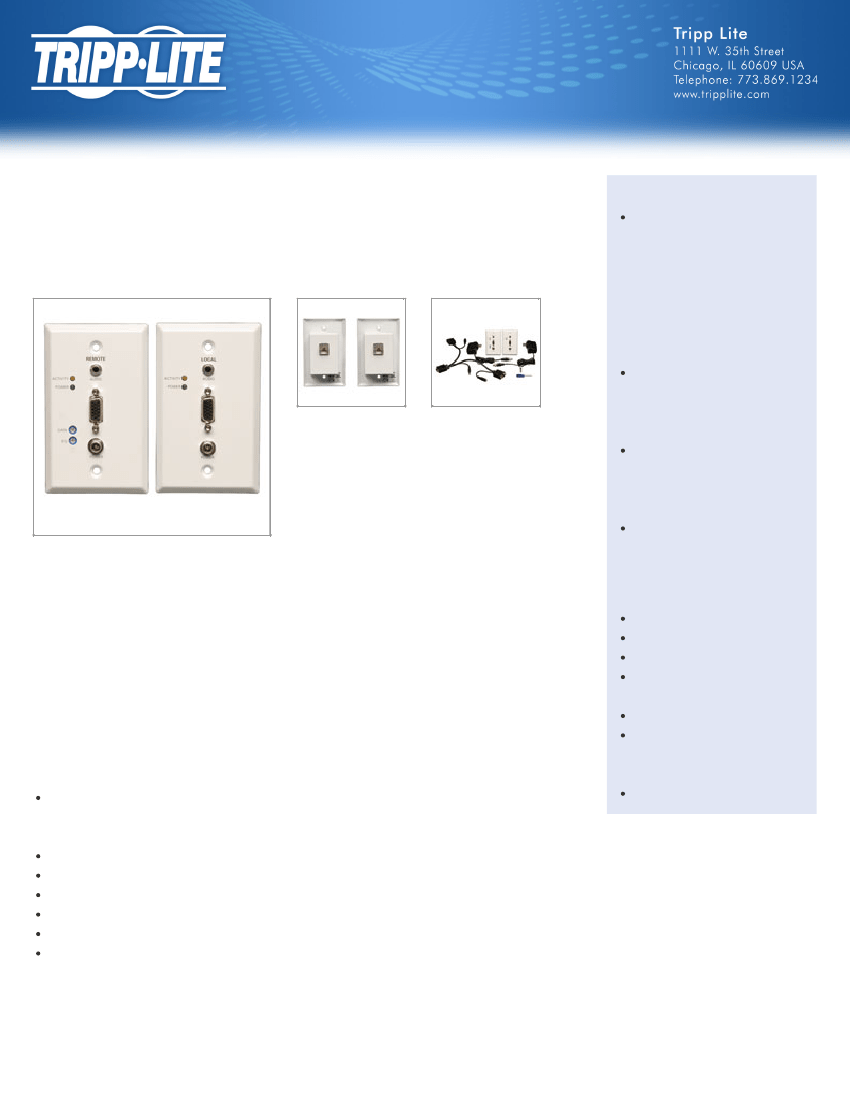

VGA with Audio over Cat5/Cat6 Extender Kit,
Wallplate Transmitter and Receiver with EDID,
1920x1440 at 60Hz, Up to 1000-ft.
MODEL NUMBER:
B130-101A-WP-1
Highlights
Extends a 1920 x 1440 (60Hz)
Video and Audio signal up to 500
ft., or a 1024 x 768 (60Hz) Video
and Audio signal up to 1,000 ft.,
when using 24Awg, Solid Wire
Cat5e/6 cable, such as Tripp
Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6)
For optimal image quality
between 500 and 1,000 ft., use
Zero-Skew cable, such as Tripp
Lite
P524-01K
RJ45 type wallplates allow you to
use standard patch cable,
eliminating the need for a 110
punchdown connection
Compliant with the Federal Trade
Agreements Act (TAA) for GSA
Description
Tripp Lite's B130-101A-WP-1 allows you to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or
a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such
as Tripp Lite's
N022-01K-GY
(Cat5) and
N222-01K-GY
(Cat6). For optimal image quality between 500 and 1,000
ft., use Zero-Skew cable, such as Tripp Lite
P524-01K.
A maximum resolution of 1920 x 1440 (60Hz) is
supported. The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image.
Kit includes local (Transmitter) and remote (Receiver) RJ45 type wallplates, which allow you to use standard
patch cable, eliminating the need for a 110 punchdown connection. A VGA + Audio "Y" cable is included for use
with the local unit, allowing for the connection of a local monitor and speakers. Ideal for digital signage
situations, such as retail, schools, churches, etc.
Schedule purchases
Package Includes
Local (Transmitter) wallplate
Remote (Receiver) wallplate
VGA + Audio "Y" cable
Mini-Screwdriver for EQ/Gain
adjustment
Wallplate Screws
(x2) External Power Supply
(Input: 100-240V, 50/60Hz, 0.5A
Output: 5V, 2A)
Owner's Manual
Features
Extends a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio
signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's
N022-01K-GY
(Cat5)
and
N222-01K-GY
(Cat6)
For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite
P524-01K
A VGA + Audio "Y" cable is included for use with the local unit, allowing for the connection of a local monitor and speakers
RJ45 type wallplates allow you to use standard patch cable, eliminating the need for a 110 punchdown connection
The remote (Receiver) unit features built-in Equalization and Gain controls to adjust the video image
Ideal for digital signage situations, such as retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
Specifications
1/2
PHYSICAL
Shipping Weight (lbs.)
Shipping Weight (kg)
1.65
0.75
COMMUNICATIONS
Max 1024 x 768 Range (ft)
Max 480P Range (ft)
Max 1440 x 900 Range (ft)
Max 1080i Range (ft)
Max 1080P Range (ft)
Max 1920 x 1440 Range (ft)
Max 480i Range (ft)
Max 640 x 480 Range (ft)
Max 800 x 600 Range (ft)
Max 1600 x 1200 Range (ft)
Max 1920 x 1200 Range (ft)
Max 720P Range (ft)
1000
1000
500
500
500
500
1000
1000
1000
500
500
500
CONNECTIONS
Ports
Side A - Connector 1
Side A - Connector 2
Side A - Connector 3
Side B - Connector 1
Side B - Connector 2
Side B - Connector 3
1
HD15 (FEMALE)
RJ45 (FEMALE)
3.5MM (FEMALE)
HD15 (FEMALE)
3.5MM (FEMALE)
RJ45 (FEMALE)
WARRANTY
Product Warranty Period (Worldwide)
1-year limited warranty
© 2017 Tripp Lite. All rights reserved. All product and company names are trademarks or registered trademarks of their respective holders. Use of them does
not imply any affiliation with or endorsement by them. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice.
Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. See a list of Tripp Lite's testing agencies:
https://www.tripplite.com/products/product-certification-agencies
