1-6450869-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-6450869-0

1-6450869-0: DescriptionV/R 2ACP+8S+4ACP+16S+2ACP+12S+2ACP; CategoryThe connector The connector; File Size1MB，10 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-6450869-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-6450869-0	-	-	View	Buy Now

1-6450869-0 Overview

V/R 2ACP+8S+4ACP+16S+2ACP+12S+2ACP

1-6450869-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
Samacsys Description	V/R 2ACP+8S+4ACP+16S+2ACP+12S+2ACP
body width	0.47 inch
subject depth	0.5 inch
body length	3.99 inch
Body/casing type	RECEPTACLE
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S36P10
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	HYBRID
Filter function	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	YES
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	15.494 mm
Plating thickness	30u inch
Rated current (power)	42 A
Guideline	UL
Terminal length	0.137 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	46
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

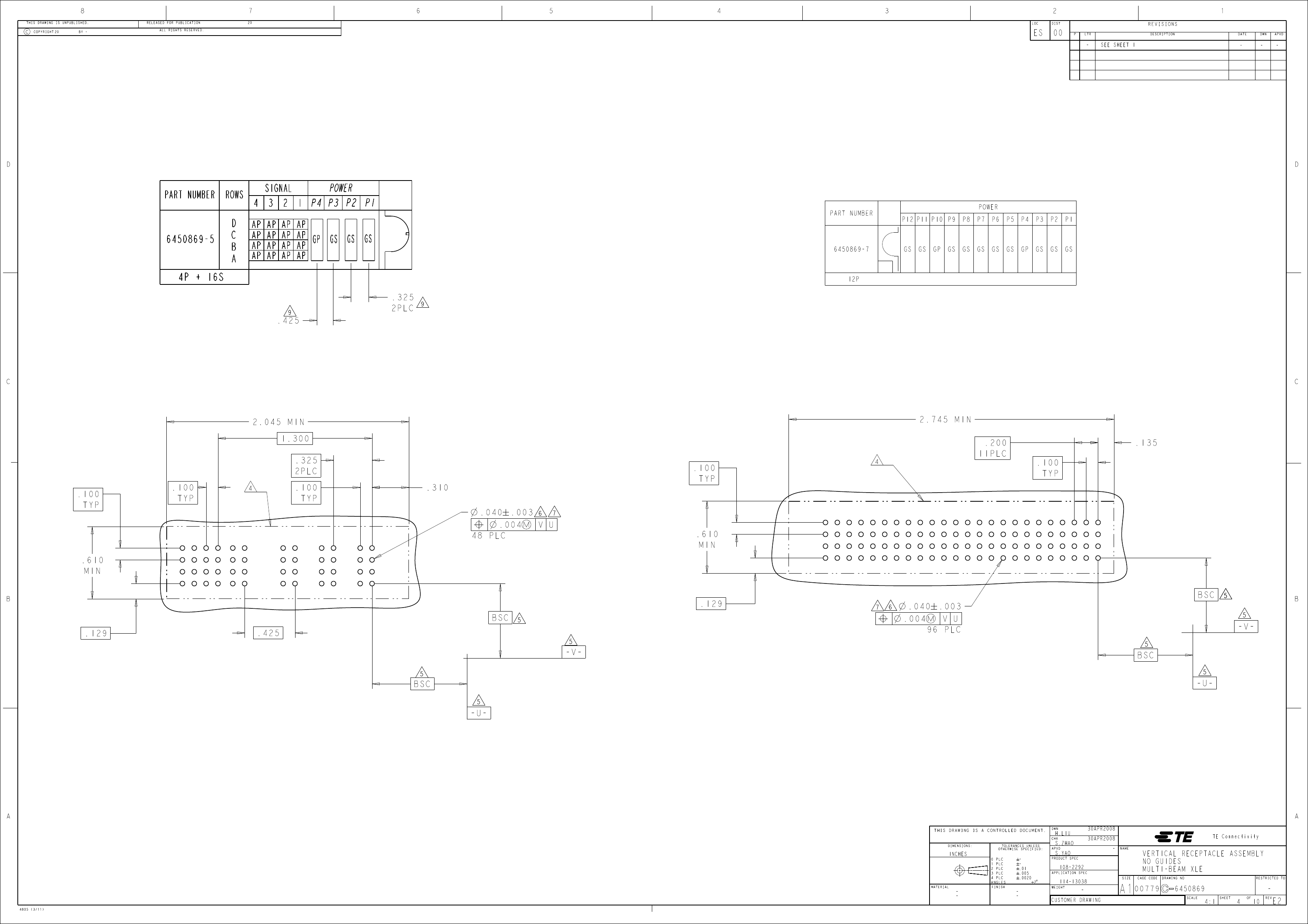

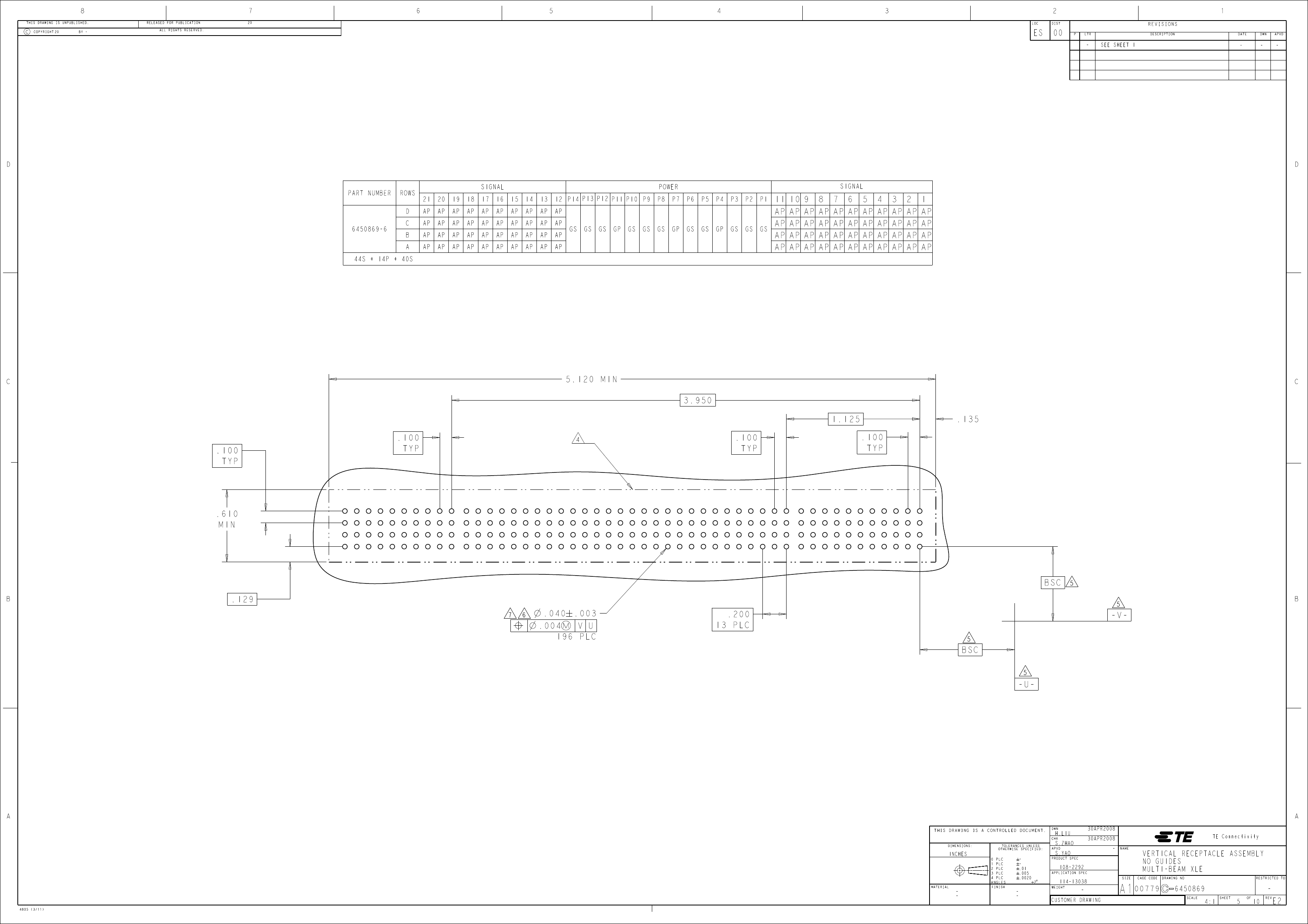

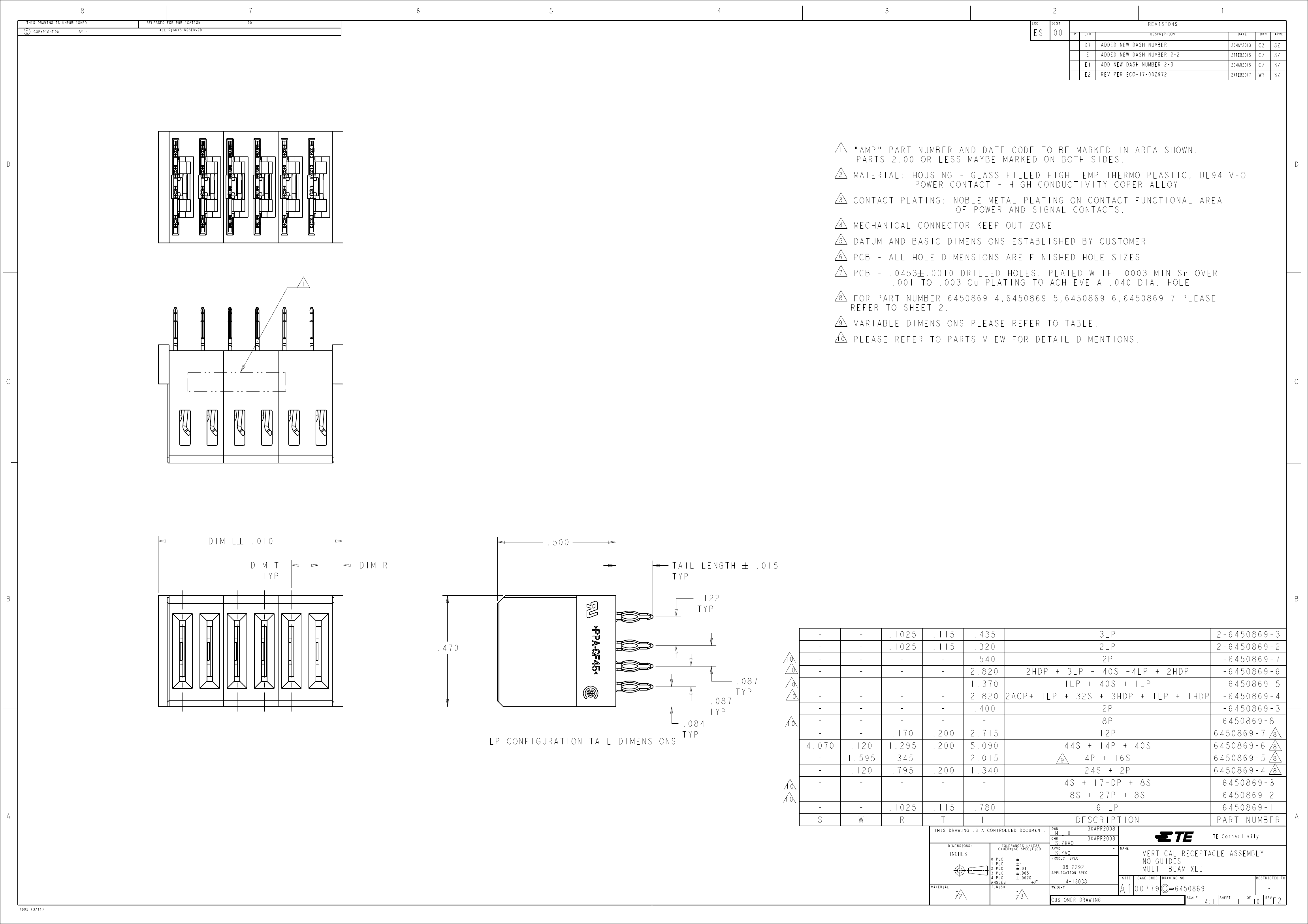

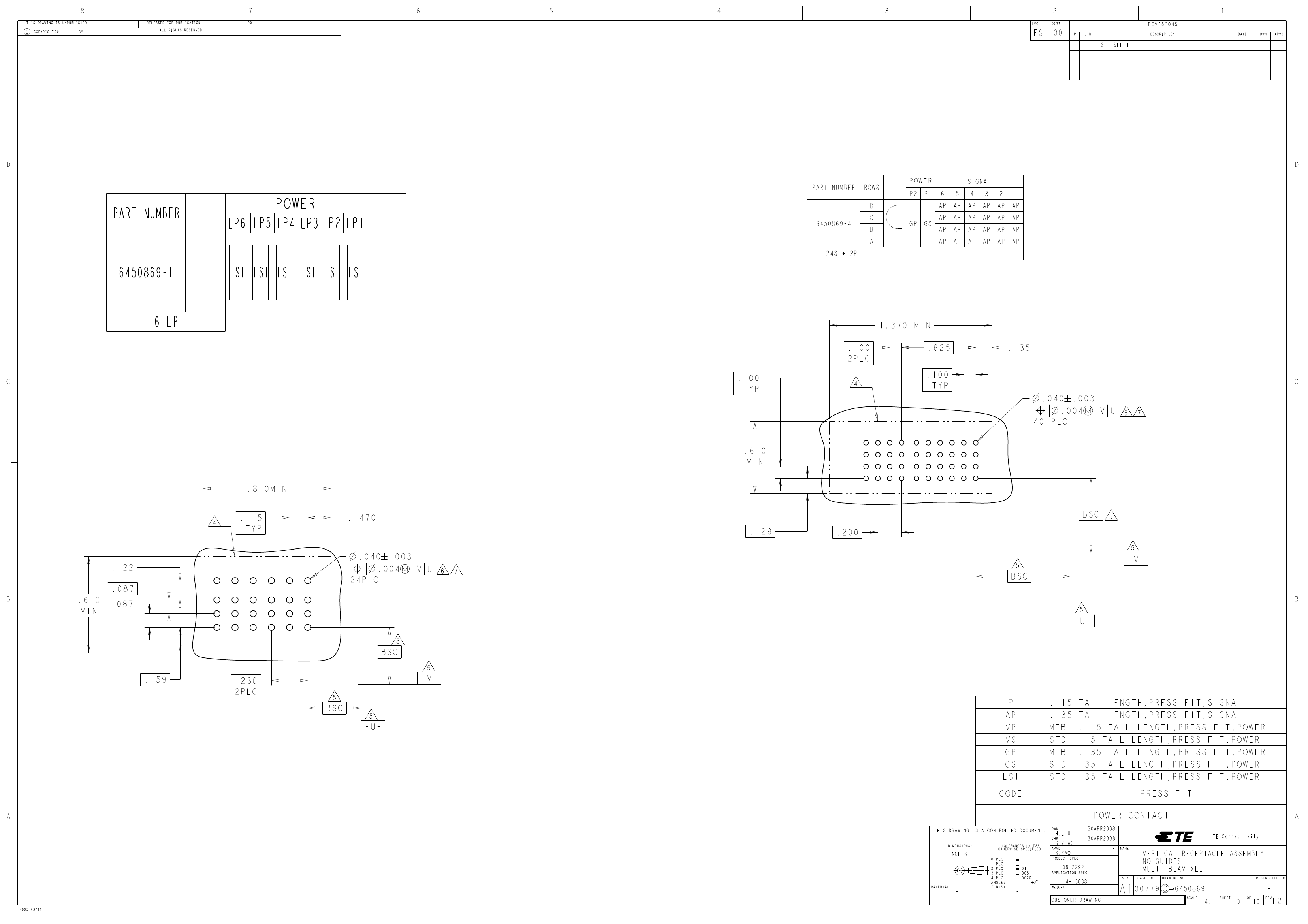

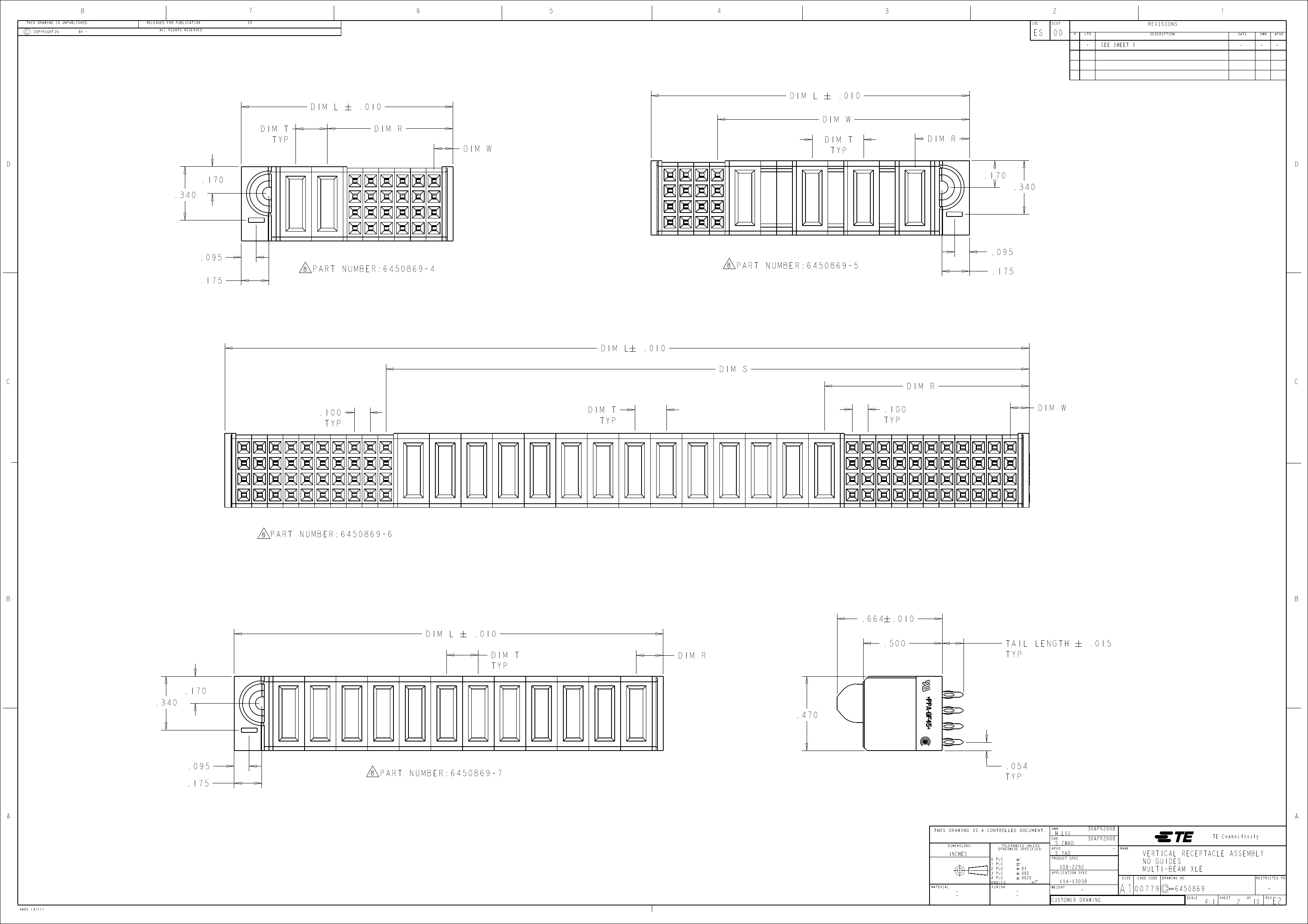

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADDED NEW DASH NUMBER

ADDED NEW DASH NUMBER 2-2

ADD NEW DASH NUMBER 2-3

REV PER ECO-17-002972

20MAY2013

27FEB2015

20MAR2015

24FEB2017

"AMP" PART NUMBER AND DATE CODE TO BE MARKED IN AREA SHOWN.

PARTS 2.00 OR LESS MAYBE MARKED ON BOTH SIDES.

MATERIAL: HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-O

POWER CONTACT - HIGH CONDUCTIVITY COPER ALLOY

CONTACT PLATING: NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS.

MECHANICAL CONNECTOR KEEP OUT ZONE

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER

PCB - ALL HOLE DIMENSIONS ARE FINISHED HOLE SIZES

PCB - .0453 # .0010 DRILLED HOLES. PLATED WITH .0003 MIN Sn OVER

.001 TO .003 Cu PLATING TO ACHIEVE A .040 DIA. HOLE

FOR PART NUMBER 6450869-4,6450869-5,6450869-6,6450869-7 PLEASE

REFER TO SHEET 2.

VARIABLE DIMENSIONS PLEASE REFER TO TABLE.

PLEASE REFER TO PARTS VIEW FOR DETAIL DIMENTIONS.

DIM L #

.010

DIM T

TYP

DIM R

.500

TAIL LENGTH

TYP

.122

TYP

.015

.470

.087

TYP

.1025

.115

.435

.320

2.820

1.370

2.820

.400

.540

3LP

2LP

2HDP + 3LP + 40S +4LP + 2HDP

2ACP+ 1LP + 32S + 3HDP + 1LP + 1HDP

1LP + 40S + 1LP

2-6450869-3

2-6450869-2

1-6450869-7

1-6450869-6

1-6450869-5

1-6450869-4

1-6450869-3

6450869-7

6450869-6

6450869-5

6450869-4

6450869-3

6450869-2

LP CONFIGURATION TAIL DIMENSIONS

.084

TYP

.087

TYP

4.070

1.595

.120

1.295

.795

.345

.170

.200

2.715

5.090

2.015

44S + 14P + 40S

4P + 16S

24S + 2P

12P

6450869-8

1.340

4S + 17HDP + 8S

8S + 27P + 8S

DESCRIPTION

30APR2008

NAME

.1025

.115

.780

DWN

CHK

6 LP

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

PART NUMBER

TE Connectivity

6450869-1

H.LIU

S.ZHAO

S.YAO

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

WEIGHT

114-13038

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

VERTICAL RECEPTACLE ASSEMBLY

NO GUIDES

MULTI-BEAM XLE

DRAWING NO

RESTRICTED TO

6450869

SCALE

4805 (3/11)

4:1

SHEET

REV
