XG2A-6001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> XG2A-6001

XG2A-6001: DescriptionHeaders u0026 Wire Housings Connector w/Standard Terminal 60 Contacts; CategoryThe connector The connector; File Size310KB，4 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

XG2A-6001 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	XG2A-6001	-	-	View	Buy Now

XG2A-6001 Overview

Headers u0026 Wire Housings Connector w/Standard Terminal 60 Contacts

XG2A-6001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OMRON
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	28 weeks 3 days
body width	0.268 inch
subject depth	0.228 inch
body length	3.205 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	XG2A
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

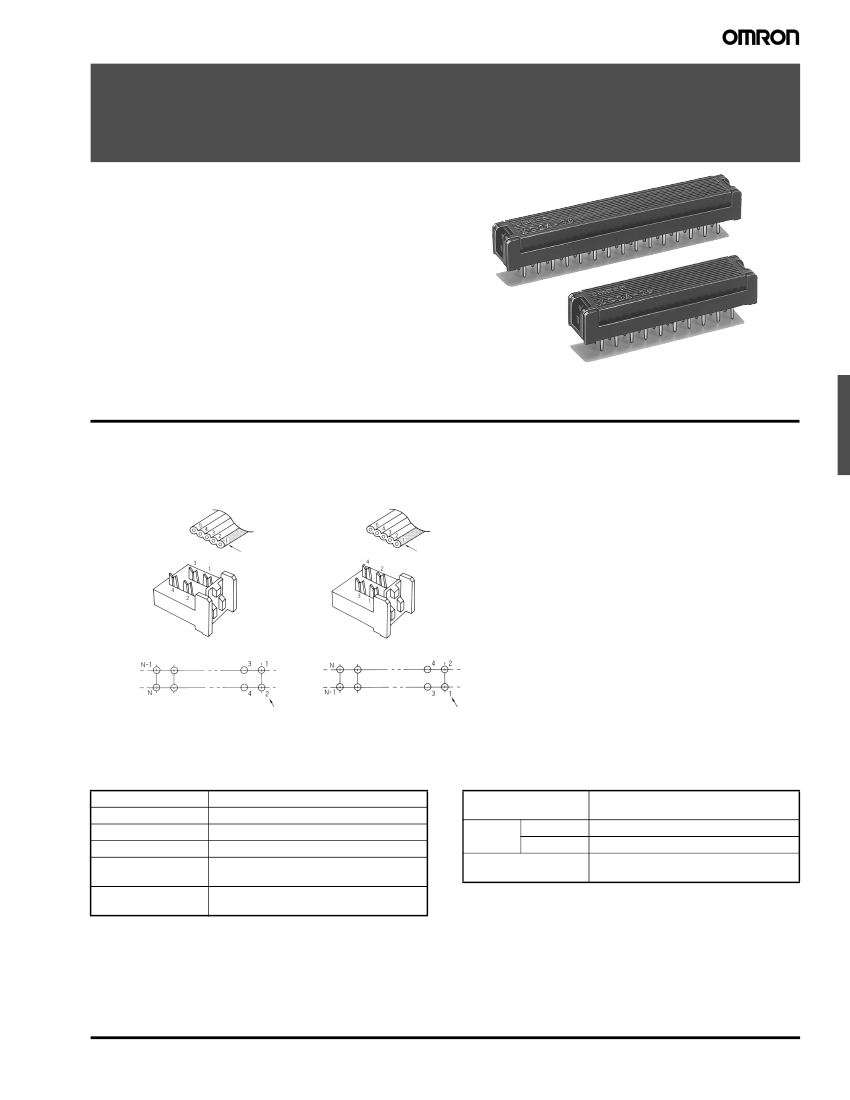

Flat Cable Connectors for PCBs

XG2

Ideal for high-density mounting.

IDC design allows for quick termination.

• Part of a total flat cable wiring solution, when used in

conjunction with XG4, XG5 and XG8 sockets and plugs.

• End terminates cable to a PCB or acts as a pass through

for connection to other cables or PCB’s.

• Uses a standard 2.54-mm grid terminal arrangement for

easier design of circuits.

• Terminal Arrangement: standard or reverse.

• Uses UL94V-0 approved insulation material.

• IDC Assembly Tools are available.

XG2 Connectors

■

Terminal Arrangement

The contact numbers are not marked on the Connector. If the cables are numbered from 1 starting from the edge, the relationship between the

wires and the terminals would be as shown below.

Standard Terminal

Arrangement

Cable No.

Reverse Terminal

Arrangement

Cable No.

Cable number arrangement (top view)

Cable No.

■

Ratings and Characteristics

Rated current

Rated voltage

Contact resistance

Dielectric strength

Operating

temperature

250 VAC

15 mΩ max. (at 20 mV, 100 mA max.)

500 VAC for 1 min. (leakage current: 1 mA

max.)

−55°C

to 85°C (with no icing at low

temperature)

■

Materials and Finish

Base

Fiber-glass reinforced PBT resin

(UL94V-0)/black

Terminals

Cover

Copper alloy/nickel base, tin plating

Fiber-glass reinforced PBT resin

(UL94V-0)/black

Contacts Mating end

Copper alloy/nickel base, tin plating

Insulation resistance

1,000 MΩ min. (at 500 VDC)

■

Applicable Wires

1.27-mm pitch, AWG28, 7-strand flat cable.

•

UL2651 (standard cable)

•

UL20012 (folding cable)

•

UL20028 (color-coded cable)

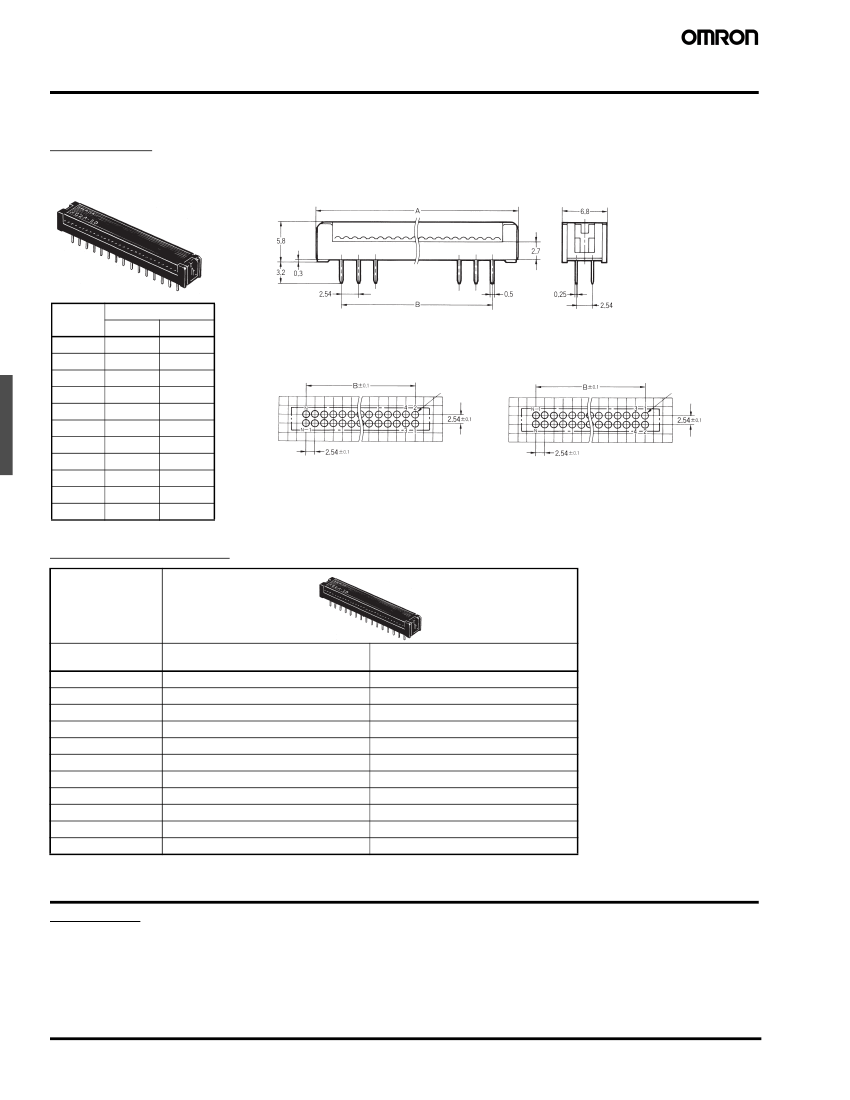

Flat Cable Connectors for PCBs

XG2

XG2A-6001 Related Products

	XG2A-6001	XG2A-6402	XG2A-1602	XG2A-6002	XG2A-4002
Description	Headers u0026 Wire Housings Connector w/Standard Terminal 60 Contacts		Headers u0026 Wire Housings Connector w/Reverse Terminal 16 Contacts	Headers u0026 Wire Housings Connector w/Reverse Terminal 60 Contacts	Headers u0026 Wire Housings Connector w/Reverse Terminal 40 Contacts
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	OMRON	OMRON	OMRON	OMRON	OMRON
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Factory Lead Time	28 weeks 3 days	28 weeks 3 days	8 weeks 2 days	28 weeks 3 days	28 weeks 3 days
body width	0.268 inch	0.268 inch	0.268 inch	0.268 inch	0.268 inch
subject depth	0.228 inch	0.228 inch	0.228 inch	0.228 inch	0.228 inch
body length	3.205 inch	3.402 inch	1.004 inch	3.205 inch	2.205 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
JESD-609 code	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	XG2A	XG2A	XG2A	XG2A	XG2A
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Rated current (signal)	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	64	16	60	40
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
