1847835: CategoryThe connector terminals; File Size79KB，5 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1847835 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1847835	-	-	View	Buy Now

1847835 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Other features	PBT, 94V-0
Fastening method	PLUG IN
Manufacturer's serial number	1847835
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	12
Rated current	8 A
Rated voltage	160 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1847835

Base strip - MCDV 1,5/12-G1-3,81 - 1847835

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm, Color: green,

Contact surface: Tin, Assembly: Soldering, In combination with MCV plug components, both an MCVW and an

MCVR plug must be used.

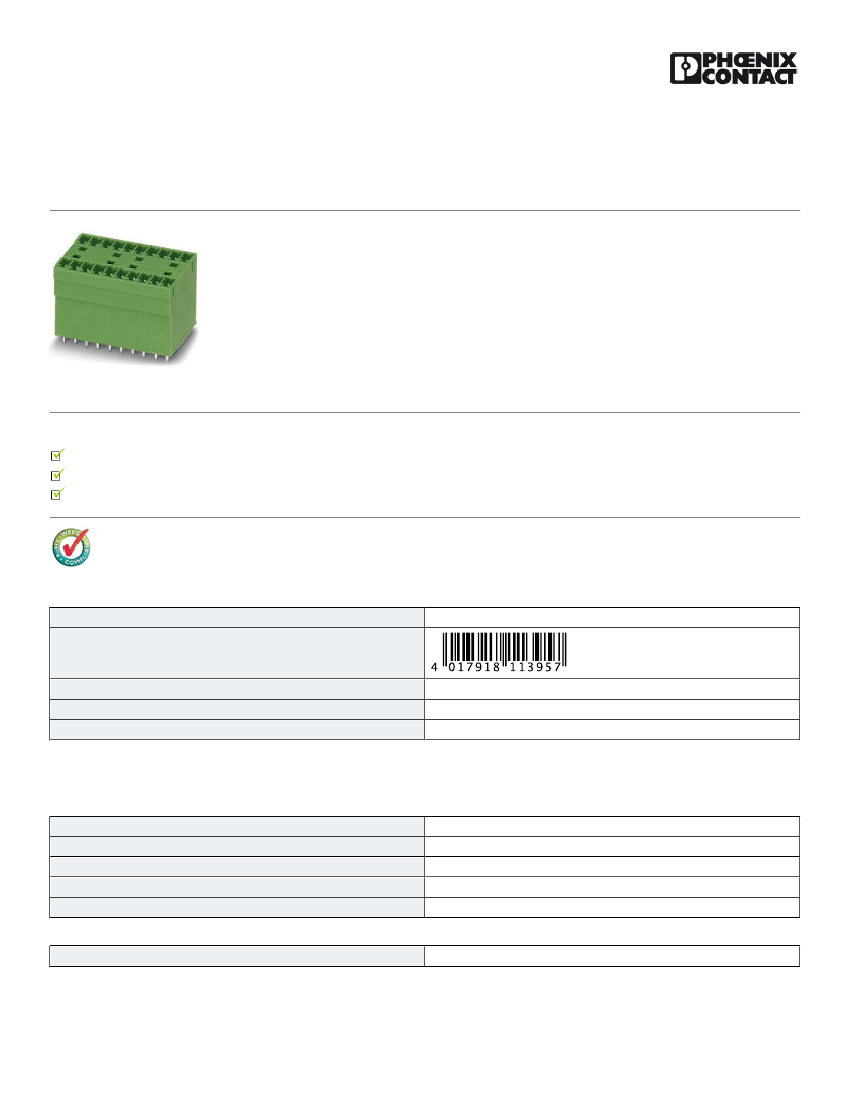

The figure shows a 10-pos. version

with 20 contacts

Product Features

Without offset levels, for flush installation on the front of devices

Plug-in direction vertical to the PCB

Low-profile double-level pin strips with high contact density

Key commercial data

Packing unit

GTIN

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

15.13 GRM

85366990

Germany

1 pc

Technical data

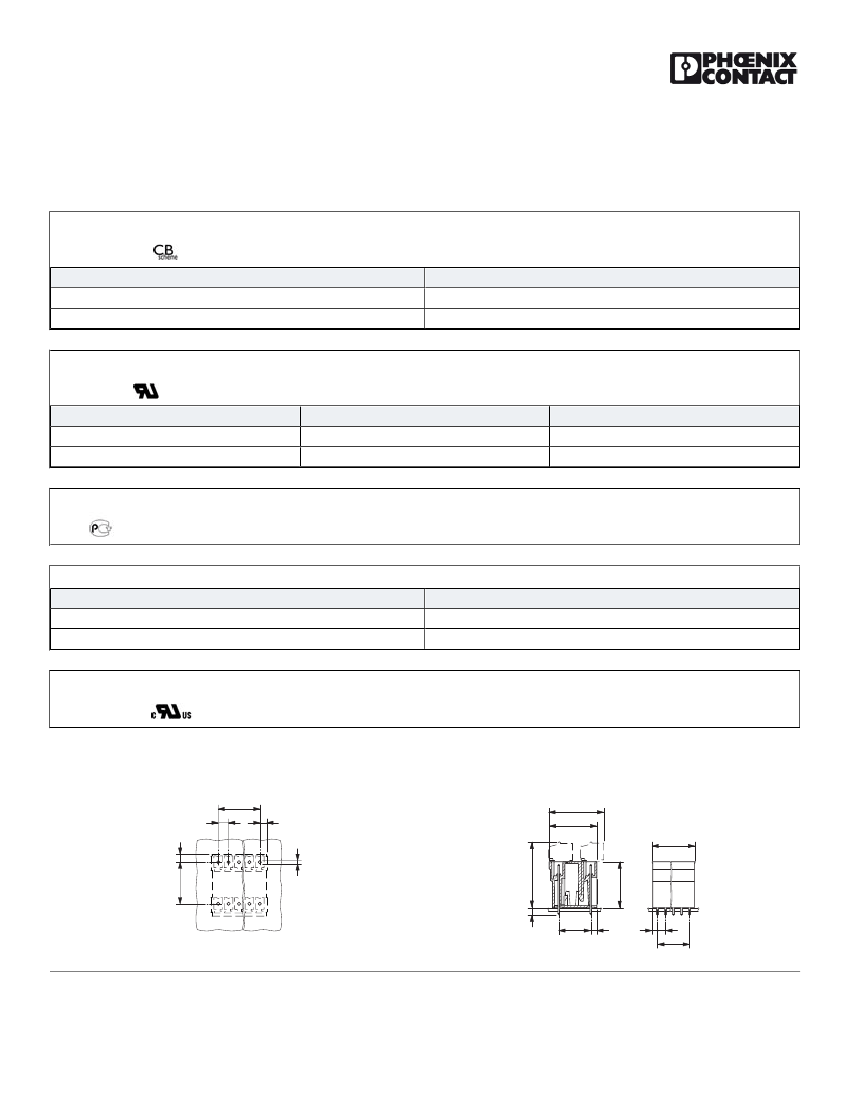

Dimensions

Length

Pitch

Dimension a

Pin dimensions

Hole diameter

22.7 mm

3.81 mm

41.91 mm

0,8 x 0,8 mm

1.2 mm

General

Range of articles

MCDV 1,5/..-G1

10/29/2014 Page 1 / 5
