950434-7203-AR: DescriptionHeaders u0026 Wire Housings 34P BDMNT SKT 2R STRT PTH 10U AU; CategoryThe connector The connector; File Size347KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

950434-7203-AR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	950434-7203-AR	-	-	View	Buy Now

950434-7203-AR Overview

Headers u0026 Wire Housings 34P BDMNT SKT 2R STRT PTH 10U AU

950434-7203-AR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	3M
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	34
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

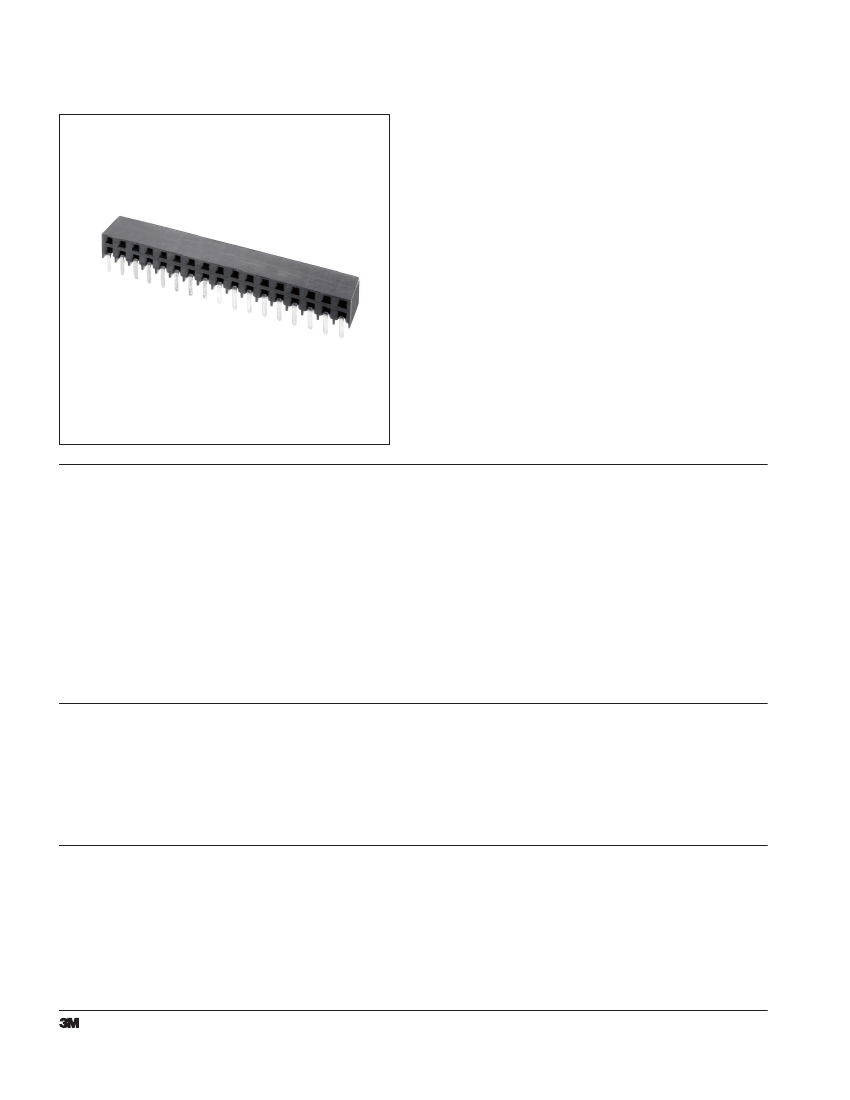

3M

™

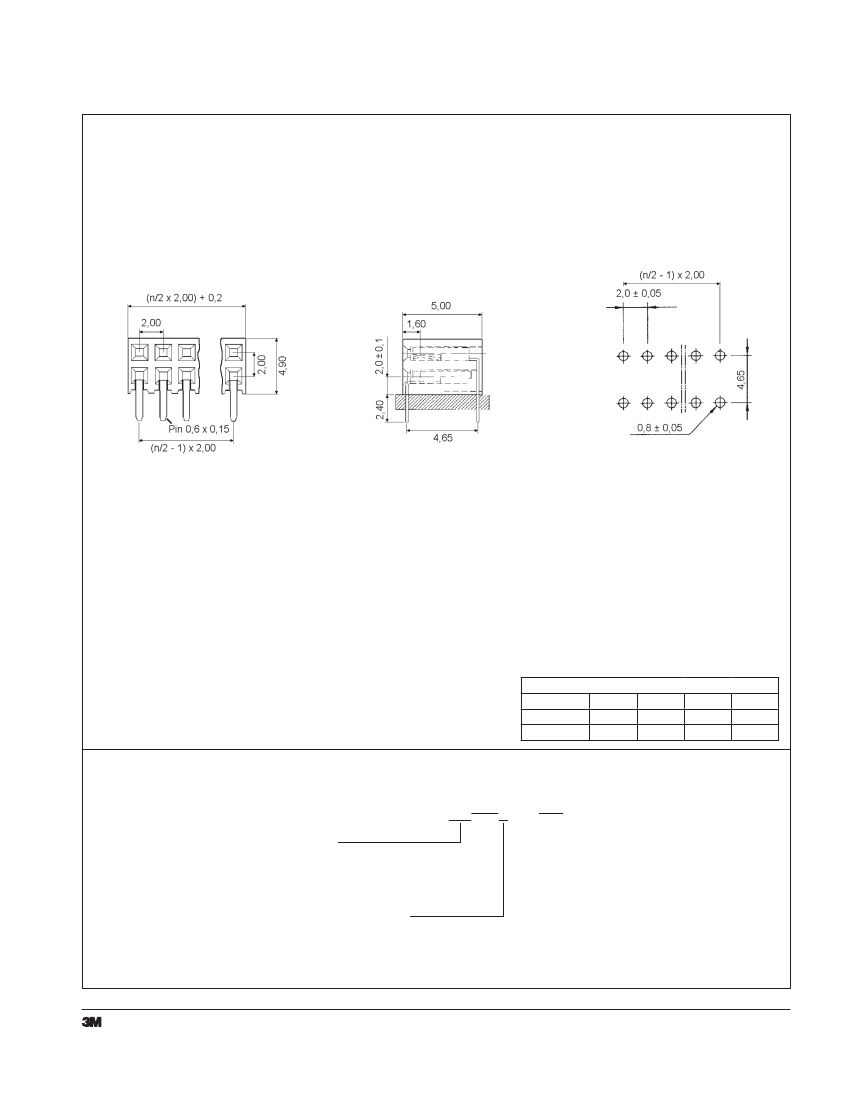

Boardmount Socket

2 mm x 2 mm, Right Angle, Solder Tail

950 Series

•

Optimizes use of PC board space

•

High temperature dielectric

•

No lead” wave and reflow solder compatible

“

•

Single- and dual row design, 6–50 pins

•

Minimized PC Board stacking heights

•

Mates with pin-strip header products

•

RoHS Compliant. See the Regulatory Information

1/

Date Modified: November 27, 2012

17

Appendix (RIA) in the RoHS compliance section of

www.3Mconnectors.com for compliance information

(RIA E1 & C1 apply)

Physical

Electrical

Environmental

Temperature Range:

-40 °C to +105 °C

Processing Temperature:

ax. 260 °C (Profile per J-STD-020C)

m

Moisture Sensitivity Level:

1 (per J-STD-020C)

UL File No.: E68080

3M is a trademark of the 3M Company

For technical, sales or ordering information

call your Local 3M Service Center

Interconnect Solutions

http://www.3Mconnectors.com

D

Current Rating:

Insulation Resistance:

Withstanding Voltage:

Transition Resistance:

IS

C

O

Insulation

Material: High Temperature Thermo lastic

p

Flammability: UL 94V-0

Color: Black

Contact

Material: Copper Alloy

Plating

Underplating: 1.25–2.5 µm [50-100 µ’’] Nickel

Wiping Area: Flash Gold

Solder Tail Area: 1–3 µm [40–118 µ’’] Matte Tin

1A

> 5 x 10

8

Ohm at 100 V

DC

1000 V

DC

≤ 20 mOhm

N

T

IN

U

E

D

TS-2163-C

Sheet 1 of 2
