PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-091
REVISION
ROCARD
TM
PC Card Kit
2 of 17
AUTHORIZED BY
DATE
C
18-Mar-2003
Laurent SAILLARD
CLASSIFICATION
CONFIDENTIAL
1. Scope
This product specification covers the requirements of the new generation PCMCIA card kit of
AREVA FCI, ROCARD™.
1.1.
Abbreviations
I/O
Input / Output
LAN
Local Area Network
PCB
Printed Circuit Board
PCMCIA Personal Computer Memory Card International Association
ROCARD™
Rugged Original CARD
SMTIL
Surface Mount (Technology) In Line
1.2.
Applicable standards
PC Card Standard: volume 3 (Physical Specification) release 8.0 of April 2001.
This standard can be obtained from :
PCMCIA, 2635 North First Street, Suite 209,
San Jose, CA 95134 USA.
Some of the figures presented in this document are reproduced from the above standard.
1.3.
Related product specifications
68 position SMTIL Receptacle
GES-12-153 ROCARD™ extended PC Card Kit
1.4.
Related test procedures
International Standard IEC 512-2: Electromechanical components for electronic equipment; basic testing
procedures and measuring methods
Part 2: general examination, electrical continuity and contact resistance tests,
insulation tests and voltage stress tests
Test 2a : contact resistance-millivolt level method
International Standard IEC 512-4: Electromechanical components for electronic equipment; basic testing
procedures and measuring methods
Part 4: dynamic stress tests
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:C
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-091
REVISION
ROCARD
TM
PC Card Kit
3 of 17
AUTHORIZED BY
DATE
C
18-Mar-2003
Laurent SAILLARD
CLASSIFICATION
CONFIDENTIAL
Test 6d: Vibration
International Standard IEC 512-5: Electromechanical components for electronic equipment; basic testing
International Standard IEC 512-6: Electromechanical components for electronic equipment; basic testing
procedures and measuring methods
Part 6: Climatic tests and soldering tests
Test 11c: Damp heat,steady state
International Standard IEC 68-2-3 test Ca (damp heat, steady state).
International Standard IEC 68-2-6 test Fc Vibration (sinusoidal)
International Standard IEC 68-2-27 test Ea and guidance (shock)
EIA Standard EIA-364-C: Electrical connector/socket test procedures including environmental classifications
2. Card Kit description
2.1.
General
The ROCARD™ consists of:
two stainless steel card shields, each containing an integrated frame-bar,
one 68 position SMTIL Receptacle.
The card kit is available in either Type I or Type II.
The back-end can be provided with or without I/O connector(s).
This FCI specification meets or exceeds the PC Card Standard.
FCI manufactures the Card Kit without PCB.
For this reason, this FCI specification will only cover the specifications of the “empty” Card Kit, except for
vibration bend, torque and shock tests. It is, in this area, different from the PC Card Standard.
The electrical tests need a PCB. In that case only, a dummy one is to be added on which a 68 position SMTIL
Receptacle is soldered.
An I/O connector is excluded unless otherwise specified, as it is an optional part of the kit.
2.2.
Dimensions
The card kit dimensions must meet the requirements from the figures here after, both for the Type I
(thickness 3.3 mm) card kit and the Type II (thickness 5.0 mm) card kit.
The connector location and pin numbering are also shown in these figures.
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:C
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-091
REVISION
ROCARD
TM
PC Card Kit
4 of 17
AUTHORIZED BY
DATE
C
18-Mar-2003
Laurent SAILLARD
CLASSIFICATION
CONFIDENTIAL

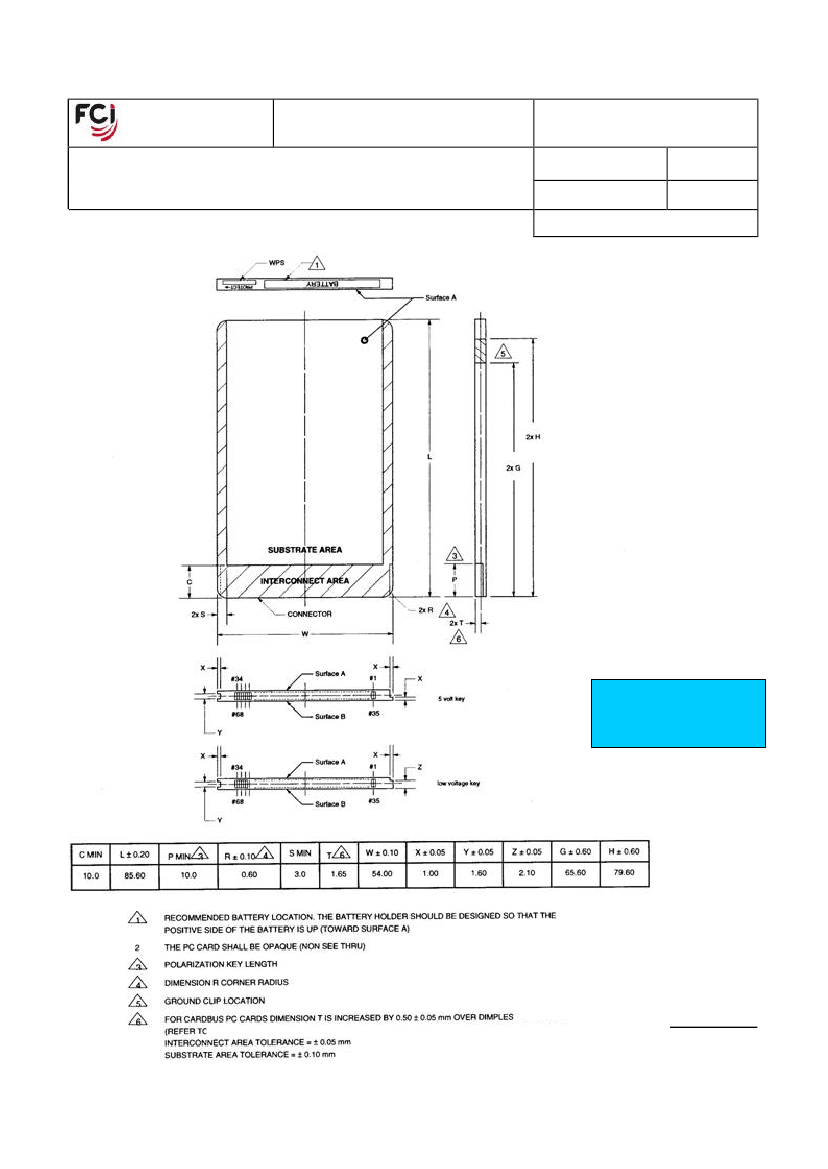

Type I PC Card
dimensions
This document is the property of and embodies CONFIDENTIAL and PROPRIETARY information of FCI. No part of the information shown on the document may be used in any way or disclosed to others
without the written consent of FCI.
Copyright FCI.
Form E-3005
Rev E
GS-01-001
PDM: Rev:C
STATUS:
Released
Printed: Nov 27, 2010
.
TYPE
NUMBER
PRODUCT SPECIFICATION
TITLE
PAGE
GS-12-091
REVISION
ROCARD
TM
PC Card Kit
5 of 17
AUTHORIZED BY
DATE
C
18-Mar-2003
Laurent SAILLARD
CLASSIFICATION
CONFIDENTIAL

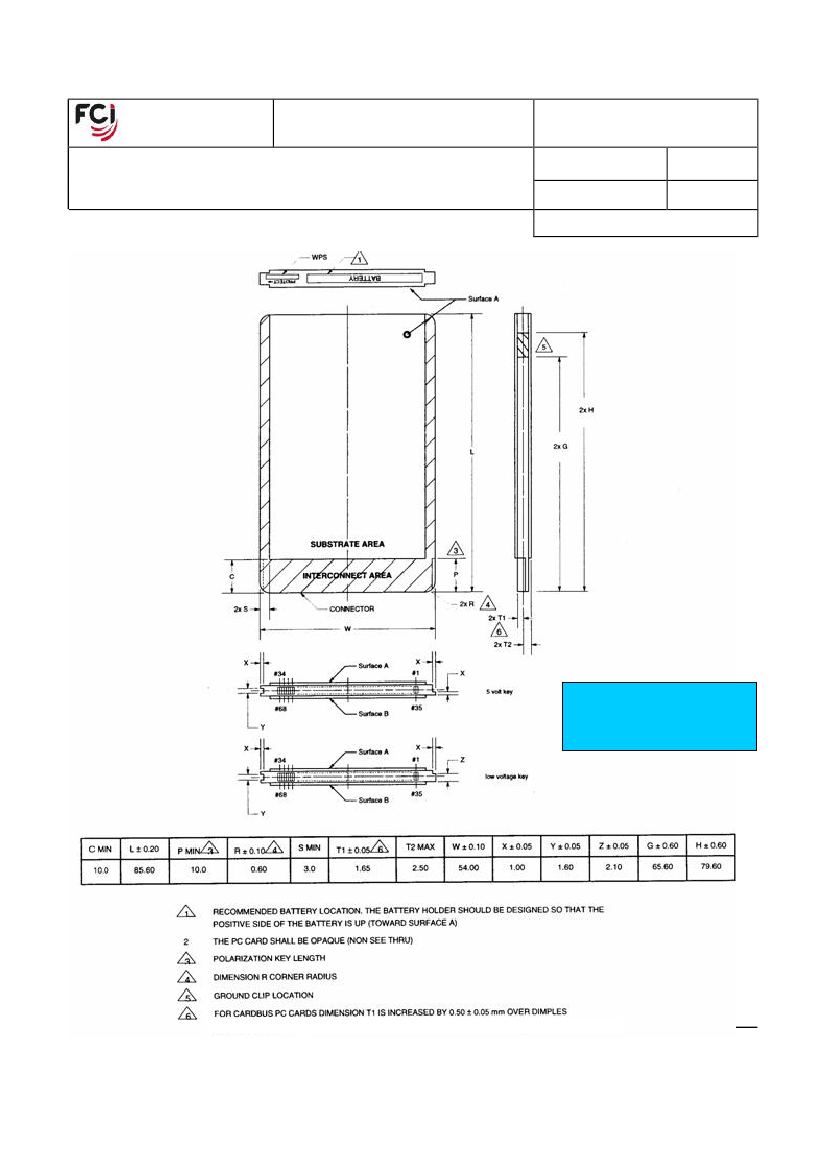

Type II PC Card
dimensions
