502250-2191 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 502250-2191

502250-2191: DescriptionFFC u0026 FPC Connectors 0.5MM 40 POS R/A TOP SMT GLD; CategoryThe connector The connector; File Size26KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502250-2191 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502250-2191	-	-	View	Buy Now

502250-2191 Overview

FFC u0026 FPC Connectors 0.5MM 40 POS R/A TOP SMT GLD

502250-2191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BACKFLIP, EASY-ON, POLARIZED
Board mount options	FITTING NAIL
body width	0.035 inch
subject depth	0.139 inch
body length	0.319 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	80 mΩ
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
Insulator color	NATURAL
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.012 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Rated current (signal)	0.2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.3 mm
Termination type	SURFACE MOUNT
Total number of contacts	21
Base Number Matches	1

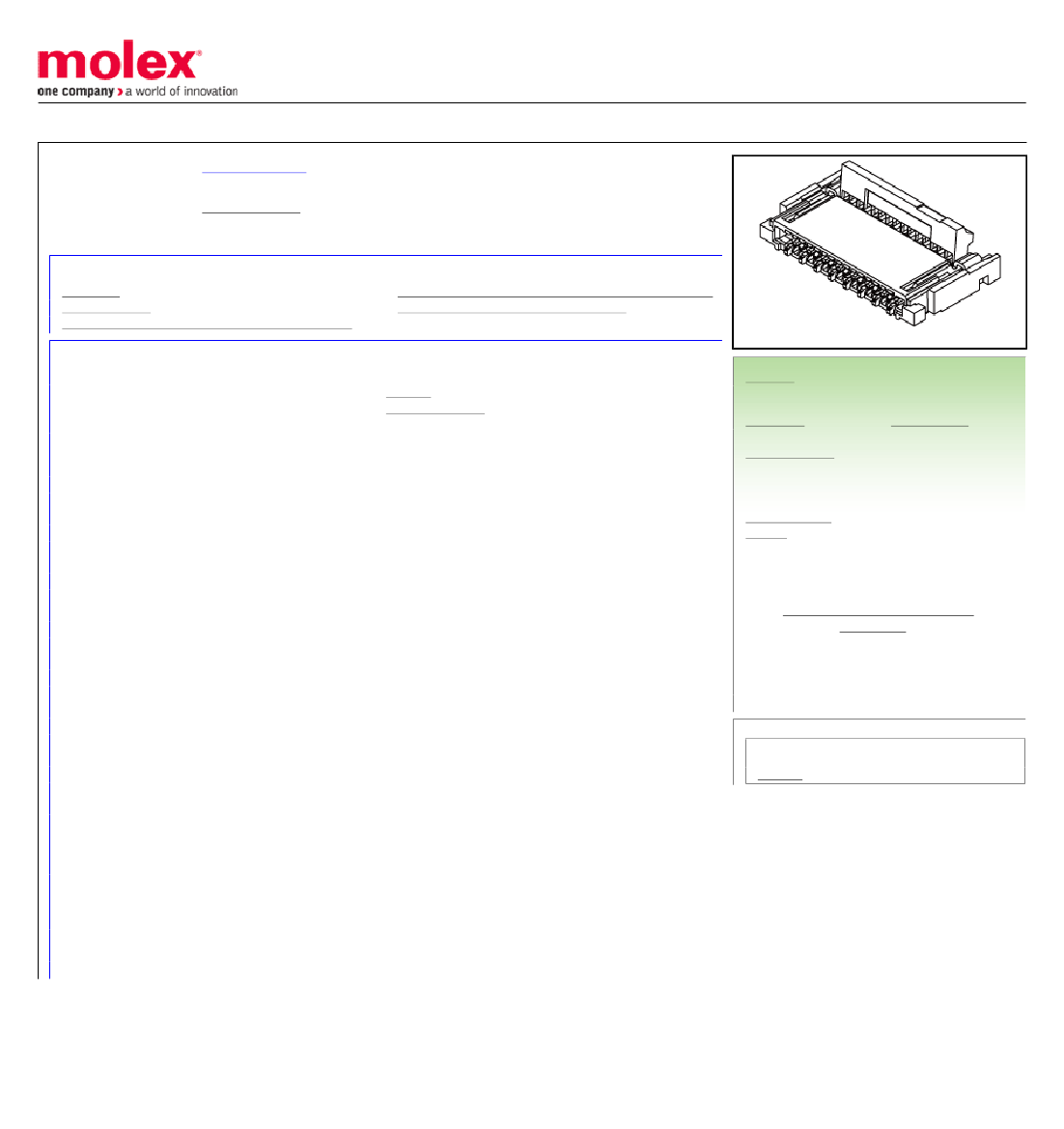

Preview

Download Datasheet

View All

This document was generated on 10/16/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5022502191

Active

FFC-FPC (SMT)

0.30mm Pitch Easy-On BackFlip Type FPC Connector, Right Angle, Surface Mount,

Dual Contact Style, 0.90mm Mated Height, 21 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-502250-001-001 (PDF)

General

Product Family

Series

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Sales Drawing

Packaging Specification SPK-502250-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

FFC/FPC Connectors

502250

FFC-FPC (SMT)

Easy-On

883906039417

Black, Natural

Dual

90° Angle

0.90mm

Copper-Nickel-Tin

Gold

50.094/mg

Right Angle

Yes

Embossed Tape on Reel

0.30mm

Yes

-40°C to +105°C

Surface Mount

FPC only

0.2A

50V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

502250 Series

SPK-502250-001-001

PS-502250-001-001

5022500000-000, 5022501000-000

This document was generated on 10/16/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
