DIN Rail Terminal Blocks Interface Module, DM16-S DM 1A Diode, 16d, screw term.

89732 Parametric

Parameter Name	Attribute value
Product Category	DIN Rail Terminal Blocks
Manufacturer	Altech
Type	Interfaces, Relay Modules and Carriers
Current Rating	1 A
Voltage Rating	250 VAC
Wire Gauge Range	22 AWG to 12 AWG
Factory Pack Quantity	1

Preview

Download Datasheet

View All

Interface Modules

Diode modules & component carriers

INTERFACES

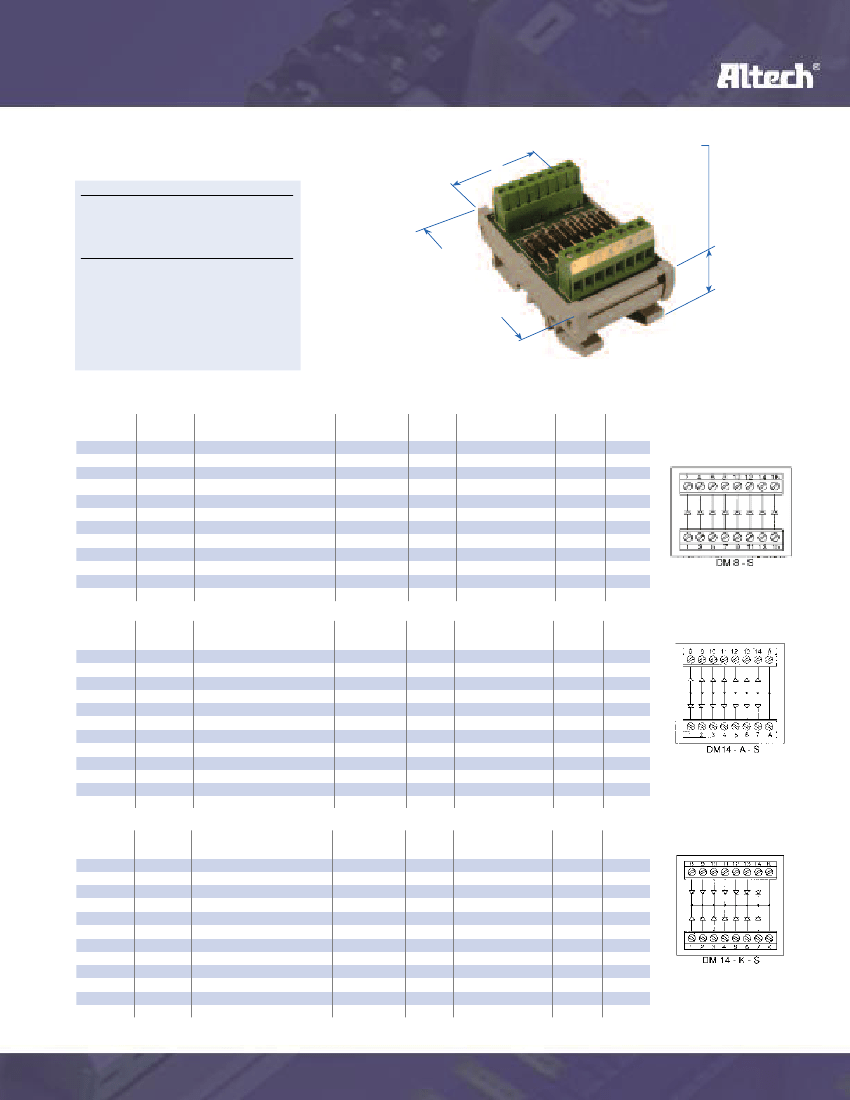

DM Diode Module

35 or 32 mm DIN Rail Mount

Technical Information

Diode

Rated Current

1N4007 or equivalent

1N5408 or equivalent

P600M or equivalent

Maximum Blocking Voltage - 1000V DC

Rated Bus Current: 10A

(12A at 30˚C (86˚F) Temperature Rise)

Wire Range ...........0.5-4 mm

; 22-12 AWG

Voltage ..................250V AC

Torque ...................0.5-4 Nm / 4 lbs-in.

Stripping Length ...8 mm

TS35x7.5 56mm (2.21 in.)

TS32x15 61mm (2.40 in.)

SCREW CLAMP *

1 AMP

Part Number

8971.2

5702.2

5703.2

8973.2

8974.2

8975.2

8842.2

5704.2

5705.2

8850.2

5706.2

5707.2

3 AMP

Part Number

8971.3

5702.3

5703.3

8973.3

8974.3

8975.3

8842.3

5704.3

5705.3

8850.3

5706.3

5707.3

6 AMP

Part Number

8971.4

5702.4

5703.4

8973.4

8974.4

8975.4

8842.4

5704.4

5705.4

8850.4

5706.4

5707.4

Type

DM4-S

DM8-S

DM12-S

DM16-S

DM20-S

DM24-S

DM6-A-S

DM14-A-S

DM22-A-S

DM6-K-S

DM14-K-S

DM22-K-S

Type

DM4-S3

DM8-S3

DM12-S3

DM16-S3

DM20-S3

DM24-S3

DM6-A-S3

DM14-A-S3

DM22-A-S3

DM6-K-S3

DM14-K-S3

DM22-K-S3

Type

DM4-S6

DM8-S6

DM12-S6

DM16-S6

DM20-S6

DM24-S6

DM6-A-S6

DM14-A-S6

DM22-A-S6

DM6-K-S6

DM14-K-S6

DM22-K-S6

Ordering Information

Series Connection, 1A diodes

Bussed Anodes, 1A diodes

Bussed Cathodes, 1A diodes

Ordering Information

Series Connection, 3A diodes

Bussed Anodes, 3A diodes

Bussed Cathodes, 3A diodes

Ordering Information

Series Connection, 6A diodes

Bussed Anodes, 6A diodes

Bussed Cathodes, 6A diodes

No. of Diodes

Diode

1N4007

Diode

1N5408

Diode

P600M

Module Length (L)

in mm(in.)

24 (0.95)

44 (1.73)

64 (2.52)

92 (3.62)

112 (4.41)

132 (5.20)

30 (1.18)

50 (1.97)

70 (2.75)

30 (1.18)

50 (1.97)

70 (2.75)

Module Length (L)

in mm(in.)

24 (0.95)

44 (1.73)

64 (2.52)

92 (3.62)

112 (4.41)

132 (5.20)

30 (1.18)

50 (1.97)

70 (2.75)

30 (1.18)

50 (1.97)

70 (2.75)

Module Length (L)

in mm(in.)

24 (0.95)

44 (1.73)

64 (2.52)

92 (3.62)

112 (4.41)

132 (5.20)

30 (1.18)

50 (1.97)

70 (2.75)

30 (1.18)

50 (1.97)

70 (2.75)

Std. Pk.

Figure

Figure A

Figure B

Figure C

* Spring Terminal is available; add suffix S to end of part number. Example: Part Number 8971.2/S for Spring Terminal.

Altech Corp.

• 35 Royal Road • Flemington, NJ 08822-6000 • Phone (908)806-9400 • FAX (908)806-9490 • www.altechcorp.com

DATA SUBJECT TO CHANGE WITHOUT NOTICE
