Differential Line Driver/Receiver
Features
• Complete ADSL differential driver
and receiver
• 45V
P-P
differential output drive
into 200Ω
• -60dB typical output distortion at
full output at 2MHz
• -73dB typical receive distortion at
15V
P-P
levels at 2MHz
• Drives 8 single-ended video loads,
or 4 S-VHS loads, or 4 differential
video loads
• Power surface-mount package
General Description
The EL1501C contains two wideband high-voltage drivers and two
receive amplifiers. It is designed to drive 45V
P-P
signals at 2MHz into
a 200Ω load differentially with very low distortion. The receive ampli-
fiers also provide very low distortion and noise, and with external
resistors can be wired as a hybrid coupler.
All amplifiers are of the current-feedback type, giving high slewrates
while consuming moderate power. They retain frequency response
over a wide range of externally set gains.
The EL1501C operates on ±5V to ±15V supplies, and retains its band-
widths and linearities over the supply range.
Eight center package pins are used as ground connections and heat
spreaders, allowing a dissipation of 2W at the maximum ambient tem-
perature of 85°C.
Applications
•
•
•
•
ADSL line interface
HDSL line driver
Video distribution amplifier
Video twisted-pair line driver
Ordering Information
Part No
EL1501CM
Temp. Range
-40°C to +85°C
Package
20-Lead SO
Outline #
MDP0027

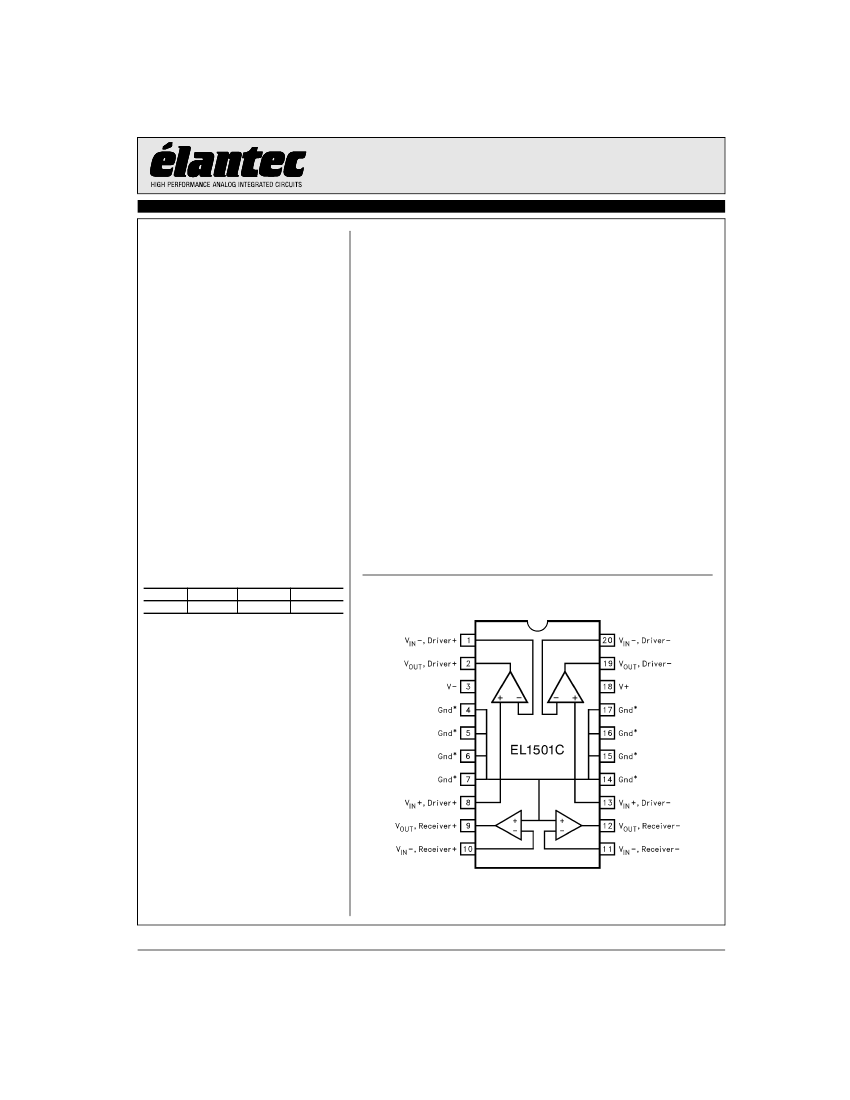

Connection Diagrams
