Fixed Resistors CONTENTS
Classification
Product Item
Part No.
Page
Safety Precautions (Common precautions for Fixed Resistors)
Chip
Resistors
High
Precision
Thick Film Chip Resistors
Precision Thick Film Chip Resistors
Metal Film (Thin Film) Chip Resistors,
High Reliability Type
Thick Film Chip Resistors
/ Low Resistance Type
ERJ XG, 1G, 2G, 3G, 6G, 8G, 14, 12, 12Z, 1T
ERJ XG, 1G, 1R, 2R, 3R, 6R, 3E, 6E, 8E, 14, 12, 1T
ERA 1A, 2A, 3A, 6A, 8A
ERJ 2LW, 3LW, 2B, 3B, 6B, 8B, 14B, 8C, 3R, 6R, 8R, 14R, 12R
ERJ 12Z, 1TR, L03, L06, L08, L14, L12, L1D, L1W
2
3
5
8
10
14
18
20
23
25
27
30
32
35
37
39
41
43
47
49
50
51
58
60
62
68
Current
Sensing
Current Sensing Resistors, Metal Plate Type
ERJ MS4S, MS4H, MS6S
Current Sensing Resistors, Metal Plate Type
ERJ M1WS, M1WT
High Power Chip Resistors / Wide Terminal Type
ERJ A1, B1, B2, B3
Small&High Anti-Surge Thick Film Chip Resistors
Power
Anti-Pulse Thick Film Chip Resistors
Surface Mount
Anti-Sulfurated
Resistors
Anti-Sulfurated Thick Film
Chip Resistors
Anti-Sulfurated High Power Chip Resistors /
Wide Terminal Type
Chip Resistor Array
Metal Film Chip Resistor Array
Resistor
Network/Array Anti-Sulfurated Chip Resistor Array
Chip Resistor Networks
Chip Attenuator
Packaging Methods (Taping)
Common
specifications
Recommended Land Pattern
Recommended Soldering Conditions
ERJ P03, PA3, P06, P08, P14
ERJ T06, T08, T14
ERJ S02, S03, S06, S08, S14, S12, S1D, S1T
ERJ U01, U02, U03, U06, U08, U14, U12, U1D, U1T
ERJ U6S, U6Q
ERJ C1
EXB 14V, 18V, 24V, 28V, N8V, 2HV, 34V,
V4V, 38V, V8V, S8V
ERA38V
EXB U2, U3
EXB D, E, A, Q
EXB 14AT, 24AT
Safety Precautions (Common precautions for Surface Mount Resistors)
Power
Type Resistors
(Leaded)
Metal (Oxide) Film Resistors,
Flame-Retardant
Anti-Pulse Power Resistors
Metal Film Resistors / Low Resistance Value
Fusing Resistors
Fixed Resistors Appendix
Metal Film Fusing Resistors
ERG 12S, 1S, 1F, 2S, 2F, 3S, 3F, 5S, 5F
ERX 12S, 1S, 1F, 2S, 2F, 3S, 3F, 5S, 5F
ERG 12D, 1D, 2D, 3D
ERX 12L, 1L, 2L
ERQ 1Z, 2Z, 12Z, 14Z
ERQ 1AB, 2AB, 12A, 14A
All products in this catalog comply with the RoHS Directive.
The RoHS Directive is “the Directive (2011/65/EU) on the Restriction of the Use of Certain
Hazardous Substances in Electrical and Electronic Equipment “ and its revisions.
01
Jan. 2015
–1–
Safety Precautions (Common precautions for Fixed Resistors)
• When using our products, no matter what sort of equipment they might be used for, be sure to make a written
agreement on the specifications with us in advance. The design and specifications in this catalog are subject
to change without prior notice.
• Do not use the products beyond the specifications described in this catalog.
• This catalog explains the quality and performance of the products as individual components. Before use, check
and evaluate their operations when installed in your products.
• Install the following systems for a failsafe design to ensure safety if these products are to be used in equipment
where a defect in these products may cause the loss of human life or other significant damage, such as damage to
vehicles (automobile, train, vessel), traffic lights, medical equipment, aerospace equipment, electric heating
appliances, combustion/gas equipment, rotating equipment, and disaster/crime prevention equipment.
½
Systems equipped with a protection circuit and a protection device
½
Systems equipped with a redundant circuit or other system to prevent an unsafe status in the event of a single fault
(1) Precautions for use
• These products are designed and manufactured for general and standard use in general electronic equipment
(e.g. AV equipment, home electric appliances, office equipment, information and communication equipment)
• These products are not intended for use in the following special conditions. Before using the products,
carefully check the effects on their quality and performance, and determine whether or not they can be used.
1. In liquid, such as water, oil, chemicals, or organic solvent
2. In direct sunlight, outdoors, or in dust
3. In salty air or air with a high concentration of corrosive gas, such as Cl
2
, H
2
S, NH
3
, SO
2
, or NO
2
4. Electric Static Discharge (ESD) Environment
These components are sensitive to static electricity and can be damaged under static shock (ESD).
Please take measures to avoid any of these environments.
Smaller components are more sensitive to ESD environment.
5. Electromagnetic Environment
Avoid any environment where strong electromagnetic waves exist.
6. In an environment where these products cause dew condensation
7. Sealing or coating of these products or a printed circuit board on which these products are mounted, with
resin or other materials
• These products generate Joule heat when energized. Carefully position these products so that their heat will
not affect the other components.
• Carefully position these products so that their temperatures will not exceed the category temperature range due
to the effects of neighboring heat-generating components. Do not mount or place heat-generating components
or inflammables, such as vinyl-coated wires, near these products.
• Note that non-cleaning solder, halogen-based highly active flux, or water-soluble flux may deteriorate the
performance or reliability of the products.
• Carefully select a flux cleaning agent for use after soldering. An unsuitable agent may deteriorate the performance
or reliability. In particular, when using water or a water-soluble cleaning agent, be careful not to leave water
residues. Otherwise, the insulation performance may be deteriorated.
(2) Precautions for storage
The performance of these products, including the solderability, is guaranteed for a year from the date of arrival
at your company, provided that they remain packed as they were when delivered and stored at a temperature
of 5 °C to 35 °C and a relative humidity of 45 % to 85 %.
Even within the above guarantee periods, do not store these products in the following conditions. Otherwise,
their electrical performance and/or solderability may be deteriorated, and the packaging materials (e.g. taping
materials) may be deformed or deteriorated, resulting in mounting failures.
1. In salty air or in air with a high concentration of corrosive gas, such as Cl
2
, H
2
S, NH
3
, SO
2
, or NO
2
2. In direct sunlight
This is all for the common precautions. Also refer to the "CAUTION AND WARNING" section located on the back of the
front cover of this catalog and precautions for individual products shown in the subsequent pages.
<Package markings>
Package markings include the product number, quantity, and country of origin.
In principle, the country of origin should be indicated in English.
01 Sep. 2014
–2–
Thick Film Chip Resistors
Thick Film Chip Resistors
Type:
ERJ XG, 1G, 2G, 3G, 6G,
8G, 14, 12, 12Z, 1T
Features
●
Small
size and lightweight
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Compatible with placement machines
Taping packaging available
●
Suitable for both reflow and flow soldering
●
Reference Standards
IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
AEC-Q200 qualified (Exemption ERJXG)
●
RoHS compliant
■
As for Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions,
Please see Data Files
Explanation of Part Numbers
●
ERJXGN,
1GN, 2GE, 3GE, 6GE, 8GE, 14, 12, 12Z, 1T Type, ±5 %
1
2
3
4
5
6
7
8
9
10
11
12
E
R
J
3
G
E
Y
J
1
0
2
V
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Code Inch Power R.
XGN 01005 0.031 W
0.05 W
1GN 0201
0.1 W
2GE 0402
0.1 W
3GE 0603
6GE 0805 0.125 W
0.25 W
8GE 1206
0.5 W
14 1210
0.75 W
12 1812
0.75 W
12Z 2010
1W
1T 2512
Code
Y
½
Nil
Marking
Marking
Value Marking on
black side
No marking
Resistance Tolerance
Code
J
0
Tolerance
±5 %
Jumper
Code
Y
U
C
X
Y
Packaging Methods
Packaging
Pressed Carrier Taping
W8P2, 20,000 pcs.
Embossed Carrier Taping
W4P1, 40,000 pcs.
Part No.
ERJXGN
Resistance Value
The first two digits are significant figures of resistance and
the third one denotes number of zeros following.
Decimal Point is expressed by R as 4.7 = 4R7.
Jumper is expressed by R00.
Pressed Carrier Taping
2 mm pitch, 15,000 pcs. ERJ1GN
Punched Carrier Taping
2 mm pitch, 10,000 pcs.
Punched Carrier Taping
2 mm pitch, 20,000 pcs.
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
ERJ2GE
V
½
When omitted, the rest of the P/N factors shall be moved up respectively.
(Only XGN, 1GN, 2GE type)
U
ERJ3GE
ERJ6GE
ERJ8GE
ERJ14
Embossed Carrier Taping
ERJ12
4 mm pitch, 5,000 pcs.
ERJ12Z
Embossed Carrier Taping
ERJ1T
4 mm pitch, 4,000 pcs.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05
Mar. 2015
–3–

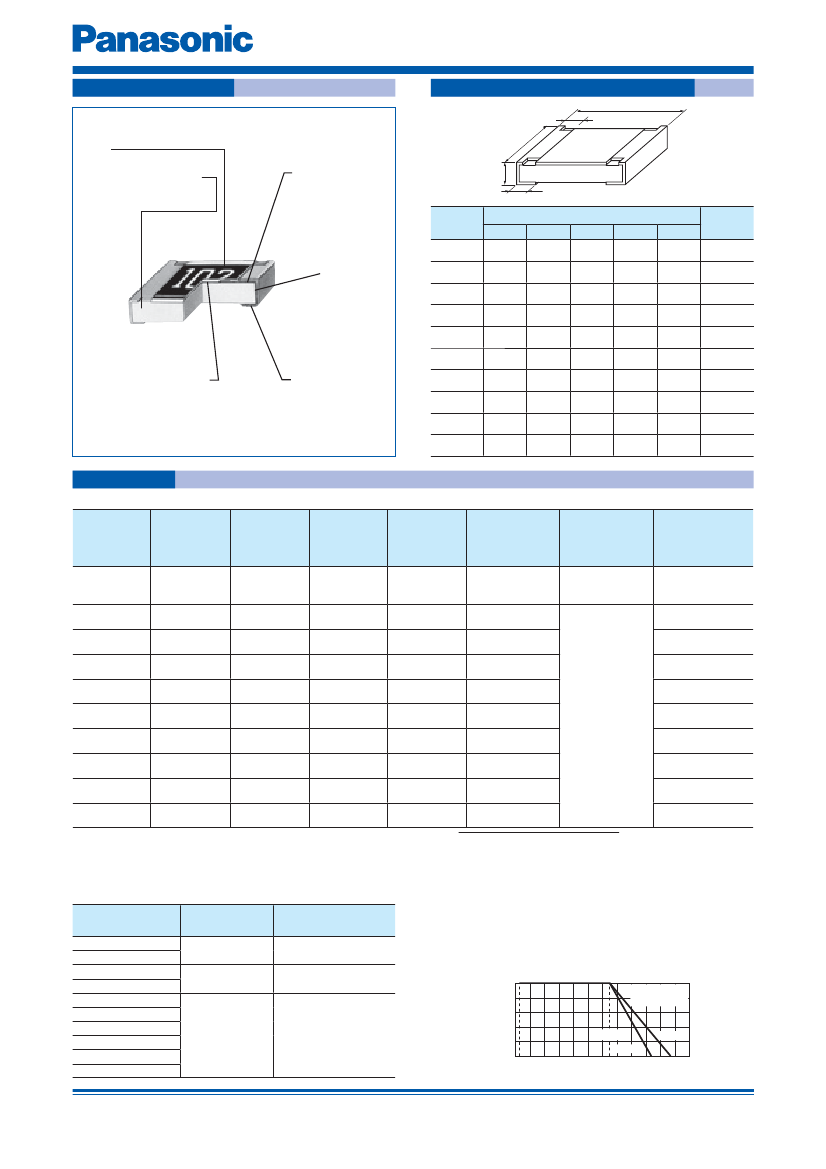

Thick Film Chip Resistors
Construction
Dimensions in mm (not to scale)
L
a
Protective coating
Alumina substrate
Electrode (Inner)
t
b
Part No.
(inch size)
ERJXG
(01005)
ERJ1G
(0201)
ERJ2G
(0402)
ERJ3G
(0603)
ERJ6G
(0805)
ERJ8G
(1206)
ERJ14
(1210)
ERJ12
(1812)
ERJ12Z
(2010)
ERJ1T
(2512)
Dimensions (mm)
L
0.40
±0.02
0.60
±0.03
1.00
±0.05
1.60
±0.15
2.00
±0.20
3.20
+0.05
–0.20
3.20
±0.20
4.50
±0.20
5.00
±0.20
6.40
±0.20
W
0.20
±0.02
0.30
±0.03
0.50
±0.05
a
0.10
±0.03
0.10
±0.05
0.20
±0.10
b
0.10
±0.03
0.15
±0.05
0.25
±0.05
0.30
±0.15
0.40
±0.20
0.50
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.20
0.60
±0.20
t
0.13
±0.02
0.23
±0.03
0.35
±0.05
0.45
±0.10
0.60
±0.10
0.60
±0.10
0.60
±0.10
0.60
±0.10
0.60
±0.10
0.60
±0.10
Mass (Weight)
(g/1000 pcs.)
0.04
0.15
0.8
2
4
10
16
27
27
45
W
Electrode
(Between)
0.80
+0.15
0.30
±0.20
–0.05
1.25
±0.10
0.40
±0.20
1.60
+0.05
0.50
±0.20
–0.15
2.50
±0.20
3.20
±0.20
2.50
±0.20
3.20
±0.20
0.50
±0.20
0.50
±0.20
0.60
±0.20
0.65
±0.20
Thick film
resistive element
Electrode (Outer)
Ratings
[For Resistor]
Part No.
(inch size)
ERJXG
(01005)
(0201)
Power Rating Limiting Element Maximum Overload Resistance
Voltage
(1)
Voltage
(2)
Tolerance
at 70 °C
(%)
(W)
(V)
(V)
0.031
0.05
0.1
0.1
0.125
0.25
0.5
0.75
0.75
1
15
25
50
75
150
200
200
200
200
200
30
50
100
150
200
400
400
500
500
500
±5
±5
±5
±5
±5
±5
±5
±5
±5
±5
Resistance
Range
(Ω)
T.C.R.
(×10
–6
/°C)
Category
Temperature Range
(°C)
–55 to +125
–55 to +125
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
–55 to +155
<10
Ω
: –100 to +600
4.7 to 1 M (E24) 10
Ω
to 100
Ω
: ±300
100
Ω<
: ±200
1 to 10 M (E24)
<10
Ω:
1 to 10 M (E24) –100 to +600
1 to 10 M (E24)
1 to 10 M (E24)
10
Ω
to 1 MΩ:
1 to 10 M (E24) ±200
1 to 10 M (E24)
1 to 10 M (E24)
1 to 10 M (E24) 1 MΩ<:
–400 to +150
1 to 1 M (E24)
ERJ1G
ERJ2G
(0402)
(0603)
(0805)
(1206)
(1210)
ERJ3G
ERJ6G
ERJ8G
ERJ14
ERJ12
(1812)
(2010)
ERJ12Z
ERJ1T
(2512)
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage
listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5 (Only ERJ2G=2.0)
×
RCWV or max. Overload Voltage
listed above whichever less.
[For Jumper]
Part No.
Rated Current Maximum Overload Current
(inch size)
(A)
(A)
ERJXG (01005)
0.5
1
ERJ1G (0201)
ERJ2G (0402)
1
2
ERJ3G (0603)
ERJ6G (0805)
ERJ8G (1206)
ERJ14 (1210)
2
4
ERJ12 (1812)
ERJ12Z (2010)
ERJ1T (2512)
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure below.
–55 °C
100
80
70 °C
2G, 3G, 6G, 8G,
14, 12, 12Z, 1T
Rated Load (%)
60
40
XG, 1G
155 °C
20
125 °C
0
–60 –40 –20 0 20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
05
Mar. 2015
–4–
京公网安备 11010802033920号
EEWORLD
