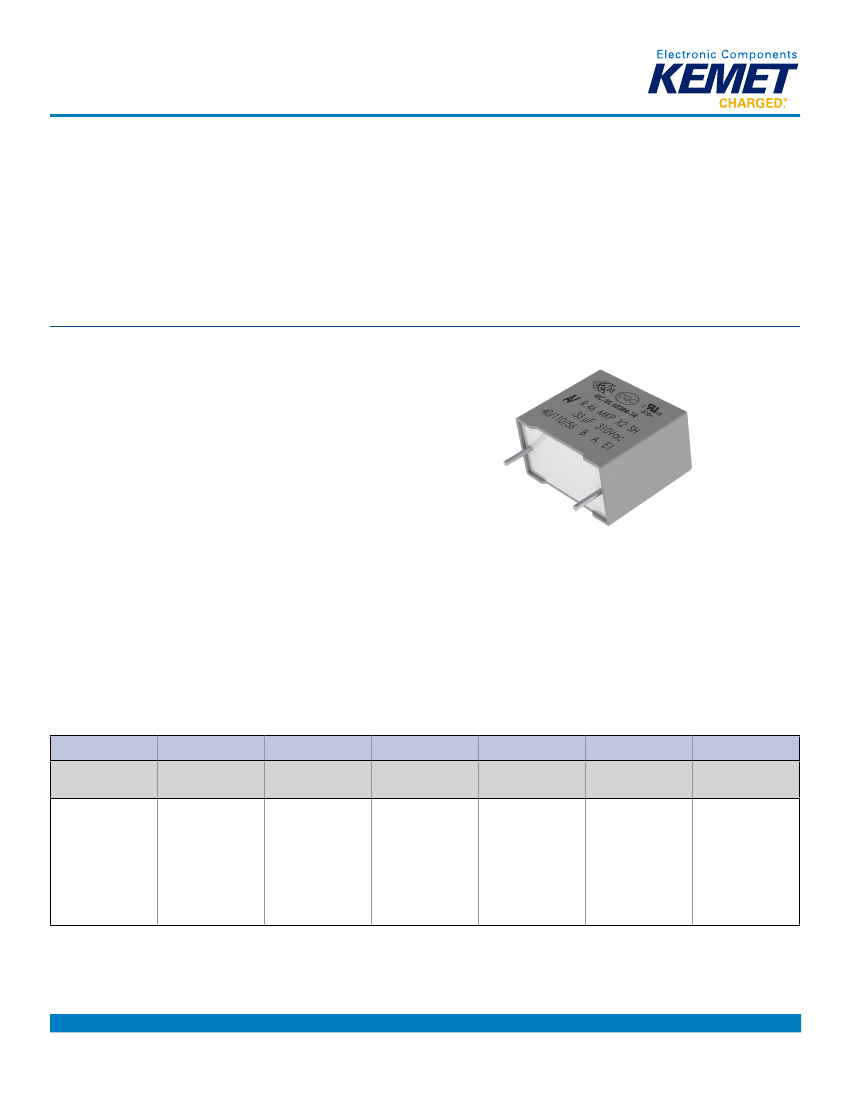

Metallized Polypropylene Film EMI Suppression Capacitors
R46 Series, Class X2, 310 VAC, 110ºC
Overview
The R46 Series is constructed of metallized polypropylene
film encapsulated with self-extinguishing resin in a box of
material meeting the requirements of UL 94 V–0.
Applications
For worldwide use in electromagnetic interference (EMI)
suppression in across-the-line applications requiring X2
safety classification. Intended for use in situations where
capacitor failure would not result in exposure to electric
shock. Not for use in “series with mains” type applications.
Benefits
• Approvals: ENEC, UL, cUL, CQC
• Class X2 (IEC 60384-14)
• Rated voltage: 310 VAC 50/60 Hz
• Capacitance range: 0.01 – 10 µF
• Lead spacing: 10.0 – 37.5 mm
• Capacitance tolerance: ±20%, ±10%
• Climatic category: 40/110/56, IEC 60068–1
• Tape and reel in accordance with IEC 60286–2
• RoHS Compliant and lead-free terminations
• Operating temperature range of −40˚C to +110˚C
• 100% screening factory test at 2,200 VDC/1,500 VAC
• Self-healing properties
Click image above for interactive 3D content
Open PDF in Adobe Reader for full functionality
Part Number System
R46
Series
X2, Metallized
Polypropylene
3
Rated Voltage
(VAC)
3 = 310
N
Lead Spacing
(mm)
F = 10.0
I = 15.0
N = 22.5
R = 27.5
W = 37.5
3150
Capacitance
Code (pF)
The last three
digits represent
significant figures.
The first digit
specifies number
of zeros to be
added.
00
Packaging
See Ordering
Options Table
01
Internal Use
01
02
L2
M1
M2
N0
N1
N2
M
Capacitance
Tolerance
K = ±10%
M = ±20%
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.comF3095_R46_X2_310_110C • 9/27/2016 1
Metallized Polypropylene Film EMI Suppression Capacitors
R46 Series, Class X2, 310 VAC, 110ºC
Ordering Options Table
Lead Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Ammo Pack
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Tape & Reel (Large Reel)
Other Lead and Packaging Options
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
Standard Lead and Packaging Options
Bulk (Bag) – Short Leads
Other Lead and Packaging Options
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Short Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Long Leads
Bulk (Bag) – Insulated Rigid Leads
Bulk (Bag) – Insulated Flexible Leads
4 +2/-0
2.7 +0.5/-0
3.5 +0.5/-0
4.0 +0.5/-0
3.2 +0.3/-0.2
18 +1/-1
30 +5/-0
25 +2/-1
30 +5/-0 (sp 8+2/-2)
150 +5/-5 (sp 8+2/-2)
00
JA
JB
JE
JH
JM
40
50
51
52
4 +2/-0
H
0
= 18.5 +/-0.5
2.7 +0.5/-0
3.5 +0.5/-0
4.0 +0.5/-0
3.2 +0.3/-0.2
18 +1/-1
30 +5/-0
25 +2/-1
30 +5/-0 (sp 8+2/-2)
150 +5/-5 (sp 8+2/-2)
00
CK
JA
JB
JE
JH
JM
40
50
51
52
4 +2/-0
H
0
= 18.5 +/-0.5
H
0
= 18.5 +/-0.5
2.7 +0.5/-0
3.5 +0.5/-0
4.0 +0.5/-0
3.2 +0.3/-0.2
18 +1/-1
30 +5/-0
25 +2/-1
30 +5/-0 (sp 8+2/-2)
150 +5/-5 (sp 8+2/-2)
00
DQ
CK
JA
JB
JE
JH
JM
40
50
51
52
Lead Length
(mm)
Lead and
Packaging Code
10,
15,
22.5
27.5
37.5
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.comF3095_R46_X2_310_110C • 9/27/2016 2
Metallized Polypropylene Film EMI Suppression Capacitors
R46 Series, Class X2, 310 VAC, 110ºC
Dimensions – Millimeters
Loose
FRONT VIEW
L
SIDE VIEW
B
Insulated Rigid Leads
FRONT VIEW
L
SIDE VIEW
B
Insulated Flexible Leads 0.5 mm
2
FRONT VIEW
L
SIDE VIEW
B
H
H
H
d
p
LL
35 +0/-5
150 ±5
d
8 ±2
d
p
10.0
10.0
10.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
15.0
22.5
22.5
22.5
22.5
22.5
27.5
27.5
27.5
27.5
27.5
27.5
27.5
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
4.0
5.0
6.0
5.0
6.0
6.0
7.5
7.5
8.5
9.0
10.0
11.0
13.0
6.0
7.0
10.0
11.0
13.0
9.0
11.0
13.0
13.0
14.0
18.0
22.0
B
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
+0.2
9.0
11.0
12.0
11.0
12.0
17.5
13.5
18.5
14.5
12.5
16.0
19.0
12.0
15.0
16.0
18.5
20.0
22.0
17.0
20.0
22.0
25.0
28.0
33.0
37.0
H
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
L
+0.2
+0.2
+0.2
+0.3
+0.3
+0.3
+0.5
+0.5
+0.5
+0.5
+0.5
+0.5
+0.5
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
0.6
0.6
0.6
0.6
0.6
0.6
0.6
0.8
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.comF3095_R46_X2_310_110C • 9/27/2016 3
8 ±2
Metallized Polypropylene Film EMI Suppression Capacitors
R46 Series, Class X2, 310 VAC, 110ºC
Dimensions – Millimeters cont'd
Loose
FRONT VIEW
L
SIDE VIEW
B
Insulated Rigid Leads
FRONT VIEW
L
SIDE VIEW
B
Insulated Flexible Leads 0.5 mm
2
FRONT VIEW
L
SIDE VIEW
B
H
H
H
d
p
LL
35 +0/-5
150 ±5
d
8 ±2
d
p
37.5
37.5
37.5
37.5
37.5
37.5
37.5
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
+/-0.4
11.0
13.0
16.0
19.0
20.0
24.0
30.0
B
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
22.0
24.0
28.5
32.0
40.0
44.0
45.0
H
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
+0.1
41.5
41.5
41.5
41.5
41.5
41.5
41.5
L
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
+0.3
1.0
1.0
1.0
1.0
1.0
1.0
1.0
d
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
+/-0.05
Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance Nominal Tolerance
Note: See Ordering Options Table for lead length (LL/H
0
) options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.comF3095_R46_X2_310_110C • 9/27/2016 4
8 ±2
Metallized Polypropylene Film EMI Suppression Capacitors
R46 Series, Class X2, 310 VAC, 110ºC
Performance Characteristics
Dielectric
Plates
Winding
Leads
Protection
Related documents
Rated Voltage (V
R
)
Capacitance Range
Capacitance Values
Capacitance Tolerance
Temperature Range
Climatic Category
Polypropylene film
Metal layer deposited by evaporation under vacuum
Non-inductive type
Tinned wire
Plastic case, thermosetting resin filled. Box material is solvent resistant and flame retardant according to UL94.
IEC 60384-14, EN 60384-14
310 VAC (50/60 Hz), 630 VDC
0.010 µF to 10 µF
E6 series (IEC 60063) measured @ 1 kHz and +20 ±1°C
±10%, ±20%
−40ºC to +110°C
40/110/56 IEC 60068-1
Storage time: ≤ 24 months from the date marked on the label package
Average relative humidity per year ≤ 70%
Storage Conditions
RH ≤ 85% for 30 days randomly distributed throughout the year
Dew is absent

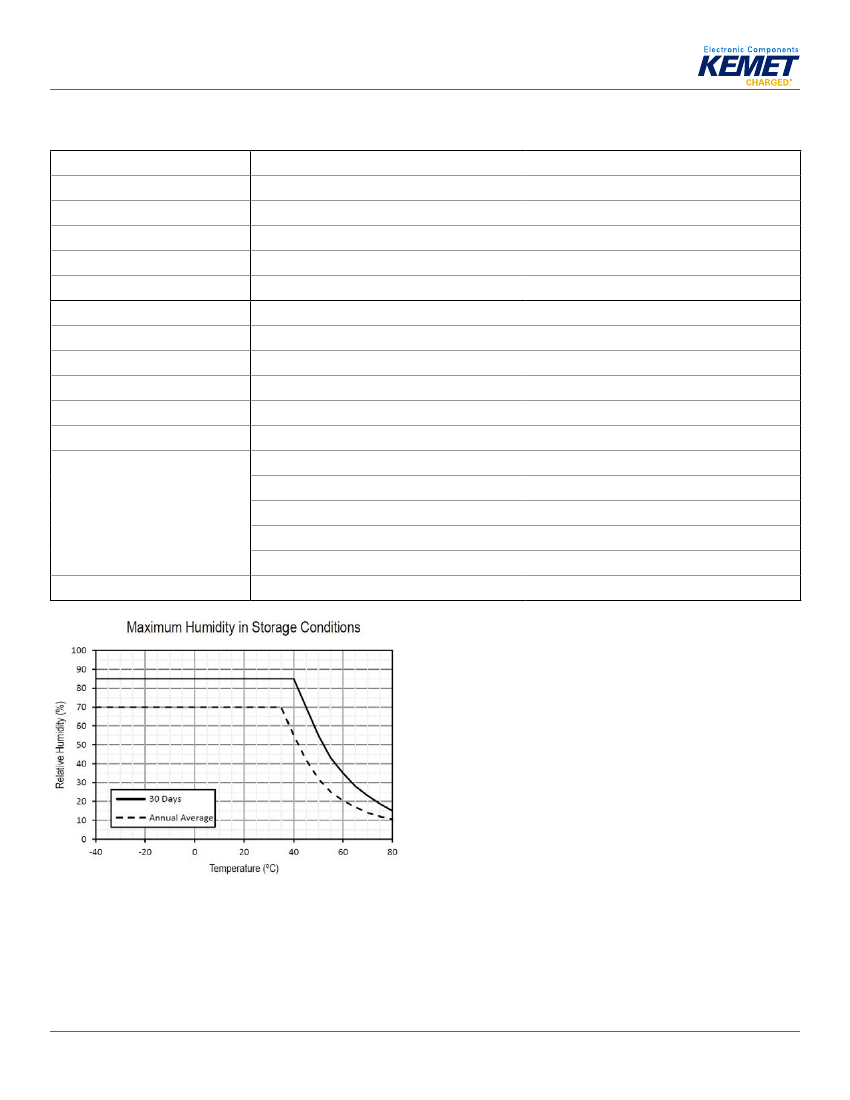

Temperature: −40 to 80°C (see "Maximum Humidity in Storage Conditions" graph below)
Approvals
ENEC, UL, cUL, CQC
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.comF3095_R46_X2_310_110C • 9/27/2016 5
