Ferrite Plates for Wireless Charging
MP & 33 Series
FEATURES
Ferrite materials are Wireless Power
Consortium(WPC) listed, recommended &
certified for interoperability test
Optimized for highest charging efficiency
Precise dimension control and automotive
grade available
-40℃ to 125℃ operating temperature
Available in wide range of size selection,
custom shapes are also available
APPLICATIONS
Wireless charger for general consumer
electronics,transmitter(TX) or receiver(RX)
Aftermarket charging pads
Wireless charger for Office,Residential,
and Public Area applications
Wireless charger embedded solution for
automobile central console, arm-rest…ect.
Power tools or any industrial devices that
need power transmission without metallic
contact

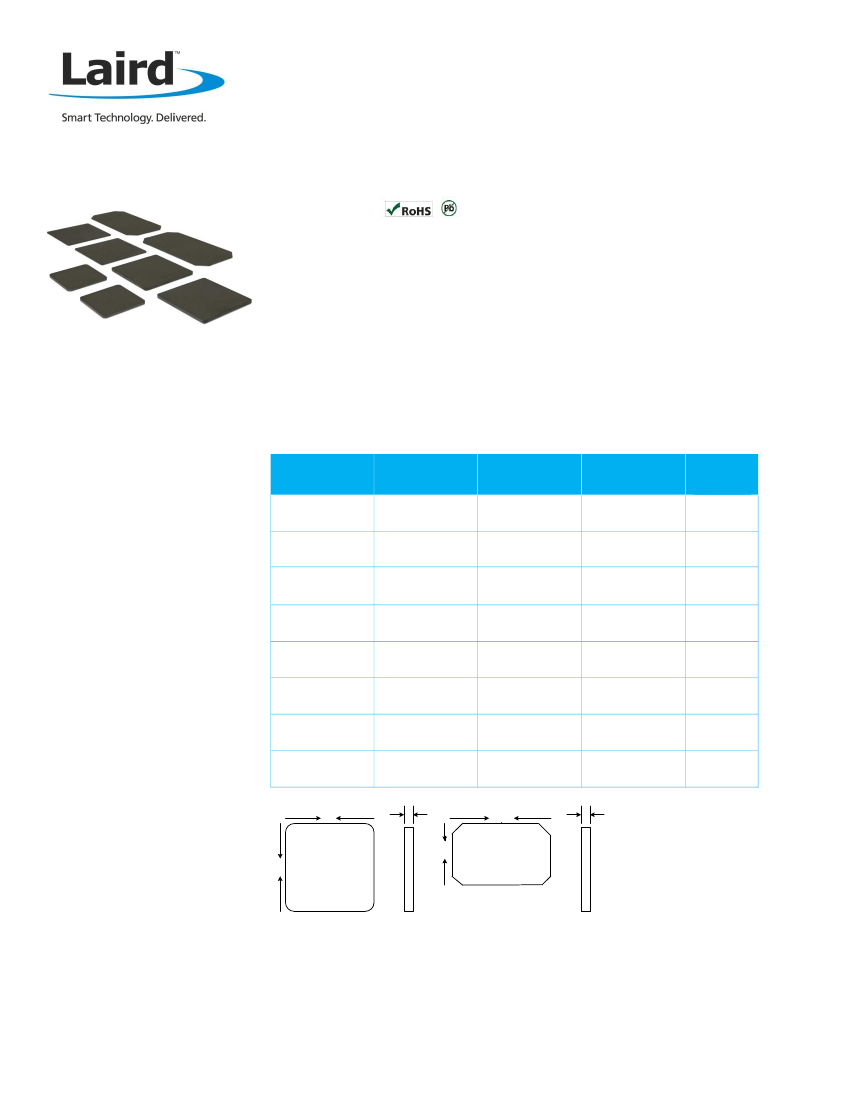

DIMENSIONS
PART
NUMBER
MP1040-3M0
MP1496-0M0
MP2106-0M0
MP2126-0M0
MP2170-1M0
MP3940-0M0
33P2098-0M0
33P3839-0M0
Figure 1
A
C
A mm
(inches)
26.42
(1.040)
38.00
(1.496)
53.00
(2.087)
53.80
(2.118)
47.20
(1.858)
100.00
(3.937)
53.30
(2.099)
97.50
(3.839)
A
B mm
(inches)
26.42
(1.040)
38.00
(1.496)
53.00
(2.087)
53.80
(2.118)
55.20
(2.173)
56.00
(2.205)
53.30
(2.099)
50.00
(1.969)
Figure 2
C
C mm
(inches)
2.25
(0.089)
2.00
(0.079)
2.50
(0.099)
1.10
(0.043)
2.50
(0.099)
1.10
(0.043)
2.50
(0.099)
1.10
(0.043)
Fig #
1
1
1
1
1
1
1
2
B
B
USA: +1.423.308.1690
Europe: +42.0.4885.7511.1
Asia: +86.757.2563.8860
MCP-DS-PLATES REV1.1 0714
Any information furnished by Laird Technologies, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application
of Laird Technologies materials rests with the end user. Laird Technologies makes no warranties as to the fitness, merchantability, suitability or non- infringement of any Laird Technologies materials or
products for any specific or general uses. Laird Technologies shall not be liable for incidental or consequential damages of any kind. All Laird Technologies products are sold pursuant to the Laird
Technologies’ Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2014 Laird Technologies, Inc. All Rights Reserved. Laird, Laird
Technologies, the Laird Technologies Logo, and other marks are trademarks or registered trademarks of Laird Technologies, Inc. or an affiliate company thereof. Other product or service names may be the
property of third parties. Nothing herein provides a license under any Laird Technologies or any third party intellectual property rights. Version A01
www.lairdtech.com
Ferrite Plates for Wireless Charging
MP & 33 Series
PART NUMBER SYSTEM EXAMPLE
33
M-28 Material
33-33 Material
P
Plate
2098
-
Part Size Code
0M0
Thickness Code
Catalog or Custom Information
28
Material
(WPC Listed)
650
280 [2800]
800 [10]
130 [1300]
32 [0.4]
500
0.1
> 140
10
5
33
Material
2300
390 [3900]
800 [10]
55 [550]
9 [0.1]
6
0.1
> 200
5x10
2
MATERIAL SPECIFICATIONS
Property
Initial Permeability
Flux Density
@ Field Strength
Residual Field Strength
Coercive Strength
Loss Factor @ Frequency
Curie Temperature
Resistivity
Symbol
μ
i
Unit
mT [Gauss]
A/m [Oe]
mT [Gauss]
A/m [Oe]
10
−6
MHz
℃
Ω-cm
B
H
tan δ/μ
i
f
ρ

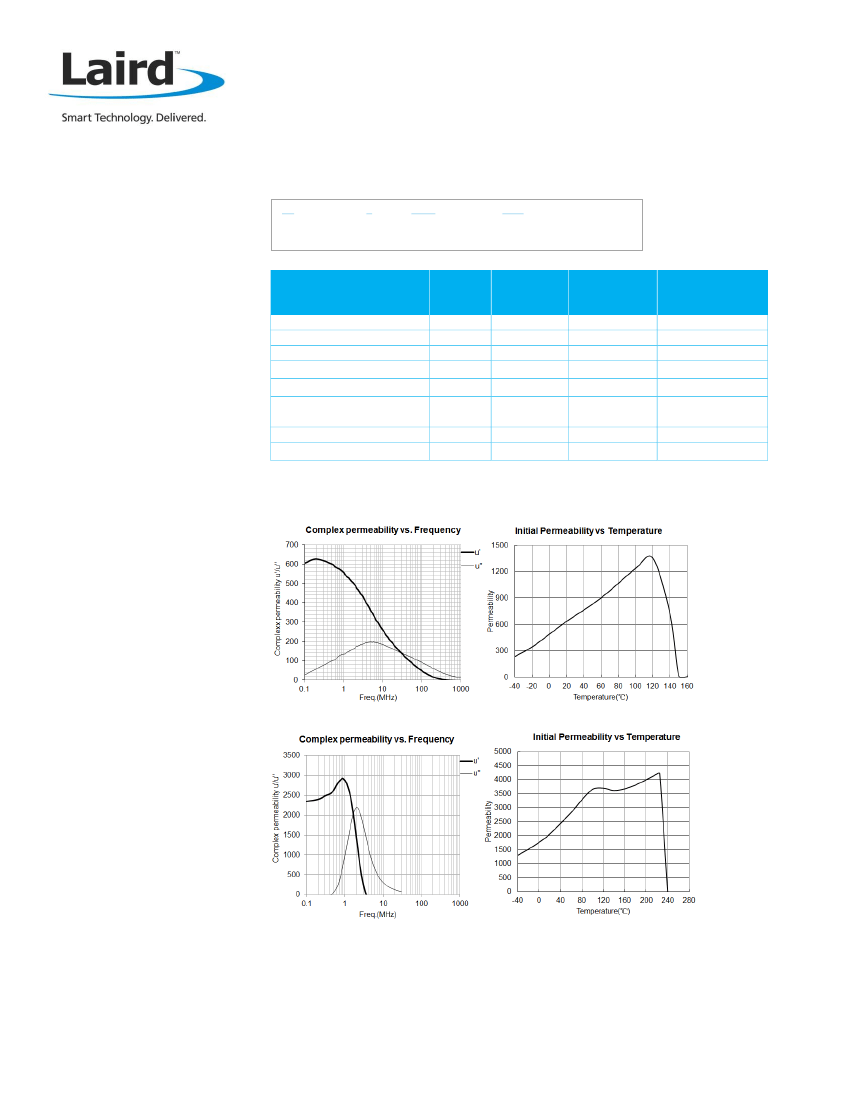

TYPICAL ELECTRICAL CHARACTERISTICS
28 MATERIAL
33 MATERIAL
USA: +1.423.308.1690
Europe: +42.0.4885.7511.1
Asia: +86.757.2563.8860
MCP-DS-PLATES REV1.1 0714
