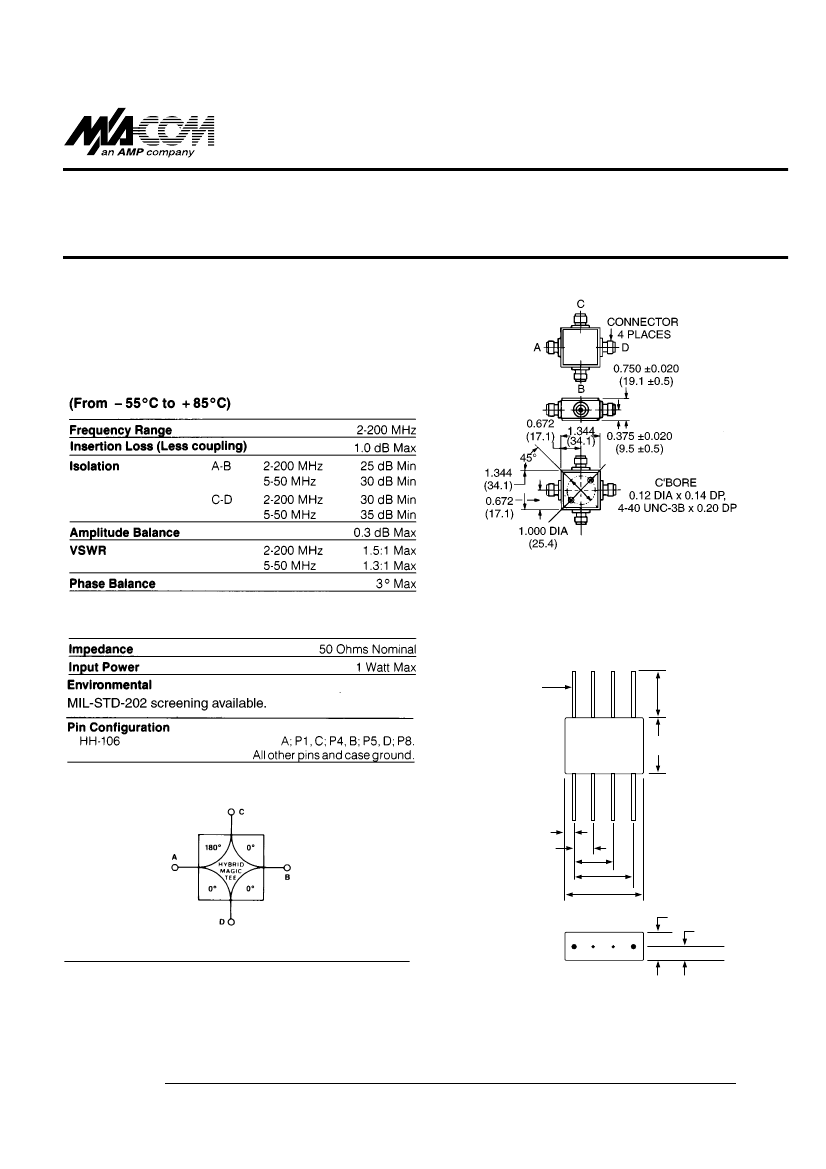

180° Hybrid Junctions

2 - 200 MHz

Features

HH-106/107

V2.00

C-8-107

0°-180° Hybrid with Symmetrical Time Delay

Between Ports

Available in Flatpack and Connectorized Packages

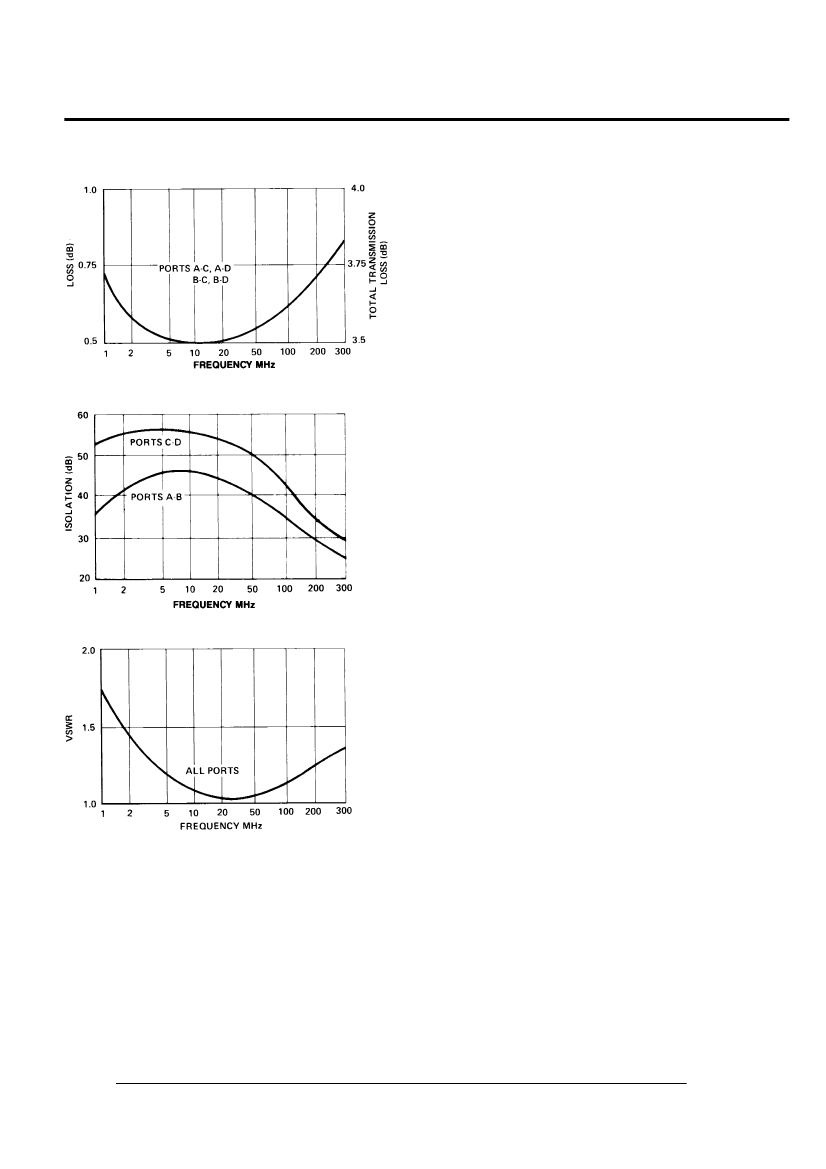

Guaranteed Speciﬁcations*

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .xxx = ±0.015 (.x = ±0.4)

WEIGHT (APPROX.): 2.5 OUNCES 71 GRAMS

Operating Characteristics

FP-2

PIN 0.015 DIA

±0.005

(0.38

±0.13)

8 PLACES

0.312 MIN TYP

(7.9 MIN)

*All speciﬁcations apply with 50 ohm source and load impedance.

0.385

±0.020

(9.8

±0.5)

Functional Diagram

0.080 (2.0)

0.100 (2.5)

0.250 (6.3)

0.51

(12.9

±0.5)

0.350 (8.9)

0.150 MAX

(3.8 MAX)

0.060 (1.5)

Ordering Information

Model No.

HH-106 PIN

HH-107 BNC

HH-107 SMA

FP-2

C-8-107

Package

Flatpack

Connectorized

Dimensions in ( ) are in mm.

Unless Otherwise Noted: .xxx = ±0.010 (.xx = ±0.25)

.xx = ±0.02 (.x = ±0.5)

WEIGHT (APPROX.): 0.09 OUNCES 2.5 GRAMS

Speciﬁcations Subject to Change Without Notice.

M/A-COM, Inc.

North America:

Tel. (800) 366-2266

Fax (800) 618-8883

Asia/Paciﬁc: Tel. +81 (03) 3226-1671

Fax +81 (03) 3226-1451

Europe: Tel. +44 (1344) 869 595

Fax +44 (1344) 300 020
