2M803-004-07M7-10PN-501 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 2M803-004-07M7-10PN-501

2M803-004-07M7-10PN-501: DescriptionCircular Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size213KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

2M803-004-07M7-10PN-501 Overview

Circular Connector, 10 Contact(s), Aluminum Alloy, Male, Crimp Terminal, Receptacle, ROHS COMPLIANT

2M803-004-07M7-10PN-501 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	POLARIZED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	BAYONET
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	7
Termination type	CRIMP
Total number of contacts	10

Preview

Download Datasheet

View All

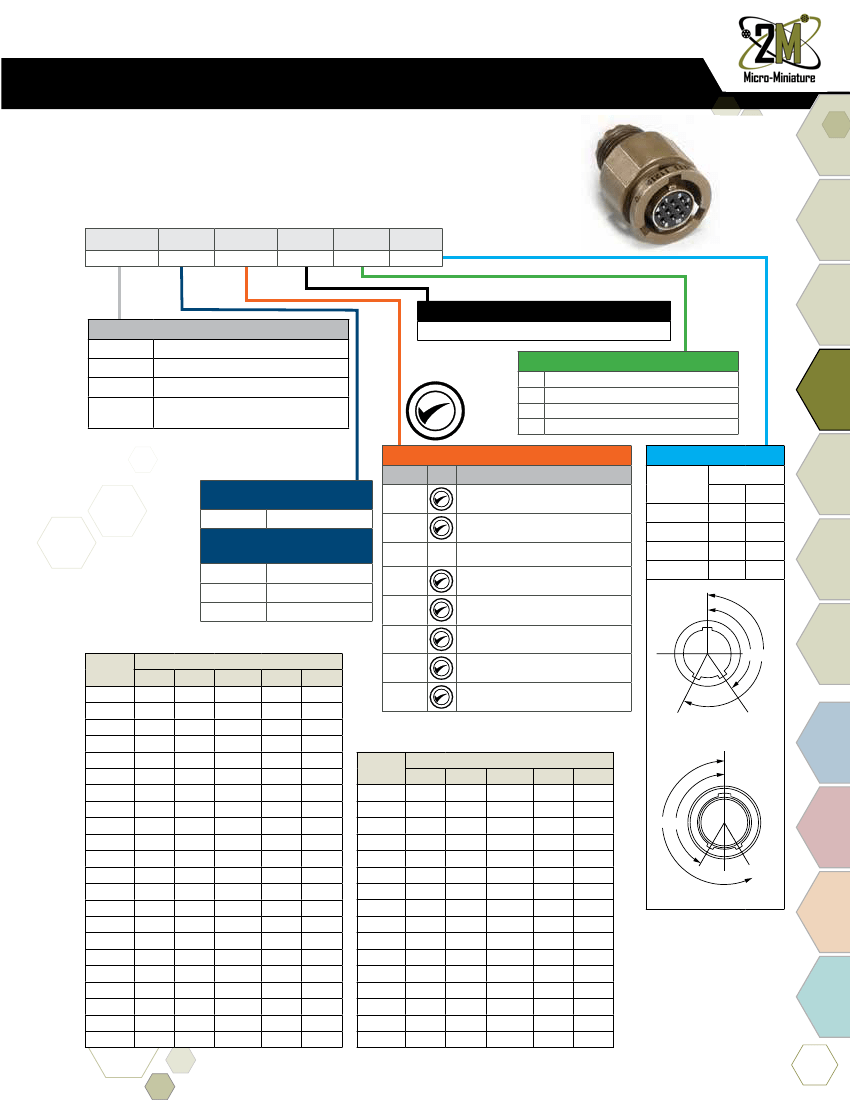

2M803 1/4 Turn Bayonet Coupling

Ordering Guide for 2M803 Crimp Receptacles & Plugs

Contacts

& Tools

2M Specs

Series

Shell Style

Service Class

2M803-00X

-06

Shell Size-

Contact Type

Insert Arrg.

6-7

Alternate

Position

*add "-501" to the suffix of Jam Nut version to

include a Hex Nut instead of a Spanner Nut.

2M801

SHELL SIZE - INSERT ARRANGEMENTS

SERIES

2M803-001

2M803-002

2M803-003

2M803-004

Plug, Integral Backshell

Plug with Rear Accessory Thread

Receptacle with Integral Backshell

Receptacle with Rear Accessory

Thread

See Insert Arrangements on Pages 13-15

CONTACTS

2M803

pheno

Socket

Pin, less contacts

Socket, less contacts

002

SERVICE CLASS

SHELL STYLE

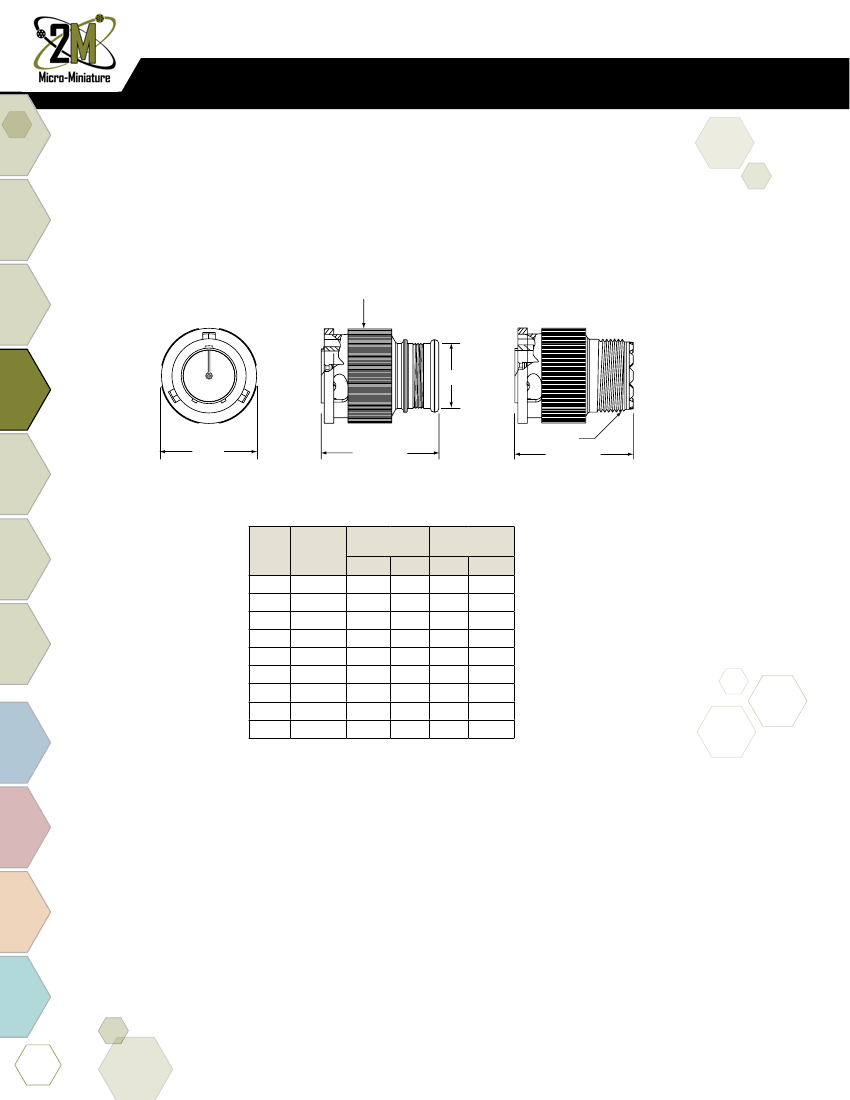

2M803-001, 2M803-002

-06

Plug

Finish

#12

ZNU

pheno

KEYING

Key

Position

Key Rotation

150°

75°

95°

140°

210°

2M804

002

Aluminum/Black Anodize

(Non-Conductive)

Aluminum/Electroless Nickel

Aluminum/Cadmium with Olive

Drab Chromate

pheno

SHELL STYLE

2M803-003, 2M803-004

-07

-02

-01

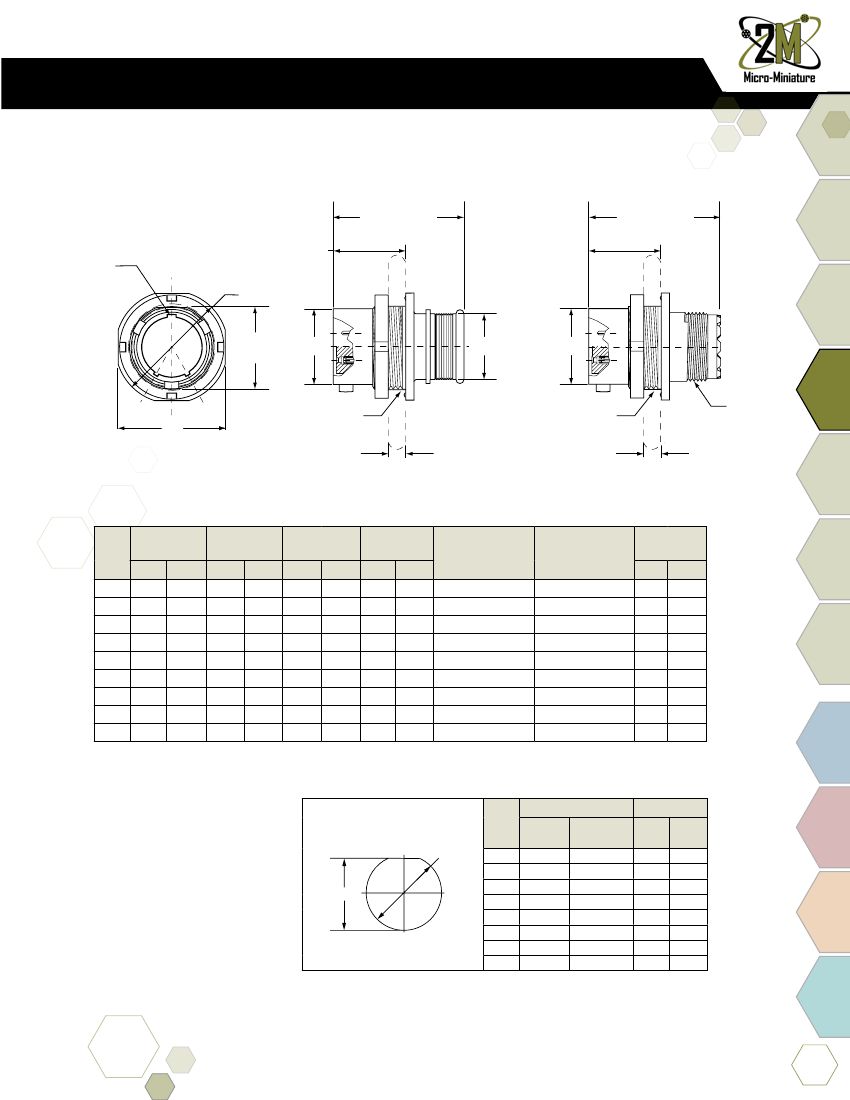

Jam Nut*

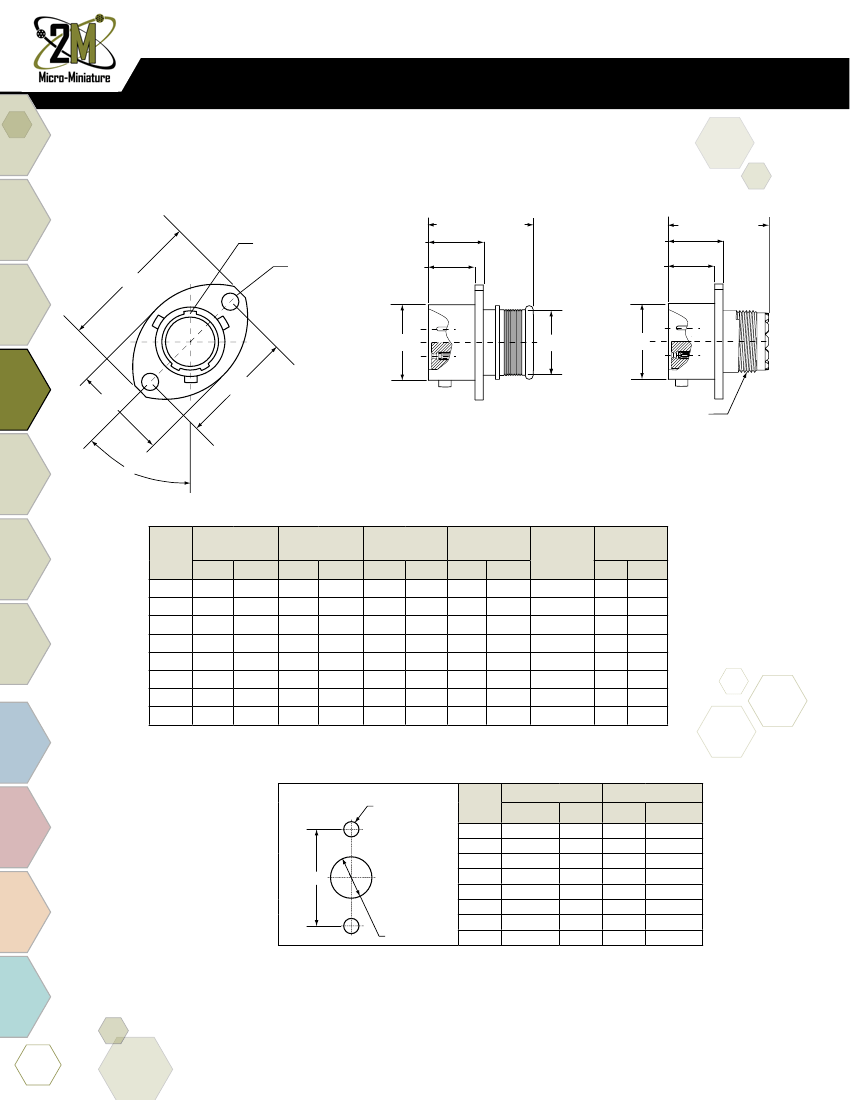

Flange Mount

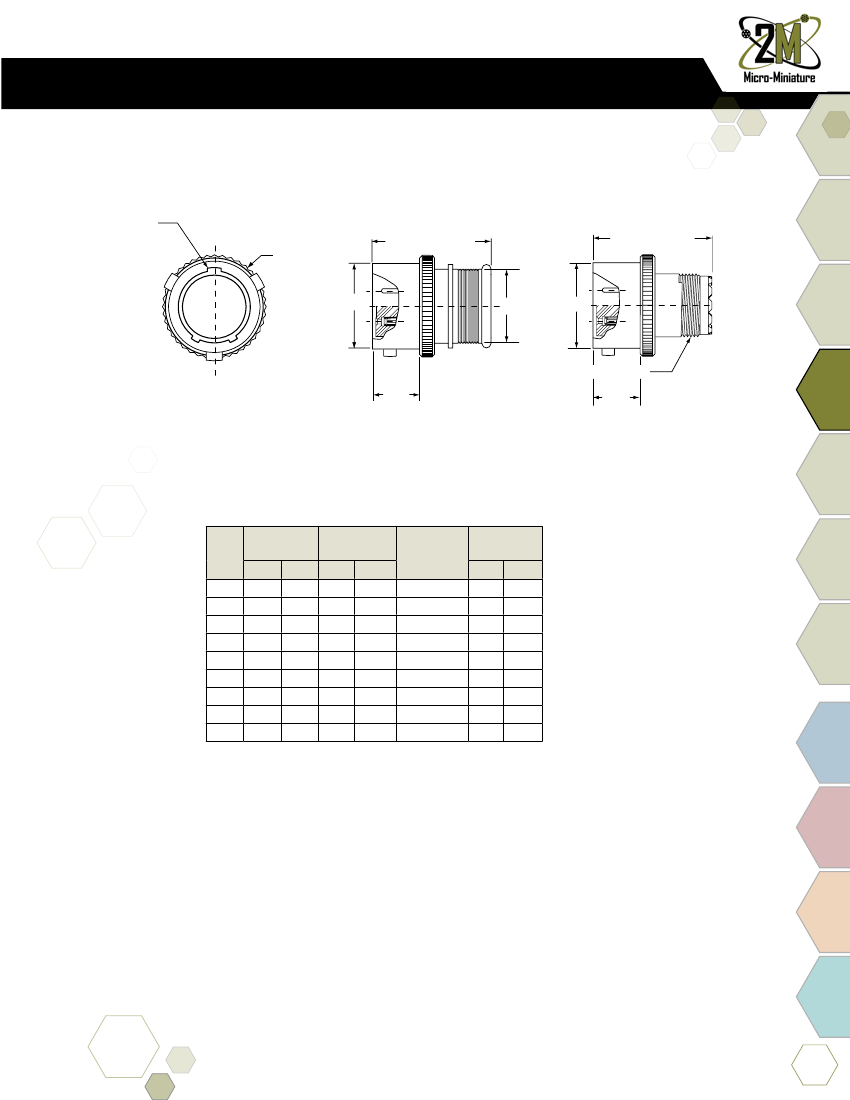

In-Line

002

pheno

002

pheno

INSERT ARRANGEMENTS

Insert

Arrg.

5-3

6-1

6-4

6-6

6-7

6-23

7-1

7-10

7-25

8-2

8-28

8-13

8-200

9-4

9-19

9-200

9-201

9-210

10-2

10-5

10-26

10-200

Insert

Arrg.

10-201

10-202

12-2

12-3

12-7

12-37

12-200

12-201

12-220

14-5

14-12

14-55

14-235

15-7

15-14

15-85

No. of Contacts

#23

#20

#20HD

#16

002

INSERT ARRANGEMENTS

No. of Contacts

#23

B° A°

Contact Amphenol Aerospace for more information at 800-678-0141 • www.amphenol-aerospace.com

2M805

230°

275°

Aluminum/Nickel-PTFE (Durmalon)

Stainless Steel/Passivated

Stainless Steel/Electroless Nickel

Aluminum/Zinc-Nickel w/Olive

Drab Chromate

Aluminum/Zinc-Nickel with Black

Chromate

2M Filter &

Accessories

pheno

A° B°

pheno

HD38999

Receptacle View

#20

#20HD

#16

#12

Micro-D

Terrapin

Plug View

Nexus
