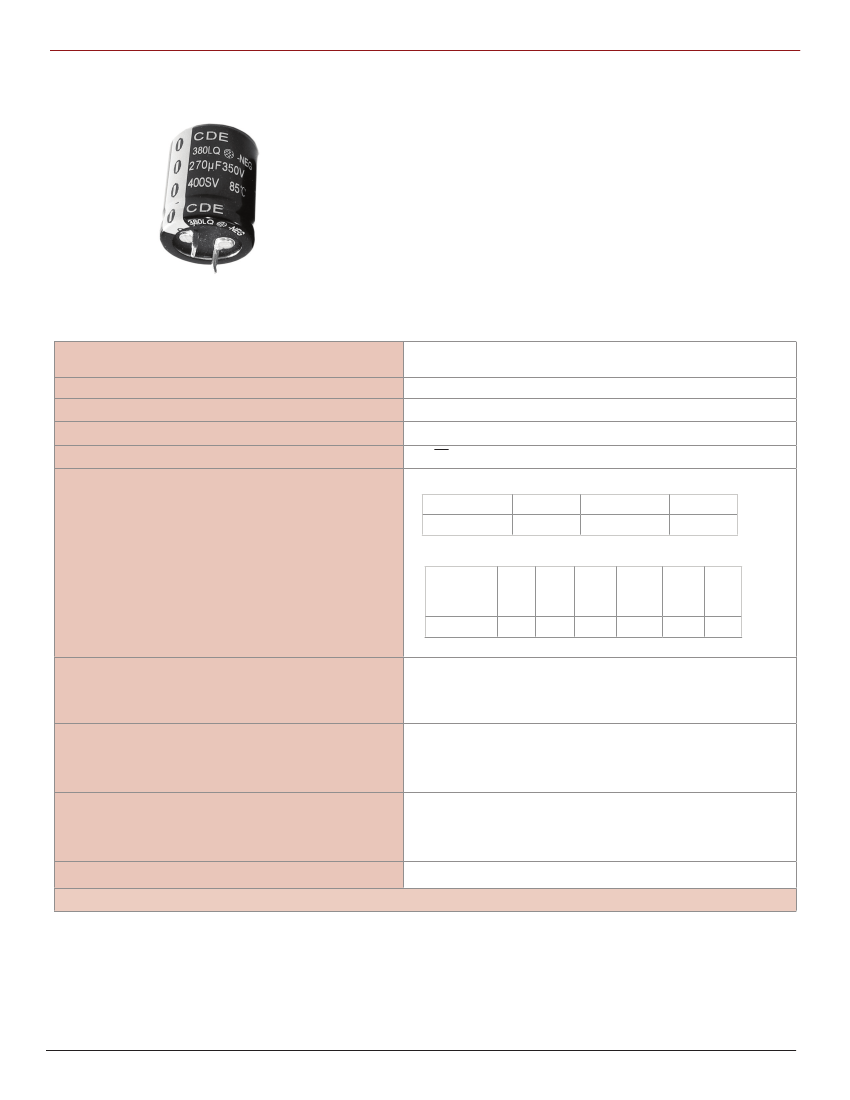

Type 380LQ 85 °C Compact, High Capacitance, Snap-In Aluminum
High Capacitance per Case Size
Type 380LQ is on average 27% smaller and more than 10 mm shorter
than Type 380LX. This is achieved with a new can-closure method that
permits installing capacitor elements into smaller cans. Approaching
the capability of the 380LX, the new 380LQ enables you to shrink
equipment size and retain the original performance.
Highlights
- New, more capacitance per case
- Compare to Type 380LX
- New, lower voltages down to 16 V
Specifications
Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current
Ripple Current Multipliers
–40 °C to + 85 °C ≤ 315 Vdc
–25 °C to + 85 °C ≥ 350 Vdc
16 Vdc to 450 Vdc
82 µF to 100,000 µF
±20%
≤ 3 √CV µA, 4 mA max, 5 minutes
Ambient Temperature
45 ºC
1.50
Frequency
10
50 Hz 60 Hz 120 Hz 500 kHz 1 kHz kHz &
Up
0.93
0.95
1.00
1.05
1.08
1.15
60 ºC
1.40
70 ºC
1.30
85 ºC
1.00
Voltage
16–100 WV
Low Temperature Characteristics
I
mpedance ratio: Z
–20⁰C
∕ Z
+25⁰C
≤ 8 (16–50 Vdc)
≤ 4 (63–100 Vdc)
≤ 3 (150–450 Vdc
)
Endurance Life Test
2000 h at full load at 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
1000 h at 85 °C
∆ Capacitance ±20%
ESR 200% of limit
DCL 100% of limit
10 to 55 Hz, 0.06” and 10 g max, 2 h each plane
RoHS Compliant
Shelf Life Test
Vibration
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
High Capacitance per Case Size
Part Numbering System
380LQ
272
M
200
A05
Case
Type
380LQ
Cap
561
= 560 µF
272
= 2700 µF
392
= 3900 µF
Tolerance
M =
±20%
Voltage
016
= 16 Vdc
200
= 200 Vdc
450
= 450 Vdc
Code
Insulation
2
= PVC
Pin Styles
Blank
= 2 pins
snap-in 6.3 mm L
A
= 2 pins snap-in
4.0 mm L
2
A

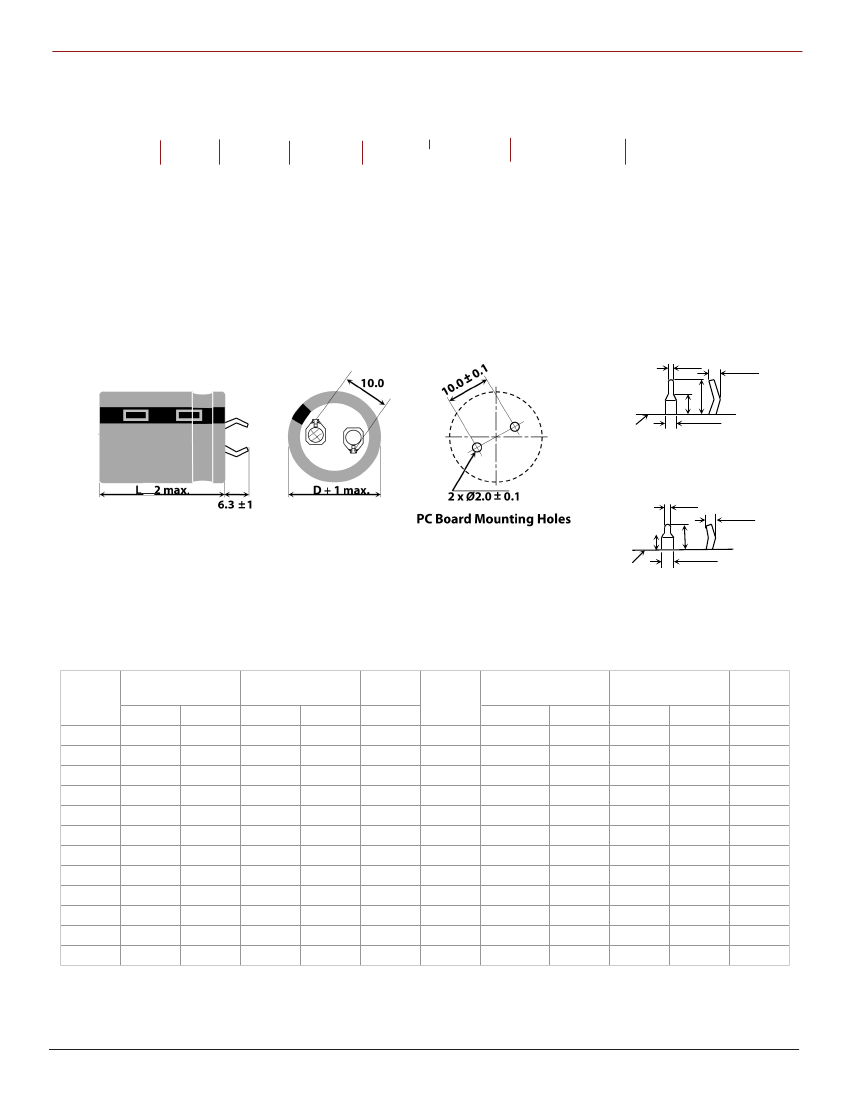

Outline Drawing
+0.2
0.8 -0.1
6.3 1
2.0max.
4.0
Top of
Capacitor
Body
1.5 0.2
6.3 mm
pin length
6.3
pin length
±
+0.2
0.8 -0.1
2.0max.
3.5
4.0
1.5 0.2
Dimensions shown are in mm
Top of
Capacitor
Body
4.0 pin length
4.0 mm pin length
option (add “A” to end
of part#)
Insulated Case Dimensions
Case
Code
H01
H02
H03
H04
H45
H05
J01
J02
J03
J04
J45
J05
DIAMETER
D
mm
22
22
22
22
22
22
25
25
25
25
25
25
inches
0.87
0.87
0.87
0.87
0.87
0.87
0.98
0.98
0.98
0.98
0.98
0.98
LENGTH
L
mm
25
30
35
40
45
50
25
30
35
40
45
50
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
16
19
22
24
28
31
20
24
27
31
35
38
Case
Code
K01
K02
K03
K04
K45
K05
A01
A02
A03
A04
A45
A05
DIAMETER
D
mm
30
30
30
30
30
30
35
35
35
35
35
35
inches
1.18
1.18
1.18
1.18
1.18
1.18
1.38
1.38
1.38
1.38
1.38
1.38
LENGTH
L
mm
25
30
35
40
45
50
25
30
35
40
45
50
inches
0.98
1.18
1.38
1.57
1.77
1.97
0.98
1.18
1.38
1.57
1.77
1.97
Typical
Weight
(grams)
30
35
40
44
49
53
42
48
54
60
67
74
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
High Capacitance per Case Size
Ratings
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
Max. ESR
Cap.
(uF)
12000
15000
18000
22000
27000
33000
39000
47000
56000
68000
82000
100000
8200
12000
15000
18000
18000
22000
27000
33000
39000
47000
56000
5600
8200
10000
10000
12000
12000
15000
18000
22000
27000
33000
39000
47000
3300
4700
5600
380LQ123M016H022
380LQ153M016H032
380LQ183M016H032
380LQ223M016H042
380LQ273M016H052
380LQ333M016K032
380LQ393M016K042
380LQ473M016K452
380LQ563M016A452
380LQ683M016A452
380LQ823M016A052
380LQ104M016A052
380LQ822M025H022
380LQ123M025J022
380LQ153M025J032
380LQ183M025J042
380LQ183M025K012
380LQ223M025J452
380LQ273M025K042
380LQ333M025K452
380LQ393M025A452
380LQ473M025A052
380LQ563M025A052
380LQ562M035H022
380LQ822M035J022
380LQ103M035J022
380LQ103M035J032
380LQ123M035J042
380LQ123M035K012
380LQ153M035K042
380LQ183M035K452
380LQ223M035K452
380LQ273M035A052
380LQ333M035A052
380LQ393M035A052
380LQ473M035A552
380LQ332M050H012
380LQ472M050H032
380LQ562M050J032
Catalog Part Number
@ +25°C
120 Hz
(ohms)
0.069
0.055
0.046
0.038
0.031
0.025
0.024
0.023
0.022
0.021
0.020
0.019
0.081
0.055
0.044
0.037
0.037
0.030
0.025
0.020
0.020
0.019
0.019
0.104
0.071
0.058
0.058
0.048
0.048
0.036
0.032
0.026
0.021
0.018
0.017
0.017
0.151
0.106
0.089
20 kHz
(ohms)
0.059
0.047
0.039
0.032
0.026
0.021
0.020
0.019
0.018
0.018
0.018
0.018
0.065
0.044
0.035
0.029
0.029
0.024
0.020
0.016
0.016
0.015
0.016
0.078
0.053
0.044
0.044
0.036
0.036
0.027
0.024
0.020
0.016
0.014
0.014
0.014
0.113
0.079
0.067
(A)
3.13
3.69
3.10
4.52
6.31
6.84
6.94
7.47
8.73
9.05
9.49
10.18
2.86
4.10
4.63
5.47
4.66
6.10
6.21
6.84
7.36
8.00
8.91
2.79
4.00
4.42
4.42
5.05
4.15
5.60
5.68
6.10
6.84
7.15
7.91
8.56
2.41
3.03
3.42
Ripple Amps
@ +85°C
120 Hz
20 kHz
(A)
3.60
4.24
4.58
5.20
7.26
7.87
7.98
8.59
10.04
10.41
10.91
11.71
3.29
4.72
5.32
6.29
5.36
7.02
7.14
7.87
8.46
9.20
10.25
3.20
4.60
5.08
5.08
5.81
4.77
6.40
6.53
7.02
7.87
8.22
9.10
9.84
2.77
3.48
3.93
Nominal
Size
DxL
(mm)
22 x 30
22 x 35
22 x 35
22 x 40
22 x 50
30 x 35
30 x 40
30 x 45
35 x 45
35 x 45
35 x 50
35 x 50
22 x 30
25 x 30
25 x 35
25 x 40
30 x 25
25 x 45
30 x 40
30 x 45
35 x 45
35 x 50
35 x 50
22 x 30
25 x 30
25 x 30
25 x 35
25 x 40
30 x 25
30 x 40
30 x 45
30 x 45
35 x 50
35 x 50
35 x 50
35 x 55
22 x 25
22 x 35
25 x 35
16 Vdc (20 Vdc Surge)
25 Vdc (32 Vdc Surge)
35 Vdc (44 Vdc Surge)
50 Vdc (63 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
High Capacitance per Case Size
Max. ESR
@ +25°C
Cap.
(uF)
Catalog Part Number
120 Hz
(ohms)
20 kHz
(ohms)
Ripple Amps
@ +85°C
120 Hz
(A)
20 kHz
(A)
Nominal
Size
DxL
(mm)
50 Vdc (63 Vdc Surge)
6800
6800
8200
8200
10000
10000
12000
18000
22000
27000
2200
3300
3900
4700
4700
5600
6800
8200
10000
10000
12000
15000
18000
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000
1000
1200
1500
1800
2200
380LQ682M050H452
380LQ682M050J022
380LQ822M050H452
380LQ822M050J032
380LQ103M050J052
380LQ103M050A032
380LQ123M050A032
380LQ183M050A452
380LQ223M050A052
380LQ273M050A052
380LQ222M063H022
380LQ332M063H042
380LQ392M063J022
380LQ472M063J032
380LQ472M063K022
380LQ562M063K042
380LQ682M063K042
380LQ822M063A032
380LQ103M063K042
380LQ103M063K452
380LQ123M063K052
380LQ153M063A052
380LQ183M063A552
380LQ152M080H022
380LQ182M080H032
380LQ222M080H042
380LQ272M080J042
380LQ332M080J042
380LQ392M080K042
380LQ472M080K042
380LQ562M080K452
380LQ682M080K052
380LQ822M080A452
380LQ103M080A052
380LQ102M100H022
380LQ122M100H022
380LQ152M100K012
380LQ182M100H042
380LQ222M100J452
0.073
0.073
0.061
0.061
0.050
0.050
0.041
0.028
0.023
0.018
0.188
0.126
0.106
0.088
0.061
0.074
0.061
0.051
0.041
0.041
0.035
0.028
0.023
0.221
0.184
0.151
0.123
0.100
0.085
0.071
0.059
0.049
0.040
0.040
0.332
0.276
0.221
0.184
0.151
0.055
0.055
0.045
0.045
0.037
0.037
0.031
0.021
0.018
0.015
0.141
0.094
0.080
0.066
0.046
0.056
0.046
0.038
0.031
0.031
0.026
0.021
0.018
0.166
0.138
0.113
0.092
0.075
0.064
0.053
0.044
0.037
0.030
0.030
0.216
0.180
0.144
0.120
0.098
3.85
3.22
4.41
4.41
4.97
4.97
5.58
6.94
7.57
8.96
2.35
2.72
3.13
3.59
3.89
4.11
4.55
4.68
5.35
6.52
7.15
7.91
8.55
2.01
2.11
2.73
2.78
3.21
3.59
4.09
4.55
5.16
5.83
5.83
2.12
2.12
2.57
2.60
3.14
4.43
3.71
5.07
5.07
5.72
5.72
6.42
7.98
8.71
10.30
2.70
3.13
3.60
4.13
4.48
4.72
5.24
5.38
6.15
7.50
8.22
9.10
9.83
2.31
2.43
3.14
3.20
3.69
4.13
4.70
5.23
5.93
6.70
6.70
2.44
2.44
2.96
2.99
3.61
22 x 45
25 x 30
22 x 45
25 x 35
25 x 50
35 x 35
35 x 35
35 x 45
35 x 50
35 x 50
22 x 30
22 x 40
25 x 30
25 x 35
30 x 30
30 x 40
30 x 40
35 x 35
30 x 40
30 x 45
30 x 50
35 x 50
35 x 55
22 x 30
22 x 35
22 x 40
25 x 40
25 x 40
30 x 40
30 x 40
30 x 45
30 x 50
35 x 45
35 x 50
22 x 30
22 x 30
30 x 25
22 x 40
25 x 45
63 Vdc (79 Vdc Surge)
80 Vdc (100 Vdc Surge)
100 Vdc (125 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Type 380LQ 85 °C Compact, High Capacitance Snap-in Capacitors
High Capacitance per Case Size
Max. ESR
@ +25°C
Cap.
(uF)
Catalog Part Number
120 Hz
(ohms)
20 kHz
(ohms)
Ripple Amps
@ +85°C
120 Hz
(A)
20 kHz
(A)
Nominal
Size
DxL
(mm)
100 Vdc (125 Vdc Surge)
2200
2700
2700
3300
3900
4700
5600
6800
560
680
820
1000
1200
1500
1800
2200
2700
2700
3300
470
560
680
820
1000
1200
1500
1800
2200
2700
390
470
560
680
820
1000
1000
1000
1200
1200
380LQ222M100K012
380LQ272M100J452
380LQ272M100A022
380LQ332M100A022
380LQ392M100K052
380LQ472M100K052
380LQ562M100A052
380LQ682M100A052
380LQ561M160H042
380LQ681M160H042
380LQ821M160J042
380LQ102M160J042
380LQ122M160K032
380LQ152M160K452
380LQ182M160K452
380LQ222M160K052
380LQ272M160A042
380LQ272M160A052
380LQ332M160A052
380LQ471M180H022
380LQ561M180H042
380LQ681M180J032
380LQ821M180H452
380LQ102M180H052
380LQ122M180J052
380LQ152M180J052
380LQ182M180K052
380LQ222M180K052
380LQ272M180A052
380LQ391M200H022
380LQ471M200H022
380LQ561M200H042
380LQ681M200J032
380LQ821M200H452
380LQ102M200H452
380LQ102M200H052
380LQ102M200K022
380LQ122M200J052
380LQ122M200K022
0.151
0.123
0.123
0.100
0.085
0.071
0.059
0.049
0.355
0.293
0.243
0.199
0.166
0.133
0.111
0.098
0.080
0.074
0.070
0.423
0.355
0.290
0.240
0.200
0.170
0.130
0.120
0.100
0.090
0.510
0.423
0.360
0.290
0.240
0.199
0.200
0.199
0.166
0.166
0.098
0.080
0.080
0.065
0.055
0.046
0.041
0.034
0.160
0.132
0.109
0.090
0.075
0.060
0.050
0.049
0.040
0.033
0.035
0.190
0.160
0.130
0.110
0.090
0.080
0.060
0.054
0.050
0.040
0.230
0.190
0.160
0.130
0.110
0.090
0.090
0.090
0.075
0.075
3.14
3.66
3.71
4.06
4.54
5.13
5.75
6.60
2.25
2.35
2.75
3.00
3.25
3.73
4.20
4.78
5.45
5.45
5.75
1.91
2.25
1.70
2.00
2.99
3.31
3.83
4.32
4.86
5.30
1.68
1.85
2.18
2.48
2.75
3.25
3.20
3.25
3.50
3.50
3.61
4.21
4.27
4.67
5.22
5.90
6.61
7.59
3.15
3.29
3.85
4.20
4.55
5.22
5.88
6.69
7.63
7.63
8.05
2.68
3.15
2.38
2.80
4.19
4.63
5.36
6.05
6.81
7.42
2.35
2.59
3.05
3.47
3.85
4.55
4.48
4.55
4.90
4.90
30 x 25
25 x 45
35 x 30
35 x 30
30 x 50
30 x 50
35 x 50
35 x 50
22 x 40
22 x 40
25 x 40
25 x 40
30 x 35
30 x 45
30 x 45
30 x 50
35 x 40
35 x 50
35 x 50
22 x 30
22 x 40
25 x 35
22 x 45
22 x 50
25 x 50
25 x 50
30 x 50
30 x 50
35 x 50
22 x 30
22 x 30
22 x 40
25 x 35
22 x 45
22 x 45
22 x 50
30 x 30
25 x 50
30 x 30
160 Vdc (200 Vdc Surge)
180 Vdc (225 Vdc Surge)
200 Vdc (250 Vdc Surge)
CDM Cornell Dubilier • 140 Technology Place • Liberty, SC 29657 • Phone: (864)843-2277 • Fax: (864)843-3800
Talking
京公网安备 11010802033920号
EEWORLD
