P1597 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> P1597

P1597: CategoryPassive components; File Size253KB，1 Pages; ManufacturerPulse A Technitrol Company; Websitehttp://www.pulseeng.com

Download Datasheet Parametric Compare View All

P1597 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P1597	-	-	View	Buy Now

P1597 Parametric

Parameter Name	Attribute value
Product Category	Audio Transformers / Signal Transformers
Manufacturer	Pulse A Technitrol Company
RoHS	No
Termination Style	SMD/SMT
Isolation Voltage	500 V
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Product	Power
Application	DCDC Converters LTC1535 Isolated RS485 TX
Length	11.5 mm
Width	9 mm
Height	9 mm
Packaging	Tube
Factory Pack Quantity	80

Preview

Download Datasheet

View All

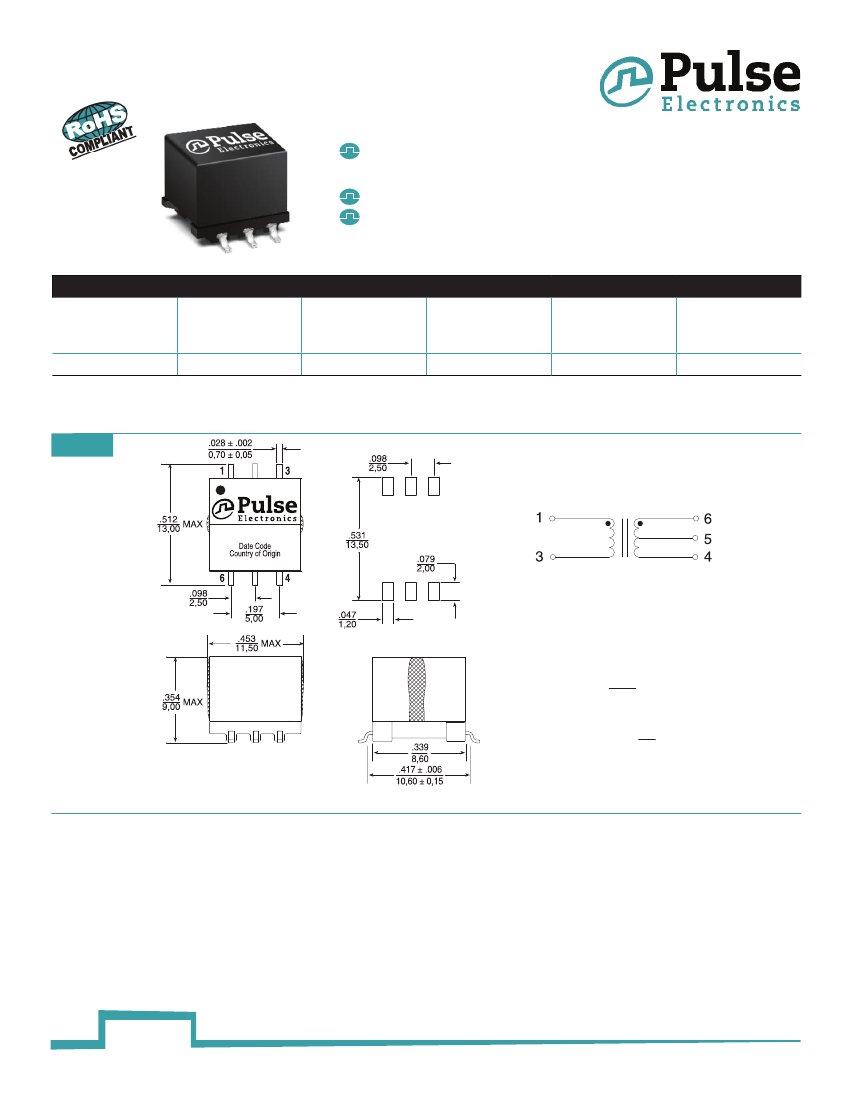

SMT Power Transformer

Matched to Linear Technology Chipset

DC/DC converter for use with Linear Technology LTC

1535 isolated RS485 transceiver

Compact and cost-effective industrial design: EP7 format

500Vrms isolation

Electrical Specifications @ 25°C - Operating Temperature -40°C to +125°C

Part

Number

P1597NL

Turns

Ratio

1:1.35:1.35

OCL (@ 25°C)

(µH±30%)

578

(@ 100kHz/100 mV)

(µH

MAX)

0.50

Isolation Voltage

(Vrms)

2000

Mounting

SMT

Notes:

Add suffix “T” to part number for Tape & Reel package (i.e. P1597NLT).

Mechanical

P1597NL

Schematic

P1597NL

Weight (TYP)

...................2.6grams

Tape & Reel

........................350/reel

Tube

....................................80/tube

Dimensions:

Inches

Unless otherwise specified,

all tolerances are

.004

0,10

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

pulseelectronics.com

P534.E (06/15)

P1597 Related Products

	P1597	P1597NLT
Description		Audio Transformers / Signal Transformers SMD DC/DC Cnvrtr 578uH
Product Category	Audio Transformers / Signal Transformers	Audio Transformers / Signal Transformers
Manufacturer	Pulse A Technitrol Company	Pulse A Technitrol Company
RoHS	No	Details
Termination Style	SMD/SMT	SMD/SMT
Isolation Voltage	500 V	2000 Vrms
Minimum Operating Temperature	- 40 C	- 40 C
Maximum Operating Temperature	+ 125 C	+ 125 C
Product	Power	Power
Application	DCDC Converters LTC1535 Isolated RS485 TX	DCDC Converters LTC1535 Isolated RS485 TX
Length	11.5 mm	13 mm
Width	9 mm	11.5 mm
Height	9 mm	9 mm
Factory Pack Quantity	80	350
Packaging	Tube	Reel
