PhotoElectric Sensors
50 x 50 x 18 mm Block Style
Auto Calibration / Auto Learn
AC / DC Version
NPN / PNP Version
Diffused (Retro-Reflective)
Reflective
Thru - Beam
2.0 Meter Cable
M12 Connector
Mating cables / connectors
Version
Nominal Sensing Distance (Sn)
Housing Material
Lens Material
Termination Type
Min / Max Supply Voltage
Max. Load Current (Ir)
Max ripple factor (Vr)
Voltage Drop (Ud)
Power Consumption (Io)
Switching Frequency (Hz)
Emission
Hysteresis
Short Circuit Protection
Reverse Polarity Protection
Operating Temperature (Storage Temperature)
IP Rating
Compliance
EN 60947.5.2
EN 60947.5.2
Yes
Yes
Yes
Yes
PNP / NPN
0.2 ~ 15 m
ABS
PMMA
Diffused
10 to 30Vdc
250mA
≤ 10%
1.5V @ 100mA
<25 mA
150 Hz
Pulsed IR 880nm
ABS
PMMA
Diffused
10 to 30Vdc
250mA
≤ 10%
1.5V @ 100mA
<25 mA
150 Hz
Pulsed IR 880nm
PNP / NPN
AC / DC
0.2 ~ 15 m
ABS
PMMA
Diffused
15 to 240V ac/dc
0.5A @ 240Vac
≤ 10%
Relay Output
<6mA @ 240Vac
20 Hz
Pulsed IR 880nm
≤ 10% Sn
-
-
0 to +50 C (-25 to 75 C)
IP64
EN 60947.5.2
EN 60947.5.2
-
-
ABS
PMMA
Diffused
15 to 240V ac/dc
0.5A @ 240Vac
≤ 10%
Relay Output
<6mA @ 240Vac
20 Hz
Pulsed IR 880nm
AC / DC
PES50V84C
PES50V84M12
Receiver
PES50E84C
PES50E84M12
Emitter
PES50V94C
PES50V94M12
Receiver
PES50E94C
PES50E94M12
Emitter
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
* Sensing distance is defined by a white paper with 90% reflex and dimensions of 200 x 200mm.
Optical Curves
Through Beam
Accessories
For Technical Assistance and / or Customer Service, call 800/677-5311,
www.crouzet-usa.com
PhotoElectric Sensors

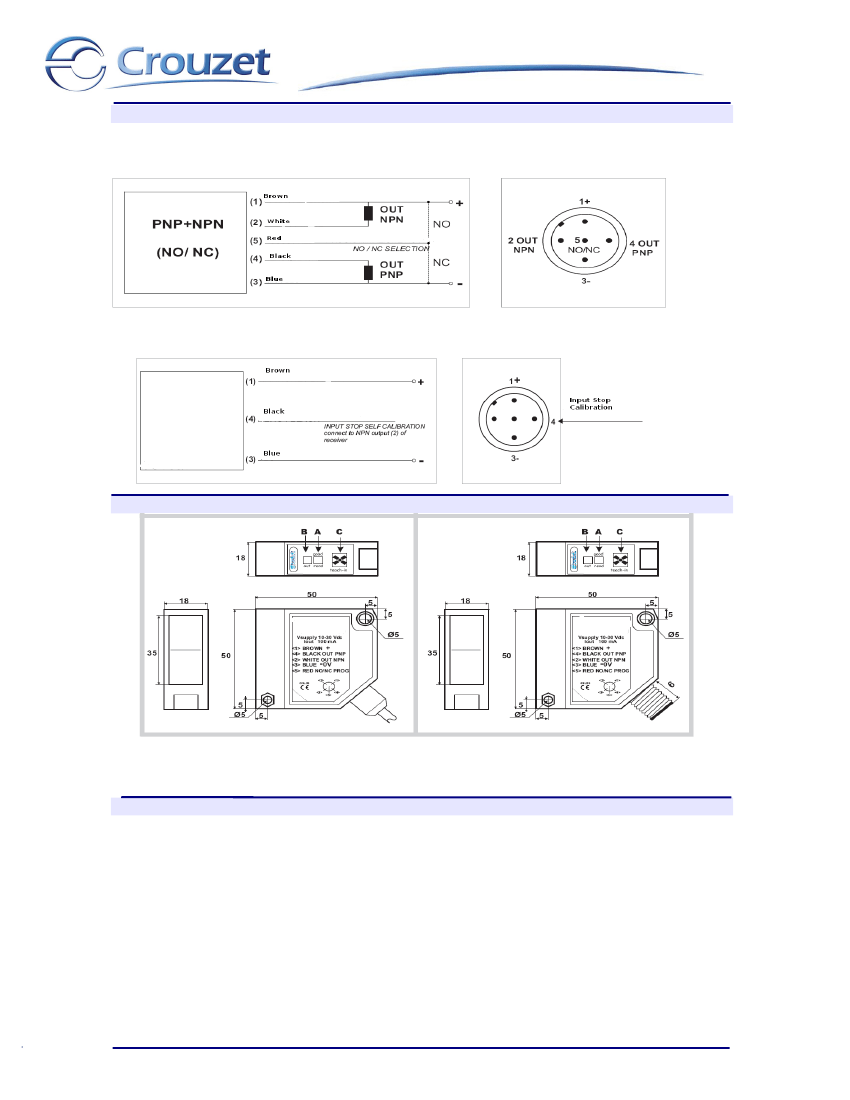

Wiring Diagrams
NPN / PNP Wiring
Receiver
NPN / PNP Wiring – M12
Emitter
Dimensions
A.)
Good Detection LED
B.)
Output Status LED
C.)
“Teach-In” Key for Autocalibration
Calibration – Automatic and Manual
Install the transmitter and receiver in the desired location within the sensing distance specified, The calibration must be void of external
noises which may interfere with the calibration. Press and hold the power button for approximately one second. Upon its release, the
green LED will blink as the automatic calibration begins. The emission power will increase by three levels. This test can be stopped at
any time by pressing the button. The transmitter also has an input which can be grounded to stop the calibration. It can also be
connected to the NPN output of the receiver. Please note that in this case, the power supply must be the same for both units.
Manual calibration can be performed at any time by pressing the button for approximately one second. If it is always depressed,
Calibration will continue until it is released. Calibration can be done by increasing power emission (solid green LED) or by decreasing
(green LED off). To switch from increasing to decreasing, double click the button. In decrease mode, the power will revert to increase
after about 15 seconds if no user interatcion. In working mode, when the object enters the detection zone, the yellow LED will turn
change its status according to the output and PROG configuration. Conversely, the green LED could be blinking or off according
to the objust's position.
