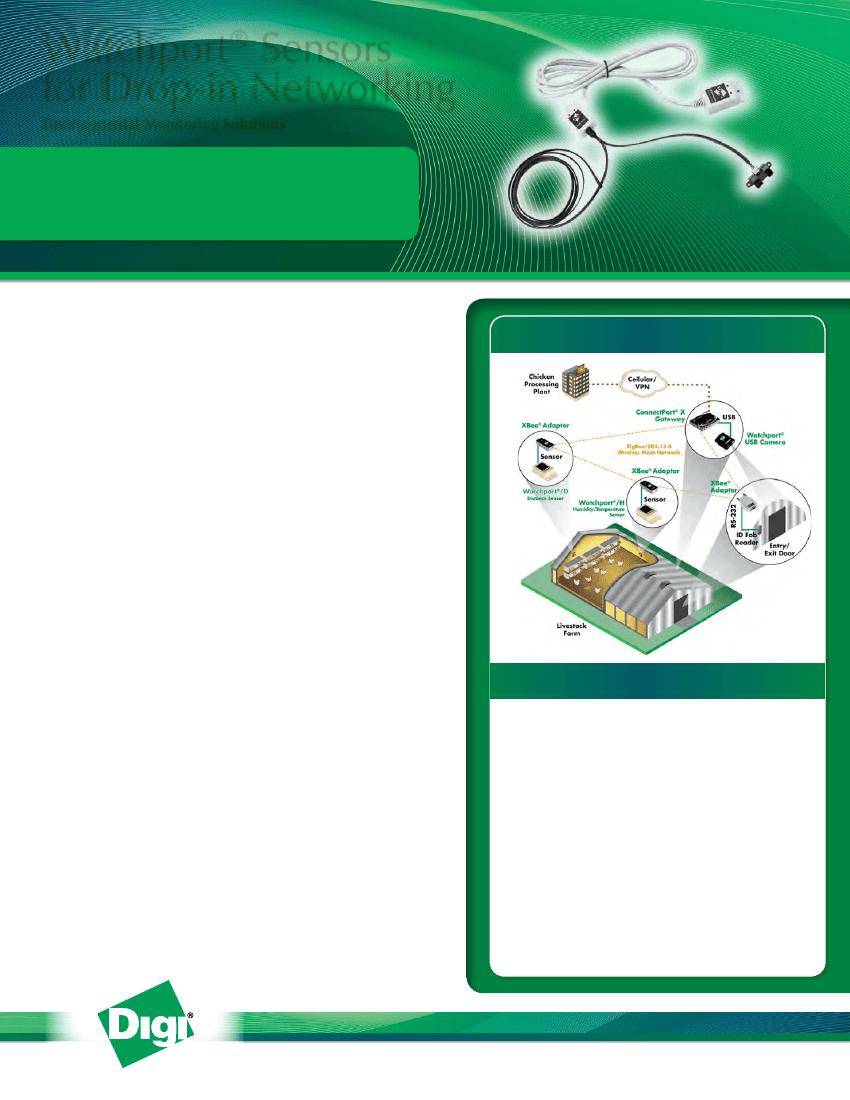

Watchport
®
Sensors
for Drop-in Networking
Environmental Monitoring Solutions
Create a Drop-in Network with sensors to monitor
critical environmental data over a wireless connection.
Overview
Watchport sensors provide a plug-and-play solution for Drop-
in Networking applications. Each sensor connects to Digi’s
XBee
®
sensor adapter (sold separately) for wireless connectivity
to sensor data over a low power ZigBee network. Sensors are
available to measure distance, proximity, temperature/humdity,
acceleration/tilt, and the presence of water. Monitoring
remote assets with Watchport sensors can preempt damage to
facilities, reduce costly maintenance and warn of threatening
environmental conditions.
When used in a Drop-in Network with Digi’s ConnectPort
®
X
gateways, Watchport sensors can be monitored over a Wide
Area Network (WAN) connection, providing centralized
monitoring of geographically distributed sensor points. Plus,
the Python
®
programming engine on the ConnectPort X
provides the software tools to integrate multiple sensors and
create custom applications using sensor readings.
Watchport sensors can be used in many Drop-in Networking
applications. Monitor temperature and humidity levels in a
refrigeration unit or grain silo; detect the presence of water in
a livestock pen; activate a Watchport camera or an alarm when
an access point is encroached; or reduce energy consumption
by automatically powering down lights or other environmental
systems when inhabitants are no longer detected.
Application Highlight
Features/Benefits
•
•
•
•
•
•
Ideal for remote monitoring of critical
environmental data
Plug into Digi’s XBee sensor adapter (via RJ-45
connector) for wireless ZigBee
®
connectivity
No external power supply required; draws power
from XBee sensor adapter (via RJ-45 connector)
A´ la carte product selection allows total customization
Easy to install and configure
Extend distance between sensor and XBee Sensor
Adapter with CAT5 UTP cable
www.digi.com
Features Comparison
FEATURES
• Each sensor has a 6" cable lead with
RJ-45 connector (1-Wire interface)
Watchport/H Humidity/Temperature
Sensor
• Collects both relative humidity (RH)
and temperature data
• Temperature compensated RH readings
• ASCII command interface
• Maximum reading rate: 20 per second
• Temperature accuracy:
+/- 3.6º F (+/- 2º C) at -40º F to +14º F
(-40º C to -10º C) and +/- 0.9º F
(+/- 0.5º C) at +14º F to +185º F
(-10º C to +85º C)
• RH accuracy: +/- 5% at 0-90%
non-condensing; +/- 8% over 90%
• RH stability: +/- 1% RH (typical)
at 50% RH in 5 years
• Power consumption: 15 mA (normal),
1.0 mA (suspend mode)
• Maximum CAT5 UTP cable length:
500 ft (152.46 m)
Watchport/D Distance/Proximity
Sensor
• Photo-electric sensor with hardware
controlled sensitivity
• Detection range 1.6 to 4.9 ft
(0.5 to 1.5 m)
• Maximum reading rate: 3 per second
• Maximum switching frequency: 100 Hz
• Response delay:
≤5.0
ms (typical)
• Power consumption: 70 mA (max)
• Maximum CAT5 UTP cable length:
500 ft (152.46 m)
Watchport/W Water Detector
• 2 gold plated pins detect wetness
on a non-conductive surface
• Binary output with “Wet” or
“Dry”readings
• Waterproof enclosure
• Maximum reading rate: 5 per second
• Power consumption: 15 mA (normal),
1.0 mA (suspend mode)
• Maximum CAT5 UTP cable length:
1,000 ft (304.8 m)
Watchport/A Accelerometer
• Dual axis accelerometer
• Measures dynamic acceleration
such as vibration or static
acceleration (gravity)
• Measures tilt to 0.1°
• Acceleration from -2g to +2g
POWER REQUIREMENTS
• No external power supply required
REGULATORY
APPROVALS
•
•
•
•
•
•
•
•
FCC Part 15, Class B
CE
EN55022
EN55024
EN60950
UL 1950
CSA 2.2 No. 950
IEC-950
ENVIRONMENTAL
• Operating temperature:
-40º F to +185º F (-40º C to +85º C)
• Relative humidity: 0% to 95%
(non-condensing)
DIMENSIONS
Watchport/H, Watchport/W,
Watchport/A
• Length: 2.12 in (5.39 cm)
• Width: 1.19 in (3.02 cm)
• Height: 0.69 in (1.75 cm)
• Weight: 3.00 oz (85.05 g)
Watchport/D
• Length: 1.75 in (4.45 cm)
• Width: 0.74 in (1.88 cm)
• Height: 0.85 in (2.16 cm)
• Weight: 3.00 oz (85.05 g)
USABILITY
REQUIREMENTS
• Watchport Sensors for
Drop-in Networking must be used
with XBee Sensor Adapters (sold
separately). Please see
www.digi.com/products/wireless
dropinnetworking/ for XBee
Adapter information.
MODEL......................PART NUMBERS
Watchport Sensors for Drop-in Networking
Watchport/H (Humidity/Temperature Sensor)
Watchport/D (Distance/Proximity Sensor)
Watchport/W (Water Detector)
Watchport/A (Accelerometer)
XBee Sensor Adapters
XBee Sensor Adapter (802.15.4)
XBee-PRO Sensor Adapter (802.15.4)
XBee Sensor Adapter (ZNet 2.5)
XBee-PRO Sensor Adapter (ZNet 2.5)
Worldwide
70002335
70002333
70002336
70002337
XA-A14-CS1R
XA-A14-CS1P
XA-B14-CS1R
XA-B14-CS1P
Watchport Sensors for Drop-in Networking
must be used with XBee Sensor Adapters.
See www.digi.com/products/wirelessdropinnetworking/
for XBee Adapter specifications.
You can purchase with confidence knowing that Digi is always available to serve you with expert technical
support and our industry leading warranty. For detailed information visit www.digi.com/support
Digi International
Worldwide HQ
877-912-3444
952-912-3444
www.digi.com
Digi International
France
+33-1-55-61-98-98
www.digi.fr
Digi International
Japan
+81-3-5428-0261
www.digi-intl.co.jp
Digi International
Singapore
+65-6213-5380
Digi International
China
+86-21-50492199
www.digi.com.cn
www.digi.com
91001426
B2/415
© 1996-2015 Digi International Inc.
All rights reserved. All other trademarks are the property of their respective owners.
