Heavy Duty
Pressure Transducers
Line Guide
Heavy Duty products. Built for the toughest applications.
Honeywell Safety and Productivity Solutions (S&PS) offers
decades of experience in the heavy duty pressure products
industry. That’s why, industry-wide, our heavy duty pressure
transducers are known for enhanced quality, reliability,
and service – which adds up to outstanding value for your
applications.
The 13 mm Series and 19 mm Series
were developed for
potential use in pressure applications that involve measurement
of hostile media in harsh environments compatible with 316L
stainless steel, a type of steel that increases corrosion resistance,
improves resistance to pitting from chloride ion solutions, and
provides increased strength at high temperatures. They are
small, allowing them to be used on their own in tight packages
or as building blocks.
The SPT Series, MLH Series, PX2 Series, and PX3 Series
are
complete amplified and compensated pressure measurement
solutions. With a choice of ports, connectors, outputs and
pressure ranges, these products may be configured to meet the
needs of the application. They are engineered to be resistant to
a wide variety of media for use in most harsh environments.
FEATURES
13 mm Series.
Features:
Rugged, isolated stainless steel
package • Accommodates media that will
not adversely affect 316L stainless steel
• Based on reliable semiconductor
technology • Calibrated and temperature
compensated • Voltage or current supply
options • Absolute and sealed gage
pressures • For potential applications from
500 psi to 5,000 psi
Benefits:
Used in high pressure potential
applications involving measurement of
hostile media in harsh environments.
Piezoresistive semiconductor sensor chip
in oil-isolated housing with or without
an integral ceramic for temperature
compensation and calibration is designed
to provide reliable, stable, and accurate
performance. Weld-ring collar and special
back support ring for enhanced cycle
life capability as well as further package
integration in OEM applications. Potential
applications include industrial and
hydraulic controls, tank pressure, pressure
transmitters, and process control systems.
19 mm Series.
Features:
Rugged, isolated stainless steel
package • Accommodates media that will
not adversely affect 316L stainless steel
• Small size • Based on reliable
semiconductor technology • Absolute and
gage pressures • Vacuum compatible,
isolated sensors • Calibrated and
temperature compensated (some listings)
• For potential applications up to 500 psi
Benefits:
Variety of pressure connections
allow use in wide range of OEM
equipment. Uncompensated version
for use in potential applications using
specialized circuit designs. Rugged
for use in potential applications where
corrosive liquids or gases are monitored
and may also be exposed to a vacuum
such as industrial controls, process control
systems, industrial automation and flow
control, and pressure calibrators.
SPT Series.
Features:
Based on reliable
semiconductor technology • Rugged,
316L stainless steel wetted parts
• Calibrated and temperature
compensated • Absolute, gage, sealed
gage, and vacuum gage pressures
• For use in potential medical applications
where compatibility is a problem
Benefits:
Variety of pressure
connections allows use in wide range
of OEM equipment. For use in potential
applications where corrosive liquids and
gases are monitored such as industrial
automation and flow control, pressure
instrumentation, hydraulic systems, and
process control.
MLH Series.
Features:
All-metal wetted parts • No
internal elastomeric seals • Stable and
creep free • Voltage and current outputs
• Less than 2 ms response time • Easy
customization • Rated IP65 or better
Safety and Productivity Solutions on page 4
continued
1
Heavy Duty Pressure Transducers Line Guide
When reliability is
demanded, Honeywell
delivers.
Heavy Duty Pressure
Transducers are found in
applications where they
cannot be easily replaced
— where supreme durability
is a top priority. That’s why
you’ll find Honeywell S&PS
heavy duty pressure products
performing expertly in many
potential applications, such
as compressors and hydraulic
controls, and in industries
as diverse as aerospace,
medical, transportation,
agriculture, refrigeration,
and industrial. Our full line of
products deliver enhanced
performance and reliability,
plus: absolute, gage and
sealed-gage measurement; a
wide array of pressure ranges,
port styles, termination types,
and outputs; package types
from miniature surface mount
sensors to high-end stainless
steel isolated (for stringent
process control); pressure
ranges from 3 psi to 8,000 psi;
and corrosion resistance.
Heavy Duty
Pressure
Transducers

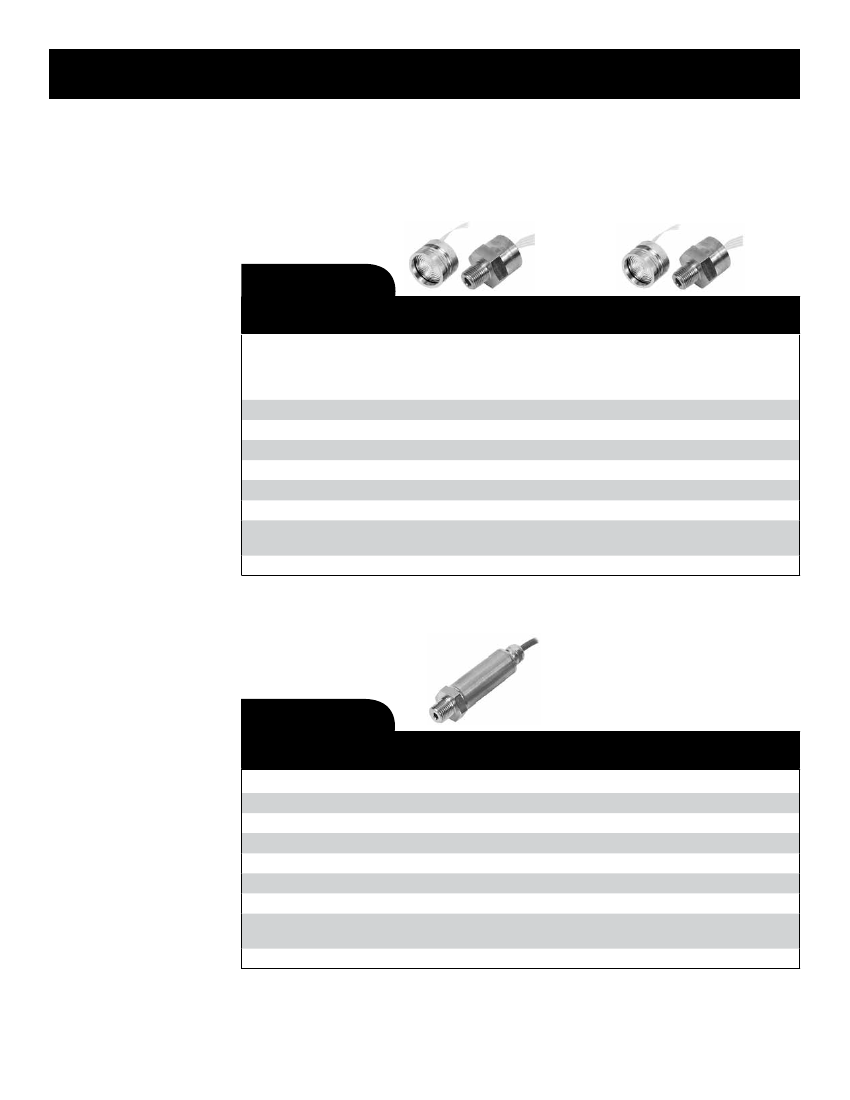

Pressure port type
Measurement type
Construction
Pressure range
Output
Linearity
Amplified
Compensated temperature
range
Electrical connector type

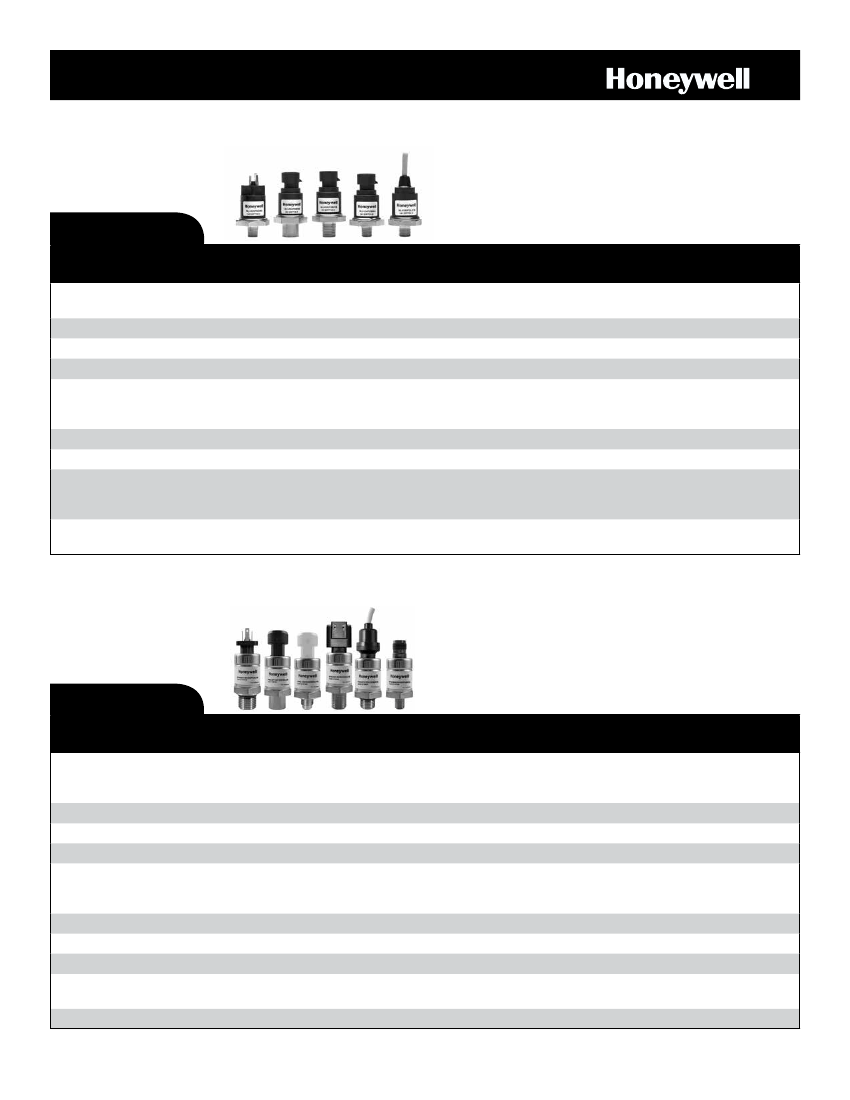

13 mm Series
19 mm Series
weld ring with body O-ring, flush mount,
flush mount with flange, 1/4-18 NPT, 1/8-
27 NPT, 7/16 UNF, 1/4 BSPP, Euro O-ring,
1/4 VCR (female nut)
absolute, gage, vacuum gage
wetted parts 316L SS
0 psi to 3 psi through 0 psi to 500 psi
0 mV to 100 mV (nominal)
±0.25 %BFSL max.
no
0 °C to 82 °C [32 °F to 180 °F]
ribbon cable
weld ring with back support,
1/8-27 NPT, 1/4-18 NPT, 7/16 UNF
absolute, sealed gage
wetted parts 316L SS
0 psi to 500 psi through 0 psi to 5000 psi
0 mV to 100 mV (nominal)
±0.25 %BFSL max.
no
0 °C to 82 °C [32 °F to 180 °F]
ribbon cable
Heavy Duty
Pressure
Transducers
Pressure port type
Measurement type
Construction
Pressure range
Output
Linearity
Amplified
Compensated temperature
range
Electrical connector type
SPT Series
1/8-27 NPT, 1/4-18 NPT, 7/16-20 UNF, 1/4-19 BSPP, 1/4 VCR gland
absolute, gage, sealed gage, vacuum gage pressures
wetted parts 316L SS
0 psi to 3 psi through 0 psi to 5000 psi
4 mA to 20 mA, 0 mV to 100 mV, 1 Vdc to 5 Vdc
±0.25 %BFSL max.
yes, amplified and unamplified
-10 °C to 85 °C [14 °F to 185 °F]
bayonet connector, cable
2
Safety and Productivity Solutions
Heavy Duty
Pressure
Transducers
Pressure port type
Measurement type
Construction
Pressure range
Output
Accuracy
Amplified
Compensated temperature
range
Electrical connector type

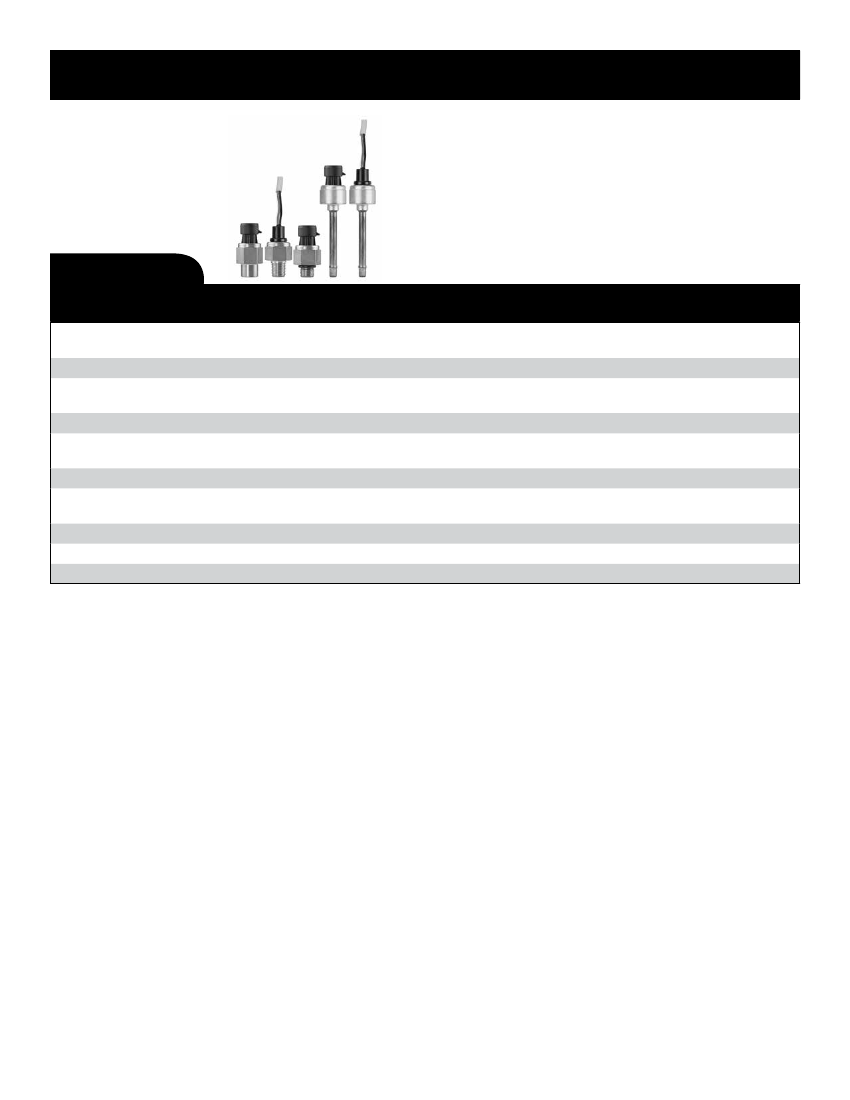

MLH Series
1/4-18 NPT, 1/8-27 NPT, 7/16-20 UNF 1/4 inch 45° Flare Female Schrader (SAE J512), 1/2-14 NPT,
R 1/4-19 BSPT (ISO 7-1 tapered thread), R 1/8-28 BSPT (ISO 7-1 tapered thread)
gage, sealed gage
port: 304L stainless steel; diaphragm: Haynes 214 alloy
0 psi to 50 psi through 0 psi to 8000 psi
ratiometric (from 5 Vdc excitation): 0.5 Vdc to 4.5 Vdc
regulated: 1 Vdc to 6 Vdc, 0.25 Vdc to 10.25 Vdc, 0.5 Vdc to 4.5 Vdc, 1 Vdc to 5 Vdc
current: 4 mA to 20 mA
±0.25 %FSS (±0.5 %FSS on ranges below 100 psi)
yes
ratiometric output: -40 °C to 125 °C [-40 °F to 257 °F]
regulated and current outputs: -40 °C to 125 °C [-40 °F to 257 °F]
(See product literature for operating and temperature compensated area graphics.)
Metri-Pack 150, Hirschmann (mates with G4W1F), M12 x 1 (Brad Harrison micro), DIN 43650-C, 8 mm male, AMP Superseal
1.54, Cable (24 AWG,1 meter), Cable (24 AWG, 3 meter), flying leads (20 AWG, 6 in), Deutsch DTM04-3P (integral)
Heavy Duty
Pressure
Transducers
Pressure port type
Measurement type
Construction
Pressure range
Output
Accuracy
Total Error Band
Amplified
Compensated temperature
range
Electrical connector type
PX2 Series
7/16-20 UNF 1/4 in 45° Flare Female Schrader (SAE J512), 7/16-20 UNF 45° Flare Male (SAE J513), 7/16-20 UNF 37° Flare
Male (SAE J514), G1/4 (ISO 1179-3), G1/8 (ISO 1179-3), M12 x 1.5 (ISO 6149-3), 1/4-18 NPT, 1/8-27 NPT, 9/16-18 UNF, (SAE
J1926-3), 7/16-20 UNF (SAE J1926-3)
absolute, sealed gage, vented gage
port and housing: 304 stainless steel, connector: PBT 30% GF
1 bar to 70 bar | 100 kPa to 7 MPa | 15 psi to 1000 psi
ratiometric: 5.0 V, 10 %Vs to 90 %Vs; 5.0 V, 5 %Vs to 95 %Vs; 3.3 V, 10 %Vs to 90 %Vs; 3.3 V, 5 %Vs to 95 %Vs
regulated: 1 Vdc to 6 Vdc, 0.25 Vdc to 10.25 Vdc, 0.5 Vdc to 4.5 Vdc, 1 Vdc to 5 Vdc
current: 4 mA to 20 mA
±0.25 %FSS
±2 %FSS at -40 °C to 125 °C [-40 °F to 257 °F]
yes
-40 °C to 125 °C [-40 °F to 257 °F]
Delphi Metri-Pack 150 (UL 94 HB or V-0 options), Micro M12, DIN, Deutsch, cable harness (1 m, 2 m, 3 m, or 5 m).
Safety and Productivity Solutions
3
Heavy Duty
Pressure
Transducers
Pressure port type
Measurement type
Construction
Pressure range
Output
Accuracy
Total Error Band
Amplified
Compensated temperature range
Electrical connector type
PX3 Series
7/16-20 UNF 1/4 inch 45° Flare Female Schrader (SAE J512), G1/4 (ISO 1179-3), M12 x 1.5 (ISO 6149-3), 1/4-18 NPT,
1/8-27 NPT, brazable tube
absolute, sealed gage
threaded ports: brass C36000 (lead (Pb) content: 3.7% max.)
tube port: copper UNS C12200 (lead (Pb) free)
1 bar to 50 bar | 15 psi to 700 psi
ratiometric: 0.5 Vdc to 4.5 Vdc
ratiometric: 0.33 Vdc to 2.97 Vdc
±0.25 %FSS
±1.0 %FSS at -20 °C to 85 °C [-4 °F to 185 °F]
±2.0 %FSS at <-20 °C, >85 °C [<-4 °F, >185 °F]
yes
-40 °C to 125 °C [-40 °F to 257 °F]
Metri-Pack 150 (UL V-0), cable harness (PVC or XLPE)
PX2 Series.
Features:
Cost-effective • Designed for
configurability • Application expertise
• Global support • Wide selection of
options • Short lead time • Small Total
Error Band (TEB) • Fast response time
• Application life • Six Sigma design
standards • Environmentally tough • Wide
operating temperature range • Shock and
vibration resistant • Good EMC protection
Benefits:
Precise pressure measurement
solution optimizes system performance
at a competitive cost. Thousands of
possible configurations. Honeywell’s
knowledgeable application engineers are
available to answer customer’s specific
design questions during the development
of their product. Honeywell’s global
presence offers immediate product
and application support throughout
the development cycle, from design to
global manufacturing. Fast response time
maximizes system performance. 10 million
cycles (minimum) to operating pressure
provides enhanced life in the application.
AC and AD output transfer functions
offer a 3.3 V ratiometric output with a
<7 ms turn-on time to enable use when
energy efficiency is a key requirement.
Six Sigma design standards result in
a high level of quality, performance,
and consistency so that customers are
assured that the transducer will perform
to specification. Compatibility with a
wide variety of harsh media, including
brake fluid, common hydrofluorocarbon
refrigerants, engine oil, tap water,
hydraulic fluids, and compressed air, up
to IP69K ingress protection sealing, and
100 V/m radiated immunity allow for use in
tough environments. Wide compensated
operating temperature range allows
customers to design the same sensor
into a variety of applications. Shock and
vibration resistance increase flexibility
of use within the application. Good EMC
protection means that the transducer
will not be affected by environmental
• Exceeds CE heavy industrial EMC for
use in areas of high RFI/EMI • Amplified
and temperature compensated • Wide
choice of connections and terminations
• Calibration for special pressure ranges
Benefits:
Combines ASIC technology
with media isolated, metal diaphragm.
All-metal wetted parts for use in a variety
of potential fluid applications. Amplified
outputs often eliminate cost of external
amplifiers. Wide selection of industry-
standard connectors and process
ports for enhanced reliability and user
flexibility. Potential applications include
compressors, refrigeration and HVAC/R,
general industrial and hydraulics, multiple
transportation applications including
braking and alternate fuels, medical.
4
Safety and Productivity Solutions
electromagnetic interference. Potential
applications include industrial HVAC/R
and air compressors, as well as a wide
variety of general system and factory
automation pump, valve and fluid pressure
applications.
PX3 Series.
Features:
Pressure range: 1 bar to 50 bar
| 15 psi to 700 psi (absolute and sealed
gage) • Ratiometric output: 0.5 Vdc to
4.5 Vdc or 0.33 Vdc to 2.97 Vdc • Fully
calibrated and temperature compensated
• Total Error Band: ±1.0 %FSS from -20 °C
to 85 °C [-4 °F to 185 °F] • External freeze/
thaw resistance: 6 cycles from -30 °C to
50 °C [-22 °F to 122 °F] • High insulation
resistance: >100 MOhm, 1500 Vdc
• Dielectric strength: AC1500V, 1 min. or
AC1800, 1 s • Current consumption: 3.5
mA max. • EMC (radiated immunity): 200
V/m per ISO 11452-2 • Ingress protection
IP67 (Metri-Pack 150), IP69K (cable
harness) • Response time: <2 ms • RoHS,
REACH, and CE compliant • Six industry-
standard pressure port types, including a
tube port which provides for hermetically-
sealed process connection
Benefits:
Total Error Band provides
the most comprehensive, clear and
meaningful indication of the sensor’s
true measurement performance over a
specified temperature range; small error
promotes system uptime and efficiency.
Survives exposure to frost, commonly
found in refrigeration systems. Protects
the user and sensor in high over-voltage
situations, and ensures that the device
is compliant with industry standards.
Operates reliably in the presence of
electro-magnetic fields, such as near
wireless signals, RF communication, and
electrical devices. Helps to reduce energy
costs, and enhances product life if used
in battery driven systems. Compatible
with common HFC (hydrofluorocarbon)
refrigerants, next generation low global
warming potential (GWP) refrigerants
such as R448A (Solstice® N40), R32
and R1234ZE, petroleum oils, lubricants,
hydraulic fluids, brake fluids, air and
water. (For ammonia and other corrosive
media, see Honeywell’s SPT Series, 19
mm Series, and 13 mm Series.) Potential
industrial applications include refrigerant
pressure monitoring in HVAC/R systems
and air compressor system pressure.
Potential transportation applications
include air system monitoring and
hydraulic oil pressure monitoring.
Warranty.
Honeywell warrants goods of
its manufacture as being free of defective
materials and faulty workmanship
during the applicable warranty period.
Honeywell’s standard product warranty
applies unless agreed to otherwise by
Honeywell in writing; please refer to your
order acknowledgement or consult your
local sales office for specific warranty
details. If warranted goods are returned to
Honeywell during the period of coverage,
Honeywell will repair or replace, at its
option, without charge those items that
Honeywell, in its sole discretion, finds
defective.
The foregoing is buyer’s
sole remedy and is in lieu of all other
warranties, expressed or implied,
including those of merchantability
and fitness for a particular purpose.
In no event shall Honeywell be liable
for consequential, special, or indirect
damages.
While Honeywell may provide application
assistance personally, through our
literature and the Honeywell web site, it is
buyer’s sole responsibility to determine the
suitability of the product in the application.
Specifications may change without notice.
The information we supply is believed
to be accurate and reliable as of this
writing. However, Honeywell assumes no
responsibility for its use.
To learn more about Honeywell’s
sensing and switching products, call
1.800.537.6945, visit sensing.honeywell.
com, or e-mail inquiries to info.sc@
honeywell.com
Honeywell Safety and Productivity Solutions
9680 Old Bailes Road
Fort Mill, SC 29707
www.honeywell.com
008154-13-EN | 10/16
© 2016 Honeywell International Inc.
Safety
Solstice® N40 is a registered trademark Honeywell International Inc.
and Productivity Solutions
5
京公网安备 11010802033920号
EEWORLD
