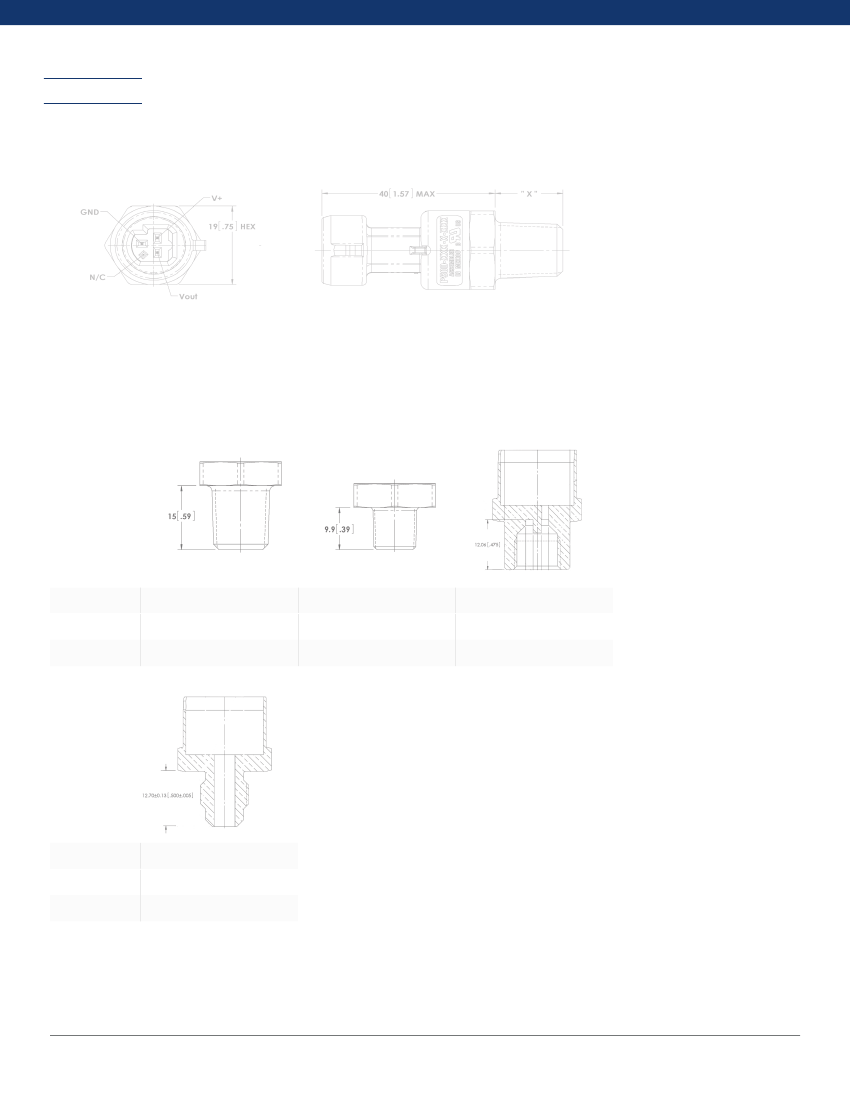

Pressure Connections and Recommended Installation Torque
Dimensions in mm [Inch]
Name
Thread
Torque
1/4 - 18 NPT
External
25 Nm
1/8 - 27 NPT
External
14 Nm
Schrader deflator
Internal
15 Nm
Name
Thread
Torque
7/16 – 20 UNF 2A
External
16 Nm
Note: Recommended torque may varify according to material and specific application.
www.kavlico.com
P528 Data Sheet
4
How to Order
Seal Material
C Neoprene (-30° to 120°C)
F Ethylene Propylene (-40° to 120°C)
H HNBR (-20° to 125°C)
Pressure Connection (port)
1 1/4 - 18 NPT (External Threads)
2 1/4 SAE Female flare w/schrader deflator
3 7/16 - 20 UNF 2A (External threads)
4 1/8 - 27 NPT (External threads)
P528
Pressure Ranges
6B
0 – 6 Bar
16B
A
Reference
A Absolute
G Gage
C
1
A
Built-in Electrical Connection
A With Mating Connector, w/12”, 18
AWG Leads
C Without Mating Connector
100 0 – 100 PSI
150 0 – 150 PSI
300 0 – 200 PSI
400 0 – 300 PSI
600 0 – 500 PSI
750 0 – 750 PSI
1000 0 – 1000 PSI
10B 0 – 10 Bar
16B 0 – 16 Bar
25B 0 – 25 Bar
40B 0 – 40 Bar
50B 0 – 50 Bar
70B 0 – 70 Bar
S Sealed Gage (Referenced to
14.7 PSIA)
Example:
P528 -16B - A - C1A
Description:
P528 Sensor, 0 - 16 Bar Absolute, Fluorosilicone Seal Material, 1/4 - 18 NPT Pressure Connection,
with Mating Connector
Before installation and operation, ensure that the appropriate pressure sensor has been selected in terms of pressure range, design and specific measuring
conditions. Non-compliance can result in serious injury and/or damage to the equipment.
Warning:
The product information contained in this catalogue is given purely as information and does not constitute a representation, warranty or any form of
contractual commitment. Kavlico reserve the right to modify their products without notice. It is imperative that we should be consulted over any particular use
or application of our products and it is the responsibility of the buyer to establish, particularly through all the appropriate tests, that the product is suitable for
the use or application. Under no circumstances will our warranty apply, nor shall we be held responsible for any application (such as any modification, addition,
deletion, use in conjunction with other electrical or electronic components, circuits or assemblies, or any other unsuitable material or substance) which has not
been expressly agreed by us prior to the sale of our products.
