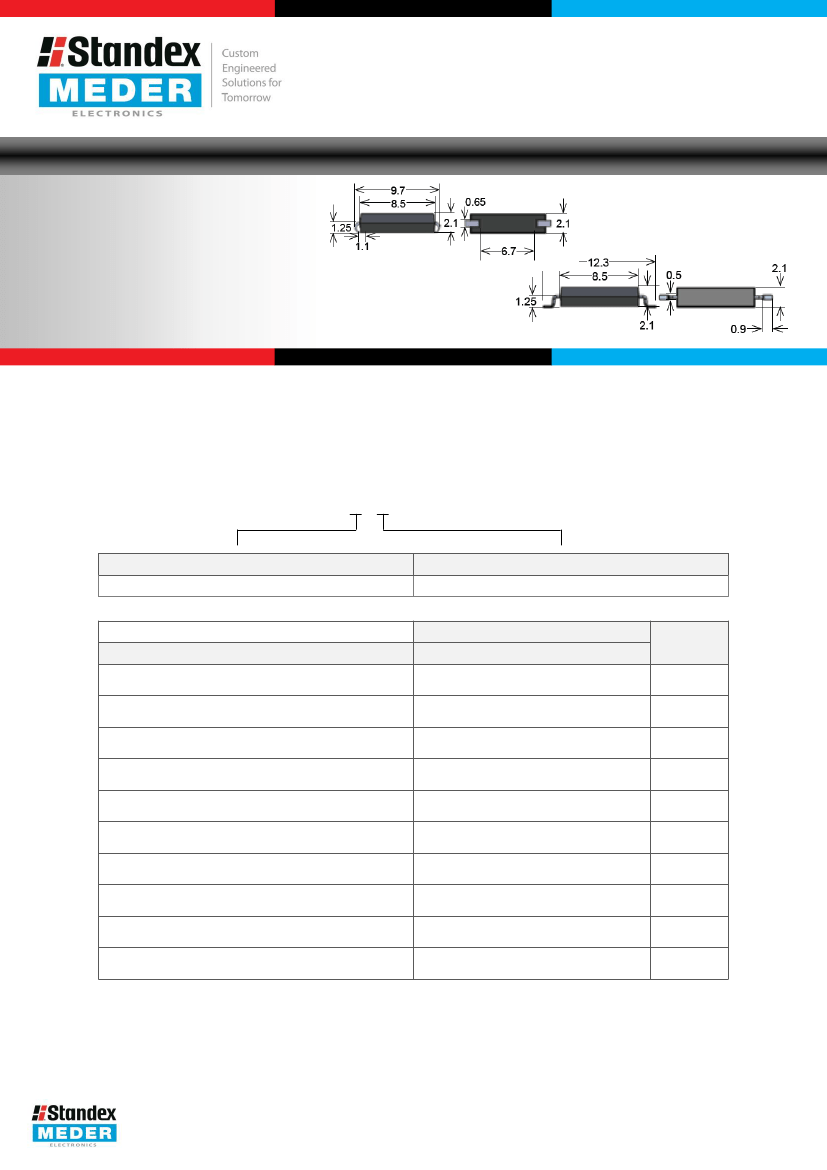

Series Datasheet – MK17 Reed Sensors
www.standexmeder.com
MK17 Series
Reed Sensors
Features: Supplied in Tape & Reel, J-Lead, Excellent for Low Power Operations
Applications: On/Off Control Switch, Position Detection, Switching Element & Others
Markets: Appliance, Telecommunication, Security, Medical & Others
Part Description:
MK 17-0-X
Lead Design
1, 2, 3
Switch Model
80
10
170
0.5
0.5
200
0.21
0.6
0.05
10
9
0.4
Magnetic Sensitivity
B, C, D, E
Customer Options
Contact Data
Rated Power (max.)
Any DC combination of V&A not to exceed their individual max.’s
Unit
W
V
A
A
mOhm
kVDC
ms
ms
Ohm
pF
Switching Voltage (max.)
DC or peak AC
Switching Current (max.)
DC or peak AC
Carry Current (max.)
DC or peak AC
Contact Resistance (max.)
@ 0.5V & 50mA
Breakdown Voltage (min.)
According to EN60255-5
Operating Time (max.)
Incl. Bounce; Measured with w/ Nominal Voltage
Release Time (max.)
Measured with no Coil Excitation
Insulation Resistance (typ.)
Rh<45%, 100V Test Voltage
Capacitance (typ.)
@ 10kHz across open Switch
USA:
Europe:
Asia:
+1.866.782.6339
+49.7731.8399.0
+86.21.37820625
│
salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Version 01
27.01.2015
Modifications in the sense of technical progress are reserved.
A Global Leader in the Design, Development, and
Manufacture of Sensor and Magnetic Components

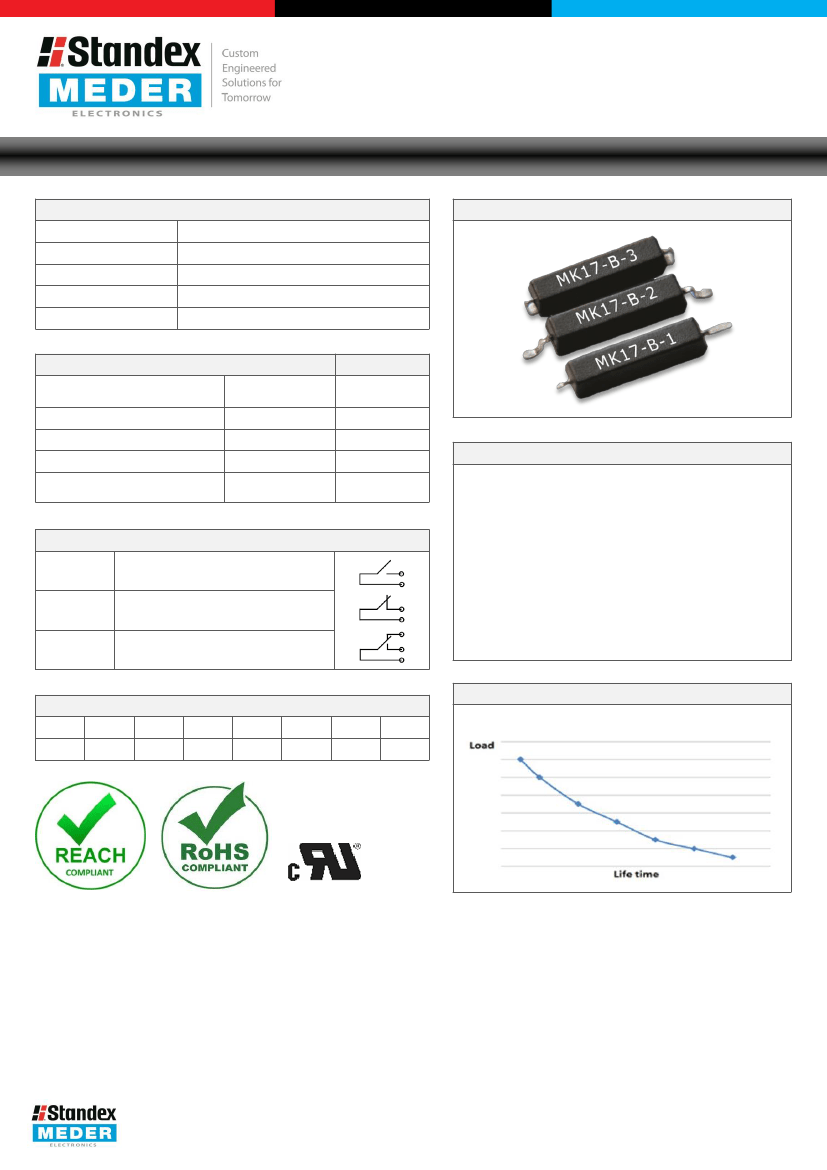

Series Datasheet – MK17 Reed Sensors
Housing and Lead Specifications
Housing Material
Case Color
Lead design 1
Lead design 2
Lead design 3
Mineral Filled Epoxy
Black
Flat, straight leads for PCB slot mounting
Flat, bent SMD leads
J-Lead
www.standexmeder.com
MK17 Reed Sensor
Environmental Data
Shock Resistance (max.)
1/2 sine wave duration 11ms
Unit
30
20
-40 to 130
-50 to 130
260
g
g
°C
°C
°C
Vibration Resistance (max.)
Operating Temperature
Storage Temperature
Soldering Temperature (max.)
5 sec. max.
Handling & Assembly Instructions
Use proper lead clamping or heat sinking
techniques to prevent mechanical and/or heat
stress during, soldering, and welding
Mechanical shock as the result of dropping the reed
sensor may cause immediate or post-installation
failure
Reflow Soldering Conditions according to JEDEC
norm J-STD-020D.1
Glossary Contact Form
Form A
Form B
Form C
NO = Normally Open Contacts
SPST = Single Pole Single Throw
NC = Normally Closed Contacts
SPST = Single Pole Single Throw
Changeover
SPDT = Single Pole Double Throw
Glossary Magnetic Sensitivity
Sens.
AT
A
05-10
B
10-15
C
15-20
D
20-25
E
25-30
F
30-35
G
35-40
Life Test Data
*Load increase reduces life expectancy of Reed Switches
USA:
Europe:
Asia:
+1.866.782.6339
+49.7731.8399.0
+86.21.37820625
│
salesusa@standexmeder.com
│ info@standexmeder.com
│ salesasia@standexmeder.com
Version 01
27.01.2015
Modifications in the sense of technical progress are reserved.
