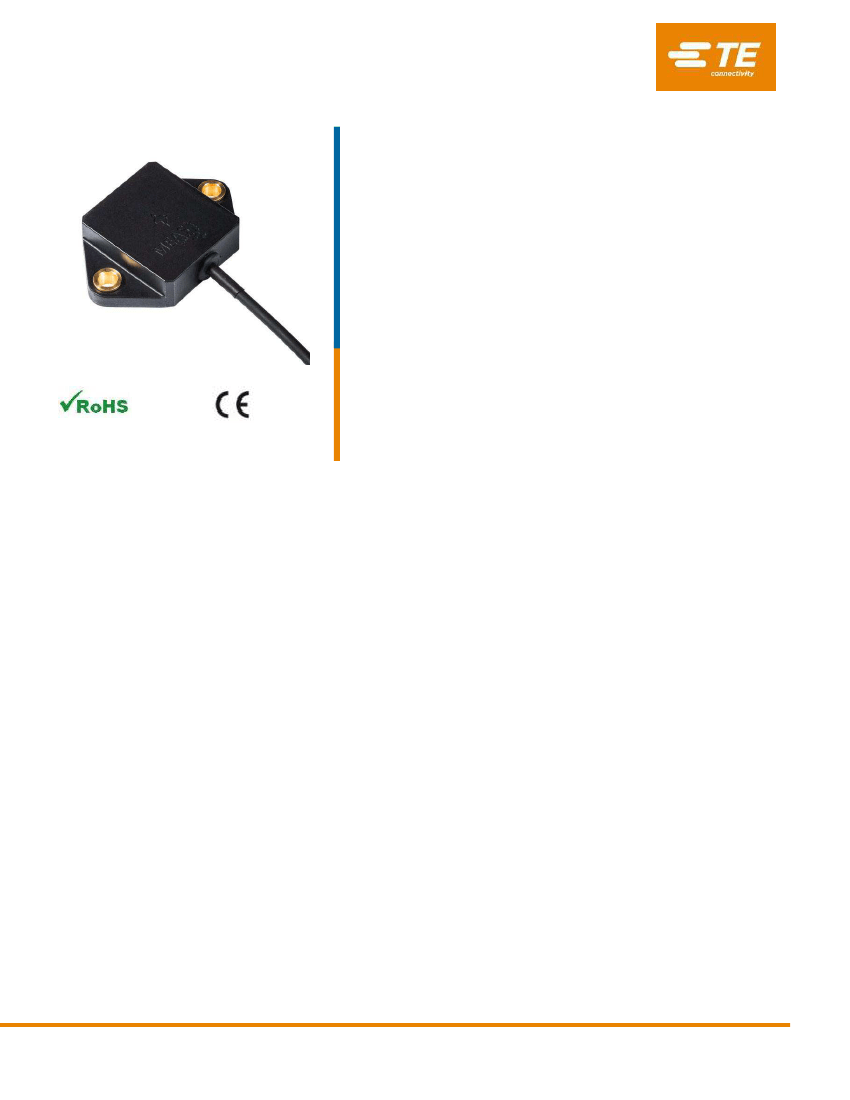

dynamic engine management, tip-over protection and
tilt alarm.
A fast response time and good accuracy makes this
device the ideal choice for mobile leveling
applications. It features digital signal processing
including temperature compensation.
The integrated filter improves performance and allows
using the sensor in many noisy environments (e.g.
vibrations).
The inclinometer includes a powerful digital signal
processing that offers various filteralgorithms and
allows customer specific OEM solutions. It is possible
to adjust the sensor to different environments yielding
an optimized performance. Customization can also be
made in terms of angular range and connectivity,
i.e. cable and connector.
The PA6.6 housing is very compact in size and has
compression limiter bushings for safe installation of
the sensor. It is compatible with oil, grease and fuel
also. Therefore it is frequently used for engine and
vehicle applications.
8
–
30 VDC supply voltage
Digital signal processing includes
o
filter (e.g. vibration
damping)
o
temperature
compensation
12 bit resolution
100 Hz refresh rate
-40 °C
–
85 °C temperature range
Accuracy typically
o
0.5° | -40 °C
–
85 °C
o
0.15° |
25 °C
Mobile and stationary cranes
Lift platforms
Building control
Weighing systems
Truck chassis leveling
Vehicle applications
Road construction machines
APPLICATIONS
SENSOR SOLUTIONS
/// DOG2 MEMS SERIES CAN J1939 INCLINOMETER
07/2017
Page 1
DOG2 MEMS SERIES CAN J1939 INCLINOMETER

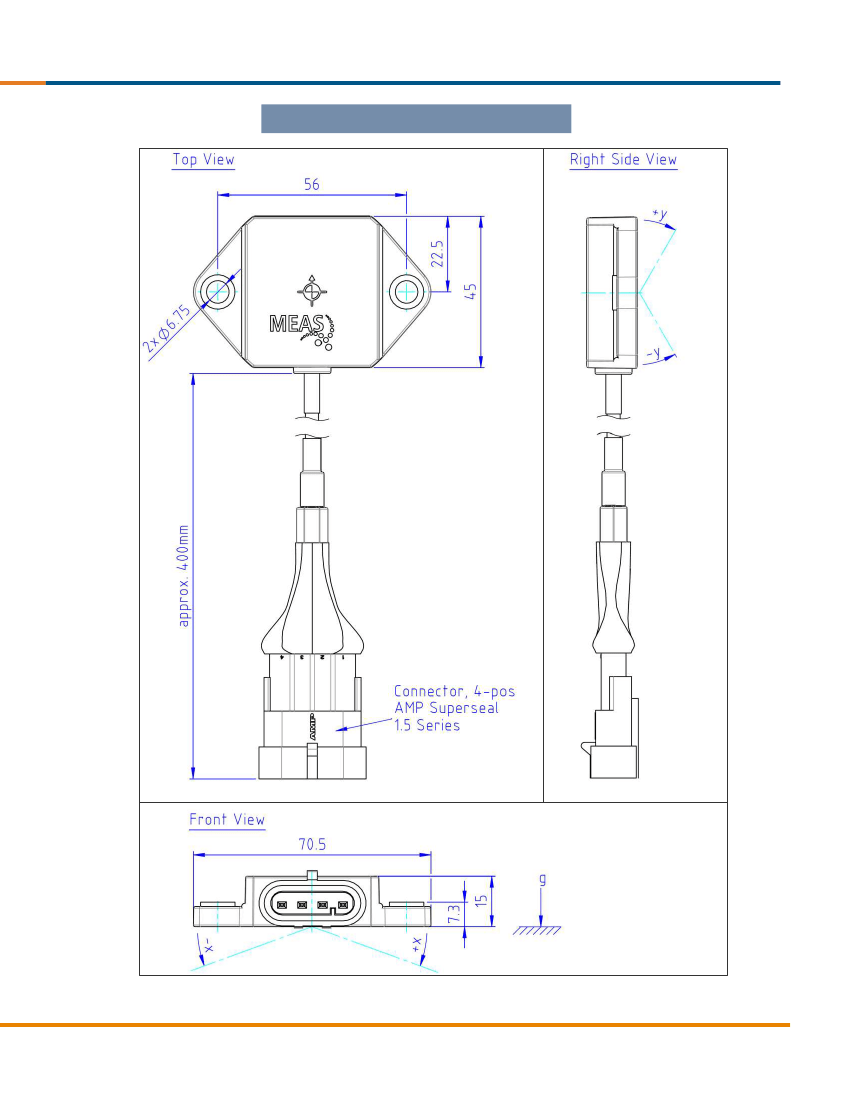

Dimensions [mm]
Vector of gravity
(zero position)
SENSOR SOLUTIONS
/// DOG2 MEMS SERIES CAN J1939 INCLINOMETER
07/2017
Page 2
DOG2 MEMS SERIES CAN J1939 INCLINOMETER

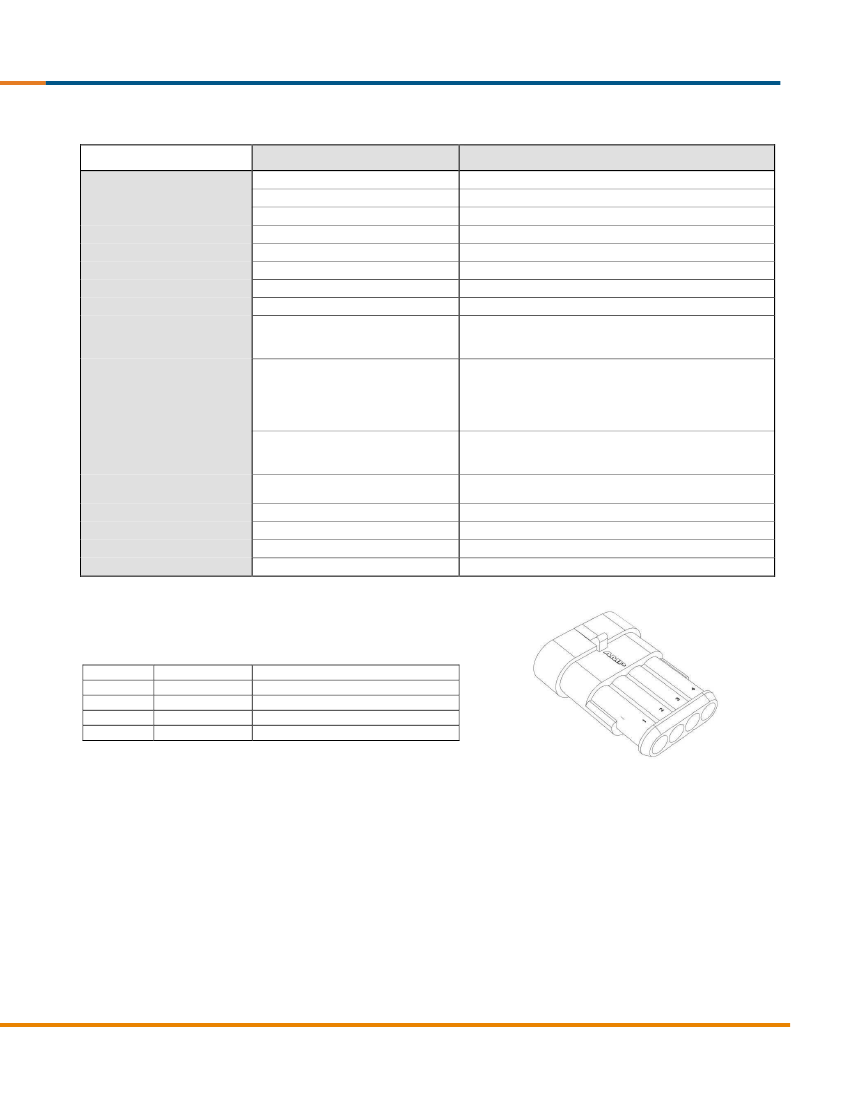

PARAMETERS
Parameter
Range
Accuracy, typ.
Accuracy, typ.
Resolution
Refresh rate
Startup time
Supply/excitation voltage
Supply current, typ.
Output
Value
±90°
0.5°
0.15°
0.01°
100 Hz
<1 s
8
–
30 V
<30 mA
x-axis and y-axis
Comment
Dual axis sensor
T= -40 °C
–
85 °C
T= 25 °C
Limited by CAN protocol
Internal processing
After power cycle
Direct current (DC) stabilized
Typ. 20mA, peak 30mA during transmit
Linearized and temperature compensated angles in
degree, reference is plane perpendicular to vector of
gravity = earth surface
250 kbps
Source Address:
-
G-NSDOG2-200:
0xC2 (fix)
-
G-NSDOG2-207:
0xC0 (default); settable in the
range of [0x80
–
0xF7]
Requires 4-pos. plug housing,
AMP Superseal 1.5-Series at connecting harness,
TE Connectivity part-no. 282088-1
PUR, length incl. connector 400 mm, full temperature
range, flexible
Interface
SAE J1939 CAN2.0B
AMP Superseal 1.5-Series,
Connector
4-pos. cap housing,
TE Connectivity part-no. 282106-1
4 wire 0.25 mm
2
,
Cable
outer diameter Ø3.9 mm
Operation temperature range -40 °C
–
85 °C
Storage temperature range
-40 °C
–
85 °C
Weight, typ.
60 g
Dimensions
70.5 mm x 45 mm x 15 mm
WxDxH
CONNECTOR PINNING
Pin
1
2
3
4
Function
V
CC
GND
CAN H
CAN L
Description
8 to 30 VDC supply input (+)
GND
CAN high line , in/out
CAN low line , in/out
The CAN J1939 detailed description is included in the specification, which is available on request.
SENSOR SOLUTIONS
/// DOG2 MEMS SERIES CAN J1939 INCLINOMETER
07/2017
Page 3
DOG2 MEMS SERIES CAN J1939 INCLINOMETER

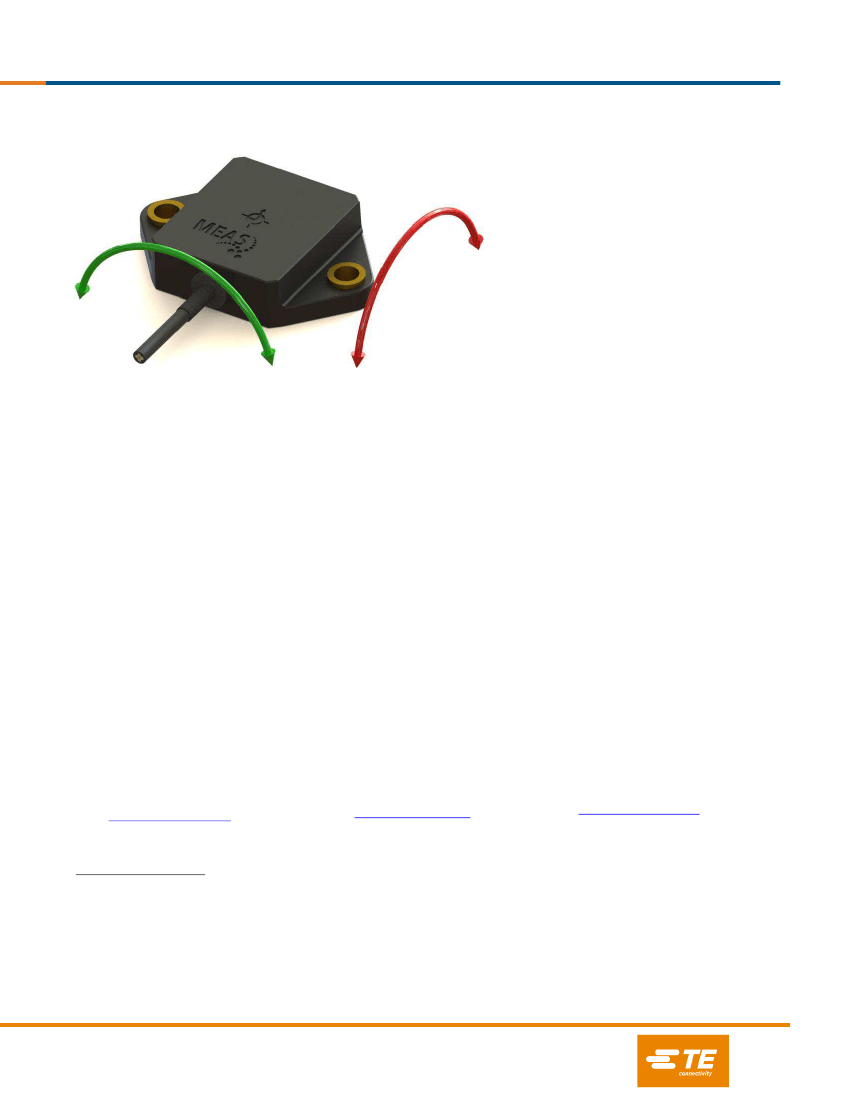

FUNCTION VIEW
+Y
-X
Y-Axis
X-Axis
+X
-Y
This DOG2 MEMS series CAN J1939 inclinometer is designed for floor mount application.
ORDERING INFORMATION
PART NUMBER
SHORT DESCRIPTION
G-NSDOG2-200
G-NSDOG2-207
Dual axis tilt sensor, range +/-90 deg, Vcc 8
–
30 VDC, CAN J1939 Interface
Dual axis tilt sensor, range +/-90 deg, Vcc 8
–
30 VDC, CAN J1939 Interface
(Source address range [0xC0, 0x80
–
0xF7]; see specification for details)
For other orientations, measurement ranges or supply voltages please contact TE Connectivity sales representatives.
