500-0930: CategoryTopical application Mechanical and electrical/engineering/automation; File Size277KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric View All

500-0930 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	500-0930	-	-	View	Buy Now

500-0930 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Cases
Type	Sloped Console
Material	Steel
Color	Gray
Length	7 in
Width	7 in
Height	2.13 in
Dimensions	7 in L x 7 in W x 2.13 in H
Height - in	2.13
Height - mm	54.102
Length - in	7
Length - mm	177.8
Factory Pack Quantity	1
Width - in	7
Width - mm	177.8
Unit Weight	1.560 lbs

Preview

Download Datasheet

View All

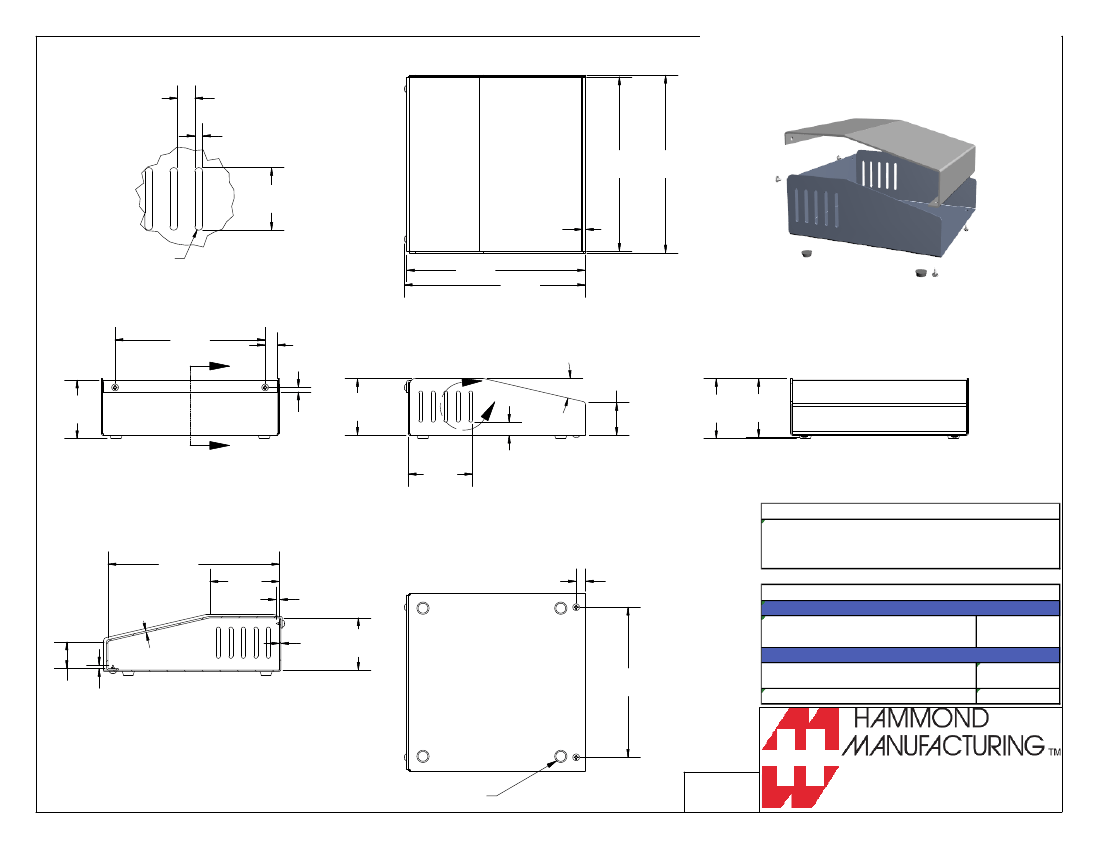

TOP VIEW OF ENCLOSURE

8.74

[.34]

DETAIL A

SCALE 1 / 2

END VENTS

3.96

[.16]

177.06

[6.97]

31.75

[1.25]

2.79

[.11]

R1.98

[.08]

181.64

[7.15]

180.52

[7.11]

BACK VIEW OF ENCLOSURE

152.53

[6.01]

12.27

[.48]

183.97

[7.24]

END VIEW OF ENCLOSURE

A

13.0°

33.21

[1.31]

61.26

[2.41]

60.07

[2.37]

B

59.51

[2.34]

57.73

[2.27]

FRONT VIEW OF ENCLOSURE

4.65

[.18]

B

65.48

[2.58]

13.28

[.52]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

NOTE

174.37

[6.87]

1.63

[.064]

BOTTOM VIEW OF ENCLOSURE

70.84

[2.79]

3.51

[.14]

1.22

[.05]

53.14

[2.09]

152.53

[6.01]

9.40

[.37]

Case Includes Adhesive Rubber Feet and Required Hardware.

Enclosure Case is Made of 0.05" Steel.

Top Panel is Made of 0.064" Aluminum.

PART NUMBERS

500-0930 Enclosure

Smooth Light Grey Top Case

Dark Satin Grey Base Case

ACCESSORIES

Plated Cover Screws (Pkg 50)

[#6 x 1/4 Self Tapping]

Grey Self-Adhesive Rubber Feet (Pkg 4)

500‐0930

SC19482-50

1421T2GY

27.02

[1.06] 3.54

[.14]

SECTION B-B

END OF ENCLOSURE

Dimensions:

mm

[inches]

ADHESIVE RUBBER FEET

500-0930

www.hammondmfg.com
