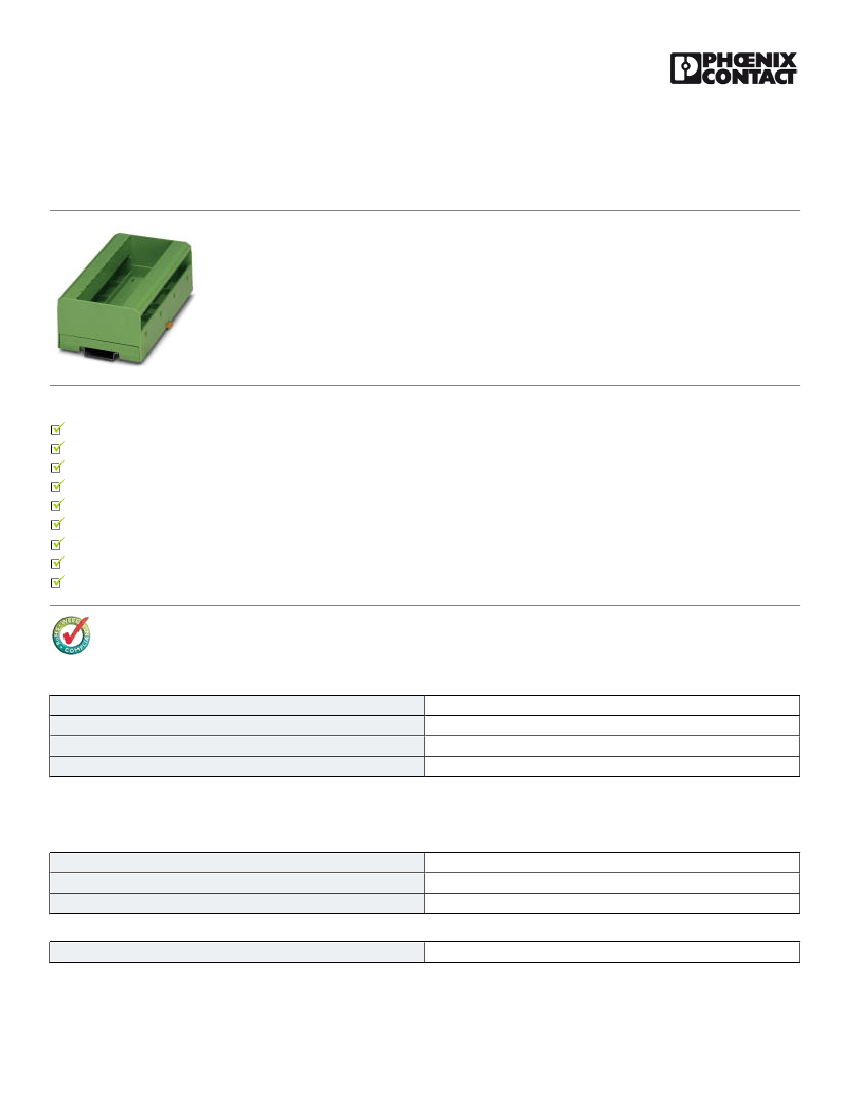

Housing - EMG150-LG/MSTB - 2907596
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover, with lateral opening for
connector
Product Features
Choice of four cover sizes in transparent or color versions
Practical and easy-to-wire conductor connections
Uniform and appropriate housing technology
High degree of flexibility due to the wide choice of versions
Space-saving accommodation of electronic components in finely graded module versions available with 10 to 150 mm pitch
User-friendly and safe mounting on DIN rails according to EN 60715
Inflammability class V0 insulation material (according to UL 94)
Shock and contamination-proof accommodation of electronic components
Universal PCBs for all pitches
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
116.0 GRM
85472000
Germany
Technical data
General
Housing type
Housing material
Color
Component housing
Polycarbonate fiber reinforced
green
Ambient conditions
Ambient temperature (operation)
-40 °C ... 125 °C
10/24/2014 Page 1 / 4
https://www.phoenixcontact.com/us/products/2907596
Housing - EMG150-LG/MSTB - 2907596
Technical data
Dimensions
Length
Constructional height
Width
75 mm
47.5 mm
150 mm
Technical data
Inflammability class according to UL 94
Power dissipation at 20°C in the horizontal mounting position
V0
12.3 W 13.1 W 7.5 mm
13.1 W 13.8 W 15 mm
13.6 W 14.9 W 52 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC000886
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
31261501
31261501
31261501
10/24/2014 Page 2 / 4
https://www.phoenixcontact.com/us/products/2907596
Housing - EMG150-LG/MSTB - 2907596
Classifications
UNSPSC
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
Approvals
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Drawings
Dimensioned drawing
Dimensioned drawing
71,8
65,4
75
38
H 52
H 35
6,4
25
B
100
83
62,5
55
47,5
H 15
H 7,5
19
25
32,5
52,5
69,5
146,5
3,3
Top edge
of the PCB
38 mm in hood
Surface that for mounting components
45 mm in housing
1 = Top edge of the PCB
B = Housing width
