431612 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 431612

431612: DescriptionTest Plugs u0026 Test Jacks BANANA PLUG BLACK; CategoryTopical application Mechanical and electrical/engineering/automation; File Size234KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric View All

431612 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	431612	-	-	View	Buy Now

431612 Overview

Test Plugs u0026 Test Jacks BANANA PLUG BLACK

431612 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Boxes
Material	Aluminum
Color	Black
Length	5.91 in
Width	3.52 in
Height	2 in
Packaging	Bulk
Dimensions	5.91 in L x 3.52 in W x 2 in H
Height - in	2
Height - mm	50.8
Length - in	5.91
Length - mm	150.114
Factory Pack Quantity	1
Width - in	3.52
Width - mm	89.408
Unit Weight	3 lbs

Preview

Download Datasheet

View All

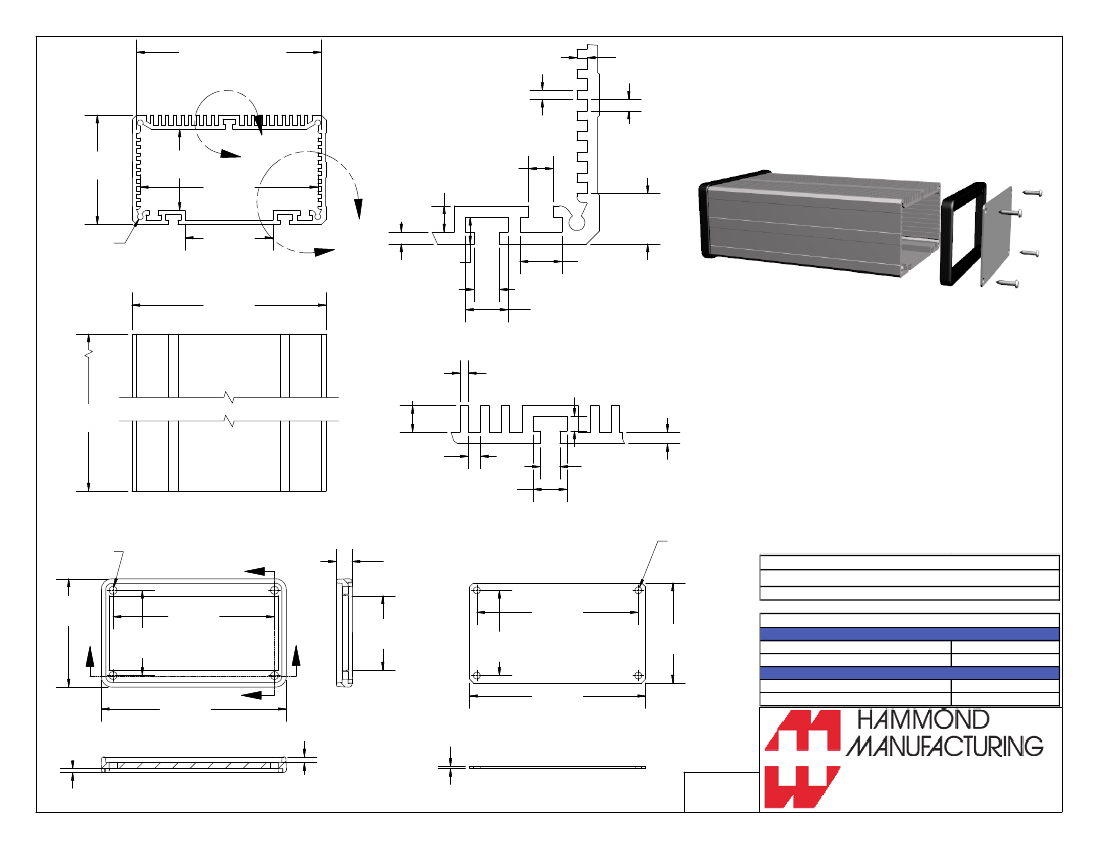

85.50

[3.366 in]

For 85mm wide PCB

1.75

[.069 in]

DETAIL A

82.00

[3.228 in]

40.50

[1.594 in]

4.45

[.175 in]

2.00

[.079 in]

4.20

[.165 in]

8.50

[.335 in]

4.50

[.18]

4.20

[.165 in]

7.10

[.280 in]

7.20

[.283 in]

1.50

[.059 in]

2.00

[.079 in]

Extrusion

50.50

[1.988 in]

37.60

[1.480 in]

Bezel



2.70

[.106 in]

89.70

[3.531 in]

DETAIL B

End Plate

4.50

[.177 in]

150.00

[5.906 in]

2.10

[.083 in]

5.70

[.224 in]

1.40

[.055 in]

2.50

[.098 in]

2.0

[.077 in]

Screw #4x1/2 Pan Head

3.30

[.130 in]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

(Part number and text placement/orientation on our products are subject to change,

we do not recommend using them as a locating reference for modification purposes)



4.00

[.16]

BEZEL

82.00

[3.228 in]



3.50

8.00

[.315 in]

END PLATE

[.14]

NOTE

Purchased assembly includes Extrusion, 2 End Plate, 2 Bezels and 8 screws

55.00

[2.165 in]

Recommended Cover screw torque -- 2.5-3.5 lbf-in (30-40 cN-m)

43.30

[1.705 in]

37.75

[1.486 in]

82.00

[3.228 in]

43.30

[1.705 in]

50.80

[2.000 in]

PART NUMBERS

SINK BOX

Extrusion Aluminum Alloy / Black Anodized

Extrusion Aluminum Alloy / Clear Anodized

ACCESSORIES

431612

531612

031623

131623

94.00

[3.701 in]

2.00

[.079 in]

SECTION C-C

1.10

[.04]

89.50

[3.524 in]

End Plate Aluminum Alloy / Black Anodized

End Plate Aluminum Alloy /Clear Anodized

SECTION D-D

3.00

[.118 in]

Dimensions:

[inches]

SINK BOX

31612

www.hammondmfg.com
