NOTES:
UNLESS OTHERWISE SPECIFIED
R E V I S I O N
REV.
DRAWN BY
ECO No
DESCRIPTION
DATE
APPROVED
1. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
2. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH.
EQUIVELANT TO MT-11020.
3. INTERIOR SURFACE TEXTURE TO BE: NONE.
4. ALL INSIDE RADII .010R. ALL OUTSIDE RADII .020R MAX,
UNLESS OTHERWISE SPECIFIED.
5. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT
THE LARGE END OF THE FEATURE, AND ALL INTERNAL FEATURES
AFFECTED BY THE DRAFT APPLY AT THE SMALL END OF THE FEATURE
UNLESS OTHERWISE SPECIFIED.
6. 1 DEGREE DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE
UNLESS OTHERWISED SPECIFIED.
7. ASSEMBLY SCREWS FOR THE ENCLOSURE INCLUDED.
FOR THE PCB ARE SOLD SEPERATELY.
MOUNTING SCREWS
A-J
1.0
M BOYER
M BOYER
N/A
DEVELOPMENT
UPDATE TO AS-BUILT AND RELEASE
24-Aug-09
29-Mar-10
D.C.
D.C.
2
7
8. MATERIAL / COLOR:
ABS PLASTIC IS STANDARD IN BLACK OR WHITE.
CUSTOM MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
9. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND
VERIFICATION OF IT'S FIT ARE THE SOLE RESPONSIBILITY OF OEM.
10. STANDARD OR CUSTOM LABEL RECESSES ARE AVAILABLE UPON
REQUEST FOR QUOTE.
4
5
8

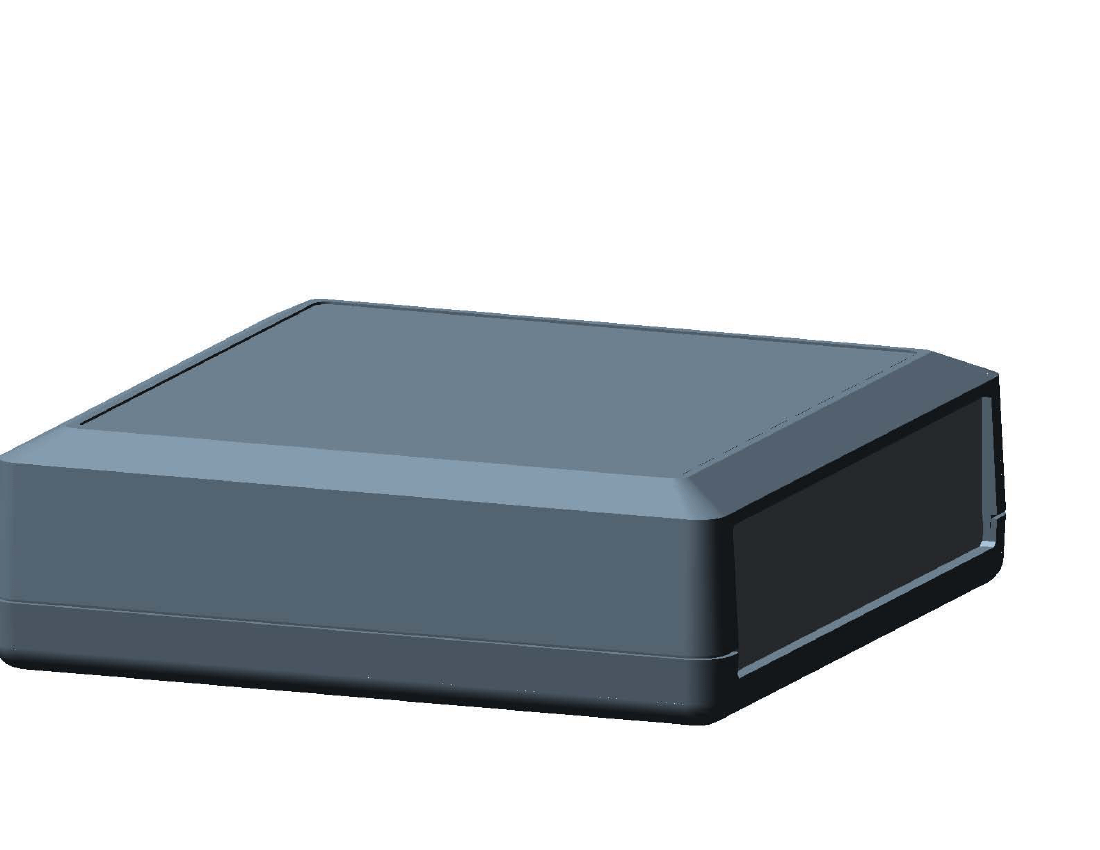

434313 ENCLOSURE SHOWN WITH 2 PCB SIZE
OPTIONS. THIS ENCLOSURE DOES NOT
SUPPORT TWO PCB BOARDS AT ONCE.
1
S434313
S434313
S434313
S434313
S434313
S434313
#4 HiLo
S434313
COVER
COVER w/ OPENING
BASE
BASE w/ OPENING

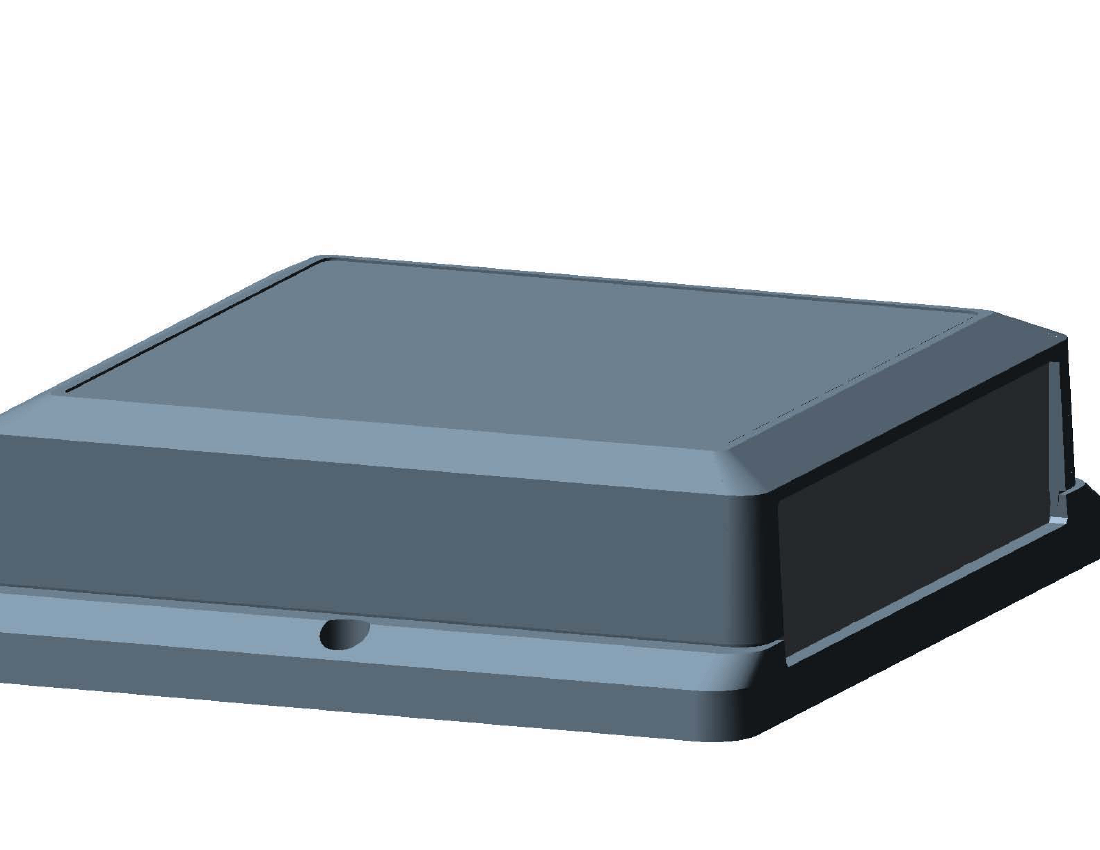

WALL BASE
WALL BASE w/ OPENING
SCREW .750"
FACEPLATE
S434313(x) CONFIGURATIONS
-S
-SW
-F
1
1
1
4
4
1
1
1
-FW
1
-FP
3
6
4
1
4
1

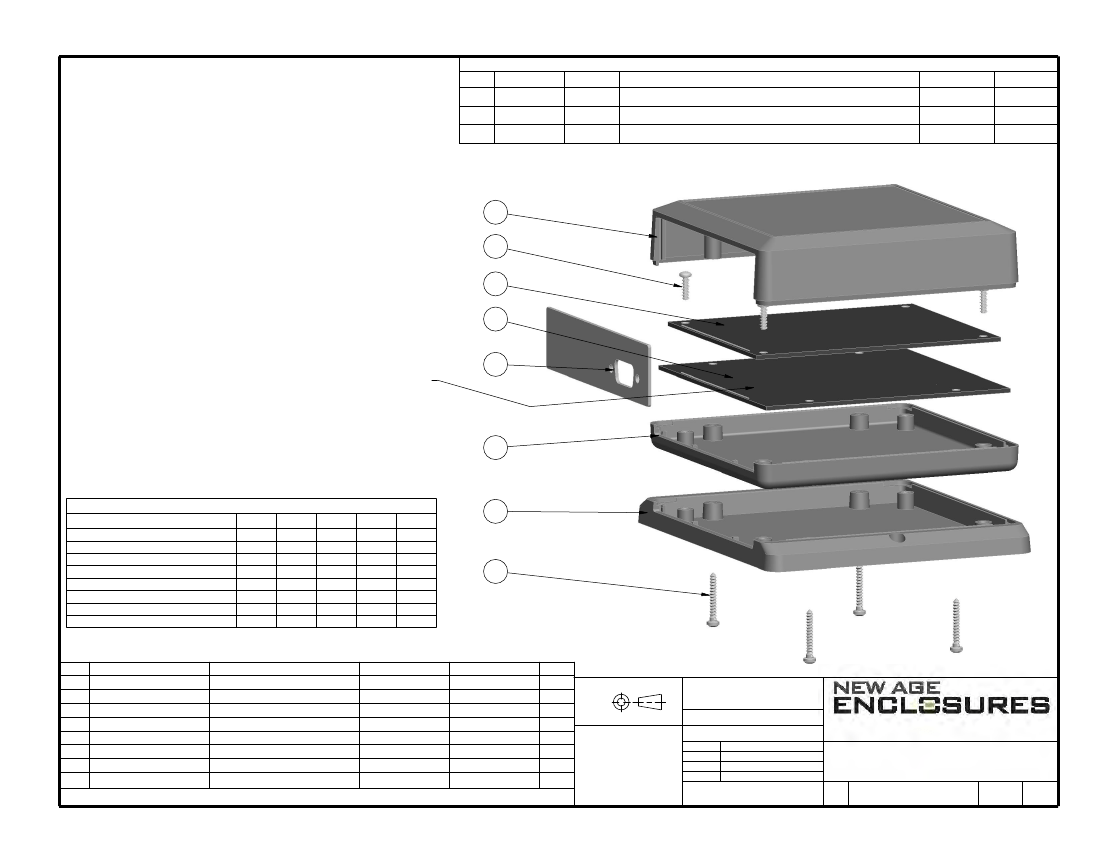

EXPLODED VIEW
SCALE
0.666
8
7
6
5
4
3
2
1
434313_FACEPLATE
NO_4_375_SCREW
NO_4_750_SCREW
434313_PCB-4X4
434313_PCB-4X3
434313_WALL-BASE
434313_COVER
434313_BASE
434313 FACEPLATE - STANDARD
No4 HiLo x .500"
No4 HiLo x .750"
434313 PCB - REFERENCE
434313 PCB - REFERENCE
434313 WALL - STANDARD
434313 COVER - STANDARD
434313 BASE - STANDARD
6061 ALUMINUM
#4 HiLo x 1/2"
#4 HiLo x 3/4"
.062" THICK
.062" THICK
ABS
ABS
ABS
SOLD SEPERATELY
SOLD SEPERATELY
INCLUDED
CUSTOMER SUPPLIED
CUSTOMER SUPPLIED
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
1
4
4
1
1
1
1
1
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2010
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
X.XX = .015 X.XXXX = .001
X.XXX = .010 X.X°
= 1°
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
434313
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
FILE
NAME
DESCRIPTION
MATERIAL
COLOR
QTY.
STANDARD - SQUARE UTIL.
SXX-434313X
SIZE
DRAWING NAME
SHEET
REV.DOC
BILL OF MATERIALS
M BOYER
24-Aug-09
A 434313X_R1_0
1 OF 8
1.0
4.284
3.0°
3.0°
R.150
2.010
R.050
4.284
3.500 SQ.
RECESS .015
P
P
2.010
SCALE
0.500
THIS ENCLOSURE CAN BE MOLDED
WITH OR WITHOUT THE FACEPLATE
OPENING. ASK YOUR SALES REP FOR DETAILS.
.900
X
.385 x .02"
4 PLACES
RECESS
26.4°
.048
1.310
.810
.093
.110
.390
X
.020
.064
.200
.150
.810 CLEAR
.216

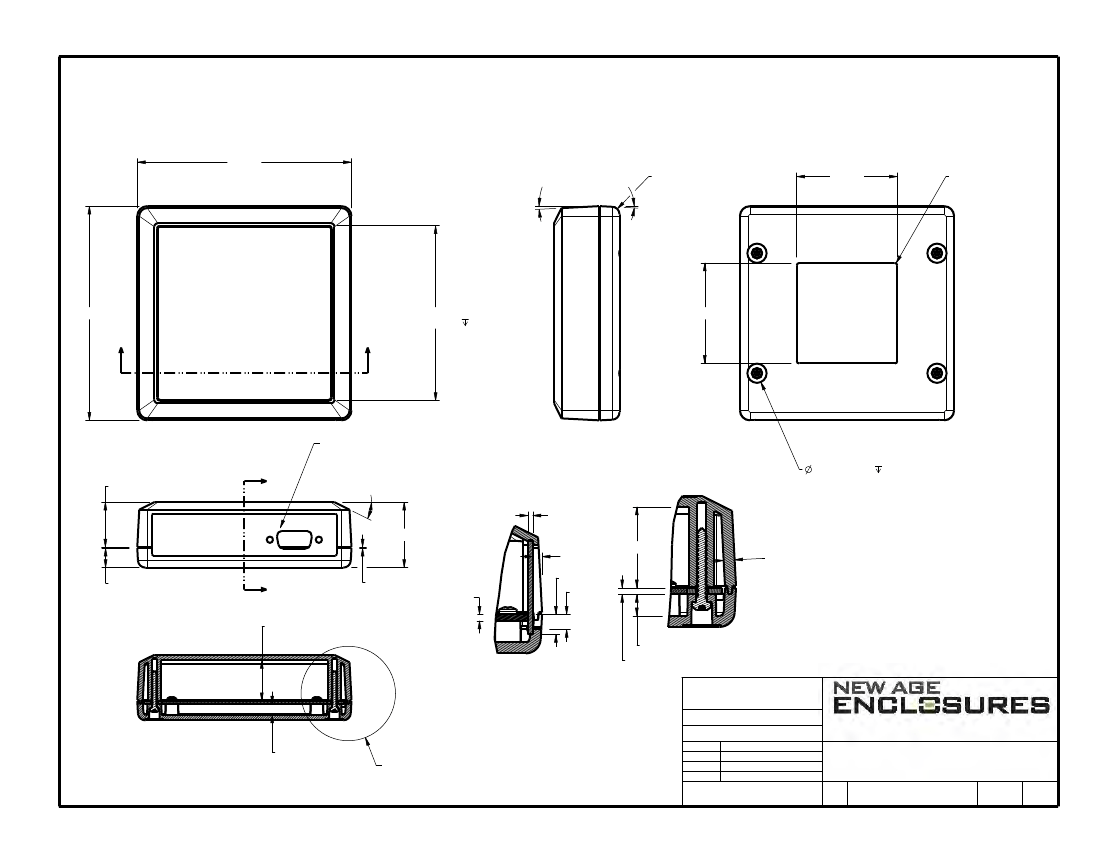

SECTION X-X
SCALE
1.000
(.064 )
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
DETAIL A
SCALE
1.000
X.XX = .015 X.XXXX = .001
X.XXX = .010 X.X°
= 1°
NEW AGE ENCLOSURES
SECTION P-P
.216 CLEAR
SEE DETAIL A
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
434313
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
STANDARD - SQUARE UTIL.
SXX-434313X
SIZE
DRAWING NAME
SHEET
REV.DOC
M BOYER
24-Aug-09
A 434313X_R1_0
2 OF 8
1.0
