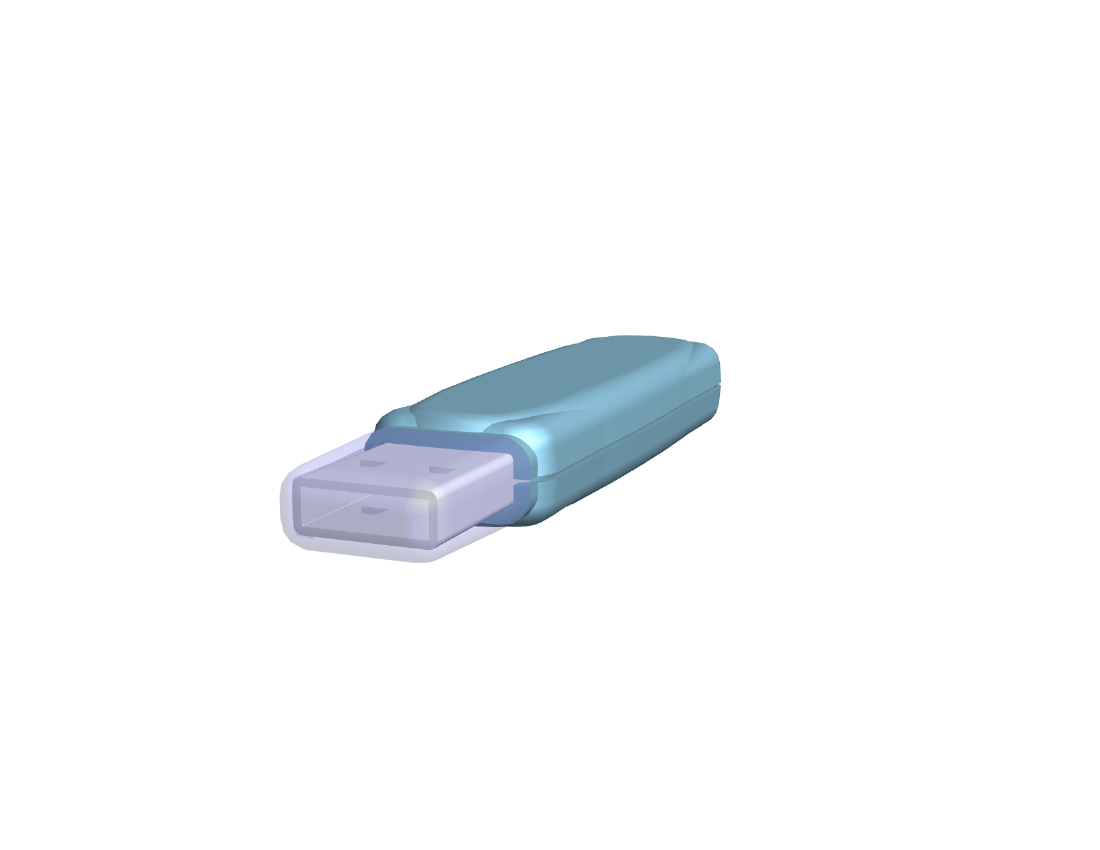

R E V I S I O N
REV. DRAWN BY ECO No
DESCRIPTION
DATE
APPROVED
1
SUGGESTION: END CAN BE MOLDED IN
A TRANSLUSCENT MATERIAL OR
ALTERNATE COLOR.
M BOYER
M BOYER
PRELIMINARY RELEASE
REVISION LIST CONDENSED - SEE REV 10 OR PRIOR
NOTE CHANGE
REMOVE "LENS" FROM DRAWING LANGUAGE
UPDATE TITLE FROM "USB DEVICE" TO "USB STICK"
MARK ASSEMBLY DIMENSIONS AS "PRESS FIT"
07-Jul-06
13-Jan-11
08-Feb-11
01-Mar-11
21-Oct-11
D.C.
D.C.
D.C.
D.C.
10.2 M BOYER 0211
10.3 M BOYER 0311
10.4 M BOYER 0611
10.5 M BOYER 2711
SCALE
1.250
NOTES:
UNLESS OTHERWISE SPECIFIED
1. DIMENSIONS TO BE SYMMETRICAL ABOUT CENTERLINES WITHIN .003 T.I.R.
2. CORNERS DRAWN SHARP TO BE R.005 MAXIMUM.
4
1
3. EXTERIOR SURFACE TEXTURE TO BE LIGHT EDM FINISH. EQUIVELANT TO MT-11010.
4. INTERIOR SURFACE TEXTURE TO BE: NONE.
5. ALL INSIDE RADII .010R. UNLESS OTHERWISE SPECIFIED.
6. ALL EXTERNAL DIMENSIONS AFFECTED BY THE DRAFT APPLY AT THE LARGE END OF
THE FEATURE, AND ALL INTERNAL FEATURES AFFECTED BY THE DRAFT APPLY AT
THE SMALL END OF THE FEATURE UNLESS OTHERWISE SPECIFIED.
7. 1 DEGREES DRAFT IN THE DIRECTION OF PULL IS PERMISSIBLE UNLESS
OTHERWISED SPECIFIED.
2

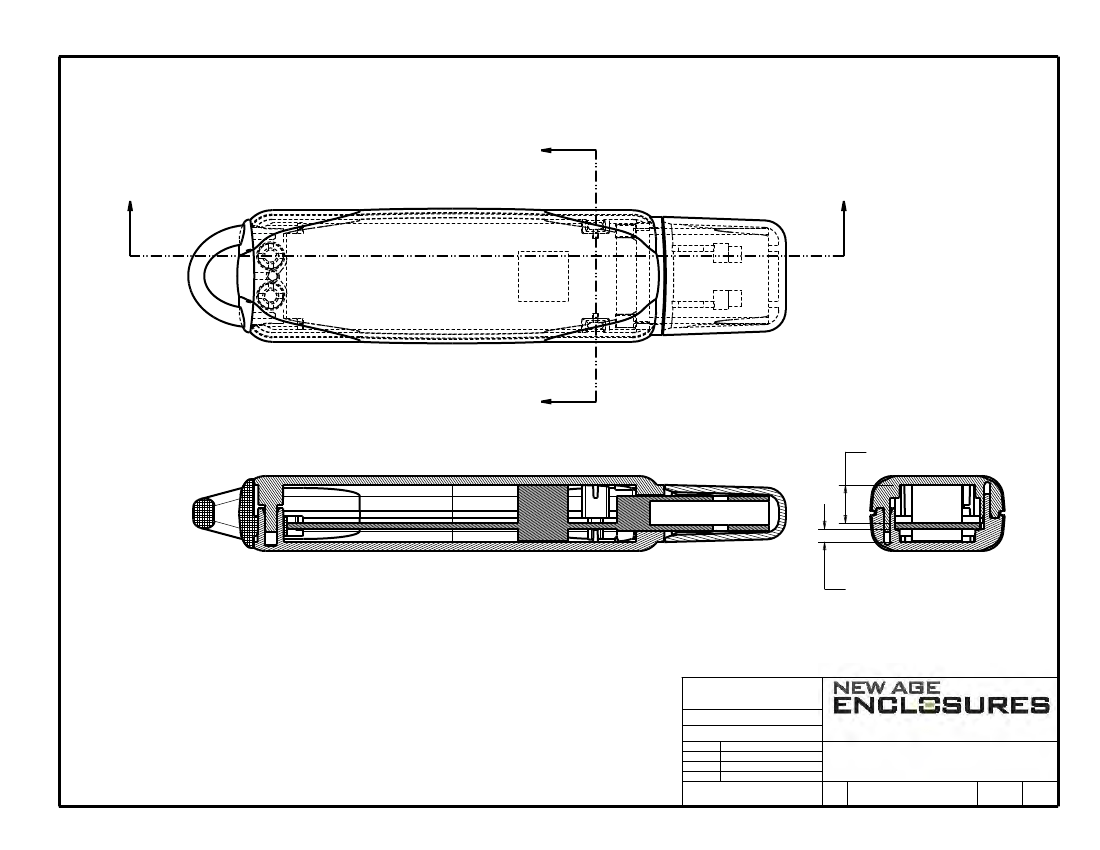

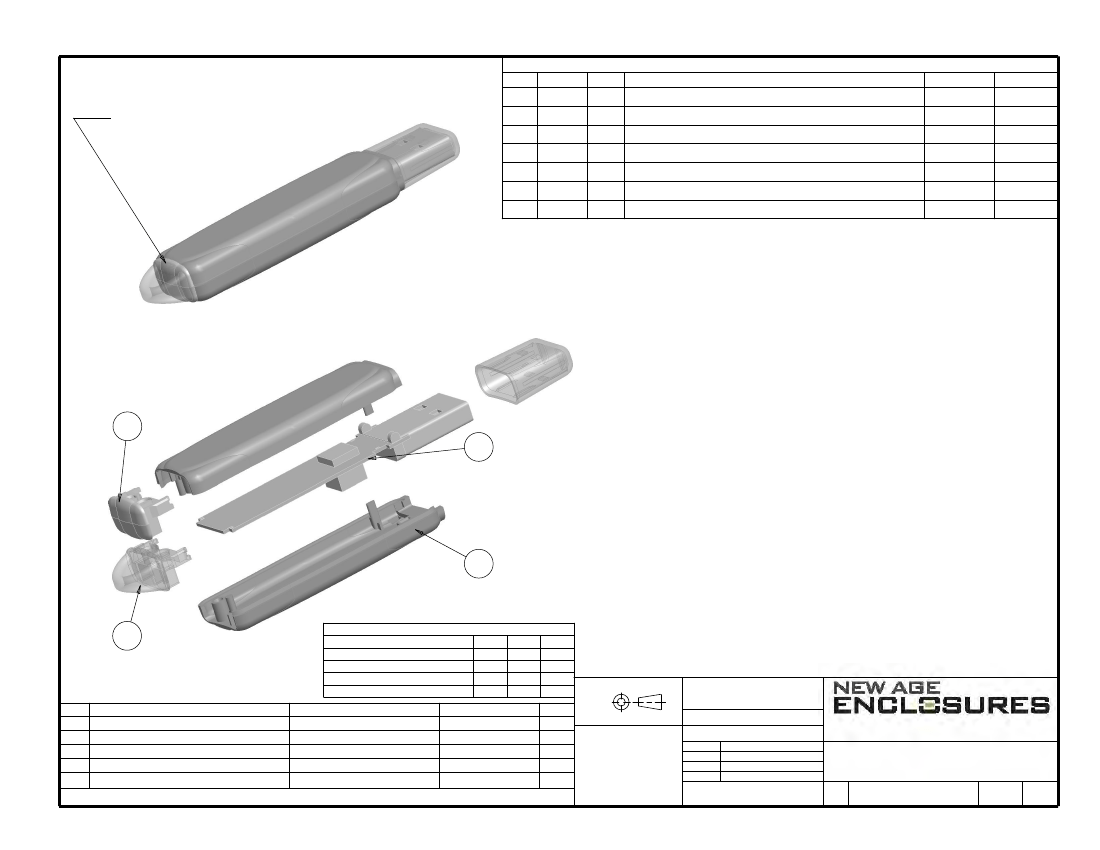

EXPLODED VIEW
SCALE 1.250
3
P210603
* = ENCLOSURE IS TO BE ASSEMBLED USING
P210603
THE "210603 END" OR "210603 END w/ KEYRING"
P210603
NOT BOTH. SEE NOTE 8
P210603
5
4
3
2
1
210603 USB CAP - STANDARD
210603 END
210603 END w/ KEYRING

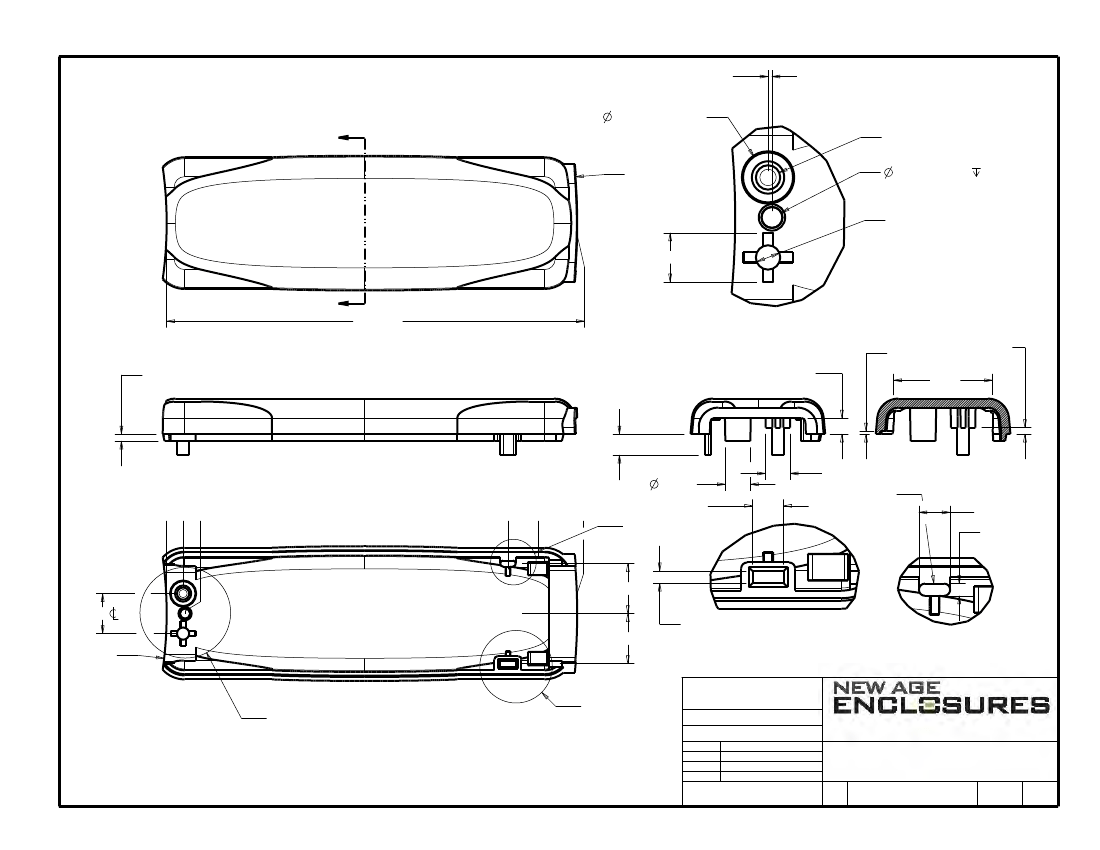

210603 CASE HALF - STANDARD
210603 PCB - REFERENCE
8. THIS ENCLOSURE IS A PRESS FIT ASSEMBLY. FOR PERMANENT CLOSURE: A DROP
ADHESIVE OR ULTRASONIC WELDING IS REQUIRED.
9. MATERIAL / COLOR:
BLACK OR WHITE ARE STANDARD ABS COLORS. CUSTOM
MATERIALS AND COLORS ARE AVAILABLE UPON REQUEST FOR QUOTE.
10. PCB SIZES ARE RECOMMENDATIONS ONLY. FINAL SIZES AND VERIFICATION
OF IT'S FIT ARE THE SOLE RESPONSIBILITY OF EACH OWNER. SOLID
MODELS ARE AVAILABLE FOR DOWNLOAD AT OUR WEBSITE.
P210603(x) CONFIGURATIONS
-K
-L
CASE HALF
2
2
END w/ KEYRING *
1
END *
1
CAP
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
BLACK or WHITE
.032" THICK
-C
1
1
1
1
2
1
THIRD ANGLE PROJECTION
TOLERANCES: UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN U.S. INCHES.
SOLD SEPERATELY
ABS
ABS
ABS
CUSTOMER SUPPLIED
X.XX = .015 X.XXXX = .001
X.XXX = .010
X.X°
= 1°
DO NOT SCALE DRAWING
NOTICE: THE INFORMATION AND DATA
CONTAINED HEREIN IS CONSIDERED
PROPRIETARY TO ALLTEC INTEGRATED
MFG INC & SHALL REMAIN THE EXCLUSIVE
PROPERTY OF ALLTEC INTEGRATED MFG INC
THE HOLDER WILL ASSUME CUSTODY AND
CONTROL THAT THIS DOCUMENT WILL
NOT BE COPIED, REPRODUCED, OR
DISCLOSED WITHOUT THE EXPRESS WRITTEN
CONSENT OF ALLTEC INTEGRATED MFG INC
POSSESSION OF THIS DOCUMENT DOES
NOT CONSTITUTE A GRANT TO
MANUFACTURE ANY ITEMS.
© 2011
NEW AGE ENCLOSURES
Customer's Part No:
APPROVAL
CHECK
ENG.
SCALE
DRAWN BY
BY
DATE
210603
4330 Santa Fe Road
ph. (805) 595-1310
www.newageenclosures.com
San Luis Obispo, CA. 93401
fax (805) 595-1024
ITEM
DESCRIPTION
MATERIAL
COLOR
QTY.
AS NOTED
SIZE
STANDARD - USB STICK
PXX-210603X ASSEMBLY
DRAWING NAME
SHEET
BILL OF MATERIALS
M BOYER
07-Jul-06
A 210603_R10_5
1 OF 7
10.5
REV.DOC
