Tops (C2 Series)

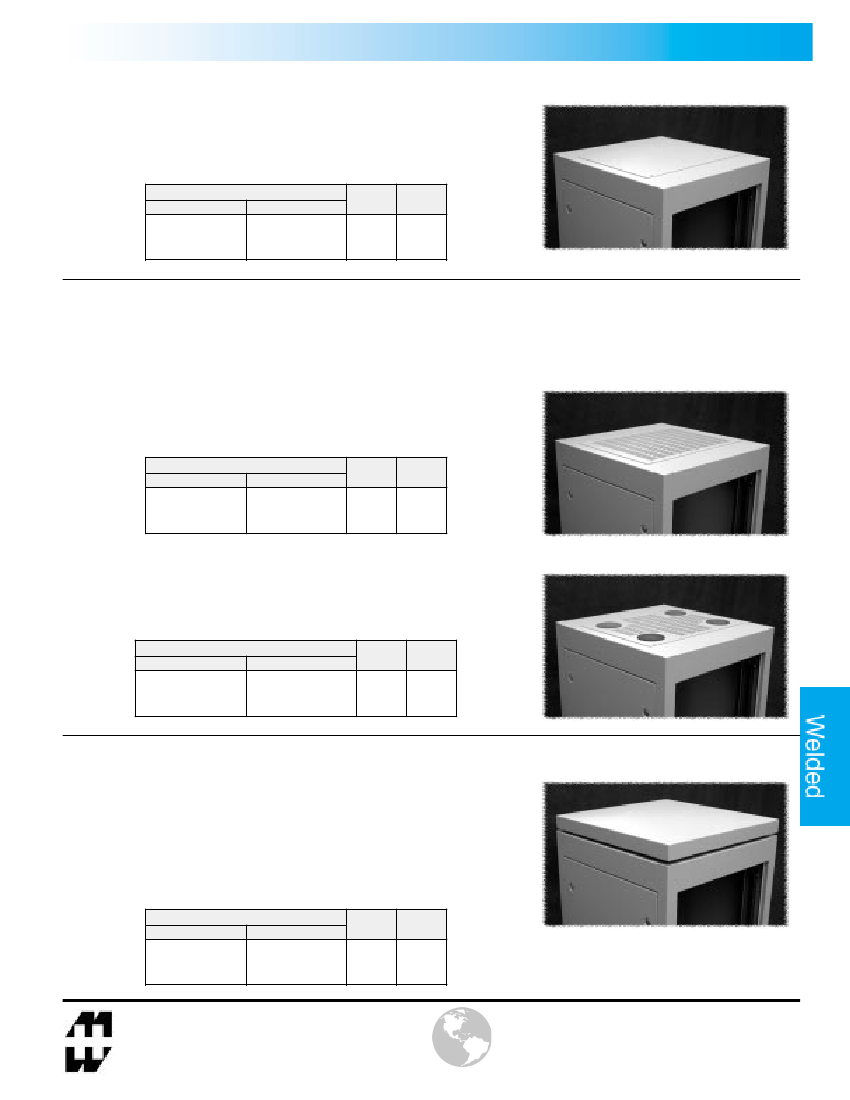

SOLID TOP
•
14 gauge steel construction
•
Supplied with mounting hardware
•
Should be used on all racks where protection from dust or falling objects is
required
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923SBK1
C2T1923SCG1
C2T1931SBK1
C2T1931SCG1
C2T1936SBK1
C2T1936SCG1
Pa n e l
Wi dt h
19
19
19
R a ck
Dept h
23.63
31.50
36.00
VENTED TOP
•
14 gauge steel construction
•
Supplied with mounting hardware
•
Provides a practical and economical solution to convection cooling
requirements
•
Available either with or without 3.5” cable access holes and covers
Without Cable Access Holes
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923VBK1
C2T1923VCG1
C2T1931VBK1
C2T1931VCG1
C2T1936VBK1
C2T1936VCG1
Pa n e l
Wi dt h
19
19
19
R a ck
Dept h
23.63
31.50
36.00
19” Rack Mount
With 3.5” Cable Access Holes & Covers
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923VCEBK1 C2T1923VCECG1
C2T1931VCEBK1 C2T1931VCECG1
C2T1936VCEBK1 C2T1936VCECG1
Pa n e l
Wi dt h
19
19
19
R a ck
Dept h
23.63
31.50
36.00
RAISED VENT TOP
•
14 gauge steel construction
•
Supplied with mounting hardware
•
Simple up or down adjustment permits either raised installation for venting
or flush mounting for smooth decorative look
•
Allows for protection from falling objects or liquids
•
When raised, permits convection cooling as gap
between top & frame allows warm air to escape on all four sides
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923RBK1
C2T1923RCG1
C2T1931RBK1
C2T1931RCG1
C2T1936RBK1
C2T1936RCG1
Pa n e l
Wi dt h
19
19
19
R a ck
Dept h
23.63
31.50
36.00
©
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. North
Guelph, Ontario N1H 1E5 CANADA
Phone: 519-822-2960 Fax: 519-822-0715
ww
w.h
am
mo
ndm
fg.c
om
Hammond Manufacturing Co. Inc.
256 Sonwil Dr.
Cheektowaga, NY 14225
USA
Phone: 716-651-0086 Fax: 716-651-0726
49

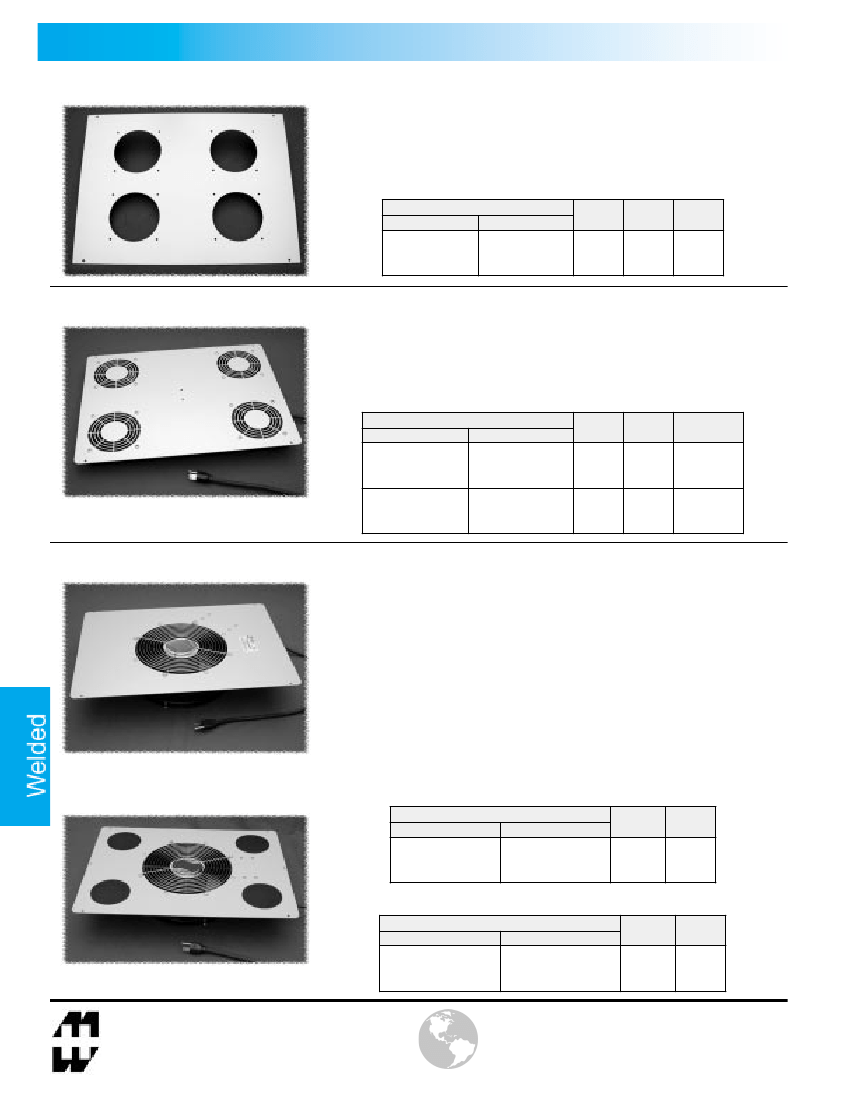

Fan Tops (C2 Series)
4.7” FAN TOP PANEL
•
14 gauge steel construction
•
4.7" fan top panel - fans not included (see next page)
•
Quantity 4 or 6 openings depending on depth of rack
•
Maximum flexibility - add fans, leave holes open (for cable access) or use
covers (see next page)
Pa r t Nu mb e r
B l a c k Te x t u r e d B e i g e Te x t u r e d
C2T1923FBK1 C2T1923FCG1
C2T1931FBK1 C2T1931FCG1
C2T1936FBK1 C2T1936FCG1
Pa n e l
Wi dt h
19
19
19
Rack
Depth
23.63
31.50
36.00
Fa n
Holes
4
6
6
PRE-WIRED 4.7” EXHAUST FAN TOP
•
Includes a quantity of 4 - long life, ball bearing, 4.7", 115 volt, 50/60 Hz. AC,
100 CFM fans (230 VAC fan tops available on special order)
•
Available with or without thermostat
•
Finger guards are punched into top panel and bottom of fan top
•
Fans are pre-wired, installed and complete with 3 foot cord & plug
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923F4BK1
C2T1923F4CG1
C2T1931F4BK1
C2T1931F4CG1
C2T1936F4BK1
C2T1936F4CG1
C2T1923F4TBK1 C2T1923F4TCG1
C2T1931F4TBK1 C2T1931F4TCG1
C2T1936F4TBK1 C2T1936F4TCG1
Pa n e l
Wi dt h
19
19
19
19
19
19
Rack
Depth
23.63
31.50
36.00
23.63
31.50
36.00
Ther most at
No
No
No
Ye s
Ye s
Ye s
19” Rack Mount
PRE-WIRED 10” EXHAUST FAN TOP PANEL
•
Includes quantity 1 - 10", 550 CFM, 115 V 50/60 Hz. AC fan 35 watt motor
(230 VAC fan tops available on special order)
•
Thermal protected motor
•
Ball bearing construction, plastic blades (3)
•
Diecast aluminum body fan
•
Rotation is clockwise (looking down at the rotor - as pictured on the left)
•
Airflow exhausts the rack (out the top as pictured on the left)
•
C UL & UL recognized
•
5' cord and molded on plug
•
Top & bottom finger guards included
•
Pre-wired and assembled as shown
•
Available either with or without 4 cable access holes (3.5”) and covers
Without Cable Access
Without Cable Access Holes
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923F10BK1 C2T1923F10CG1
C2T1931F10BK1 C2T1931F10CG1
C2T1936F10BK1 C2T1936F10CG1
Pa n e l
Wi dt h
19
19
19
R a ck
Dept h
23.63
31.50
36.00
With Cable Access 3.5” Holes & Covers
Pa r t Nu mb e r
B l a c k Te x t u r e d
B e i g e Te x t u r e d
C2T1923F10CEBK1 C2T1923F10CECG1
C2T1931F10CEBK1 C2T1931F10CECG1
C2T1936F10CEBK1 C2T1936F10CECG1
Pa n e l
Wi dt h
19
19
19
Rack
Depth
23.63
31.50
36.00
With Cable Access
50
©
Hammond Manufacturing Co. Ltd.
394 Edinburgh Rd. North
Guelph, Ontario N1H 1E5 CANADA
Phone: 519-822-2960 Fax: 519-822-0715
ww
w.h
am
mo
ndm
fg.c
om
Hammond Manufacturing Co. Inc.
256 Sonwil Dr.
Cheektowaga, NY 14225
USA
Phone: 716-651-0086 Fax: 716-651-0726
Fan Top Accessories (C2 Series)

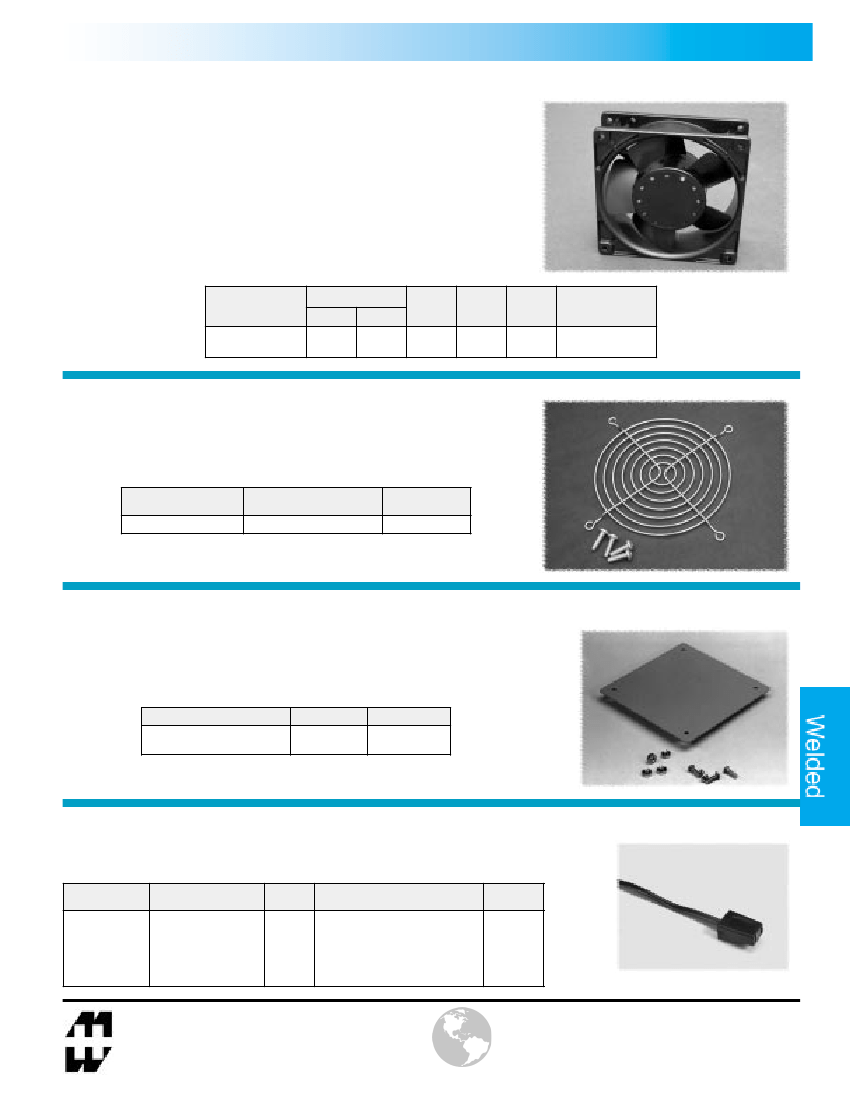

4” FANS
•
4.70" (120mm), 1.50" deep - Tubeaxial type
•
Choice of either 115 or 230 VAC, 50/60 Hz.
•
Impedance protected motor Class-B insulated
•
Ball bearing construction, metal blades
•
Diecast aluminum body
•
Rotation is counter clockwise (looking at the rotor - as pictured)
•
Airflow is over the struts (out the back as pictured)
•
Male plug terminated (requires fan cords below)
•
UL recognized, CSA listed, CE certified
•
With mounting hardware
Size
I nches
4.70
4.70
mm
120
120
Use With Fan
Guard Par t
Number
DNFG
DNFG
Par t Number
DNMF100AC115
DNMF100AC230
VAC
115
230
CFM
105
105
Wattage
22
22
METAL FAN GUARDS
•
Constructed of steel
•
For covering unused fan top openings or as 4.7” fan guards
•
Hardware included
Par t Number
DNFG
Color
Wire mesh, nickel plated
Use with Fan
Size
4.7"
19” Rack Mount
4.7” FAN HOLE COVER
•
Constructed of 14 gauge steel
•
For covering unused fan top openings on 4.7” fan tops
•
Hardware included
Pa r t Nu mb e r
DNFPBK1
DNFPCG1
Color
B l a ck
G r ey - B e i g e
Pa i n t F i n i s h
Tex t u r e d
Tex t u r e d
FAN CORD
•
For 115 VAC wiring
•
Standard molded female fan plug (0.91” x 0.68”)
Pa r t Nu mb e r
DNMFC
DNFC48P
DNFC72P
DNFCDC2P
DNFCDC3P
Descr iption
Si n g l e Fa n Co r d
Si n g l e Fa n Co r d
Si n g l e Fa n Co r d
Dai sy Chai n
Dai sy Chai n
Lead
Length
24"
48"
72"
24"
24"
Fa n C o n n e c t o r
St rai ght
4 5 d e gr e e
4 5 d e gr e e
Qt y. 2 - 4 5 d e gr e e, 2 4 " a p a r t
Q t y 3 - 4 5 d e gr e e, 2 4 " a p a r t
1 1 5 VA C
Plug
No
Ye s
Ye s
Ye s
Ye s
©
