RP1285C: DescriptionBoard Mount Humidity Sensors SHT3x Humidity and Temperature Sensor; CategoryTopical application Mechanical and electrical/engineering/automation; File Size277KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

RP1285C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RP1285C	-	-	View	Buy Now

RP1285C Overview

Board Mount Humidity Sensors SHT3x Humidity and Temperature Sensor

RP1285C Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Enclosures
Type	With Cover Panel
Material	Plastic
Color	Gray
Length	7.32 in
Width	5.75 in
Height	2.95 in
IP Rating	IP65
Packaging	Bulk
Dimensions	7.32 in L x 5.75 in W x 2.95 in H
Height - in	2.95
Height - mm	74.93
Length - in	7.32
Length - mm	185.928
Factory Pack Quantity	1
Width - in	5.75
Width - mm	146.05
Unit Weight	1.600016 oz

Preview

Download Datasheet

View All

8

7

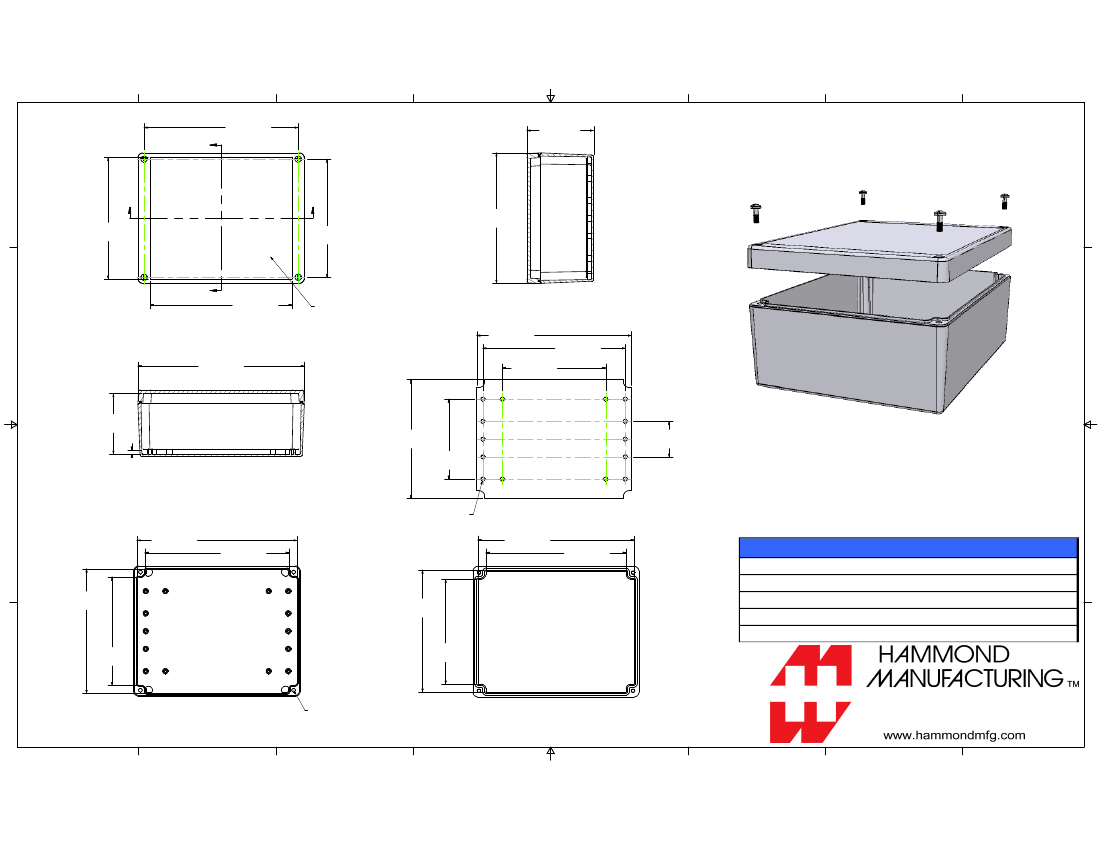

173.00 mm

[6.811 in]

6

5

75.00 mm

[2.953 in]

4

3

2

1

A

D

B

137.00 mm

[5.394 in]

B

133.00 mm

[5.236 in]

146.91 mm

[5.784 in]

A

C

158.80 mm

[6.252 in]

ASSEMBLY - TOP

186.70 mm

[7.350 in]

0.40 mm [0.16in]

Recess

SECTION A-A

173.73 mm

[6.840 in]

160.00 mm

[6.299 in]

116.00 mm

[4.567 in]

C

68.50 mm

[2.697 in]

5.00 mm

[0.197 in]

SECTION B-B

134.03 mm

[5.277 in]

90.00 mm

[3.543 in]

NOT SUPPLIED

40.00 mm

[1.575 in]

B

179.75 mm

[7.077 in]

n

4.50 mm 14X

[0.177 in]

161.75 mm

[6.368 in]

INNER PANEL

175.50 mm

[6.909 in]

157.50 mm

[6.201 in]

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )

Contact Factory mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

B

RP 1 28 5

M aterial: A B S (UL94-HB ), Light G ray Color

Lid S c rews : M 3.5 x 10, 304 S tainles s

G as k et: E DP M Cord.

Circ uit B oard S c rews , 4 S upplied (M 3 s elf tap)

S ugges ted Lid S c rew Torque: 30 oz f-in (21 c N-m )

140.05 mm

[5.514 in]

137.40 mm

[5.409 in]

122.05 mm

[4.805 in]

118.00 mm

[4.646 in]

A

BOX - INSIDE

8

7

M3.5 Stainless Steel Lid Insert

Type 304 Stainless 4X

LID - INSIDE

5

4

3

2

RP1285

1

6

RP1285C Related Products

	RP1285C	RP1285
Description	Board Mount Humidity Sensors SHT3x Humidity and Temperature Sensor	Display Modules 3.2" QVGA Intell Tch Screen LCD Mod
Product Category	Enclosures, Boxes, & Cases	Enclosures, Boxes, & Cases
Manufacturer	Hammond	Hammond
RoHS	Details	Details
Product	Enclosures	Enclosures
Type	With Cover Panel	With Cover Panel
Color	Gray	Gray
Length	7.32 in	7.32 in
Width	5.75 in	5.75 in
Height	2.95 in	2.95 in
IP Rating	IP65	IP65
Dimensions	7.32 in L x 5.75 in W x 2.95 in H	7.32 in L x 5.75 in W x 2.95 in H
Height - in	2.95	2.95
Height - mm	74.93	74.93
Length - in	7.32	7.32
Length - mm	185.928	185.928
Factory Pack Quantity	1	1
Width - in	5.75	5.75
Width - mm	146.05	146.05
Unit Weight	1.600016 oz	1.600016 oz
