1415F

Description
Headers u0026 Wire Housings CRIMP TERM 22-30 GLD
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size236KB,1 Pages
ManufacturerHammond
Websitehttp://www.hammondmfg.com
Download Datasheet Parametric View All

1415F Online Shopping

Suppliers Part Number Price MOQ In stock
1415F - - View Buy Now

1415F Overview

Headers u0026 Wire Housings CRIMP TERM 22-30 GLD

1415F Parametric

Parameter NameAttribute value
Product CategoryEnclosures, Boxes, & Cases
ManufacturerHammond
RoHSDetails
ProductBoxes
MaterialSteel
ColorGray
Length10 in
Width7 in
Height8 in
PackagingBulk
Dimensions10 in L x 7 in W x 8 in H
FeaturesSelf-Tapping Screws Included
Height - in8
Height - mm203.2
Length - in10
Length - mm254
Factory Pack Quantity1
Width - in7
Width - mm177.8
Unit Weight5.870 lbs
8
7
6
5
4
3
2
1
D
AA
200.76 mm
[7.904 in]
D
180.24 mm
[7.096 in]
175.36 mm
[6.904 in]
C
C
AA

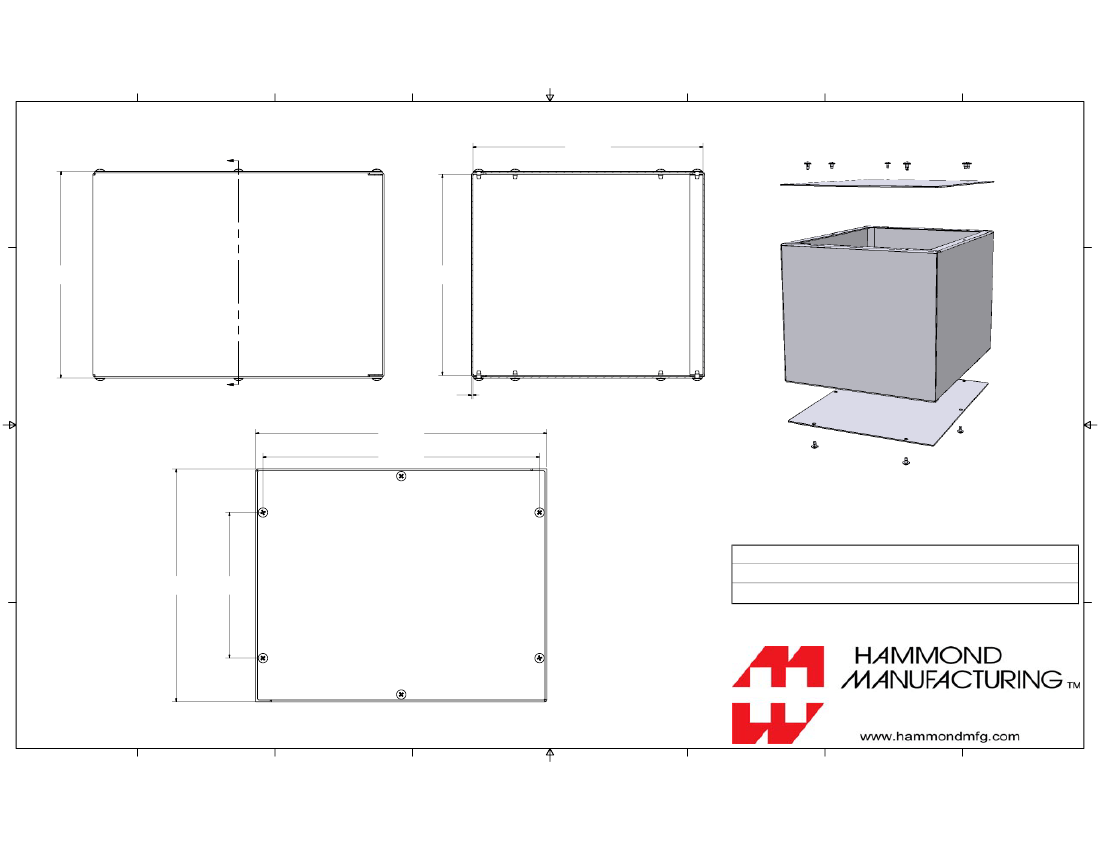

ASSEMBLY - VIEW FROM SIDE
1.22 mm
[0.048 in]
254.00 mm
[10.000 in]
241.30 mm
[9.500 in]
SECTION AA-AA
B
B
- ASA 61 GREY POWDER PAINTED 0.048" 18 GAUGE STEEL BODY
203.20 mm
[8.000 in]
127.01 mm
[5.000 in]
- TWELVE 6-32 NICKEL PLATED SCREWS
EXTRA SCREWS - 1421J6 (6-32 x 1/4 SHEET METAL SCREWS)
Contact Factory
mjm@hammondmfg.com for quotes
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Solid models of this enclosure available in STEP or IGES.
A
A
ASSEMBLY - VIEW FROM TOP
