8
7
131.15 mm
[5.163 in]
6
5
4
3
2
1
T
D
119.15 mm
[4.691 in]
24.00
`
0.60
mm
[0.945
`
0.024
in]
D
66.00 mm
[2.598 in]
Y
86.96 mm
[3.424 in]
Y
84.00 mm
[3.307 in]
81.00
`
0.70
mm
[3.189
`
0.028
in]
C
C
T
.75mm (.030") Deep Recess For Labels/Keypads etc.
U
SECTION T-T
2.00 mm
[0.079 in]
1.50 mm
[0.059 in]
2.50 mm
[0.098 in]
PROTECTION TO IP 65
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc. )
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
N O TE
P u rc h a s e d a s s e m b ly in c lu d e s b o x , e n d p a n e ls , # 6 Ta p t ig h t
s c re w s w / O -rin g s , s e lf a d h e s ive ru b b e r fe e t , a n d g a s k e t s .
B o x m a d e fro m E x t ru d e d A lu m in u m 6 0 6 3 .
E n d p a n e ls m a d e fro m A D C -1 2 D ie c a s t A lu m in u m w it h a b la c k
p o w d e r p a in t fin is h .
W A TE R TIG H T 1 4 5 7 J1 2 0 1
P AR T N U M BERS
C le a r a n o d iz e d b o x w it h b la c k p o w d e r
1 4 5 7 J1 2 0 1
p a in t e d e n d p a n e ls
B la c k p o w d e r p a in t e d b o x a n d e n d
1 4 5 7 J1 2 0 1 B K
p a n e ls

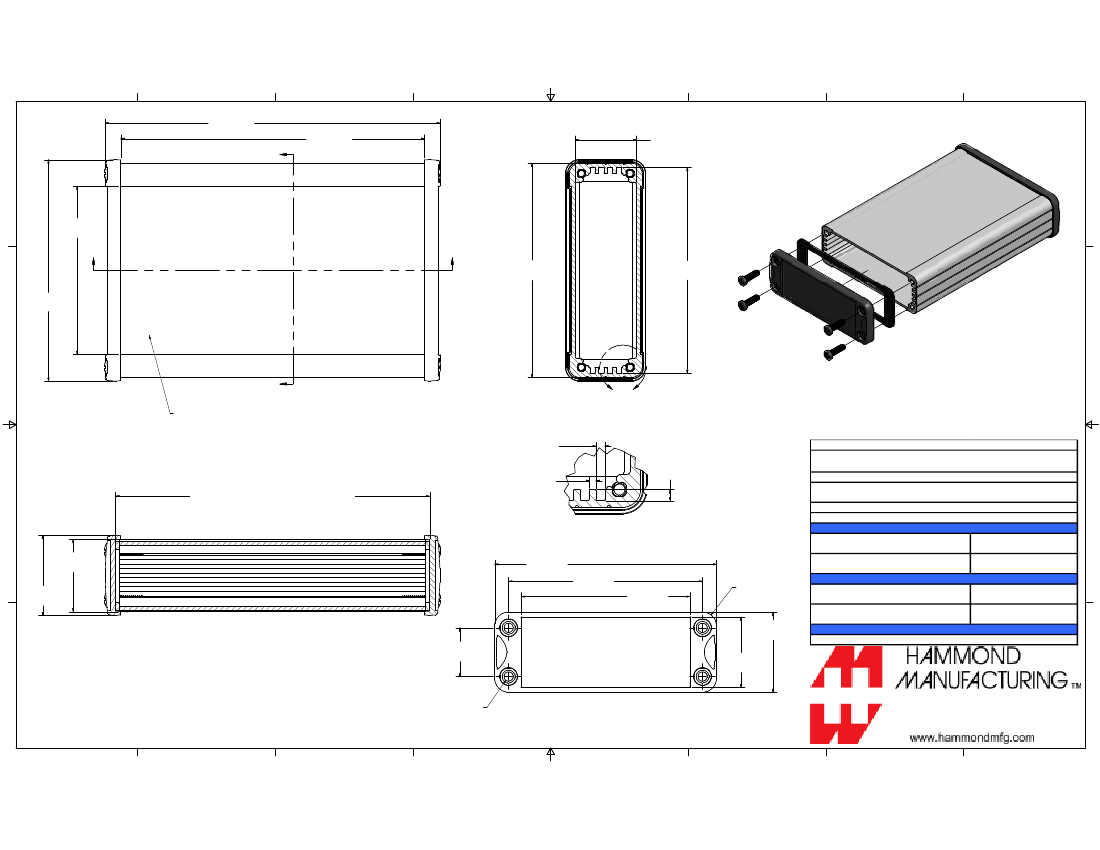

ASSEMBLY - VIEW FROM TOP
120.57
+0.54
mm
- 0.50
4.747
+0.021
in
- 0.020
[
]
B
Extrusion Length w/ Gaskets Compressed
B
DETAIL U
28.50 mm
[1.122 in]
31.43 mm
[1.238 in]
86.96 mm
[3.424 in]
76.02 mm
[2.993 in]
66.16 mm
[2.605 in]
R5.48 mm
[0.216 in]
31.47 mm
[1.239 in]
EM I / R F I S H I E L D ED (I P 5 4 )
C le a r a n o d iz e d b o x w it h b la c k p o w d e r
1 4 5 7 J1 2 0 1 E
p a in t e d e n d p a n e ls
B la c k p o w d e r p a in t e d b o x a n d e n d
1 4 5 7 J1 2 0 1 E B K
p a n e ls
A C C E S S O R I ES
S e e w e b s it e fo r a c c e s s o rie s .
SECTION Y-Y
A
19.13 mm
[0.753 in]
27.67 mm
[1.089 in]
A
Fits 120mm (4.724") X 80mm (3.149") PCB
n
3.60 mm
x
8.00 mm
v n
7.00 mm
x
2.50 mm
END PANEL - VIEW FROM OUTSIDE
4
3
2
1457J1201
1
8
7
6
5
