531623: DescriptionRotary Switches RotarySwitch Adjstbl Stop PC Mnt 36deg; CategoryTopical application Mechanical and electrical/engineering/automation; File Size227KB，1 Pages; ManufacturerHammond; Websitehttp://www.hammondmfg.com

Download Datasheet Parametric Compare View All

531623 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	531623	-	-	View	Buy Now

531623 Overview

Rotary Switches RotarySwitch Adjstbl Stop PC Mnt 36deg

531623 Parametric

Parameter Name	Attribute value
Product Category	Enclosures, Boxes, & Cases
Manufacturer	Hammond
RoHS	Details
Product	Boxes
Material	Aluminum
Color	Transparent
Length	11.3 in
Width	4.2 in
Height	2.36 in
Packaging	Bulk
Dimensions	11.3 in L x 4.2 in W x 2.36 in H
Height - in	2.36
Height - mm	59.944
Length - in	11.3
Length - mm	287.02
Factory Pack Quantity	1
Width - in	4.2
Width - mm	106.68
Unit Weight	3 lbs

Preview

Download Datasheet

View All

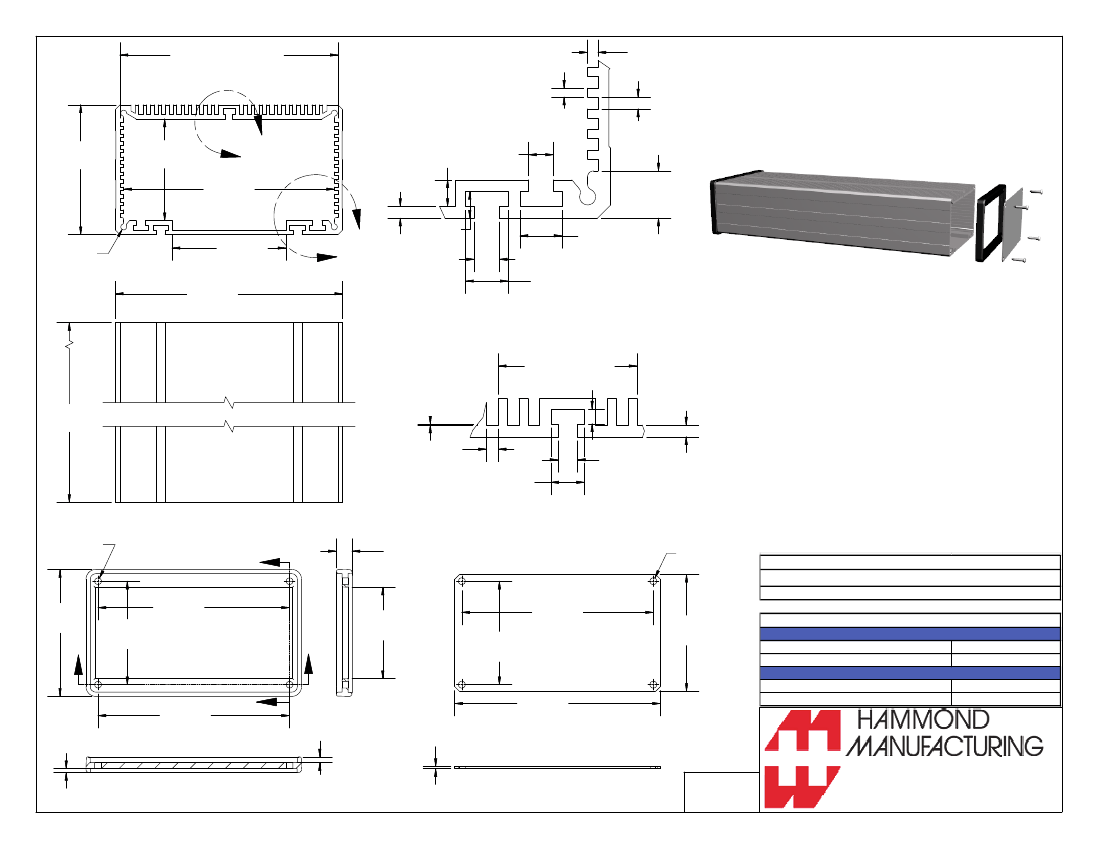

100.80

[3.969 in]

For 100mm wide PCB

1.75

[.069 in]

DETAIL A

1.50

[.059 in]

60.00

[2.362 in]

47.00

[1.850 in]

Extrusion

2.00

[.079 in]

B

97.30

[3.831 in]

2.00

[.079 in]

4.50

[.18]

4.20

[.165 in]

8.00

[.315 in]

7.10

[.280 in]

7.20

[.283 in]

Bezel



2.70

[.106 in]

52.60

[2.071 in]

105.00

[4.134 in]

A

4.50

[.177 in]

4.20

[.165 in]

DETAIL B

23.50

2.50

[.925 in] [.098 in]

285.00

[11.220 in]

.14

[.005 in]

2.00

[.079 in]

5.70

[.224 in]

End Plate

Screw #4x1/2 Pan Head

2.0

[.079 in]

3.30

[.130 in]



3.40

[.13]

BEZEL

C

8.00

[.315 in]

END PLATE



3.50

Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)

Contact Factory

mjm@hammondmfg.com for quotes

Solid models of this enclosure available in STEP or IGES.

(Part number and text placement/orientation on our products are subject to change,

we do not recommend using them as a locating reference for modification purposes)

[.14]

NOTE

Purchased assembly includes Extrusion, 2 End Plate, 2 Bezels and 8 screws

Recommended Cover screw torque -- 2.5-3.5 lbf-in (30-40 cN-m)

64.50

[2.539 in]

D

52.55

[2.069 in]

97.30

[3.831 in]

46.50

[1.831 in]

97.30

[3.831 in]

52.55

[2.069 in]

D

59.50

[2.343 in]

PART NUMBERS

SINK BOX

Extrusion Aluminum Alloy / Black Anodized

Extrusion Aluminum Alloy / Clear Anodized

ACCESSORIES

431623

531623

031624

131624

2.00

[.079 in]

97.30

[3.831 in]

C

SECTION C-C

1.15

[.05]

104.50

[4.114 in]

End Plate Aluminum Alloy / Black Anodized

End Plate Aluminum Alloy /Clear Anodized

SECTION D-D

3.00

[.118 in]

Dimensions:

mm

[inches]

SINK BOX

31623

www.hammondmfg.com

®
