284183 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 284183

284183: CategoryThe connector The connector; File Size93KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

284183 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	284183	-	-	View	Buy Now

284183 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41612, IEC 60603-2
body width	0.52 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.7784 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,B,C,D
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	128
Base Number Matches	1

Preview

Download Datasheet

View All

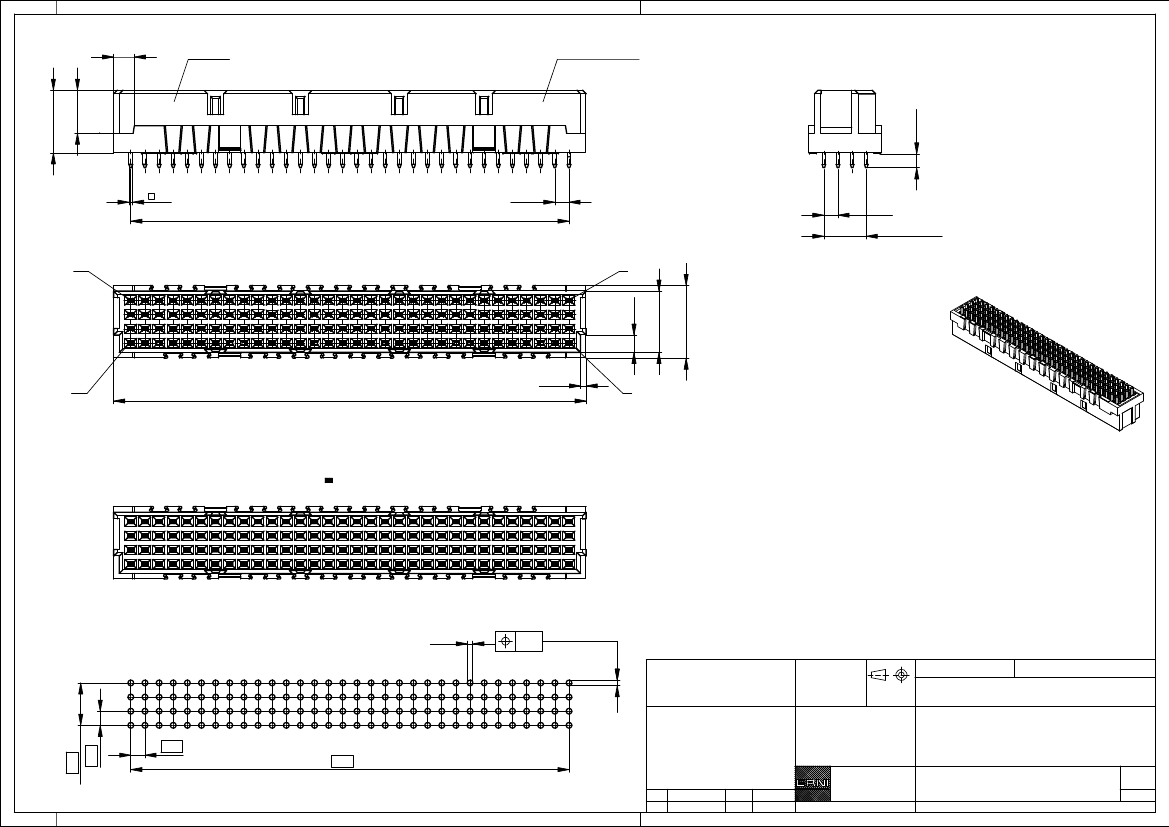

3,7

date code

Datum

Anforderungsstufe

class

11,6 max.

7,7

a b c d

0,6

31 x 2,54 = 78,74

2,54

3 x 2,54 = 7,62

a32

+0,2

d32

-0,2

+0,1

13,2

-0,3

11,1

-0,2

2,5

±0,2

XXXXXXX

ERNI

RC 2

M 1:1

Bestückungsplan /

contact layout

bestückt /

assemble

Anschluß 0,6x0,6 mm /

terminal 0,6x0,6 mm

Bauart 7 /

type 7

Anforderungsstufe 2 = 400 Steckzyklen /

class 2 = 400 mating cycles

Fehlende Maße und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Missing information and dimensions per IEC 60 603-2

ohne Flansch

Leiterplatten-Lochbild /

PCB drillhole pattern

±0,1

0,05

alle Löcher

Tolerances

All Dimensions

in mm

without flange

all holes

Proprietary notice pursuant to ISO 16016 to be observed.

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Information:

Scale

2:1

3x 2,54 =7,62

2,54

31x 2,54 =78,74

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

03.12.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste CD 128 THR

Fem. connector CD 128 THR

www.ERNI.com

Class

284183

STVCD
