BNC 75Ω connector
BNC75 Series
■
Features
1. 50Ω-based BNC connector, 75Ω type
BNC type products are widely used as 50ø
connectors. Hirose’s BNC75 is rated for 75ø and
can be mated with the other BNC connectors.
4. Reliable at high frequencies
There are product which corresponds to 12G (UHD) -
SDI (SMPTE ST-2082) transmission.
2. Easy on, easy-off bayonet lock system
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Bayonet lock system that is easy to use and
operate.
5. Applicable specifications
Japan Electronics and Information Technology
Industries Association (JEITA RC-5233)
3. Applicable cable
Cable for this connector is coaxial with the
diameter of approximately
Ø1.5
-
Ø6
(1.5C-QEV.CW etc.)
■
Functional diagram
Plug side
■
Straight plug
Representative product :
BNC(75)-P-1.5CV
Jack side
■
Panel jack
Representative product : BNC(75)-BPJ-
1.5CV-(P)(40)
Plug-plug relay adapter
■Adapter
●Mating
interface shape
Jack -jack type
BNC(75)-A-JJ(40)
■
Cap
CW-123A/U(44)
Jack-Jack relay adapter
■
Short plug
JCW-159/U(41)
■U-link
●Mating
interface shape
Plug-plug type
BNC-UPA(75)-35(41)
■Right
angle receptacle
●PCB-mounted
type
Representative product : BNC(75)-LR-
PC-6(41)
■Nonreflective
terminator
●
Mating interface shape : plug type
BNC-TMP-05(75)(50)
■Various
conversion adapters
■Non-reflective
terminator
●Mating
interface shape : Jack type
BNC-TMJ-05(75)(50)
2016.12e
1
BNC75 Series●BNC 75Ω connector
■
Product Specifications
Rated value
Nominal characteristic impedance
Rated voltage
Rated frequency
75ø
AC 150Vrms
DC~3GHz
Operation temperature range
Operating relative humidity
-30ç~+60ç
Maximum of 85%
Items
1. Contact resistance
2. Insulation resistance
3. Withstanding voltage
Maximum of 6mø
Specifications
Conditions
Measured at a maximum of DC 100mA
Measured at DC 500V
AC 500V for 1 minute
Up to DC 3GHz
Measured by a pin gauge of Ø1.32mm
500 times
Frequency : 10 - 500Hz, half amplitude : 0.75mm
2
Acceleration : 98m/s , 3 axis directions,
10 cycles each
Acceleration : 490m/s , duration : 11ms
Half-sine, 3 directions, 3 times each
2
Minimum of 1,000Mø
No flashover or dielectric breakdown.
4. Voltage Standing Wave Ratio (π) Maximum of 1.3
5. Retaining force of a female
contact
Minimum of 0.6N
Contact resistance : a maximum of 20mø
No electrical discontinuity for 1μs or longer.
No damage, crack or looseness of parts.
No electrical discontinuity for 1μs or longer.
No damage, crack or looseness of parts.
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
6. Mating cycles
7. Vibration Resistance
8. Shock resistance
9. Moisture resistance
Insulation resistance : a minimum of 100Mø (at high temperatures) Temperature : +25ç - +65ç
Humidity : 80 - 96%
Insulation resistance : a minimum of 1000Mø (when dry)
Left for 240 hours
No damage, crack or looseness of parts.
No damage, crack or looseness of parts.
No heavy corrosion.
(-55°C for 30 minutes➝5 - 35°C for a maximum
of 5 minutes➝85°C for 30 minutes
➝5
- 35°C for a maximum of 5 minutes), 5 cycles
In a 5% salt water solution for 48 hours on end
10. Thermal shock resistance
11. Corrosion resistance
πSome products may have different specifications from those shown above.
The specification values of the Voltage Standing Wave Ratio (V.S.W.R.) are the values measured in the measuring system shown in the
Figure below :
Network Analyzer
Test Set
Test Port
Test Post Cable
D.U.T
Termination
■
Materials / Finish
Parts
Shell
Male contact
Female contact
Insulator
Gasket
Materials
Brass
Brass
Beryllium copper
PTFE resin
Silicone rubber
Finish
Silver plating/nickel plating
Silver plating/gold plating
Silver plating/gold plating
–––––
–––––
Remarks
–––––
–––––
–––––
Flame retardant
–––––
■
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
1
Series name : BNC(75)
: Complies with BNC75ø
4
1) For plug / jack
··Applicable cable
2) For receptacle
2
Shape of connectors
PC : PCB-mounted type
None : Straight type
3) For adapter
L : Right angle type
: Mating interface shape
B : Bulk head type
4) All other cases
BL : Bulk head right angle type
··additional number
PL : Panel right angle type
5) Applicable frequency
3
Connector type
None : 3GHz
P : Plug
12G : 12GHz
PJ : Panel jack
R : Receptacle
PA : Panel adapter
BNC ( 75 ) - L
q
w
P - 59/U - 12G
e
r
t
2
BNC75 Series●BNC 75Ω connector
■

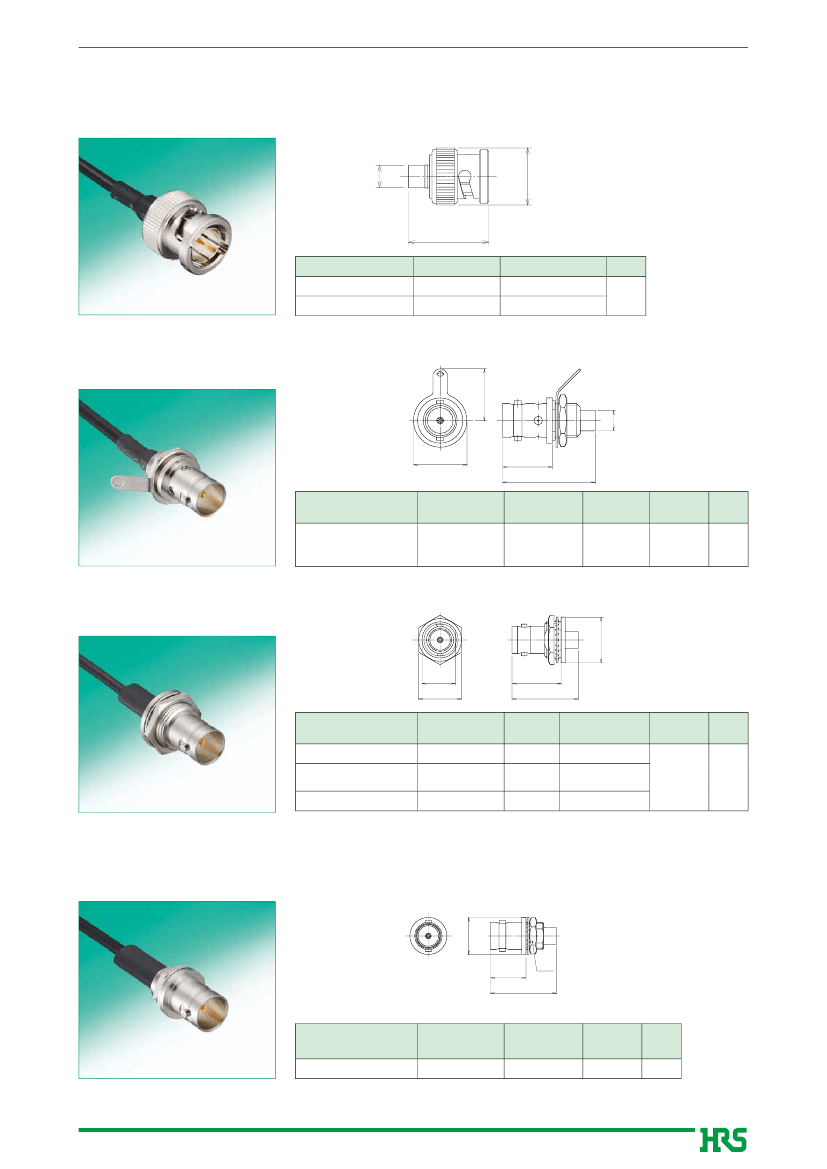

Plug
●Straight
plug
20.4
Part No.
HRS No.
302-0404-7
302-0003-0
Applicable cables RoHS
1.5C-QEV.CW
1.5C-QEW.CW
Yes
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
BNC(75)-P-1.5CV
BNC(75)-P-1.5CW
●Panel
jack (Nut securing type)
(14.5)
Ø
14.5
Ø
5.6
Ø15
14
26
Ø5.8
Part No.
HRS No.
Applicable
cables
1.5C-2W
Remarks
Ships with
toothed lug
terminal strip
Mounting hole
dimension RoHS
2-2
Yes
BNC(75)-BPJ-1.5CW-2(40) 302-0343-4 40
11.65
15
17.2
23.2
Part No.
HRS No.
Applicable
cables
Ø16
Remarks
Ships with hex nut
Ships with round nut
(refer to Note)
Mounting hole
dimension RoHS
BNC(75)-BPJ-1.5CV-(P)(40) 302-0369-8 40 1.5C-2V
BNC(75)-BPJ-1.5CV-1(40)
302-0375-0 40 1.5C-2V
2-1
Yes
BNC(75)-BPJ-1.5CW(P)(40) 302-0388-2 40 1.5C-2W Ships with hex nut
Note : Requires dedicated jigs.
πThe shape diagram is a representative example.
Ø13
12.5
23.2
11
(HEX)
Part No.
HRS No.
Applicable
cables
1.5C-2V
Mounting hole
dimension RoHS
3-1
Yes
BNC(75)-BPJ-1.5CV-2(40) 302-0380-0 40
3
BNC75 Series●BNC 75Ω connector
■

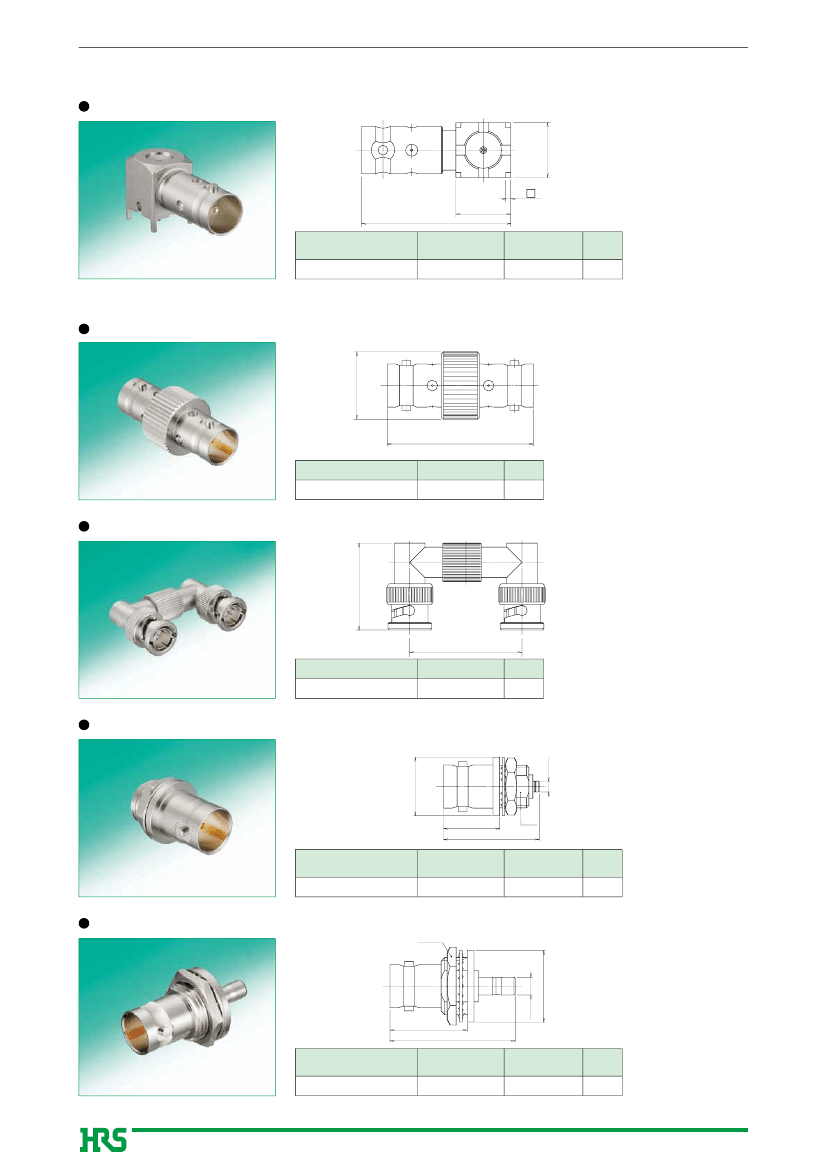

Receptacle
Right angle receptacle (PCB-mounted type)
11
4× 1
11
29.9
Part No.
HRS No.
Mounting hole RoHS
dimension
4-1
Yes
BNC(75)-LR-PC-6(41) 302-0363-1 41
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■
Adapters
Straight adapter
Ø15
32.54
Part No.
BNC(75)-A-JJ(40)
HRS No.
302-0384-1 40
RoHS
Yes
U-link (Mating interface shape : plug-plug)
27.1
35(Movable distance±1.5)
Part No.
HRS No.
RoHS
Yes
BNC-UPA(75)-35(41) 302-0301-4 41
Conversion adapter (BNC (75) jack to H.FL jack panel adapter)
Ø2.4
Ø13
12.5
21.3
11
(HEX)
Part No.
HRS No.
Mounting hole
dimension RoHS
3-1
Yes
BNC(75)J-H.FLJ-BPA(40) 311-0302-8 40
Conversion adapter (BNC (75) jack to PL71 jack panel adapter)
15
(HEX)
Ø16
17.2
27.9
Part No.
HRS No.
Mounting hole RoHS
dimension
2-1
Yes
BNC(75)J-PL71J-BPA(40) 311-0304-3 40
4
Ø3.95

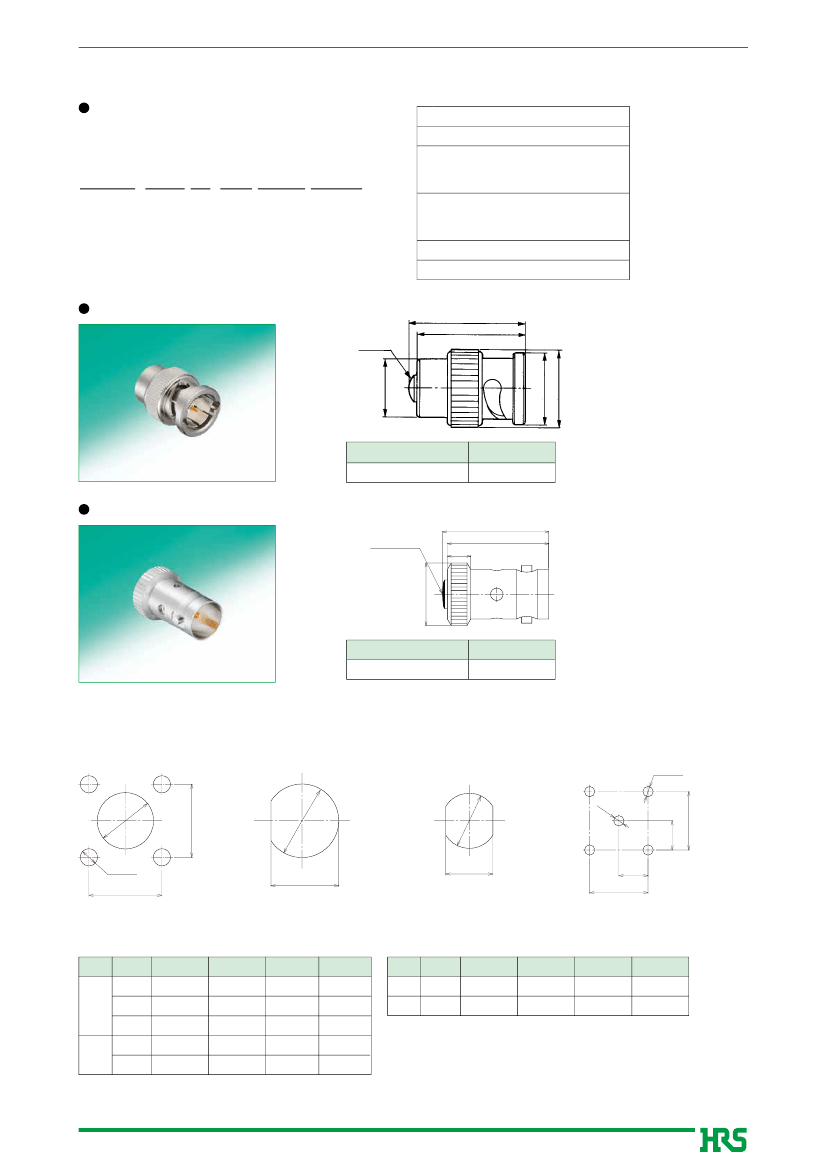

BNC75 Series●BNC 75Ω connector
■
Nonreflective terminator
Product Number Structure
1
Series name : BNC series
2
TM : Non-reflective terminator
3
Connector type
P : Plug type
J : Jack type
4
Power
Example 05 : 0.5W
1 : 1W
(75) : 75ø
(**) : 40 or 50 RoHS compliant
BNC - TM P - 05 ( 75 ) (
**
)
q
w
e
r
t
y
5
6
Dec.1.2017 Copyright 2017 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Mating interface shape : plug type
Part No.
HRS No.
BNC-TMP-05(75)(50) 353-0100-5 50
Mating interface shape : Jack type
Part No.
HRS No.
BNC-TMJ-05(75)(50) 353-0101-8 50
BMounting
hole dimension diagram (BNC 75Ω connector)
4×ØA
ØB
ØA
ØA
B
ØA
4×ØC
B
B
B
D
C
Diagram 1
Attached
diagram
Diagram 2
A
B
+0.05
0
Diagram 3
D
Attached
diagram
Diagram 4
B
C
+0.1
0
+0.1
0
No.
1-1
C
3
3.2
3
--------
--------
No.
3-1
4-1
A
9.6
1.8
+0.1
0
+0.1
0
D
------
--
4.13
12.7
12.7
12.7
11.8
10.3
+0.1
0
+0.1
0
------
------
------
--------
--------
3
4
8.2
1.8
-
-------
1
1-2
1-3
11.4
9.8
12.8
11.3
+0.1
0
+0.1
0
5.08±0.05 10.16±0.05
2
2-1
2-2
C
D
5
