NCV4279B

Description
5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG
File Size119KB,10 Pages
ManufacturerON Semiconductor
Websitehttp://www.onsemi.cn
Download Datasheet Compare View All

NCV4279B Overview

5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG

NCV4279B
5.0 V Micropower 150 mA
LDO Linear Regulator with
DELAY, Adjustable RESET,
and Monitor FLAG

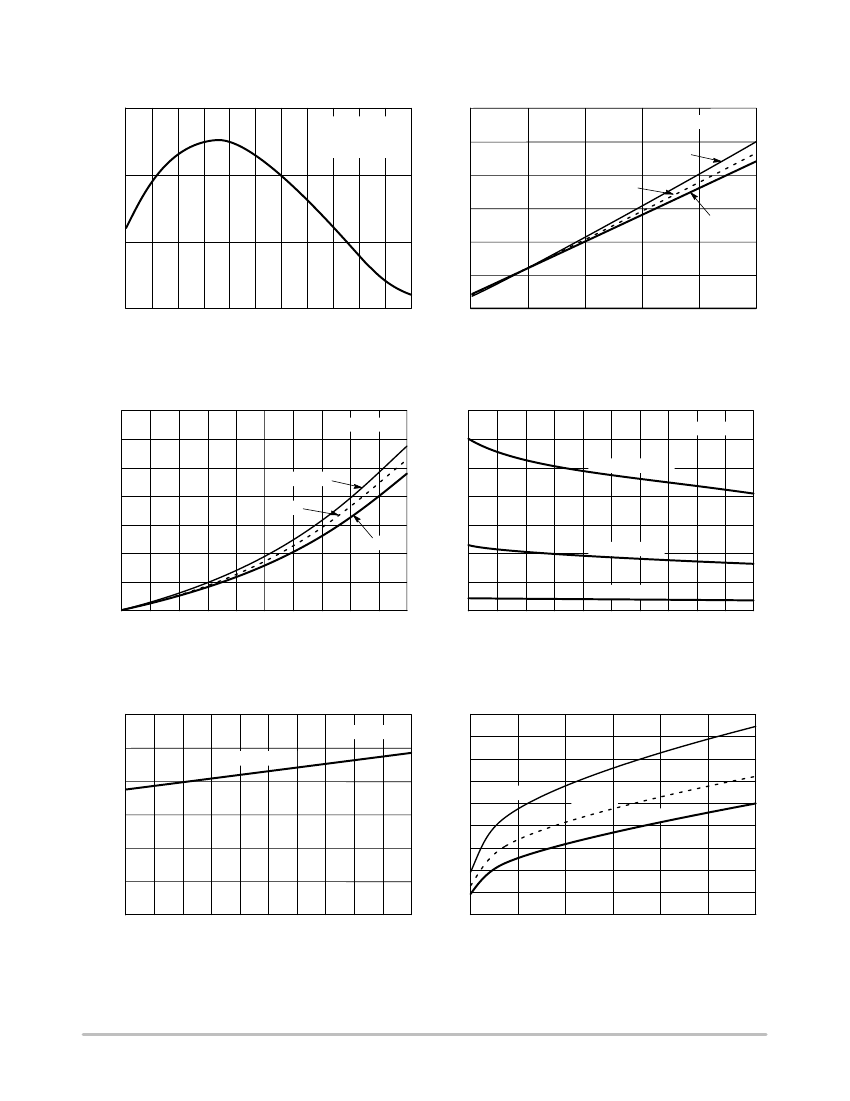

The NCV4279B is a 5.0 V precision micropower voltage regulator.
The output current capability is 150 mA.
The output voltage is accurate within
±2.0%
with a maximum
dropout voltage of 0.6 V at 150 mA. Low quiescent current is a feature
drawing only 90
mA
with a 100
mA
load. This part is ideal for any and
all battery operated microprocessor equipment.
Microprocessor control logic includes an active RESET (with
DELAY), and a FLAG monitor which can be used to provide an early
warning signal to the microprocessor of a potential impending RESET
signal. The use of the FLAG monitor allows the microprocessor to
finish any signal processing before the RESET shuts the
microprocessor down.
The active RESET circuit operates correctly at an output voltage as
low as 1.0 V. The RESET function is activated during the power up
sequence or during normal operation if the output voltage drops
outside the regulation limits.
The reset threshold voltage can be decreased by the connection of
external resistor divider to R
ADJ
lead.
The regulator is protected against reverse battery, short circuit, and
thermal overload conditions. The device can withstand load dump
transients making it suitable for use in automotive environments. The
device has also been optimized for EMC conditions.
Features
http://onsemi.com

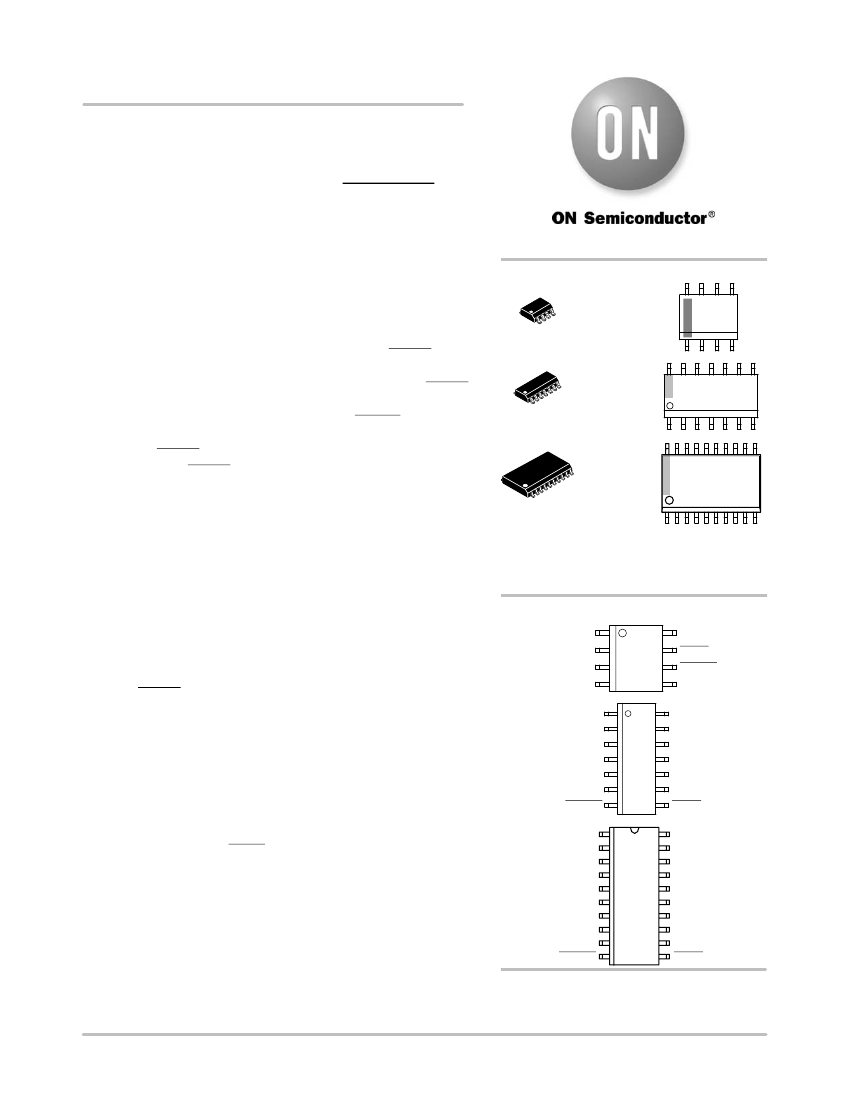

MARKING DIAGRAMS
8
SOIC−8
D SUFFIX
CASE 751
1
14
SOIC−14
D SUFFIX
CASE 751A
1
20
SOIC−20 WB
DW SUFFIX
CASE 751D
1
1
A
= Assembly Location
L, WL = Wafer Lot
Y, YY
= Year
W, WW = Work Week
G
or G = Pb−Free Package
NCV4279B
AWLYYWWG
NCV4279B
AWLYWWG
4279B
ALYW
G
1
1
PIN CONNECTIONS
SOIC−8
V
IN
MON
R
ADJ
DELAY
1
SOIC−14
R
ADJ
DELAY
GND
GND
GND
NC
RESET
1
R
ADJ
DELAY
NC
GND
GND
GND
GND
NC
NC
RESET
14
MON
V
IN
GND
GND
GND
V
OUT
FLAG
20
MON
V
IN
NC
GND
GND
GND
GND
NC
V
OUT
FLAG
1
8
V
OUT
FLAG
RESET
GND
5.0 V
±
2.0% Output
Low 90
mA
Quiescent Current
Active RESET
Adjustable Reset
150 mA Output Current Capability
Fault Protection
+60 V Peak Transient Voltage
−15 V Reverse Voltage
Short Circuit
Thermal Overload
Early Warning through FLAG/MON Leads
Internally Fused Leads in SOIC−14 and SO−20WB Packages
NCV Prefix for Automotive and Other Applications Requiring Site
and Control Changes
Pb−Free Packages are Available
SO−20WB
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 8 of this data sheet.
©
Semiconductor Components Industries, LLC, 2006
1
May, 2005 − Rev. 3
Publication Order Number:
NCV4279B/D

NCV4279B Related Products

NCV4279B NCV4279BD2R2 NCV4279BD2 NCV4279BD1R2 NCV4279BD1
Description 5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG 5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG 5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG 5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG 5.0 V Micropower 150 mA LDO Linear Regulator with DELAY, Adjustable RESET, and Monitor FLAG
Is it Rohs certified? - incompatible incompatible incompatible incompatible
Maker - ON Semiconductor ON Semiconductor ON Semiconductor ON Semiconductor
Parts packaging code - SOIC SOIC SOIC SOIC
package instruction - SO-14 SO-14 SOP, SOP8,.25 SOP, SOP8,.25
Contacts - 14 14 8 8
Reach Compliance Code - _compli _compli _compli _compli
ECCN code - EAR99 EAR99 EAR99 EAR99
Adjustability - FIXED FIXED FIXED FIXED
Maximum drop-back voltage 1 - 0.6 V 0.6 V 0.6 V 0.6 V
Nominal dropback voltage 1 - 0.4 V 0.4 V 0.4 V 0.4 V
Maximum absolute input voltage - 45 V 45 V 45 V 45 V
Maximum input voltage - 26 V 26 V 26 V 26 V
Minimum input voltage - 6 V 6 V 6 V 6 V
JESD-30 code - R-PDSO-G14 R-PDSO-G14 R-PDSO-G8 R-PDSO-G8
JESD-609 code - e0 e0 e0 e0
length - 8.65 mm 8.65 mm 4.9 mm 4.9 mm
Maximum grid adjustment rate - 0.06% 0.06% 0.06% 0.06%
Maximum load regulation - 0.03% 0.03% 0.03% 0.03%
Number of functions - 1 1 1 1
Output times - 1 1 1 1
Number of terminals - 14 14 8 8
Working temperatureTJ-Max - 125 °C 125 °C 125 °C 125 °C
Operating temperatureTJ-Mi - -40 °C -40 °C -40 °C -40 °C
Maximum output current 1 - 0.15 A 0.15 A 0.15 A 0.15 A
Maximum output voltage 1 - 5.15 V 5.15 V 5.15 V 5.15 V
Minimum output voltage 1 - 4.85 V 4.85 V 4.85 V 4.85 V
Nominal output voltage 1 - 5 V 5 V 5 V 5 V
Package body material - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code - SOP SOP SOP SOP
Encapsulate equivalent code - SOP14,.25 SOP14,.25 SOP8,.25 SOP8,.25
Package shape - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form - SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
method of packing - TAPE AND REEL RAIL TAPE AND REEL RAIL
Peak Reflow Temperature (Celsius) - 235 235 240 235
Certification status - Not Qualified Not Qualified Not Qualified Not Qualified
Regulator type - FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Filter level - AEC-Q100 AEC-Q100 AEC-Q100 AEC-Q100
Maximum seat height - 1.75 mm 1.75 mm 1.75 mm 1.75 mm
surface mount - YES YES YES YES
technology - BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn80Pb20) Tin/Lead (Sn/Pb)
Terminal form - GULL WING GULL WING GULL WING GULL WING
Terminal pitch - 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Terminal location - DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature - NOT SPECIFIED NOT SPECIFIED 30 NOT SPECIFIED
Maximum voltage tolerance - 3% 3% 3% 3%
width - 3.9 mm 3.9 mm 3.9 mm 3.9 mm
