380HS019NF2316TA3 datasheet, PDF

Datasheet> All Categories > The connector> 380HS019NF2316TA3

380HS019NF2316TA3: DescriptionCircular MIL Spec Backshells NON ENV STRN RLF DC LOWSTRT3RING MED DTY; CategoryThe connector; File Size413KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

380HS019NF2316TA3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	380HS019NF2316TA3	-	-	View	Buy Now

380HS019NF2316TA3 Overview

Circular MIL Spec Backshells NON ENV STRN RLF DC LOWSTRT3RING MED DTY

380HS019NF2316TA3 Parametric

Parameter Name	Attribute value
Product Category	Circular MIL Spec Backshells
Manufacturer	Glenair
RoHS	No
MIL Type	MIL-DTL-38999 III, IV
Factory Pack Quantity	1

Preview

Download Datasheet

View All

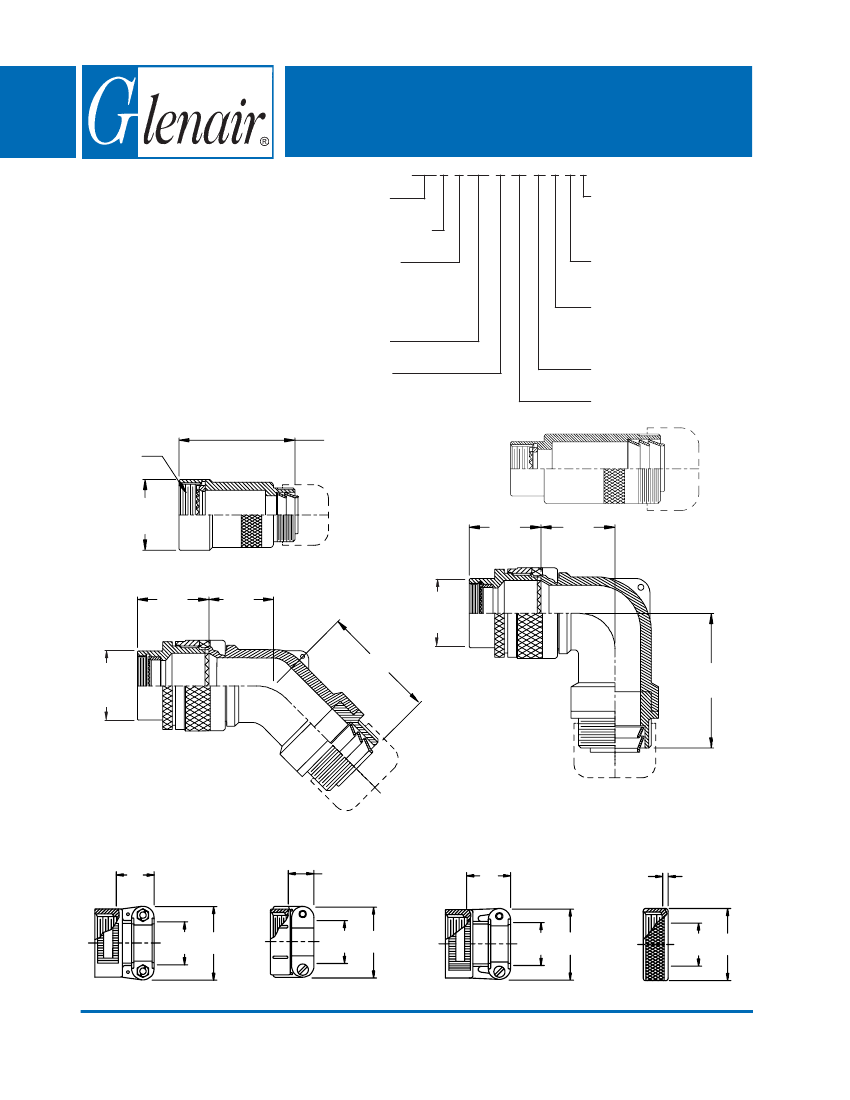

380-019

EMI/RFI Non-Environmental Backshell

with Strain Relief

Type E - Direct Coupling - Low Profile

A-B -C-D-E-F

G-H-J-K-L-S

* Conn. Desig. B See Note 5

CONNECTOR

DESIGNATORS

380 F S 019 M 24 12 D A 6

Product Series

Connector Designator

Angle and Profile

A = 90°

B = 45°

S = Straight

Basic Part No.

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style

(H, A, M, D)

Termination (Note 4)

D = 2 Rings

T = 3 Rings

Cable Entry (Tables X, XI)

Shell Size (Table I)

Length ± .060 (1.52)

Min. Order Length 1.5 Inch

(See Note 3)

DIRECT COUPLING

TYPE E INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

A Thread

(Table I)

Finish (Table II)

(Table III)

(Table IV)

(Table III)

(Table IV)

(Table I)

F (Table IV)

H (Table IV)

STYLE H

Heavy Duty

(Table X)

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 38 - Page 92
