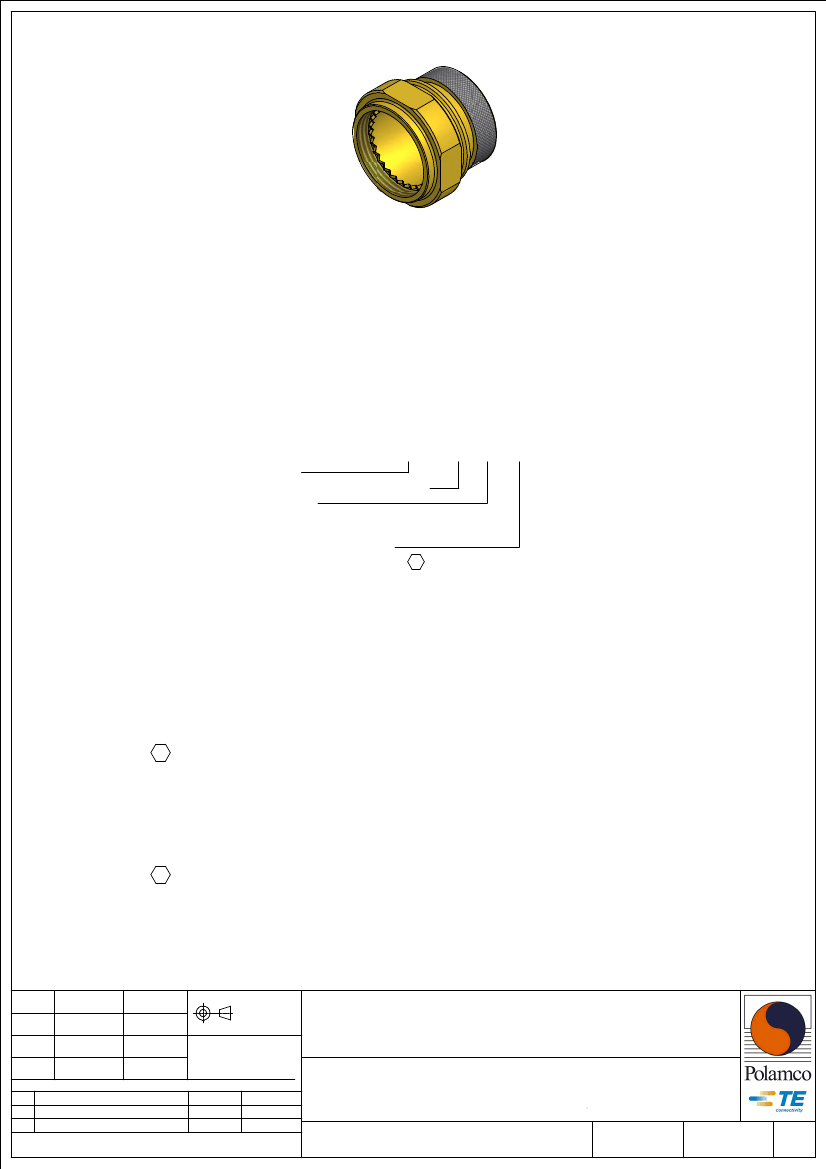

CODE 79 - HEAT SHRINK BOOT BACKSHELL
229M312-01-ET
SERIES
ORDER NUMBER (TABLE 1)
MATERIAL
NICKEL ALUMINIUM BRONZE
SHOT-BLAST FINISH
MODIFICATION CODE
REFER TO CH00-0250-004 2
NOTES:
1. THIS PRODUCT IS DESIGNED TO TERMINATE A HEAT SHRINKABLE LIPPED
BOOT TO A CONNECTOR.
2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,
SEE CH00-0250-004.
3. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE
IDENTIFICATION NUMBER AND PART NUMBER. (e.g. 06090-229M312-01).
4. KNURL INSIDE BOOT GROOVE MAY BE SUPPLIED AT MANUFACTURER'S OPTION.
5. BACKSHELL MATES TO BS9522-F0020 PATT 608 CONNECTORS.
DRAWN
CHECKED
W.RUST
DATE
15/10/2015
15/10/2015
15/10/2015
15/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
APPROVED
K.SHEPPARD
APPROVED
LTR
3
A
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
DESCRIPTION
REVISED
REVISED PER ECO-15-013980
DATE
17/01/13
15/10/2015
APPROVED
H.SMITH
H.SMITH
BS9522-F0020 PATT 608
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
229M3XXSERIES
DRAWING REV:
SHT
A
1

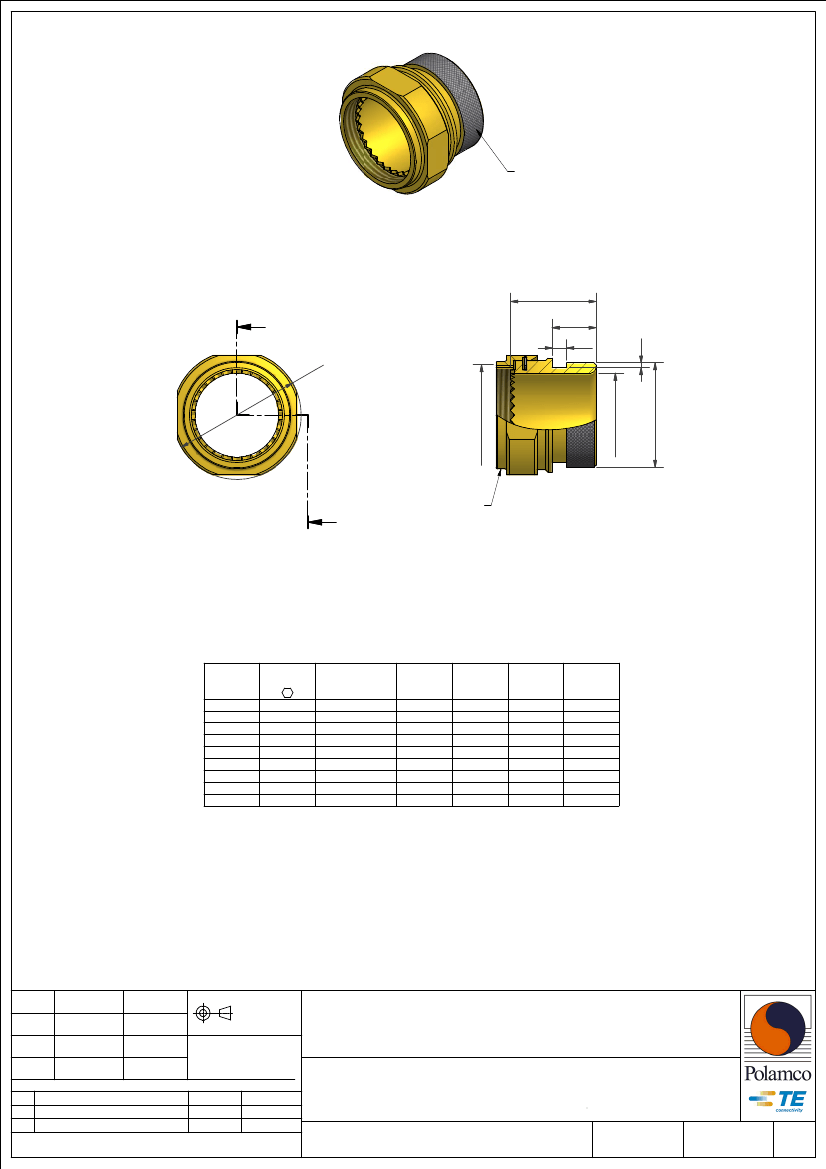

MEDIUM DIAMOND
KNURL
A-A
20,40
ØB
A THREAD
ØD
E
A
10,50
3,50
A
PART MARK
HERE
TABLE 1
BASE
PART
NUMBER
229M308
229M310
229M312
229M314
229M316
229M318
229M320
229M322
229M324
SHELL
SIZE
5
8
10
12
14
16
18
20
22
24
A
THREAD
7/16-28UNEF
9/16-24UNEF
11/16-24UNEF
13/16-20UNEF
15/16-20UNEF
1 1/16-18UNEF
1 3/16-18UNEF
1 5/16-18UNEF
1 7/16-18UNEF
ØB
MAX
19,3
21,3
24,3
29,2
30,8
33,8
38,5
38,5
42,5
ØC
+0,00/-0,50
13,0
16,0
19,0
22,0
25,0
29,2
32,2
35,2
38,2
XXXX
ØD
MIN
8,0
11,0
14,3
17,0
20,0
23,0
26,0
29,0
32,0
E
+0,20/-0,00
1,12
1,12
1,12
1,12
1,12
1,12
1,75
1,75
1,75
DRAWN
CHECKED
W.RUST
DATE
15/10/2015
15/10/2015
15/10/2015
15/10/2015
3RD ANGLE
PROJECTION
NOT TO
SCALE
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS IN MILLIMETRES
GENERAL TOL
LINEAR +/-0,25MM
ANGULAR +/- 1°
TITLE:
APPROVED
K.SHEPPARD
APPROVED
LTR
3
A
HEAT SHRINK BOOT BACKSHELL
ASSY USED ON:
H.SMITH
REVISIONS
DESCRIPTION
REVISED
REVISED PER ECO-15-013980
DATE
17/01/13
15/10/2015
APPROVED
H.SMITH
H.SMITH
BS9522-F0020 PATT 608
TE CONNECTIVITY - POLAMCO LTD RESERVES THE RIGHT TO AMEND THIS DRAWING
AND THE INFORMATION SET FORTH HEREON AT ANY TIME. USERS SHOULD
INDEPENDENTLY EVALUATE THE SUITABILITY OF THE PRODUCT FOR THEIR APPLICATION.
TE CAGE CODE: 06090
POLAMCO/TE CAGE CODE: U5792
DRAWING NO:
229M3XXSERIES
ØC
DRAWING REV:
SHT
A
2
