DIN-814PA0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DIN-814PA0

DIN-814PA0: DescriptionTerminal Block Interface Modules DIN-RAIL PANASONIC MINAS A3 SERVO AMP; CategoryThe connector; File Size386KB，1 Pages; ManufacturerADLINK; Websitehttps://www.adlinktech.com/en/AboutUs.aspx

Download Datasheet Parametric View All

DIN-814PA0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DIN-814PA0	-	-	View	Buy Now

DIN-814PA0 Overview

Terminal Block Interface Modules DIN-RAIL PANASONIC MINAS A3 SERVO AMP

DIN-814PA0 Parametric

Parameter Name	Attribute value
Product Category	Terminal Block Interface Modules
Manufacturer	ADLINK
RoHS	Details
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

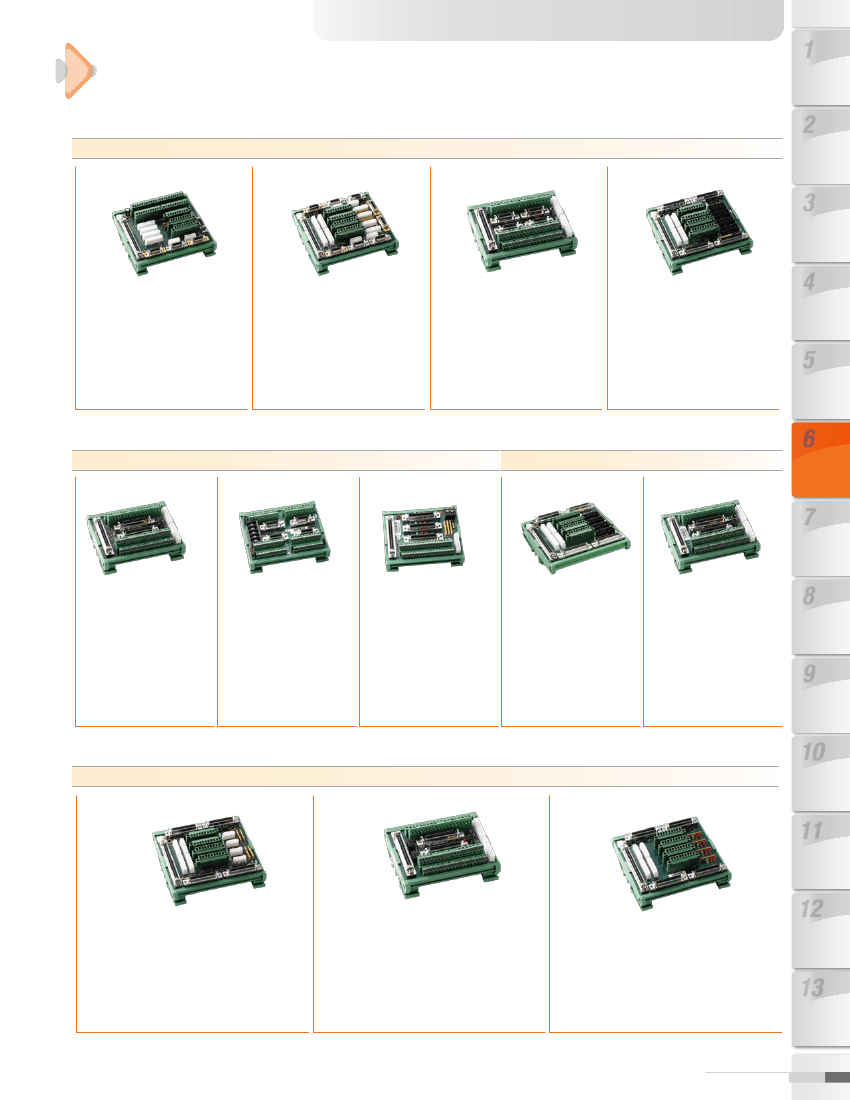

Terminal Boards

Terminal Boards for Motion Control

For Mitsubishi Servos

DIN-812M0

DIN-814M0

DIN-68M-J2A0

DIN-814M-J3A0

Software &

Utilities

DAQ

PXI

Terminal Board for Mitsubishi MR-J2S-A

Servo Amplifiers

• On-board Connector Type: 100-pin SCSI-II

• Dimensions:

123 mm x 107 mm x 44 mm (W x L x H)

• Mating Cable:

-ACL-102100-1: 100-pin SCSI-II cable, 1 M

Terminal Board for Mitsubishi MR-J2S-A

Servo Amplifiers

• On-board Connector Type: 100-pin SCSI-II

• Dimensions:

123 mm x 107 mm x 44 mm (W x L x H)

• Mating Cable:

-ACL-102100-1: 100-pin SCSI-II cable, 1 M

Terminal Board for Mitsubishi MR-J2S-A

Servo Amplifiers

• On-board Connector Type: 68-pin SCSI-II

• Dimensions:

103 mm x 83 mm x 43 mm (W x L x H)

• Mating Cable:

-ACL-10568-1: 68-pin SCSI-VHDCI cable, 1 M

-ACL-10569-1: 68-pin SCSI-II cable, 1 M

Terminal Board for Mitsubishi MR-J3S-A

Servo Amplifiers

• Onboard Connector Type: 100-pin SCSI-II

• Dimensions:

123 mm x 107 mm x 44 mm (W x L x H)

• Mating Cable:

-ACL-102100-1:

100-pin SCSI-II cable, 1 M

Modular

Instruments

GPIB & Bus

Expansion

For Mitsubishi Servos

DIN-68M-J3A0

DIN-839-J3B

DIN-825-J3A

DIN-814Y0

For Yaskawa Servos

DIN-68Y-SGII0

Motion

Control

Real-time

Distributed

I/O

Ter minal Board for Mitsubishi Ter minal Board for Mitsubishi Ter minal Board for Mitsubishi Te r m i n a l B o a r d f o r Ya s k a w a Te r m i n a l B o a r d f o r Ya s k a w a

MR-J3S-A Servo Amplifiers

MR-J2S-A Servo Amplifiers

MR-J3S-A Servo Amplifiers

Sigma II/III/V Servo Amplifiers

• On-board Connector Type: 68-pin

SCSI-II

• Dimensions:

103 mm x 83 mm x 43 mm (W x L x H)

• Mating Cables:

• Mating Cable:

- ACL-10568-1: 68-pin SCSI-VHDCI cable, 1 M

MA-J2HBUS M: controller to

- ACL-10569-1: 68-pin SCSI-II cable, 1 M

amplifier bus cable

• On-board Connector Type: 68-pin

• On-board Connector Type: 100-pin

• On-board Connector Type: 68-pin

SCSI-II

• Dimensions:

103 mm x 83 mm x 43 mm (W x L x H)

123 mm x 107 mm x 44 mm (W x L x H)

• Mating Cable:

• Mating Cables:

• Mating Cable:

-ACL-10568-1: 68-pin SCSI-VHDCI

ACL-102100-1: 100-pin SCSI-II

cable, 1 M

-ACL-10569-1: 68-pin SCSI-II cable, 1 M

PAC

Remote I/O

For Panasonic Servos

DIN-814P-A40

DIN-68P-A40

DIN-814PA0

Communi-

cations

Vision

Terminal Board for Panasonic MINAS A4 Servo

Amplifiers with

100-pin SCSI-II connector

• On-board Connector Type: 100-pin SCSI-II

• Dimensions: 123 mm x 107 mm x 44 mm (W x L x H)

• Mating Cable:

ACL-102100-1: 100-pin SCSI-II cable, 1 M

Terminal Board for Panasonic MINAS A4 Servo

Amplifiers with

68-pin SCSI-II connector

• On-board Connector Type: 68-pin SCSI-II

• Supports 500 k & 2 Mpps pulse frequency input options

• Mating Cables:

ACL-10568-1: 68-pin SCSI-VHDCI cable, 1 M

ACL-10569-1: 68-pin SCSI-II cable, 1 M

Terminal Board for Panasonic MINAS A Servo

Amplifiers

• On-board Connector Type: 100-pin SCSI-II

• Dimensions: 123 mm x 107 mm x 44 mm (W x L x H)

• Mating Cable:

ACL-102100-1: 100-pin SCSI-II cable, 1 M

Fanless

Embedded

Computers

cPCI &

Industrial

Computers

www.adlinktech.com 6-30
