70553-0038 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 70553-0038

70553-0038: CategoryThe connector The connector; File Size34KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

70553-0038 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	70553-0038	-	-	View	Buy Now

70553-0038 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	5 weeks
Samacsys Description	Header 2.54mm, low pro, sngl row, RA,4w Molex SL Series, Series Number 70553, 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A
Other features	LATCHED
body width	0.275 inch
subject depth	0.535 inch
body length	0.5 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN (150) OVER NICKEL
Contact completed and terminated	TIN (150) OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	GLASS FILLED POLYCARBONATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	70553
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	4
UL Flammability Code	94V-0

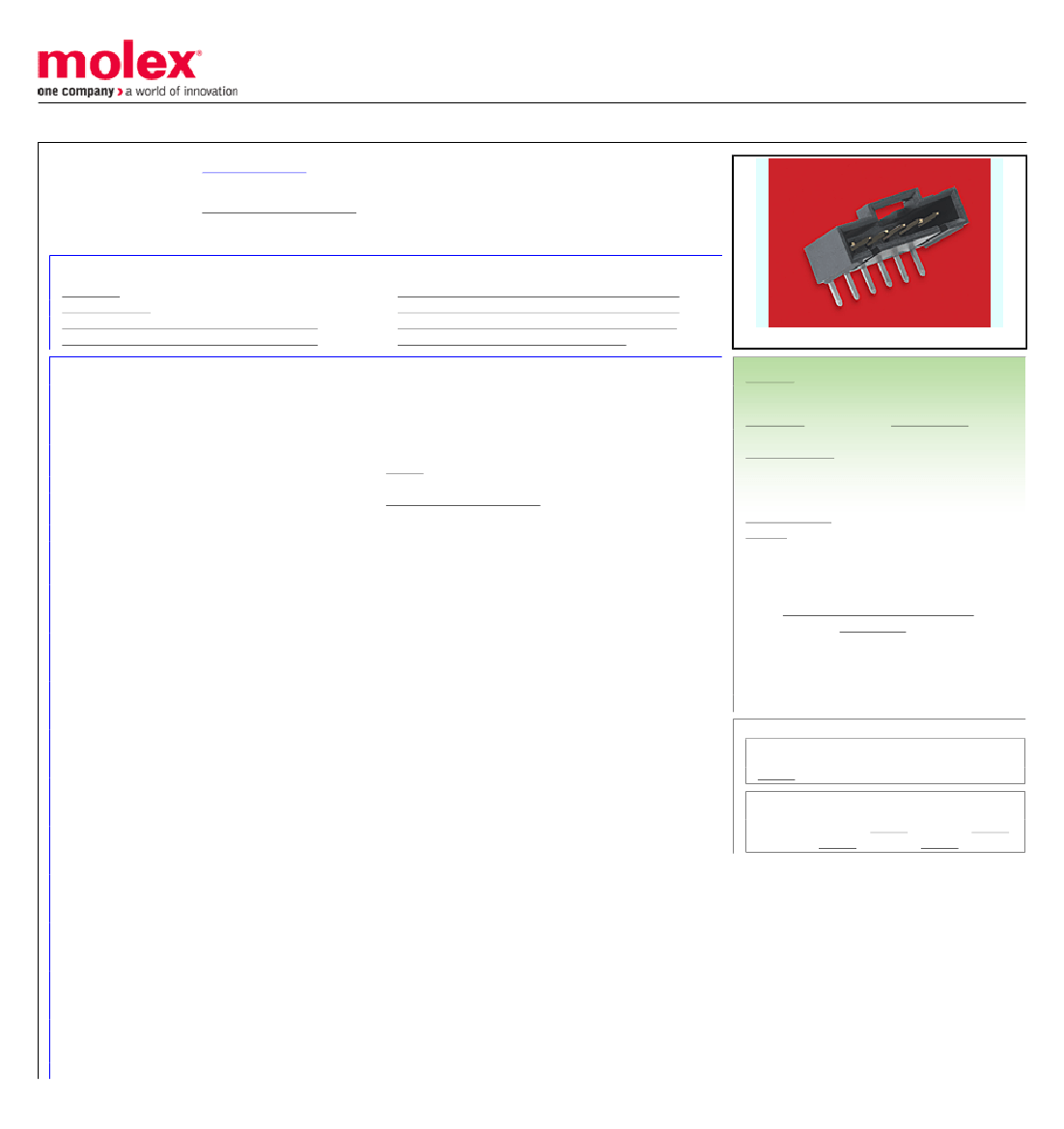

Preview

Download Datasheet

View All

This document was generated on 10/19/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0705530038

Active

SL™ Modular Connectors

2.54mm Pitch SL Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket,

Shrouded, 4 Circuits, Tin (Sn) Plating

Documents:

3D Model

Drawing (PDF)

Product Specification PS-70400-001 (PDF)

Product Specification PS-70541-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Flammability

Glow-Wire Compliant

Guide to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Product Specification TS-70541-001-001 (PDF)

Product Specification TS-70541-100-001 (PDF)

Packaging Specification PK-70873-0015 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

LR19980

E29179

PCB Headers

70553

Signal, Wire-to-Board

SL™ Modular Connectors

800753597433

Black

94V-0

Yes

Brass, Phosphor Bronze

Tin

High Temperature Thermoplastic

0.921/g

Right Angle

3.30mm

None

1.60mm

Tube

2.54mm

3.810µm

Yes

Fully

-40°C to +105°C

Through Hole

3.0A

Search Parts in this Series

70553 Series

Mates With

SL Crimp Housing 70066 Option N, 70066

Option G, 70430 Option G, 70400 Option G

Recommended Resources
