MAL213844153E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> MAL213844153E3

MAL213844153E3: DescriptionAluminum Electrolytic Capacitors - Leaded 15000uF 10V 21x38mm 105 C 10000h; CategoryPassive components capacitor; File Size243KB，12 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

MAL213844153E3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MAL213844153E3	-	-	View	Buy Now

MAL213844153E3 Overview

Aluminum Electrolytic Capacitors - Leaded 15000uF 10V 21x38mm 105 C 10000h

MAL213844153E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	15000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	21.5 mm
dielectric materials	ALUMINUM
ESR	63 mΩ
JESD-609 code	e3
leakage current	0.3 mA
length	42 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	4
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	TUBULAR PACKAGE
Package form	PCB Mount
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	2200 mA
surface mount	NO
Delta tangent	0.55
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT

Preview

Download Datasheet

View All

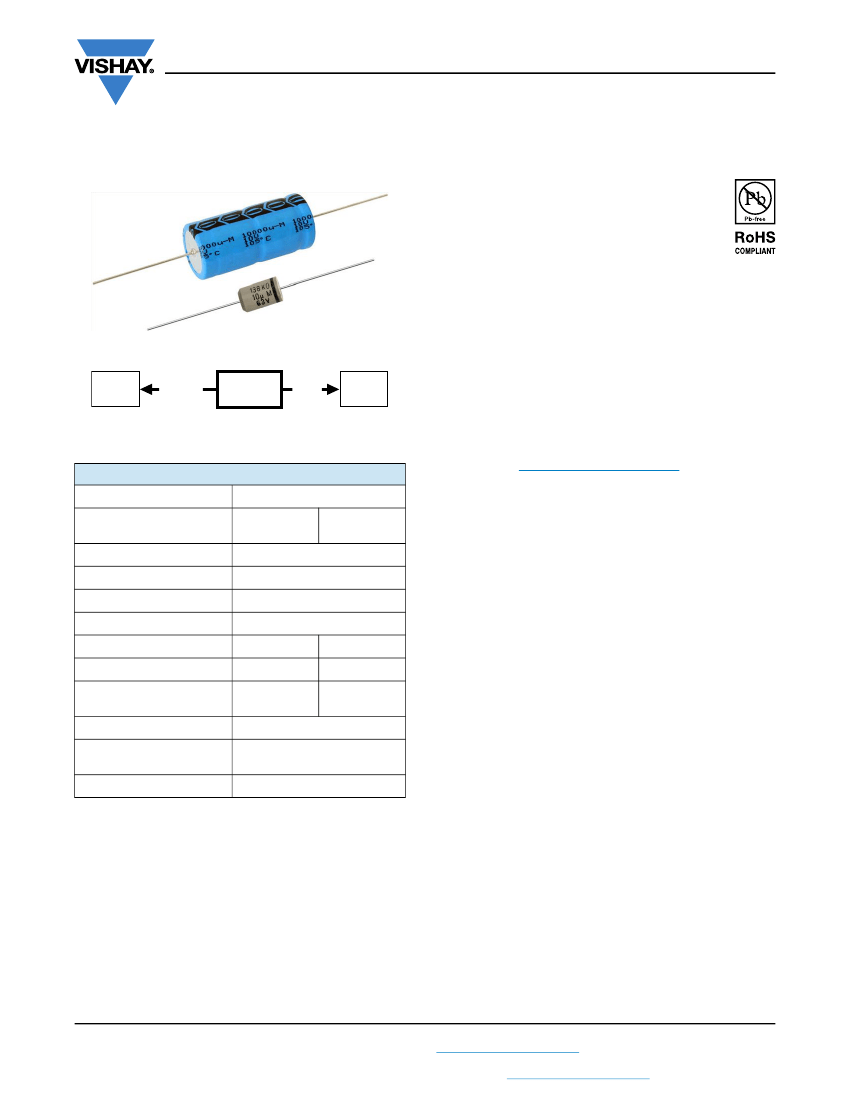

138 AML

www.vishay.com

Vishay BCcomponents

Aluminum Electrolytic Capacitors

Axial Miniature, Long-Life

FEATURES

• Polarized aluminum

non-solid electrolyte

electrolytic

capacitors,

• Axial leads, cylindrical aluminum case, insulated

with a blue sleeve



(case Ø 6.3 mm x 12.7 mm and 7.7 mm x 12.7 mm are

molded with flame retardant plastic material)

• Mounting ring version not available in insulated form

• Taped versions up to case Ø 15 mm x 30 mm available for

automatic insertion

• Charge and discharge proof

021 ASM

smaller

dimensions

138 AML

longer

life

118

AHT

120 AT

• Long useful life: 2000 h to 10 000 h at 105 °C, high

reliability

• High ripple current capability

• Miniaturized, high CV-product per unit volume

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

Fig. 1

QUICK REFERENCE DATA

DESCRIPTION

Nominal case sizes



(Ø D x L in mm)

Rated capacitance range, C

Tolerance on C

Rated voltage range, U

Category temperature range

Endurance test at 105 °C

Useful life at 105 °C

Useful life at 40 °C,



applied

Shelf life at 0 V, 105 °C

Based on sectional

specification

Climatic category IEC 60068

6.3 x 12.7

to 10 x 25

VALUE

10 x 30

to 21 x 38

APPLICATIONS

• Industrial, automotive, EDP and telecommunication

• Smoothing, filtering, buffering in SMPS; coupling,

decoupling, timing

• Portable and mobile equipment (small size, low mass)

• Stand-by applications

• Low mounting height boards, vibration and shock

resistant

2.2 μF to 15 000 μF

± 20 %

6.3 V to 100 V

-40 °C to +105 °C

1000 h

2000 h

5000 h

10 000 h

MARKING

The capacitors are marked (where possible) with the

following information:

• Rated capacitance (in μF)

• Tolerance on rated capacitance, code letter in accordance

with IEC 60062 (M for ± 20 %)

• Rated voltage (in V)

• Upper category temperature (105 °C)

• Date code, in accordance with IEC 60062

• Code for factory of origin

• Name of manufacturer

• Negative terminal identification

• Series number (138)

1.3 x I

applied: 1.8 x I

applied:

200 000 h

500 000 h

500 h

IEC 60384-4 / EN130 300

40 / 105 / 56

Revision: 10-Jan-17

Document Number: 28332

For technical questions, contact:

aluminumcaps1@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000
