LFSPXO071975Reel datasheet, PDF

Datasheet> All Categories > Passive components> LFSPXO071975Reel

LFSPXO071975Reel: DescriptionStandard Clock Oscillators 32.7680kHz 1.6 x 1.2 x 0.7mm; CategoryPassive components; File Size185KB，2 Pages; ManufacturerIQD

Download Datasheet Parametric View All

LFSPXO071975Reel Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LFSPXO071975Reel	-	-	View	Buy Now

LFSPXO071975Reel Overview

Standard Clock Oscillators 32.7680kHz 1.6 x 1.2 x 0.7mm

LFSPXO071975Reel Parametric

Parameter Name	Attribute value
Product Category	Standard Clock Oscillators
Manufacturer	IQD
RoHS	Details
Product	Standard Clock Oscillators
Frequency	32.768 kHz
Frequency Stability	50 PPM
Load Capacitance	15 pF
Operating Supply Voltage	2.5 V
Output Format	CMOS
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Length	1.6 mm
Width	1.2 mm
Height	0.7 mm
Packaging	Reel
Duty Cycle - Max	55 %
Factory Pack Quantity	3000
Type	Crystal Oscillator

Preview

Download Datasheet

View All

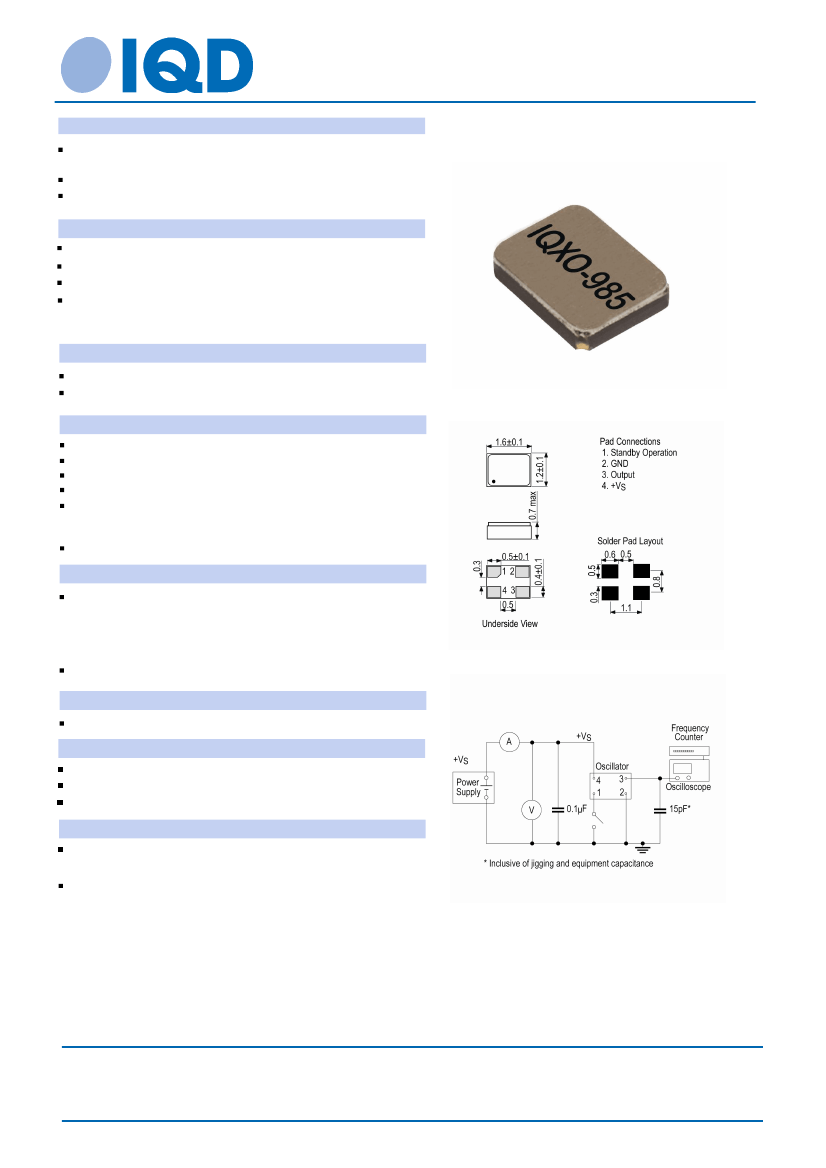

Crystal Clock Oscillator Specification

Part No. + Packaging:

LFSPXO071975Reel

Description

1.6 x 1.2mm crystal oscillator in a ceramic package with a seam

sealed metal lid, hermetically sealed.

Model

IQXO-985

Model Issue number

Frequency Parameters

Frequency

Frequency Stability

32.7680kHz

50.00ppm

Operating Temperature Range

-40.00 to 85.00°C

Frequency Stability: Includes Frequency Tolerance @ 25°C,

operating temperature range, supply voltage variation and load

variation.

Electrical Parameters

Supply Voltage

Current Draw (typical)

Output Details

2.5V ±10%

0.025mA

Outline (mm)

Output Compatibility

Drive Capability

Rise and Fall Time

Duty Cycle

Output Voltage Levels:

Output Low (VoL): 10%Vs max

Output High (VoH): 90%Vs min

Start Up Time: TBD

Output Control

CMOS

15pF max

200.0ns max

45/55

Stand-by Mode:

Logic '0' (30%Vs max) to pad 1 disables the oscillator output,

the output goes to a high impedance state.

Logic '1' (70%Vs min) or no connection to pad 1 enables

oscillator output.

Stand-by Current: 1.4μA typical 3μA max

Environmental Parameters

Test Circuit

Storage Temperature Range: –40 to 85°C

Compliance

RoHS Status (2011/65/EU)

REACh Status

MSL Rating (JDEC-STD-033):

Packaging Details

Compliant

Not Applicable

Pack Style: Reel

Pack Size: 3,000

Tape & reel in accordance with EIA-481-D

Alternative packing option available

Sales Office Contact Details:

UK: +44 (0)1460 270200

Germany: 0800 1808 443

France: 0800 901 383

USA: +1.760.318.2824

Email: info@iqdfrequencyproducts.com

Web: www.iqdfrequencyproducts.com

Page 1 of 2

Printed on 11 Oct 18 12:53 using Part Data Sheet V1.00015
