20VLD90-V Overview

Ceramic Disc Capacitors 9000pF

20VLD90-V Parametric

Parameter Name	Attribute value
Product Category	Ceramic Disc Capacitors
Manufacturer	Vishay
RoHS	No
Capacitance	9000 pF
Voltage Rating AC	400 VAC
Dielectric	Y5V
Tolerance	20 %
Diameter	13.5 mm
Lead Spacing	9.5 mm
Minimum Operating Temperature	- 30 C
Maximum Operating Temperature	+ 125 C
Termination Style	Radial
Product	Safety Ceramic Disc Capacitors
Application	Safety
Capacitance - nF	9 nF
Capacitance - uF	0.009 uF
Class	X2
Operating Temperature Range	- 30 C to + 85 C
Factory Pack Quantity	250
Temperature Coefficient	- 82 %, + 22 %
Temperature Coefficient / Code	Y5V
Type	AC Line Rated Ceramic Disc Capacitors Class X2 400 VAC
Voltage Rating	250 V

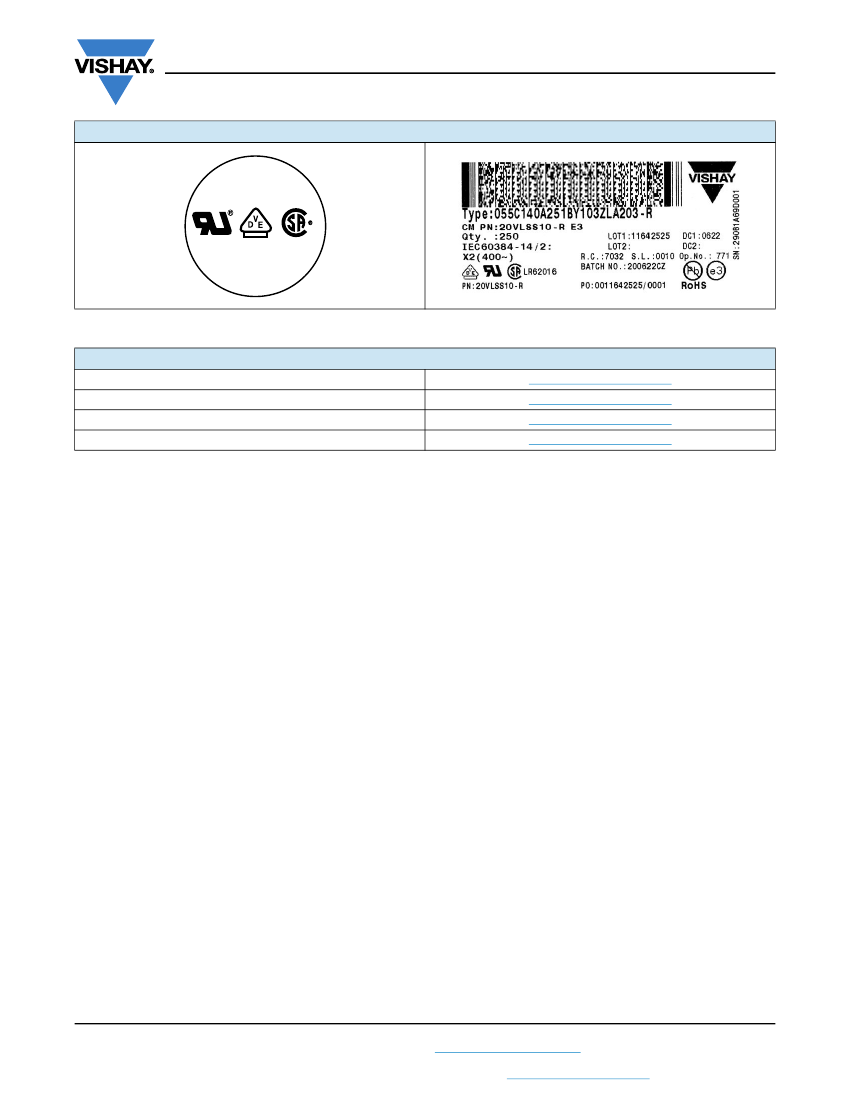

Preview

Download Datasheet

View All

20VL Series

www.vishay.com

Vishay Cera-Mite

AC Line Rated Ceramic Disc Capacitors

Class X2, 400 V

FEATURES

• Complying with IEC 60384-14 3

edition

• High reliability

• Radial leads

• Singlelayer AC disc safety capacitors

• Material categorization: for definitions of

compliance please see

www.vishay.com/doc?99912

APPLICATIONS

• X2 according to IEC 60384-14.3

• Across-the-line

• RFI filtering

VALUE

Y5V

400

9000

100 000

Radial

QUICK REFERENCE DATA

DESCRIPTION

Ceramic Class

Ceramic Dielectric

Voltage (V

)

Min. Capacitance (pF)

Max. Capacitance (pF)

Mounting

DESIGN

The capacitors consist of a ceramic disc of which both sides

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.025" (0.64 mm). The

capacitors may be supplied with radial kinked or straight

leads having a lead spacing of 0.375" (9.5 mm) or 0.250"

(6.4 mm). The standard tolerance is ± 20 %. Coating is

made of flame retardant epoxy resin in accordance

with “UL 94 V-0.”

INSULATION RESISTANCE

Min. 1000

F

CAPACITANCE RANGE

9 nF to 0.1 μF

TOLERANCE ON CAPACITANCE

± 20 %

RATED VOLTAGE

IEC 60384-14.3:

X2: 400 V

, 50 Hz

DISSIPATION FACTOR

2.0 % max. at 1 kHz; 1 V

DIELECTRIC STRENGTH BETWEEN LEADS

Component test:

1250 V

, 50 Hz, 2 s

As repeated test admissible only once with:

1080 V

, 50 Hz, 2 s

Random sampling test (destructive test):

1250 V

, 50 Hz, 60 s

CERAMIC DIELECTRIC

Y5V

CATEGORY TEMPERATURE RANGE

-25 °C to +125 °C

CLIMATIC CATEGORY ACC. TO EN 60068-1

25 / 125 / 21

DIELECTRIC STRENGTH OF BODY INSULATION

2300 V

, 50 Hz, 60 s (destructive test)

OPERATING TEMPERATURE RANGE

-30 °C to +125 °C

Revision: 19-Oct-16

Document Number: 23107
