ET2424-016: DescriptionCommon Mode Chokes / Filters Inductor/Common Mode 1.5A/0.25ohm max DCR; CategoryAnalog mixed-signal IC filter; File Size53KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

ET2424-016 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ET2424-016	-	-	View	Buy Now

ET2424-016 Overview

Common Mode Chokes / Filters Inductor/Common Mode 1.5A/0.25ohm max DCR

ET2424-016 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Triad Magnetics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	INDUCTANCE 3.6 MILLI HENRY
Certification	UL; CSA; IEC
filter type	SINGLE PHASE EMI FILTER
high	23 mm
Minimum insulation resistance	100 MΩ
length	26.5 mm
Installation type	THROUGH HOLE MOUNT
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
physical size	L26.5XB26.5XH23.0 (mm)/L1.043XB1.043XH0.906 (inch)
Rated current	1.5 A
Rated voltage	250 V
width	26.5 mm

Preview

Download Datasheet

View All

Switchmode/High Frequency

Common Mode Inductors

ET2424-016

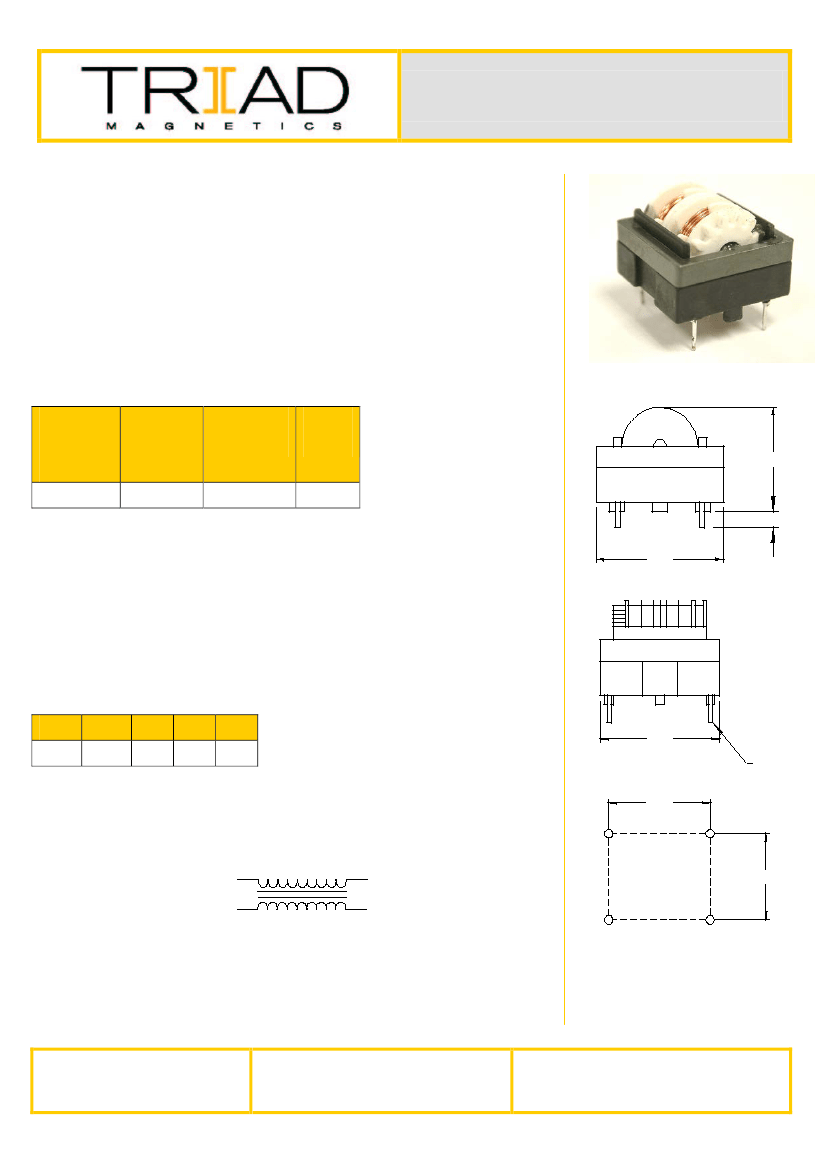

Description:

Common-mode coils are useful in a wide range of applications for the prevention

of electromagnetic interference (EMI) and radio frequency interference (RFI) from

power supply lines and for prevention of malfunctioning of various electronic

equipments. Features include low leakage flux, high self-resonant frequency, high

impedance at applicable frequency and low stray capacitance in section winding.

Designed to meet UL, CSA and IEC standards.

Electrical Specifications (@20°C):

Min.

Inductance*

(mH)

3.60

Inductance

Difference

(µH) Max

150

0.25

1.50

.158 +/- .040

Max. DC (Ω)

Resistance

Amps

RMS

*inductance per winding.

Specifications:

Rated Voltage =

250VAC

Temperature Rise =

45°C Max

Insulation Resistance =

100M Ω Min

Operating Temperature Range =

-20 to 105°C

Dielectric Withstanding Voltage =

2,000 VAC

Dimensions:

1.043

.905

.827

.591

+ .008

.032 DIA. 0

Units in inches.

Weight: .88 oz.

Schematic:

PIN MOUNTING

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet the

requirements of 2011/65/EU, known as the RoHS initiative.

*Upon printing, this document is considered “uncontrolled”. Please contact Triad Magnetics

website for the most current version.

For soldering and washing information please see

http://www.triadmagnetics.com/faq.html

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: June 7, 2016
